SAMEBIKE LO26plus Electric Folding Bicycle User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your SAMEBIKE LO26plus Electric Folding Bicycle. The LO26plus is a versatile 26-inch electric bicycle designed for both men and women, featuring a powerful 250W motor, a long-range 15Ah battery, professional 7-speed gearing, and hydraulic oil disc brakes for reliable stopping power. Its foldable design makes it convenient for storage and transport. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.

Figure 1.1: The SAMEBIKE LO26plus Electric Folding Bicycle in black.

2. Safety Information

Your safety is paramount. Always adhere to the following safety guidelines:

• Wear a Helmet: Always wear a certified bicycle helmet that fits properly.
• Obey Traffic Laws: Follow all local traffic laws, regulations, and signs.
• Pre-Ride Inspection: Before each ride, check tire pressure, brake function, battery charge, and ensure all quick releases and fasteners are secure.
• Weather Conditions: Exercise caution when riding in wet or adverse weather conditions. Hydraulic disc brakes offer excellent performance but require careful handling on slippery surfaces.
• Visibility: Use the integrated headlight and ensure reflectors are clean and visible, especially when riding at dusk or night. Consider wearing reflective clothing.
• Load Capacity: Do not exceed the maximum load capacity of 150 kg (330 lbs).
• Folding Mechanism: Ensure the folding mechanism is fully engaged and locked before riding.

3. Components Overview

Familiarize yourself with the main components of your SAMEBIKE LO26plus:

• A. Frame: Durable aluminum alloy folding frame.


  Figure 3.1: Side view highlighting the bicycle frame and folding hinge.
• B. Motor: 250W high-speed brushless motor located in the rear hub.


  Figure 3.2: Illustration of the 250W powerful motor and its components.

• C. Battery: Removable 48V/15Ah (720Wh) lithium-ion battery, integrated into the frame.
• D. Wheels & Tires: 26-inch wheels with 3.0-inch fat tires, designed for various terrains.


  Figure 3.3: Detail of the 26-inch by 3.0-inch fat tire, suitable for city, sand, snow, and mountain roads.

• E. Brakes: 180mm hydraulic oil disc brakes on both front and rear wheels for precise stopping.
• F. Suspension: Front suspension fork and a four-link mid-shock rear suspension system for improved comfort and handling.


  Figure 3.4: Diagram illustrating the four-link mid-shock suspension for enhanced comfort.
• G. Drivetrain: Professional 7-speed gear system.
• H. Display: LCD display (common for e-bikes, assumed) showing speed, battery level, and pedal assist level.
• I. Headlight & Reflector: Integrated front headlight and rear reflector for visibility.


  Figure 3.5: Detailed view of the front headlight, rear suspension, comfortable seat, and durable pedal.

4. Setup and Initial Assembly

Your SAMEBIKE LO26plus comes mostly pre-assembled. Follow these steps for final setup:

1. Unboxing: Carefully remove the bicycle and all components from the packaging. Inspect for any shipping damage.


   Figure 4.1: The bicycle packaging box, indicating product details and certifications.

2. Unfolding the Bicycle:
   • Locate the main folding hinge on the frame.
   • Release the safety latch and open the hinge to unfold the frame until it locks into place.
   • Secure the frame with the quick-release lever.
   • Unfold the handlebars and secure them.
   • Adjust the seat post height to a comfortable riding position and secure it.

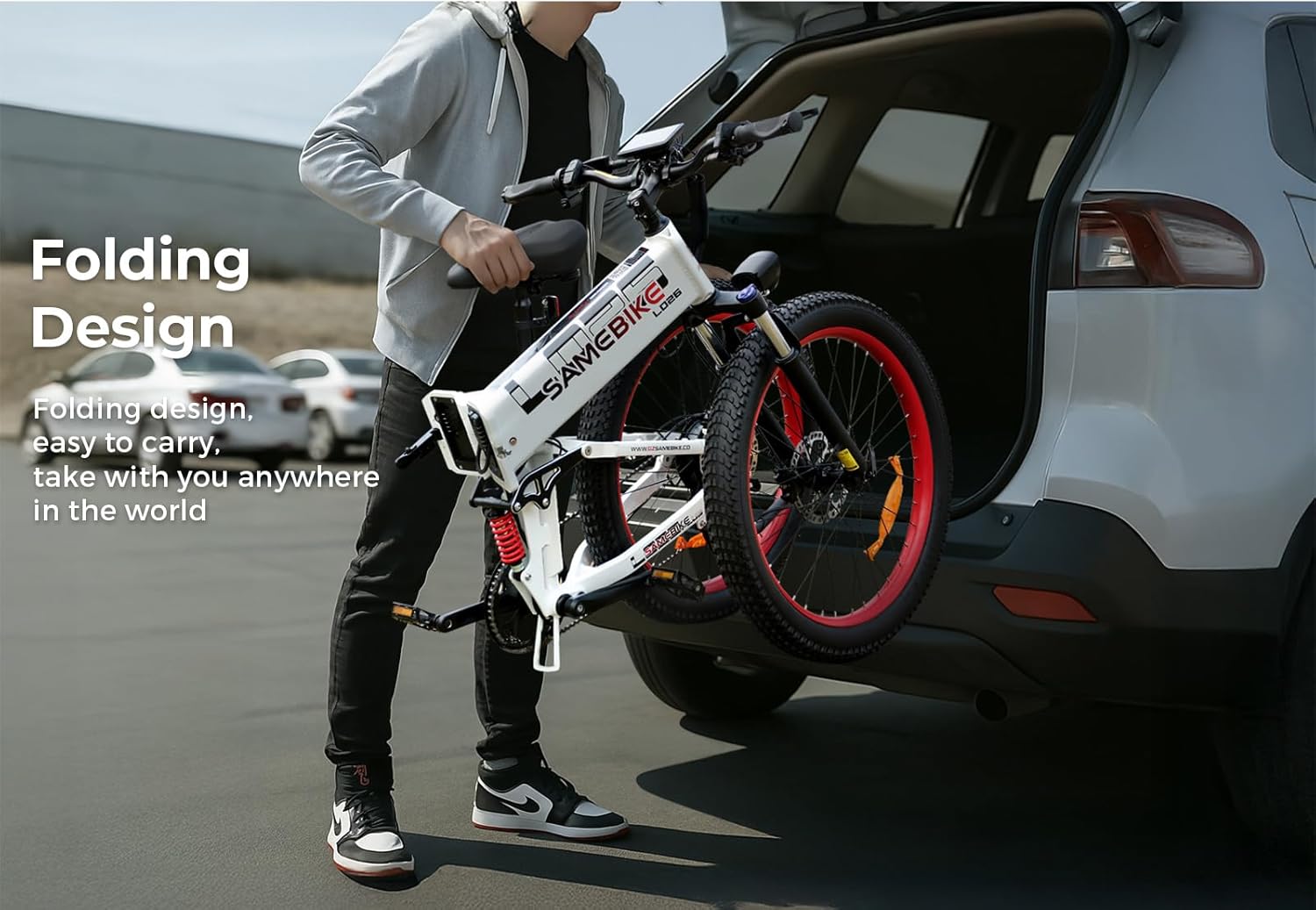

   Figure 4.2: Demonstrating the folding design for easy transport and storage.
3. Pedal Installation: Identify left (L) and right (R) pedals. Thread them carefully into the crank arms (left pedal is reverse threaded). Tighten securely with a wrench.
4. Initial Battery Charge: Fully charge the battery before your first ride. Connect the charger to the battery port and then to a power outlet. The charging time is approximately 4-6 hours.
5. Pre-Ride Checks: Perform all safety checks mentioned in Section 2. Ensure tires are inflated to the recommended pressure (check tire sidewall for details).

5. Operation

Operating your SAMEBIKE LO26plus is intuitive. Here's how to get started:

• Powering On/Off: Press and hold the power button on the display unit to turn the bicycle's electrical system on or off.
• Riding Modes: The LO26plus offers three riding modes:
  • Pure Electric Mode: Use the throttle (if equipped) for propulsion without pedaling.
  • Pedal Assist System (PAS) Mode: The motor provides assistance as you pedal. Select from 5 levels of assistance using the '+' and '-' buttons on the display.
  • Pure Pedal Mode: Ride the bicycle like a traditional bike with no motor assistance.
• Gear Shifting: Use the 7-speed shifter to select appropriate gears for different terrains and speeds. Shift smoothly to avoid strain on the drivetrain.
• Braking: Apply both front and rear hydraulic disc brakes simultaneously for effective and controlled stopping. Avoid sudden, hard braking, especially at high speeds or on slippery surfaces.
• Battery Management: Monitor the battery level on the display. Recharge the battery when it's low to ensure consistent performance and extend battery life.


  Figure 5.1: The LO26plus provides a dynamic riding experience across varied terrains.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your e-bike:

• Cleaning: Clean the bicycle regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Brakes: Periodically check brake pads for wear and hydraulic fluid levels. If braking performance diminishes, consult a professional for service.
• Tires: Maintain correct tire pressure as indicated on the tire sidewall. Inspect tires for wear, cuts, or punctures.
• Chain: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
• Battery Care: Store the battery in a cool, dry place. If storing for extended periods, charge it to 50-70% every 2-3 months.
• Fasteners: Regularly check and tighten all bolts, nuts, and quick releases.

7. Troubleshooting

Here are solutions to common issues you might encounter:

If you encounter issues not listed here or require further assistance, please contact SAMEBIKE customer support.

8. Specifications

Key technical specifications for the SAMEBIKE LO26plus Electric Folding Bicycle:

Figure 8.1: Detailed product dimensions and folded size for the LO26plus.

9. Warranty and Support

SAMEBIKE provides a reliable service and warranty for your LO26plus Electric Folding Bicycle.

• Warranty Period: A one-year warranty or replacement is guaranteed for the motor, battery, and controller from the date of purchase.
• Claiming Warranty: In case of a defect covered by the warranty, please contact SAMEBIKE customer support with your proof of purchase and a detailed description of the issue.
• Customer Support: For any questions, technical assistance, or warranty claims, please visit the official SAMEBIKE website or contact their customer service department.

Note: Warranty terms may vary based on region and retailer. Please refer to your purchase documentation for specific details.
