SENIX 22-inch 170cc Self-Propelled Gas Lawn Mower

Introduction

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your SENIX 22-inch 170cc Self-Propelled Gas Lawn Mower, Model LSSG-H4. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury or death.

• Always wear appropriate personal protective equipment, including eye protection, hearing protection, and sturdy footwear.
• Keep hands and feet away from rotating parts. Do not place hands or feet near or under the cutting deck.
• Ensure the engine is off and the spark plug wire is disconnected before performing any maintenance, adjustments, or clearing blockages.
• Never operate the mower in wet grass or rain.
• Clear the area of objects such as rocks, toys, or wires before mowing.
• Do not allow children or untrained individuals to operate the mower.
• Exercise extreme caution when operating on slopes. Mow across the face of slopes, never up and down.
• Do not pull the mower backward towards you, especially on slopes, as this increases the risk of injury. Be aware that the rear guard can interfere with backward movement and be damaged by the blade.
• Refuel in a well-ventilated area with the engine off and cool. Do not smoke while refueling.

Image: Rear view of the mower, highlighting safety labels and the rear discharge area. Always observe safety warnings on the machine.

Product Overview

The SENIX LSSG-H4 is a 22-inch self-propelled gas lawn mower designed for efficient lawn maintenance. It features a powerful 170cc engine and a versatile 3-in-1 cutting system.

Key Features:

• Engine: 170cc 4-cycle OHV engine for reliable power.
• Cutting Width: 22-inch steel deck for efficient coverage.
• Cutting System: 3-in-1 functionality including mulching, side discharge, and rear bagging with a 19-gallon bagger.
• Height Adjustment: 6-position single-lever height adjustment from 1.25 inches to 4 inches.
• Drive System: Rear-wheel drive, single-speed self-propelled system for easier operation.
• Wheels: Rugged 8-inch front and 11-inch rear wheels for smooth navigation.
• Blade: Durable 22-inch Manganese Steel Blade.

Image: The 170cc 4-cycle OHV engine, providing power for the mower.

Image: The 22-inch wide cutting deck, designed for efficient mowing.

Image: The durable 22-inch Manganese Steel Blade, located beneath the cutting deck.

Setup and Assembly

Your SENIX lawn mower requires some assembly before first use. It is recommended to perform assembly on a flat, stable surface like a patio table or garage floor.

Tools Required:

• 10mm socket wrench
• 13mm socket wrench
• Crescent wrench (capable of opening to 13mm)
• Optional: A second 13mm socket wrench with a second handle for easier tightening.

Assembly Steps:

1. Attach Lower Handles: Bolt on the lower handles. Ensure they flare outwards, not inwards, as shown in Figure 6 of the included printed manual.
2. Install Wheels: When installing the wheels, the bolt or axle should go through the wheel first. The bushing and nut are then secured on the inside. Ensure all nuts and bolts are tightened securely.
3. Connect Cables: Connect any control cables to the handle assembly.
4. Attach Grass Bagger (if applicable): Secure the grass bagger to the rear of the mower.

Adding Oil and Fuel:

Before starting the mower, it is crucial to add engine oil and fuel. The mower is shipped without these fluids.

• Engine Oil: Locate the oil fill cap, typically marked with an oil can symbol. Pour the provided engine oil into the oil reservoir. Refer to the engine's dipstick for the correct fill level. Do not overfill.
• Fuel: Locate the fuel tank cap, typically marked with a gas pump symbol. Fill the tank with fresh, unleaded gasoline. For optimal performance and engine longevity, it is highly recommended to use non-ethanol gasoline.
• Air Filter: The foam air filter may come lightly oiled from the factory. Check its condition and ensure it is properly seated.

Operating Instructions

Starting the Mower:

1. Ensure the spark plug wire is securely connected.
2. Press the primer bulb 3 times to prime the engine.
3. Hold the operator presence control bar against the handle.
4. Pull the starter rope firmly and steadily until the engine starts. It may take a few pulls.

Adjusting Cutting Height:

The mower features a 6-position single-lever height adjustment system, allowing you to set the cutting height from 1.25 inches to 4 inches.

1. With the engine off, locate the height adjustment lever on the side of the mower deck.
2. Pull the lever outwards and move it to the desired position (1-6).
3. Ensure all wheels are set to the same height for an even cut.

Image: The 6-position central height adjustment lever, allowing precise control over cutting height.

Mowing Functions (3-in-1 System):

Your mower offers three versatile cutting options:

• Mulching: The mower finely cuts grass clippings and returns them to the lawn as natural fertilizer. To mulch, ensure the side discharge chute and rear bagger are removed, and the mulch plug is installed.
• Side Discharge: Grass clippings are discharged from the side of the mower. To use side discharge, attach the side discharge chute and ensure the rear bagger is removed and the mulch plug is not installed.
• Rear Bagging: Clippings are collected in the 19-gallon grass bag. To bag, attach the grass bagger and ensure the side discharge chute is removed and the mulch plug is not installed.

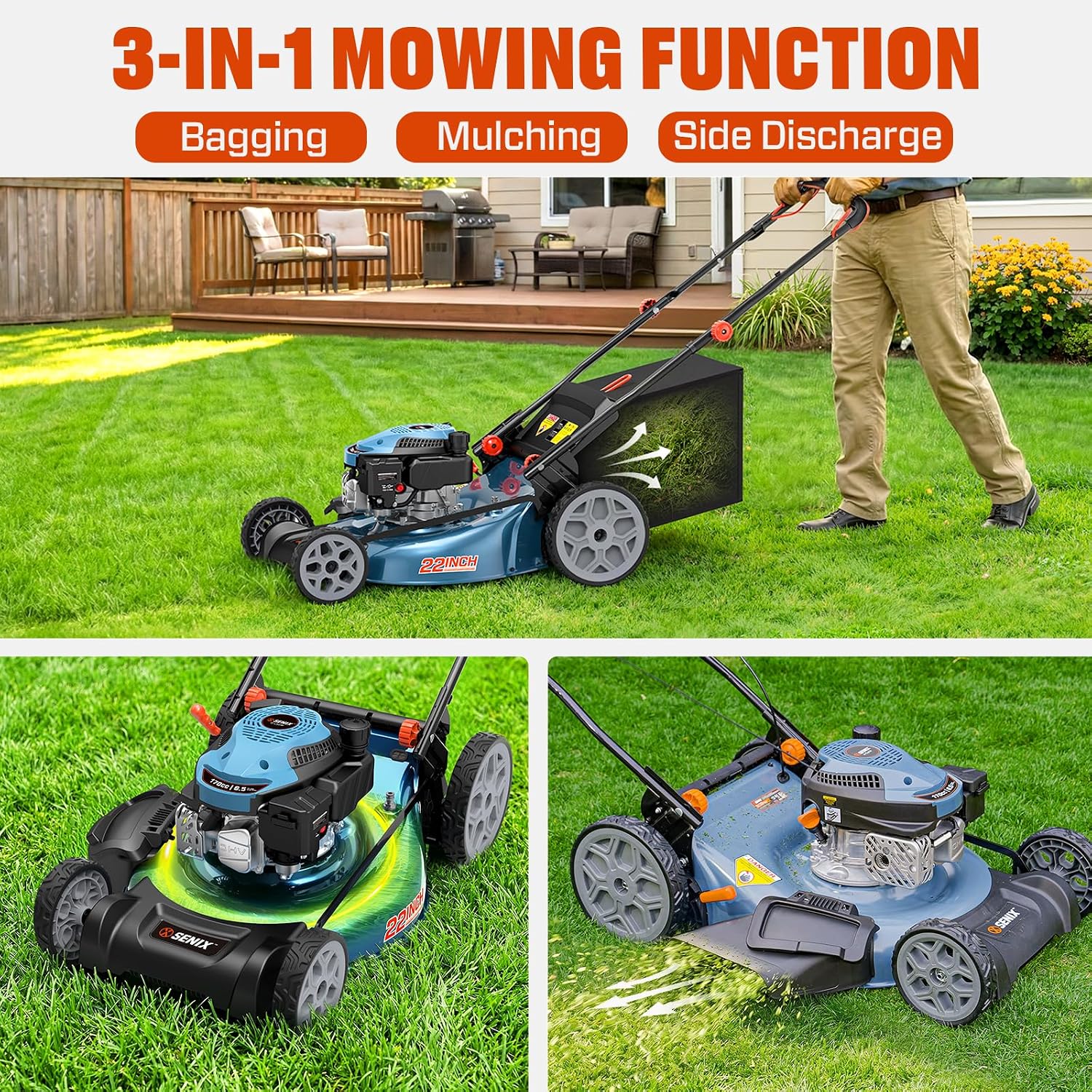

Image: Visual representation of the 3-in-1 mowing functions: bagging, mulching, and side discharge.

Self-Propelled Operation:

The self-propelled rear-wheel drive system assists in moving the mower forward, reducing effort, especially on inclines.

• To engage the self-propel feature, hold down the self-propel lever (usually located on the upper handle).
• Release the lever to disengage the self-propel feature.
• The mower is single-speed, providing consistent forward motion.

Image: A user demonstrating the self-propelled rear-wheel drive system, making mowing easier on varied terrain.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your lawn mower. Always ensure the engine is off and the spark plug wire is disconnected before performing any maintenance.

Cleaning:

• The mower features an integrated washout port for easy cleaning of the underside of the deck. Connect a garden hose to the port and run the engine for a short period to clean.
• After each use, clean grass clippings from the deck, wheels, and engine cooling fins.

Engine Maintenance:

• Oil Changes: Refer to the engine manufacturer's manual for recommended oil change intervals. Regularly check the oil level and top up as needed.
• Air Filter: Inspect the air filter regularly. Clean or replace it if it is dirty or clogged to ensure proper engine performance.
• Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled.

Blade Maintenance:

• Regularly inspect the cutting blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn.
• If the blade is dull, it can be sharpened or replaced. Use only genuine SENIX replacement blades or equivalent specifications.
• For replacement blades, contact SENIX customer support or an authorized dealer.

Troubleshooting

Specifications

Warranty and Support

Warranty Information:

The SENIX 22-inch 170cc Self-Propelled Gas Lawn Mower is backed by a 2-year limited warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, parts, or warranty service, please contact SENIX customer support. Refer to the contact information provided in the packaging or on the official SENIX website.

For more information and product registration, visit the official SENIX Store: SENIX Tools Store
