This manual provides essential instructions for the assembly, operation, maintenance, and troubleshooting of your HOMYEDAMIC Oversized Recliner Chair. Please read these instructions carefully before use and retain for future reference.
1. Setup and Assembly
Your recliner chair is delivered in two separate boxes. Ensure both boxes are received before beginning assembly. Assembly typically involves connecting the backrest to the seat base and attaching any side components. It is recommended to have a second person assist with assembly for ease and safety.
- Unpack all components and verify against the parts list (not provided in this manual, refer to packaging).
- Place the seat base on a clean, flat surface.
- Align the backrest with the connectors on the seat base and slide it into place until it locks securely.
- Attach any armrests or side panels as per the specific instructions included with your product.
- Ensure all connections are firm and stable before use.
Image 1: Product Dimensions and Packaging. This image illustrates the overall dimensions of the recliner chair and indicates that it is shipped in two boxes, labeled A and B, for assembly.
Image 2: Chair Underside. This view shows the metal frame and mechanism beneath the chair, providing context for structural integrity and assembly points.
2. Operating Instructions
2.1 Reclining Function
To recline the chair, locate the handle on the side of the chair. Pull the handle to release the backrest and footrest mechanism. Lean back gently to achieve your desired reclining angle. The chair supports multiple reclining positions, typically ranging from an upright 90-degree angle to a fully reclined 150-degree napping position. The backrest angle is adjustable but not lockable at intermediate positions.
Image 3: Recline Function. This diagram illustrates the various reclining angles (90°, 120°, 150°) suitable for different activities like reading, watching TV, and napping. It also shows the exterior snap handle used to activate the recline mechanism.
2.2 Footrest Recovery Method
To retract the footrest and return the chair to an upright position, sit with your body leaning slightly forward and grasp the armrests with both hands. Point your heel at the red circle indicated in the diagram (the lower part of the footrest) and apply gentle pressure. The footrest will retract, allowing the chair to return to its original position.

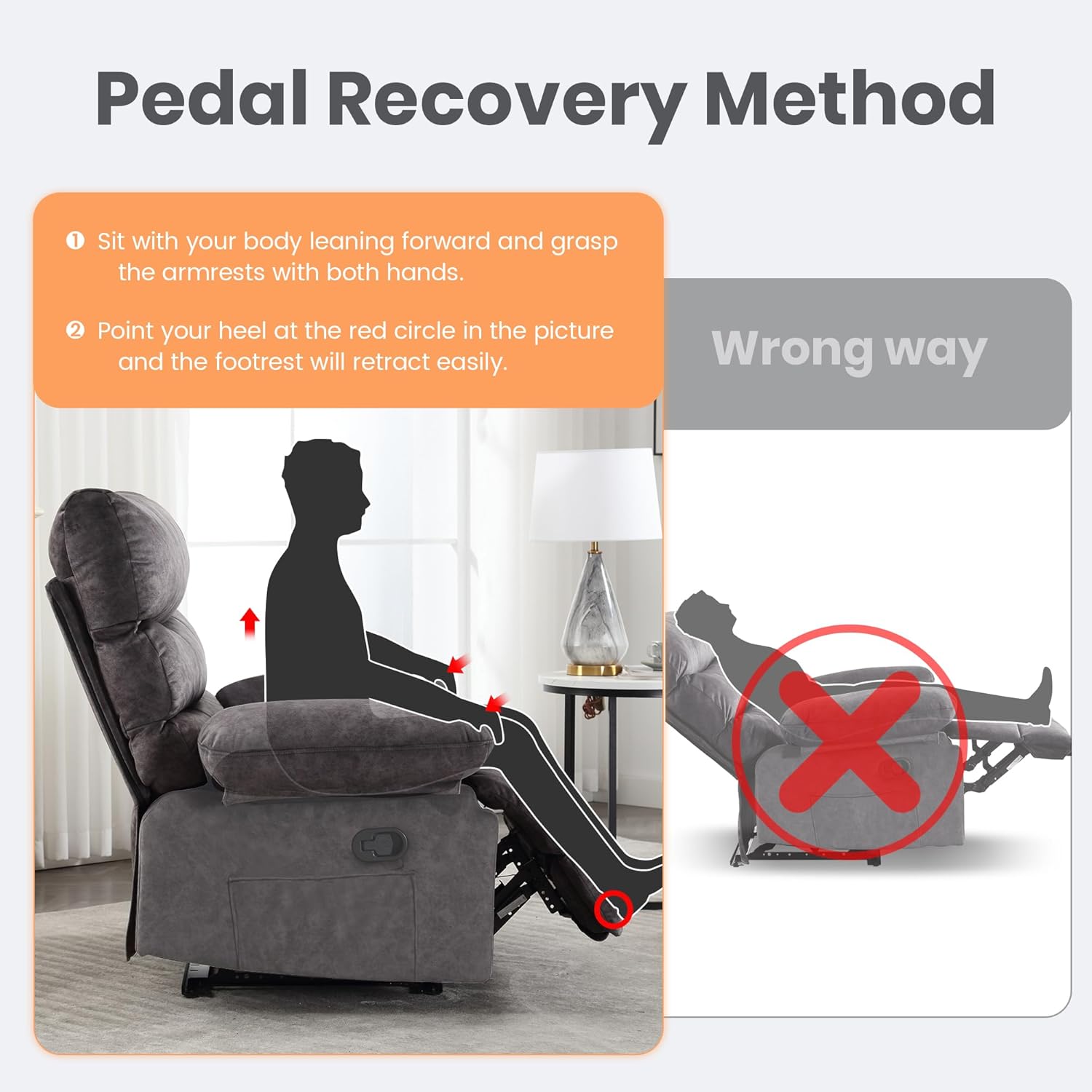

Image 4: Pedal Recovery Method. This image demonstrates the correct technique for retracting the footrest: lean forward, hold armrests, and use your heel to push the footrest back into place. An incorrect method is also shown for comparison.
2.3 Storage Pockets
The recliner chair is equipped with large storage pockets on both sides of the armrests. These pockets are suitable for holding remote controls, magazines, or other small items for convenient access.
Image 5: Chair Features. This collage highlights various aspects of the chair, including the thickened shell backrest, skin-friendly soft fabric, the 28.34-inch sitting width, and the practical large storage pockets on the armrests.
3. Maintenance
3.1 Cleaning Instructions
The manufacturer recommends Dry Clean for product care. For general cleaning, gently wipe the PU leather surface with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the material. Promptly blot any spills to prevent staining.
3.2 General Care
- Avoid placing the chair in direct sunlight or near heat sources to prevent material fading or cracking.
- Do not use sharp objects near the chair to prevent punctures or tears.
- Regularly check and tighten any loose screws or bolts to ensure stability and safety.
4. Troubleshooting
4.1 Difficulty Reclining or Closing
- Check for Obstructions: Ensure there are no objects (e.g., rugs, cables, debris) hindering the movement of the footrest or backrest mechanism.
- Proper Operation: Confirm you are using the side handle correctly to initiate the recline and the pedal recovery method to retract the footrest.
- Mechanism Alignment: If the chair feels stiff, gently rock it while operating the handle to help align the mechanism. Avoid forcing the mechanism.
4.2 Instability or Wobbling
- Assembly Check: Re-verify that all parts are correctly assembled and all bolts/screws are securely tightened. Refer to the assembly instructions.
- Even Surface: Ensure the chair is placed on a flat, even surface. Uneven flooring can cause wobbling.
4.3 Squeaking Noises
- Identify Source: Try to pinpoint where the squeaking is coming from (e.g., joints, springs).
- Lubrication: A small amount of silicone-based lubricant applied to moving metal parts may resolve squeaking. Avoid oil-based lubricants on fabric or upholstery.
5. Specifications
The following specifications apply to the HOMYEDAMIC Oversized Recliner Chair, Model 6002-NMH:
| Feature | Detail |
|---|---|
| Brand | HOMYEDAMIC |
| Model Name | 6002-NMH |
| Color | Grey |
| Product Dimensions (D x W x H) | 35.03"D x 49.21"W x 42.91"H |
| Seat Depth | 21.65 inches |
| Maximum Weight Recommendation | 350 Pounds |
| Item Weight | 110 pounds |
| Fill Material | Foam |
| Back Style | Continuous Back |
| Special Feature | Adjustable Backrest |
| Product Care Instructions | Dry Clean |
| Reclining Position Count | 2+ |
Image 6: Detailed Product Dimensions. This image provides a comprehensive overview of the recliner's measurements, including width, depth, height, seat dimensions, and reclined length, along with weight capacity and recommended user height.
6. Warranty Information
Specific warranty details for the HOMYEDAMIC Oversized Recliner Chair are not provided within this manual. For information regarding warranty coverage, terms, and conditions, please refer to the product packaging, any included warranty cards, or contact HOMYEDAMIC customer support directly.
7. Customer Support
Should you encounter any issues, have questions about assembly, operation, or require further assistance with your HOMYEDAMIC Oversized Recliner Chair, please contact HOMYEDAMIC customer support. Refer to the product packaging or the HOMYEDAMIC official website for contact information.
