1. Introduction
Thank you for choosing BEAMFLY H7 LED Headlight Bulbs. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new LED headlight bulbs. These bulbs are designed to provide superior illumination for your vehicle, enhancing visibility and driving safety.
The BEAMFLY H7 LED bulbs feature 38000 lumens of brightness and 160W of power, delivering a 6500K cool white light. They are engineered for a 1:1 replacement of standard H7 halogen bulbs, ensuring a straightforward upgrade.
2. Safety Information
- Always disconnect the vehicle's battery before performing any electrical work to prevent electrical shock or damage.
- Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
- Ensure the vehicle's engine is off and cooled down before handling headlight components.
- Do not touch the LED chips directly, as oils from your skin can reduce their lifespan.
- Verify local regulations regarding aftermarket lighting before installation.
- Keep out of reach of children.
3. Product Overview
The BEAMFLY H7 LED Headlight Bulbs are engineered for high performance and durability. Key features include:
- Super Bright Illumination: Equipped with advanced LED chips providing 38,000 lumens and 160W of high power for clear, shadow-free visibility.

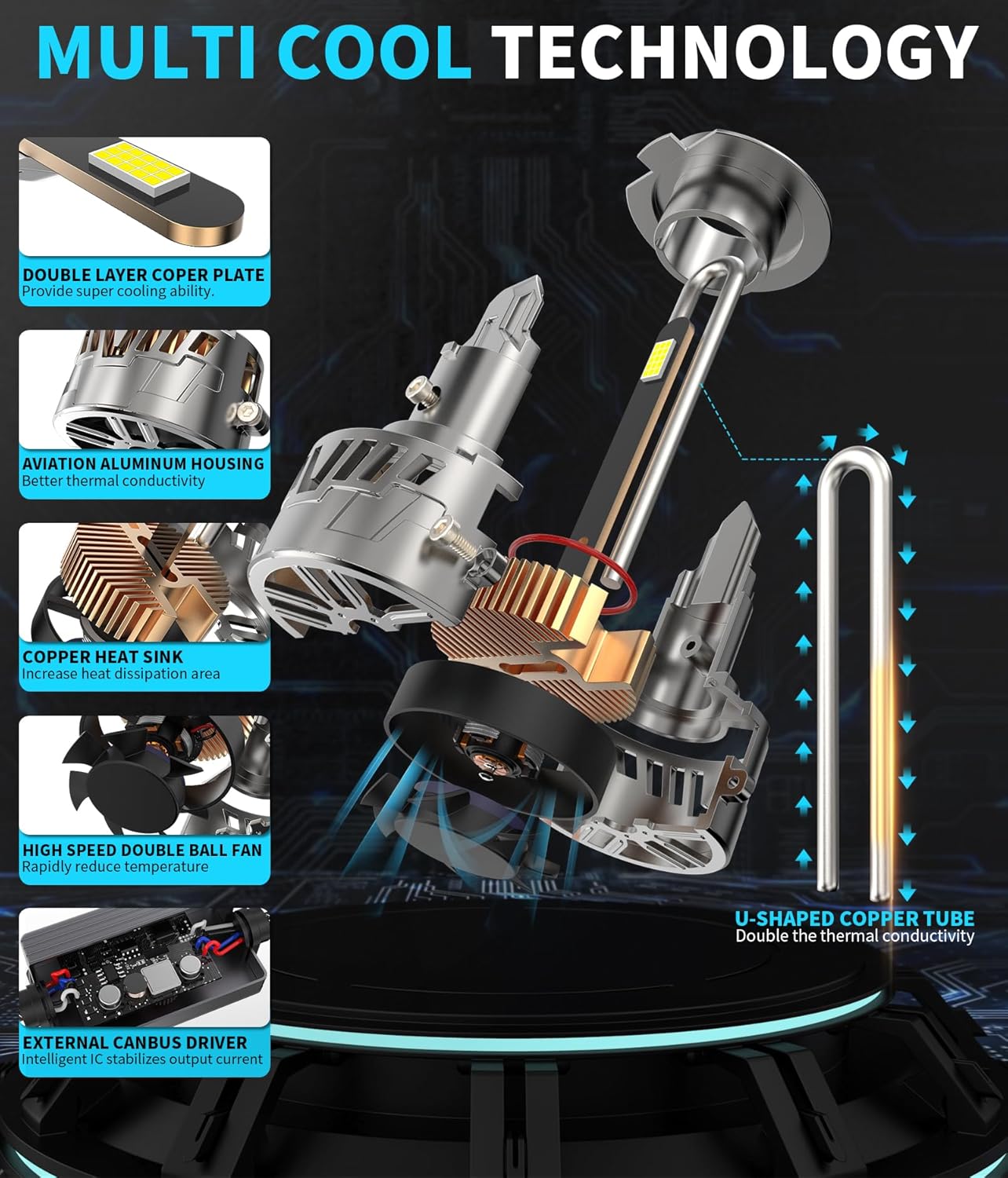

- Advanced Heat Dissipation: Constructed from aviation-grade aluminum with a U-tube cooling structure and a 20,000 RPM turbo fan for optimal temperature control and extended lifespan.

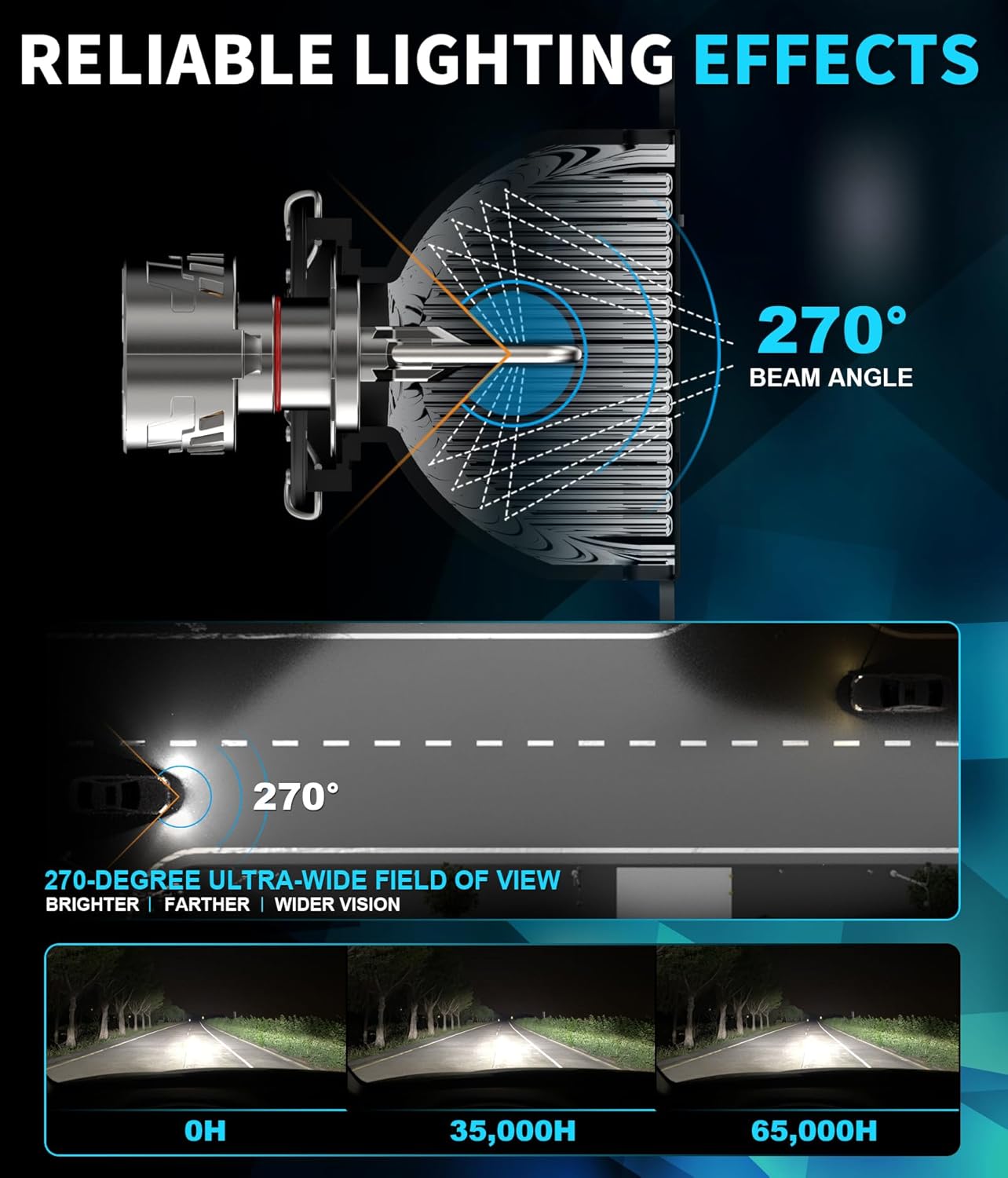

- 360° Focused Beam: Adjustable adapter allows for precise beam angle adjustment, providing a wider and farther lighting field.
- CANBUS Ready: Features an upgraded intelligent IC driver for compatibility with 99% of automotive systems, minimizing error messages.
- Plug and Play Installation: Designed for direct replacement of H7 halogen bulbs without complex modifications.
4. Setup and Installation
The BEAMFLY H7 LED bulbs are designed for a quick and easy plug-and-play installation, typically taking around 5 minutes per bulb. No modifications are generally required if a standard bulb adapter is installed.
Installation Steps:
- Preparation: Ensure your vehicle is turned off and the engine has cooled. Disconnect the negative terminal of your car battery for safety.
- Access Headlight: Open the hood and locate the back of the headlight assembly. You may need to remove a dust cover or other components to access the existing H7 halogen bulb.
- Remove Old Bulb: Disconnect the electrical connector from the halogen bulb. Release any clips or twist the bulb to remove it from the housing.
- Install LED Bulb: Insert the BEAMFLY H7 LED bulb into the headlight housing. Ensure it is seated correctly and secured with any clips or twists.
- Connect Electrical: Connect the electrical connector of the LED bulb. This product is polarized; please check the “+” and “-” on the plug before connecting to ensure correct orientation. If the bulb does not light up, reverse the connection.
- Test: Reconnect the car battery and test the headlights (low beam and high beam) to ensure proper function.
- Adjust Beam Angle (Optional): If necessary, rotate the adapter to adjust the beam angle for optimal light distribution and to avoid dazzling oncoming drivers.
5. Operating Instructions
Once installed, the BEAMFLY H7 LED headlight bulbs operate automatically with your vehicle's lighting system. They can be used for both high beam and low beam applications, depending on your vehicle's design.
- The bulbs produce a 6500K bright white light, which closely mimics natural daylight for improved clarity.
- The 360° focused beam ensures efficient light projection without dark spots.
- For optimal performance and safety, ensure your headlight assemblies are clean and free from obstructions.
6. Maintenance
BEAMFLY H7 LED headlight bulbs are designed for long-term, maintenance-free operation. However, following these general guidelines can help ensure their longevity and optimal performance:
- Keep Clean: Periodically clean your vehicle's headlight lenses to ensure maximum light output. Use a soft cloth and appropriate automotive cleaning solutions.
- Inspect Connections: Occasionally check the electrical connections to the bulbs to ensure they remain secure.
- Cooling System: The bulbs feature an advanced cooling system. Ensure that the area around the bulb's fan is not obstructed to allow for proper airflow.
7. Troubleshooting
If you encounter issues with your BEAMFLY H7 LED headlight bulbs, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up | Incorrect polarity connection | Disconnect and reverse the electrical connector. |
| Bulb flickers or turns off intermittently | Loose connection; CANBUS incompatibility | Ensure all connections are secure. For CANBUS issues, see below. |
| Dashboard error message (e.g., bulb out warning) | CANBUS system incompatibility | While 99% CANBUS ready, some sensitive models (e.g., certain Jeep, Dodge, Chrysler) may require additional decoders. Contact BEAMFLY support for assistance. |
| Beam pattern is not optimal or causes glare | Incorrect bulb orientation or adjustment | Adjust the beam angle by rotating the adapter until the desired pattern is achieved. Ensure the bulb is seated correctly. |
8. Specifications
| Feature | Specification |
|---|---|
| Model | H7-38000LM |
| Light Source Type | LED (Light Emitting Diode) |
| Luminous Flux (Brightness) | 38000 Lumen (per pair) |
| Wattage | 160 Watts (per pair) |
| Color Temperature | 6500 Kelvin (Bright White) |
| Lifespan | 50,000 Hours |
| Vehicle Service Type | Universal Fit |
| Operating Voltage | 12V |
| Cooling System | Aviation Aluminum, U-shaped Copper Tube, High-Speed Double Ball Fan (20,000 RPM) |
| CANBUS Compatibility | 99% CANBUS Ready (with intelligent IC driver) |
| Package Dimensions | 18.1 x 12.2 x 4.6 cm |
| Product Weight | 280 g |
9. Warranty and Support
For warranty information or technical support, please contact BEAMFLY customer service. Details can typically be found on the product packaging or through the retailer where the product was purchased. When contacting support, please have your product model (H7-38000LM) and purchase details ready.
You can also visit the BEAMFLY Store on Amazon for more information and contact options.
