1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your MXV 70-Inch Fireplace TV Stand. Please read all instructions carefully before assembly and use to ensure safe and proper functioning of the product. Keep this manual for future reference.
2. Important Safety Information
- Read all instructions before using this appliance.
- Do not operate any fireplace with a damaged cord or plug, or if the heater malfunctions or has been dropped or damaged in any manner.
- Always unplug the fireplace when not in use.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater.
- This product is intended for indoor use only.
- Ensure the TV stand is placed on a stable, level surface.
- Do not overload the tabletop or shelves. Refer to specifications for weight capacities.
- Adult assembly is required. Keep small parts away from children during assembly.
3. Package Contents
Your MXV 70-Inch Fireplace TV Stand is shipped in two separate packages, which may arrive on different days. Please ensure you have received both packages before beginning assembly.
Image: Product dimensions and packaging details.
Verify that all parts and hardware are present and undamaged. Refer to the included assembly manual for a complete list of components. If any parts are missing or damaged, contact customer support before proceeding with assembly.
4. Assembly Instructions
Assembly of the MXV 70-Inch Fireplace TV Stand requires careful attention to detail. Follow the step-by-step instructions provided in the separate assembly manual included with your product. All parts are numbered, and holes are pre-drilled for convenience.
4.1 Tools Required
- Phillips head screwdriver
- Electric drill (optional, for faster assembly)
4.2 General Assembly Tips
- Clear a spacious area for assembly.
- Lay out all parts and hardware according to their labels.
- It is recommended to have two people for assembly due to the size and weight of the components.
- Do not overtighten screws to avoid damaging the wood.
- For the electric fireplace, ensure the screen is removed and the front is unscrewed to locate and install the LED lights, as this step may not be explicitly clear in all manuals.

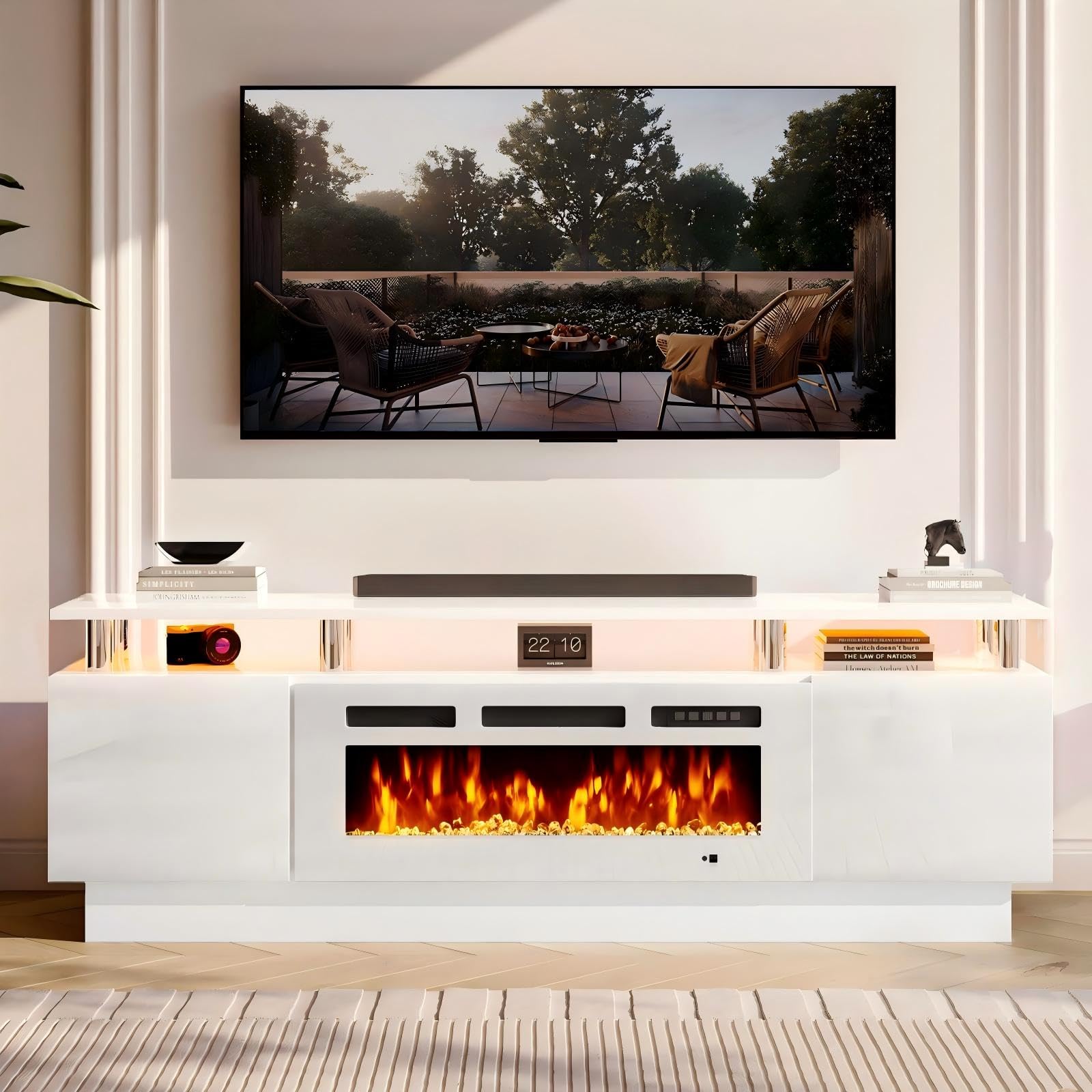

Image: Fully assembled MXV Fireplace TV Stand.
5. Operating Instructions
The MXV Fireplace TV Stand features an integrated electric fireplace with LED lighting. All functions can be controlled via the included remote control.
5.1 Electric Fireplace Operation
- Power On/Off: Press the power button on the remote to turn the fireplace on or off.
- Flame Color: Cycle through 12 different flame colors using the dedicated button on the remote.
- Flame Brightness: Adjust the flame brightness through 5 levels (L1-L5) to suit your preference.
- Heating Function: The fireplace provides 750W/1500W heating power. Set the desired temperature between 62°F and 82°F.
- Timer: Use the timer function to set an automatic shut-off for the fireplace.
- Overheating Protection: The unit is equipped with an automatic shut-off feature to prevent overheating.
Image: Fireplace flame color, temperature, and brightness controls.
Image: Fireplace heating power illustration.
5.2 LED Ambient Lighting
- The TV stand features integrated LED lights with 36 color combinations.
- Use the remote control to change the LED colors and adjust the 5 dimmer levels to create your desired ambiance.
Image: LED ambient lighting color options and remote control.
6. Maintenance
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners.
- Dusting: Regularly dust the unit to prevent buildup, especially around the fireplace vents.
- Electrical Components: Ensure the power cord is not pinched or damaged. Do not attempt to service the electrical components yourself.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace or LED lights do not turn on. |
|
|
| Difficulty during assembly. |
|
|
8. Product Specifications
- Model Number: 21014
- Dimensions (Overall): 70 inches (Width) x 13.8 inches (Depth) x 23.6 inches (Height)
- Fireplace Dimensions: 36 inches (Width) x 13.8 inches (Height) x 4.7 inches (Depth)
- Material: Wood
- Color: White
- TV Compatibility: Up to 80 inches
- Tabletop Weight Capacity: 150 lbs
- Shelves Weight Capacity: 30 lbs
- Fireplace Heating Power: 750W / 1500W
- Fireplace Temperature Range: 62°F – 82°F
- Flame Settings: 12 colors, 5 brightness levels
- LED Ambient Lighting: 36 color combinations, 5 dimmer levels
- Assembly: Required
Image: Product dimensions and weight capacities.
Image: TV size compatibility.
9. Warranty & Support
This product is covered by a 30-day return policy from the date of purchase. For any issues, missing parts, or technical support, please contact the seller directly through your purchase platform. Please have your model number (21014) and purchase date available when contacting support.
