Saker GJ46451-X38112
Saker High Pressure Water Spray Gun & Universal Watering Wand User Manual
Model: GJ46451-X38112
Brand: Saker
Product Overview
The Saker High Pressure Water Spray Gun and Universal Watering Wand is a versatile 2-in-1 tool designed for various outdoor tasks, including garden irrigation, car washing, and general cleaning. Its adjustable nozzle allows for fine-tuning water pressure and spray patterns to suit different needs.

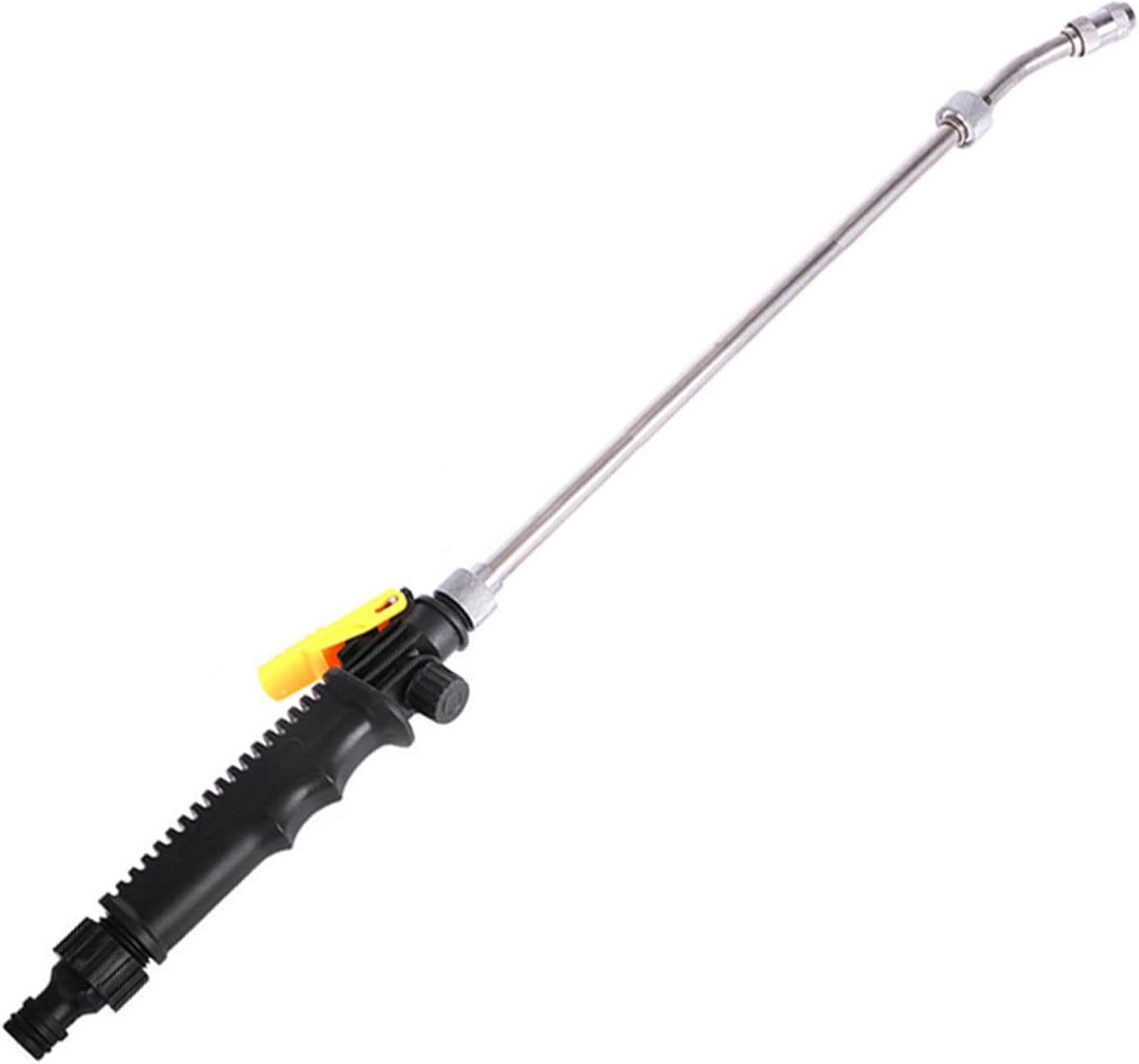

Image: The Saker High Pressure Water Spray Gun and Universal Watering Wand, showcasing its full length and design.
Key Features:
- 2-in-1 Functionality: Combines high-pressure spraying with a gentle shower setting.
- Adjustable Spray Patterns: Offers a range of options from concentrated jet to gentle mist.
- Lightweight Design: Engineered for extended use with minimal arm strain.
- Universal Compatibility: Designed to fit most standard garden hoses.
- Durable Construction: Rugged design ensures longevity for various outdoor tasks.
Image: Detailed view highlighting key components such as the water spray adjustment ring, flow control switch, plastic handle, frosted adhesive coating, and leak-proof rubber ring.
Setup Instructions
Follow these steps to properly connect your Saker watering wand to a garden hose:
- Prepare Your Hose: Ensure your garden hose is free of kinks and has a standard connection fitting.
- Choose Connection Type:
- For 1/2" garden hoses, use the quick couplings provided.
- For 3/4" garden hoses, a direct connection is suitable.
- Attach the Wand: Screw the base of the Saker watering wand onto the end of your garden hose. Hand-tighten until secure. Do not overtighten.
- Check for Leaks: Turn on the water supply slowly and check for any leaks at the connection point. If leaks occur, tighten slightly more or ensure the rubber washer is properly seated.
Image: Illustration showing the two connection methods for the Saker watering wand: quick couplings for 1/2" hoses and direct connection for 3/4" hoses.
Operating Instructions
The Saker watering wand features an intuitive design for easy operation and spray pattern adjustment.
Flow Control and On/Off:
The ergonomic handle includes a flow control switch for effortless water flow management.
- Off Mode: Position the switch to completely stop water flow.
- Open Mode: Move the switch to allow water to flow through the wand.
- Lock Mode: Engage the lock to maintain continuous water flow without holding the trigger.
Image: Visual guide demonstrating the "Off Mode," "Open Mode," and "Lock Mode" positions of the watering wand's flow control switch.
Adjusting Spray Patterns:
The nozzle at the end of the wand can be rotated to change the spray pattern from a concentrated jet to a wide fan or gentle mist. Rotate the nozzle clockwise or counter-clockwise until the desired spray pattern is achieved.
Recommended Uses:
- High-Pressure Jet: Ideal for cleaning tough grime on vehicles, driveways, or patio furniture.
- Fan Spray: Suitable for rinsing surfaces or general watering of larger areas.
- Gentle Mist/Shower: Perfect for watering delicate plants, flowers, or newly seeded areas.
Image: Examples of the Saker watering wand in use for car washing and watering plants, demonstrating its versatility.
Image: Further examples of the watering wand's application, including cleaning outdoor furniture and watering garden beds.
Maintenance
Proper maintenance will extend the life and performance of your Saker watering wand.
- After Each Use:
- Turn off the water supply and release any remaining pressure from the wand.
- Rinse the exterior of the wand with clean water to remove dirt, soap residue, or chemicals.
- Nozzle Cleaning: If the spray pattern becomes irregular or weak, the nozzle may be partially clogged.
- Disconnect the wand from the hose.
- Use a small brush or needle to carefully clear any debris from the nozzle opening.
- Rinse thoroughly before reattaching.
- Storage: Store the watering wand in a clean, dry place away from direct sunlight and extreme temperatures. Protect it from freezing temperatures, as water left inside can expand and damage components.
- Inspect Connections: Periodically check the hose connection point for wear or damage to the rubber washer. Replace if necessary to prevent leaks.
Troubleshooting
If you encounter issues with your Saker watering wand, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from hose connection. | Loose connection, worn rubber washer, or damaged hose fitting. | Tighten connection, inspect and replace rubber washer if damaged, or check hose fitting. |
| Weak or inconsistent spray. | Clogged nozzle, low water pressure from source, or kinked hose. | Clean nozzle, ensure adequate water pressure, or straighten hose. |
| No water flow. | Water supply off, wand in "Off Mode," or severe clog. | Turn on water supply, set wand to "Open Mode," or thoroughly clean nozzle. |
Specifications
| Brand | Saker |
| Model Number | GJ46451-X38112 |
| Product Dimensions | 11.8 x 4.7 x 0.8 inches |
| Size (Length) | 56cm |
| Color | Silver |
| Included Components | Cleaning Wand |
Warranty and Support
For warranty information or technical support regarding your Saker High Pressure Water Spray Gun and Universal Watering Wand, please refer to the product packaging or contact Saker customer service directly. Keep your purchase receipt as proof of purchase.
Contact Information: Please visit the official Saker website or refer to the contact details provided with your product for the most up-to-date support information.
