1. Introduction
Thank you for choosing the SakerPlus Cordless Leaf Blower BF2642. This portable dust cleaner is designed for efficient and convenient clearing of leaves, dust, and debris from various surfaces. Featuring a high-speed brushless motor and a 4-speed control system, it offers powerful airflow for both light and heavy-duty tasks. This manual provides essential information for safe operation, proper maintenance, and optimal performance of your device.
2. Safety Information
IMPORTANT NOTICE:
- Although compact in size, the SakerPlus electric leaf blower delivers powerful airflow, which causes noticeable noise at maximum speed.
- Please use appropriate ear protection during operation to ensure comfort and safety.
- Keep hair, loose clothing, and jewelry away from the air intake and outlet during operation.
- Do not operate in wet conditions or near flammable liquids/gases.
3. What's in the Box
Your SakerPlus Cordless Leaf Blower package includes the following items:
- 1 x SakerPlus Hand Blower
- 2 x Extended Nozzles (one long round, one short flat)
- 2 x 21V 3000mAh Rechargeable Batteries
- 1 x Charger
- 1 x Instruction Manual

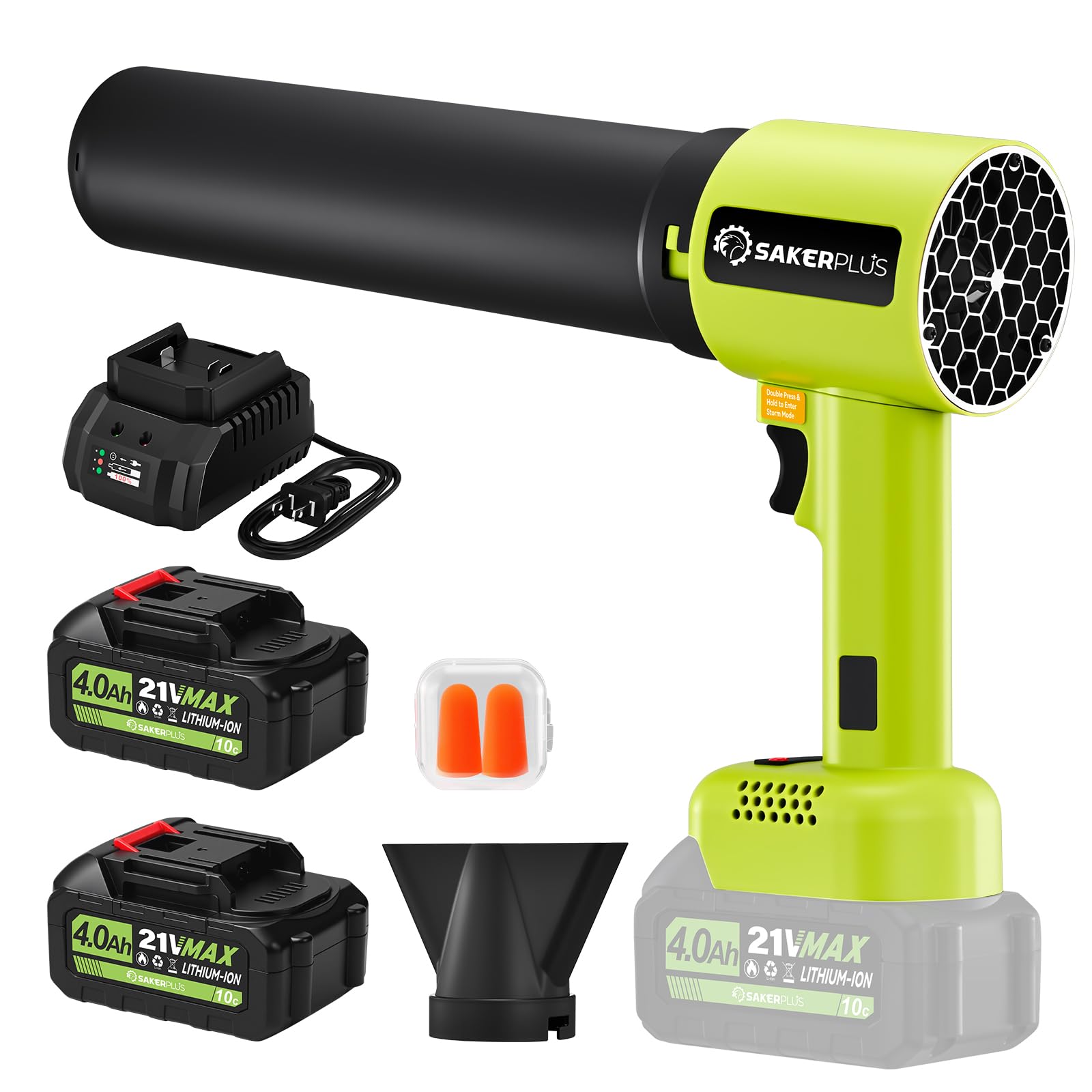

4. Product Overview
Familiarize yourself with the main components of your SakerPlus Cordless Leaf Blower:
- Air Outlet: Where the concentrated airflow exits.
- Extension Tube: Attachable tube for extended reach and focused airflow.
- Power Switch Button: Activates and deactivates the blower.
- Gear Adjustment Button: Controls the wind speed settings.
- Battery: Provides power to the unit.
- Controller Cooling Hole: Ensures optimal operating temperature for internal components.
5. Setup
5.1. Battery Charging
The SakerPlus leaf blower comes with two 4.0Ah lithium batteries and a dedicated dock-style charger. Ensure batteries are fully charged before first use.
- Insert the battery into the charging dock.
- Plug the charger into a standard power outlet.
- The charging indicator on the battery or charger will show charging status. A full charge typically takes approximately 4 hours.
- The system includes built-in temperature control protection to prevent overheating during charging.
5.2. Attaching Nozzles
The blower includes two types of nozzles for different applications:
- Long Round Nozzle: Ideal for narrow spaces and concentrated airflow.
- Short Flat Nozzle: Provides wider airflow for broader areas.
To attach a nozzle, align it with the air outlet and twist until it locks securely into place. To remove, twist in the opposite direction and pull.
6. Operation
6.1. Powering On and Speed Control
The SakerPlus blower features an upgraded 4-speed adjustment system:
- To Turn On: Press the power switch button once. The blower will start at the lowest speed (1st gear).
- To Adjust Speed: Press the gear adjustment button repeatedly to cycle through speeds: 1st gear → 2nd gear → 3rd gear → 1st gear.
- To Enter 4th Gear (Storm Mode): Quickly press the power button twice and hold the button on the second press. The motor will run at its maximum speed.
- To Turn Off: Release the power switch button.
6.2. Usage Scenarios
The SakerPlus blower is versatile for various cleaning tasks:
- Patio and Garden: Clear leaves, grass clippings, and light debris.
- Driveways and Walkways: Efficiently remove dirt and small stones.
- Workshop: Blow away sawdust and other workshop debris.
- Car Cleaning: Remove dust from car interiors and dry surfaces after washing.
- Narrow Spaces: Use the long round nozzle for hard-to-reach areas.
- Wider Areas: Use the short flat nozzle for broader coverage.
6.3. Product Video: SakerPlus Portable Dust Cleaner in Action
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your SakerPlus Cordless Leaf Blower:
- Cleaning: After each use, wipe down the exterior of the blower with a soft, damp cloth. Ensure the air intake and outlet are free from debris.
- Battery Care: Store batteries in a cool, dry place away from direct sunlight. Do not expose batteries to extreme temperatures.
- Storage: When not in use, store the blower in a dry, well-ventilated area, out of reach of children.
- Inspection: Periodically check the nozzles and main unit for any signs of damage or wear. Replace damaged parts immediately.
8. Troubleshooting
If you encounter issues with your SakerPlus Cordless Leaf Blower, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Blower does not turn on. | Battery not charged or improperly inserted. | Ensure battery is fully charged and securely inserted. |
| Reduced airflow. | Air intake/outlet blocked by debris. | Clear any obstructions from the air intake and outlet. |
| Blower stops unexpectedly. | Battery overheating or low charge. | Allow battery to cool down or recharge. |
| Excessive noise during operation. | Operating at maximum speed (Storm Mode). | This is normal for high-speed operation. Use ear protection. |
If the problem persists after attempting these solutions, please contact SakerPlus customer support for further assistance.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | SakerPlus |
| Model Name | BF2642 |
| Power Source | Battery Powered |
| Voltage | 21 Volts (DC) |
| Battery Capacity | 4.0Ah (3000mAh) Lithium-Ion |
| Motor Speed | Up to 300,000 RPM |
| Wind Speed | Up to 52 m/s (116 MPH) |
| Air Volume | 590 m³/h (360 CFM) |
| Item Weight | 2.3 lbs (1000g) |
| Product Dimensions | 10.5"L x 4.5"W x 3.25"H (without nozzle) |
| Special Features | Adjustable Speed (4-speed), Compact Design, Portable, Turbo Mode |
10. Warranty and Support
SakerPlus is committed to providing high-quality products. For warranty information, technical support, or any questions regarding your Cordless Leaf Blower BF2642, please refer to the warranty card included in your package or visit the official SakerPlus website. Keep your purchase receipt as proof of purchase for warranty claims.
