QUW Electric Fireplace TV Stand Instruction Manual

1. Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your QUW Electric Fireplace TV Stand. Please read all instructions carefully before use and retain this manual for future reference.

Figure 1: The QUW Electric Fireplace TV Stand, featuring a central electric fireplace, open shelving, and glass barn door cabinets.

2. Safety Information

• Ensure the product is assembled on a flat, stable surface.
• Do not overload shelves. Refer to specifications for weight limits.
• Keep flammable materials at least 3 feet (0.9 meters) away from the front of the electric fireplace.
• Do not block the air vents of the electric fireplace.
• Always plug the electric fireplace directly into a wall outlet. Do not use extension cords or power strips.
• Unplug the fireplace from the power outlet before cleaning or performing maintenance.
• This product is intended for indoor use only.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• TV Stand components (wood panels, hardware)
• Electric Fireplace insert
• Remote control for fireplace
• Instruction manual

4. Setup and Assembly

Assembly of the QUW Electric Fireplace TV Stand requires careful attention to detail. Follow the step-by-step instructions provided in the separate assembly guide included with your product. It is recommended to have two adults for assembly.

4.1 Product Dimensions

Ensure adequate space for the assembled unit. The overall dimensions are 15 inches (D) x 70 inches (W) x 32 inches (H).

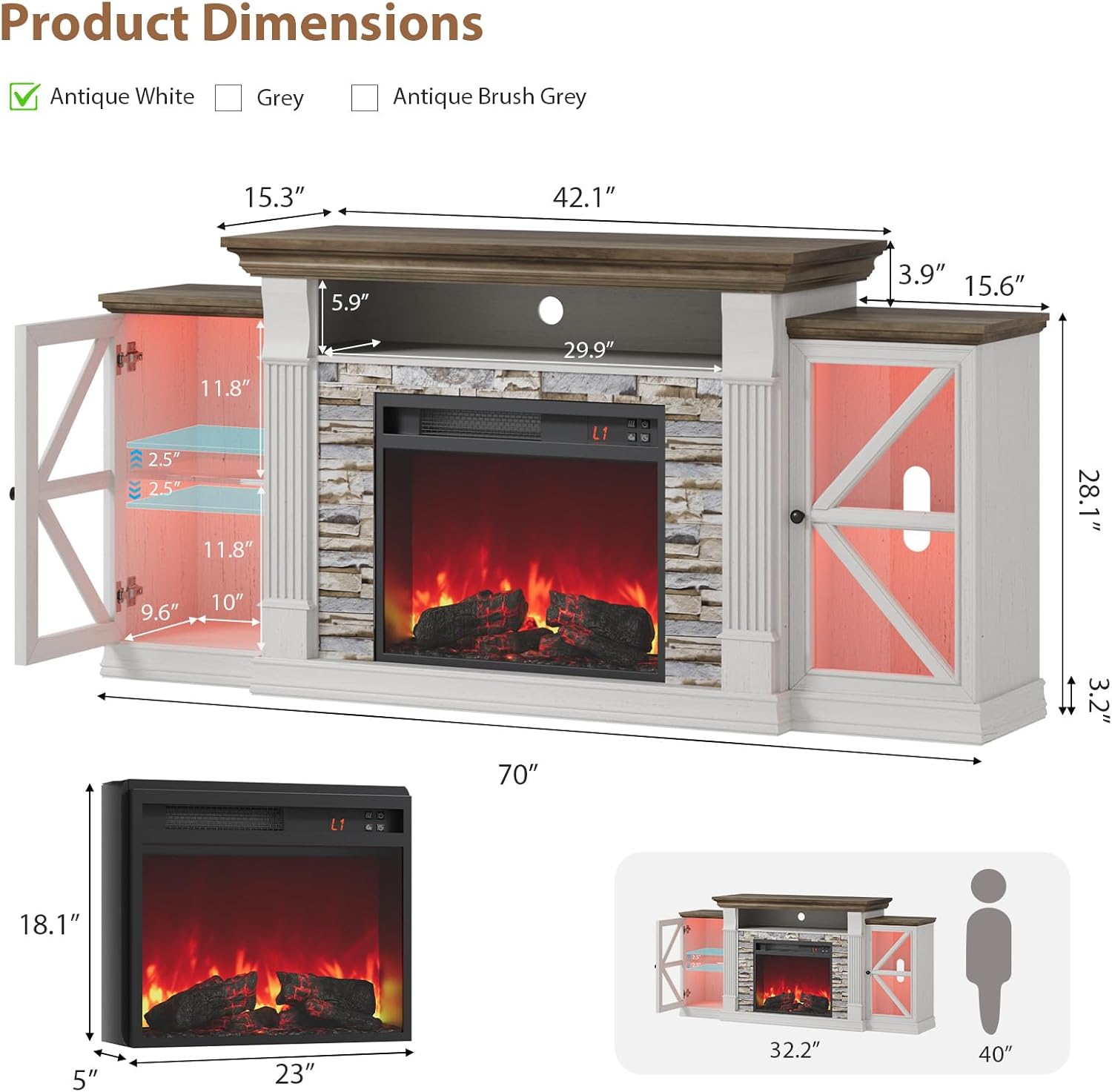

Figure 2: Detailed product dimensions for planning placement.

4.2 Placement Guidelines

• Place the TV stand on a level, stable floor surface.
• Position the unit near a grounded electrical outlet for the fireplace.
• Allow sufficient clearance around the unit for air circulation and access to doors/shelves.

4.3 Anti-Tip Design

For safety, utilize the included anti-tip hardware to secure the TV stand to the wall, especially if children or pets are present in the home.

5. Operating Instructions

5.1 Electric Fireplace Operation

The 23-inch electric fireplace features realistic 3D flame effects and heating functionality. It can be controlled via the included remote control or the touch buttons on the unit.

Figure 3: The 23-inch electric fireplace unit, showing power, heat, timer, 7 flame colors, and temperature controls.

• Power: Press the power button to turn the fireplace on or off.
• Heat: The heater provides 1500W of heat output. Adjust the temperature from 64°F to 82°F using the temperature controls.
• Flame Colors: Cycle through 7 different flame colors using the flame effect button.
• Timer: Set an automatic shut-off timer for 1 to 8 hours.

5.2 Storage Features

The TV stand offers various storage options to help organize your living space.

Figure 4: Overview of the TV stand's storage capabilities, including the open top shelf and adjustable glass shelves within the cabinets.

• Open Top Shelf: Provides convenient access for media devices or decorative items.
• Glass Barn Door Cabinets: Two side cabinets with glass barn doors offer enclosed storage.
• Adjustable Glass Shelves: Each cabinet contains adjustable glass shelves, allowing customization for different item heights. There are three possible height settings for each shelf.
• Cable Management: Cable holes are integrated into the back panel to help route and conceal wires.

5.3 Design Elements

The TV stand incorporates several design features for aesthetic appeal and stability.

Figure 5: Detailed view of the glass barn door, classical Roman column accents, and the thickened base for enhanced stability.

• Farmhouse Style: The design features a natural wood grain surface and a stacked stone finish around the fireplace.
• Classical Roman Columns: Decorative columns flank the fireplace insert.
• Thickened Base: A sturdy 3.14-inch high wooden base provides stability and durability.

6. Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Dusting: Regularly dust the unit to prevent buildup.
• Fireplace Care: Ensure the fireplace vents are clear of obstructions. Do not attempt to clean the interior of the fireplace unit.

7. Troubleshooting

• Fireplace not turning on: Check if the power cord is securely plugged into a grounded outlet. Ensure the wall switch (if applicable) is on.
• No heat output: Verify that the heat function is activated and the temperature setting is above the ambient room temperature. Check for any obstructions in the heater vents.
• Remote control not working: Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace sensor.
• Unusual noises or odors: Immediately turn off and unplug the fireplace. Contact customer support.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the specific warranty card included with your product or contact QUW customer service directly. Contact details are typically found on the product packaging or the manufacturer's official website.
