1. Product Overview
The Acegeek Stratus Mesh is a Mid-Tower gaming PC case designed for optimal airflow and aesthetic appeal. It features a mesh front panel, a tempered glass side panel, and comes equipped with three 120mm Rainbow LED fans for effective cooling and vibrant lighting. This case supports Micro-ATX and ITX motherboards, offering flexibility for various build configurations.
Key Features:
- Material: ABS+Mesh+Glass construction for durability and style.
- Motherboard Support: Compatible with Micro-ATX and ITX motherboards.
- Drive Bays: 1 x HDD + 1 x SSD or 2 x SSD for storage flexibility.
- Expansion Slots: 5 slots available for add-on cards.
- Included Fans: 3 x 120mm Rainbow LED fans pre-installed.
- Supported Fans: Front: 3 x 120mm; Top: 2 x 120mm; Rear: 1 x 120mm; Bottom: 2 x 120mm.
- Water Cooler Support: Top: 240mm (with memory height within 28mm).
- CPU Cooler Height: Maximum 165mm.
- VGA Length: Maximum 280mm.
- Cable Management: 20mm space provided behind the motherboard tray.
- Power Supply Support: Up to 190mm length.
Figure 1: Acegeek Stratus Mesh Gaming PC Case, front-top-side view, showing mesh front panel with three rainbow LED fans and a tempered glass side panel.
Figure 2: Front-side view of the Acegeek Stratus Mesh case, highlighting the mesh front and tempered glass side panel.
Figure 3: Rear-side view of the Acegeek Stratus Mesh case, showing the interior with two rainbow LED fans and the rear panel layout.

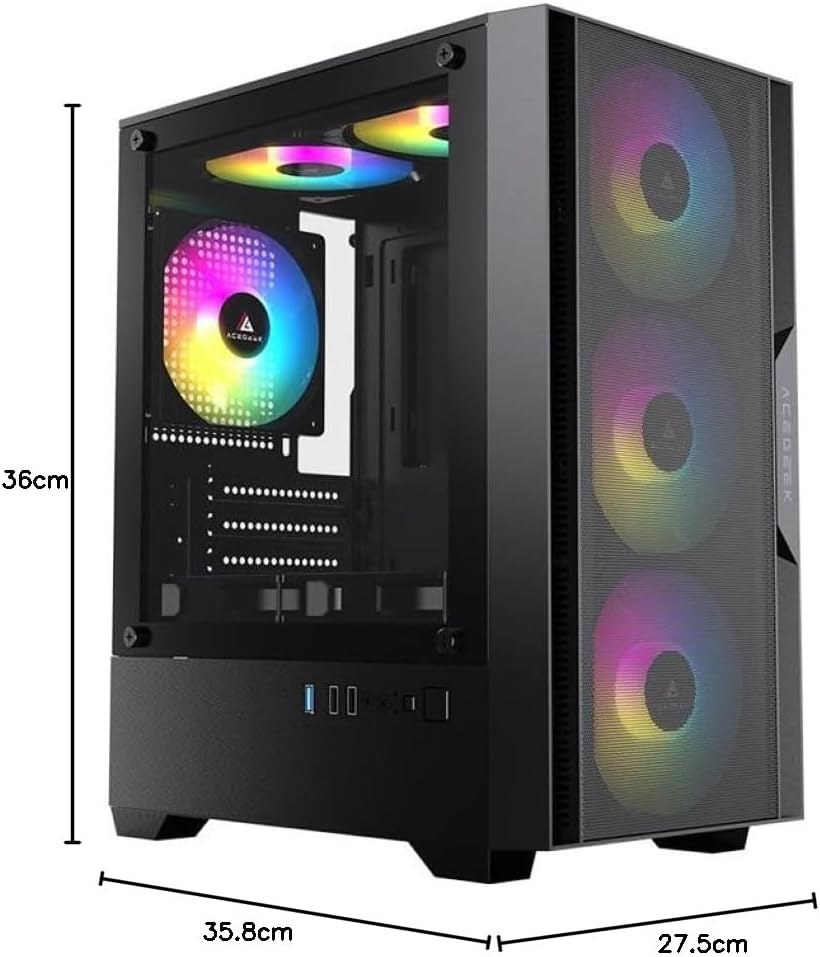

Figure 4: Dimensions diagram of the Acegeek Stratus Mesh case, showing height, width, and depth (36cm H x 35.8cm W x 27.5cm D).
2. Setup and Installation
2.1 Preparing the Case
- Unpack the case and remove all packaging materials.
- Place the case on a stable, flat surface.
- Carefully remove the tempered glass side panel by unscrewing the thumb screws. Set it aside on a soft, non-abrasive surface to prevent scratches.
2.2 Motherboard Installation
- Install the I/O shield that came with your motherboard into the rear opening of the case.
- Align your Micro-ATX or ITX motherboard with the standoffs inside the case. Ensure all screw holes match.
- Secure the motherboard using the provided screws. Do not overtighten.
2.3 Storage Device Installation
- HDD/SSD Bays: The case supports 1 x HDD + 1 x SSD or 2 x SSD. Locate the drive bays/mounts.
- Mount your 2.5" SSDs or 3.5" HDDs into the designated bays/brackets and secure them with screws.
2.4 Power Supply Unit (PSU) Installation
- Position your PSU (up to 190mm length) into the PSU shroud at the bottom rear of the case.
- Secure the PSU to the case using screws from the rear.
2.5 Graphics Card (VGA) and Expansion Card Installation
- Remove the necessary expansion slot covers from the rear of the case.
- Insert your graphics card (maximum length 280mm) or other expansion cards into the PCIe slots on your motherboard.
- Secure the cards with screws.
2.6 Cable Management
- Utilize the 20mm cable management space behind the motherboard tray to route and organize cables.
- Connect all necessary power cables from the PSU to the motherboard, graphics card, and storage devices.
- Connect the front panel connectors (USB, audio, power, reset, LED) to the appropriate headers on your motherboard. Refer to your motherboard manual for specific header locations.
- Ensure fan cables are connected to motherboard fan headers or a fan controller if applicable.
3. Operating Instructions
3.1 Powering On
- Once all components are installed and cables are connected, replace the tempered glass side panel and secure it with the thumb screws.
- Connect your monitor, keyboard, mouse, and power cable to the PSU.
- Flip the power switch on the PSU to the 'ON' position.
- Press the power button on the front panel of the case to start your PC.
3.2 Fan and RGB Control
- The included Rainbow LED fans typically connect to standard 3-pin or 4-pin fan headers on your motherboard.
- RGB lighting effects are usually controlled via motherboard software (if connected to an RGB header) or a dedicated fan controller (if included with the fans or purchased separately). Refer to your motherboard or fan controller manual for specific instructions on adjusting fan speed and RGB lighting.
4. Maintenance
4.1 Cleaning the Case
- Exterior: Use a soft, damp cloth to wipe down the exterior surfaces. Avoid abrasive cleaners.
- Mesh Panels: The mesh front and top panels can accumulate dust. Use compressed air or a soft brush to gently clean the mesh.
- Tempered Glass: Clean the tempered glass panel with a glass cleaner and a microfiber cloth.
- Interior: Periodically open the case and use compressed air to remove dust from components and internal surfaces. Ensure the PC is powered off and unplugged before cleaning the interior.
4.2 Fan Maintenance
- Regularly check fans for dust buildup and clean them as described above.
- If a fan becomes noisy or stops working, it may need to be replaced. Ensure the replacement fan matches the size (120mm) and connection type.
5. Troubleshooting
5.1 PC Does Not Power On
- Check if the PSU is properly connected to the wall outlet and the power switch on the PSU is in the 'ON' position.
- Verify that the 24-pin ATX power cable and 8-pin CPU power cable are securely connected to the motherboard.
- Ensure the front panel power button cable is correctly connected to the motherboard's front panel header.
5.2 Fans Not Spinning / RGB Not Lighting Up
- Check if the fan power cables are securely connected to the motherboard fan headers or a fan controller.
- For RGB lighting, ensure the RGB cables are connected to the correct RGB headers on the motherboard or controller.
- Verify that any fan/RGB control software is installed and configured correctly.
5.3 Overheating Issues
- Ensure all case fans are spinning and oriented correctly for optimal airflow (intake at front, exhaust at rear/top).
- Clean any dust buildup from fans, mesh panels, and CPU/GPU coolers.
- Verify that the CPU cooler is properly seated and making good contact with the CPU.
6. Specifications
| Feature | Specification |
|---|---|
| Brand | Acegeek |
| Model | AG-STRATUS-MESH-BK-I3F |
| Case Type | Mid Tower |
| Material | SPCC (metal) + ABS + Tempered Glass + Metal Mesh Front |
| Motherboard Compatibility | Micro ATX, ITX |
| Drive Bays | 1 x HDD + 1 x SSD or 2 x SSD |
| Expansion Slots | 5 |
| Included Fans | 3 x 120mm Rainbow LED Fans |
| Supported Fan Configurations | Front: 3 x 120mm, Top: 2 x 120mm, Rear: 1 x 120mm, Bottom: 2 x 120mm |
| Water Cooler Support | Top: 240mm (with memory height within 28mm) |
| Max CPU Cooler Height | 165mm |
| Max VGA Length | 280mm |
| Cable Management Space | 20mm |
| Max PSU Length | 190mm |
| Dimensions (P x L x A) | 27.5P x 35.8L x 36A centimeters |
7. Warranty Information
This Acegeek product comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and faulty components under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
8. Support
For technical assistance, troubleshooting, or warranty inquiries, please contact Acegeek customer support. Refer to the official Acegeek website for the most up-to-date contact information and support resources.
- Online Support: Visit the official Acegeek website for FAQs and support tickets.
- Email Support: Check the Acegeek website for the appropriate support email address.
