1. Safety Information

Please read all instructions carefully before installing or using this appliance. Retain this manual for future reference. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage.

• Ensure proper ventilation when operating the cooktop.
• Do not store flammable materials near the appliance.
• Keep children away from the cooktop during operation.
• Use only appropriate cookware for gas burners.
• In case of a gas leak, immediately turn off the gas supply, open windows, and do not operate any electrical switches or appliances.

2. Product Overview

The KAFF CTQ773B is a 77 cm built-in glass cooktop designed for modern kitchens. It features three high-efficiency brass burners, a durable black toughened glass surface with stainless steel edge protection, and ergonomic metal knobs for precise flame control.

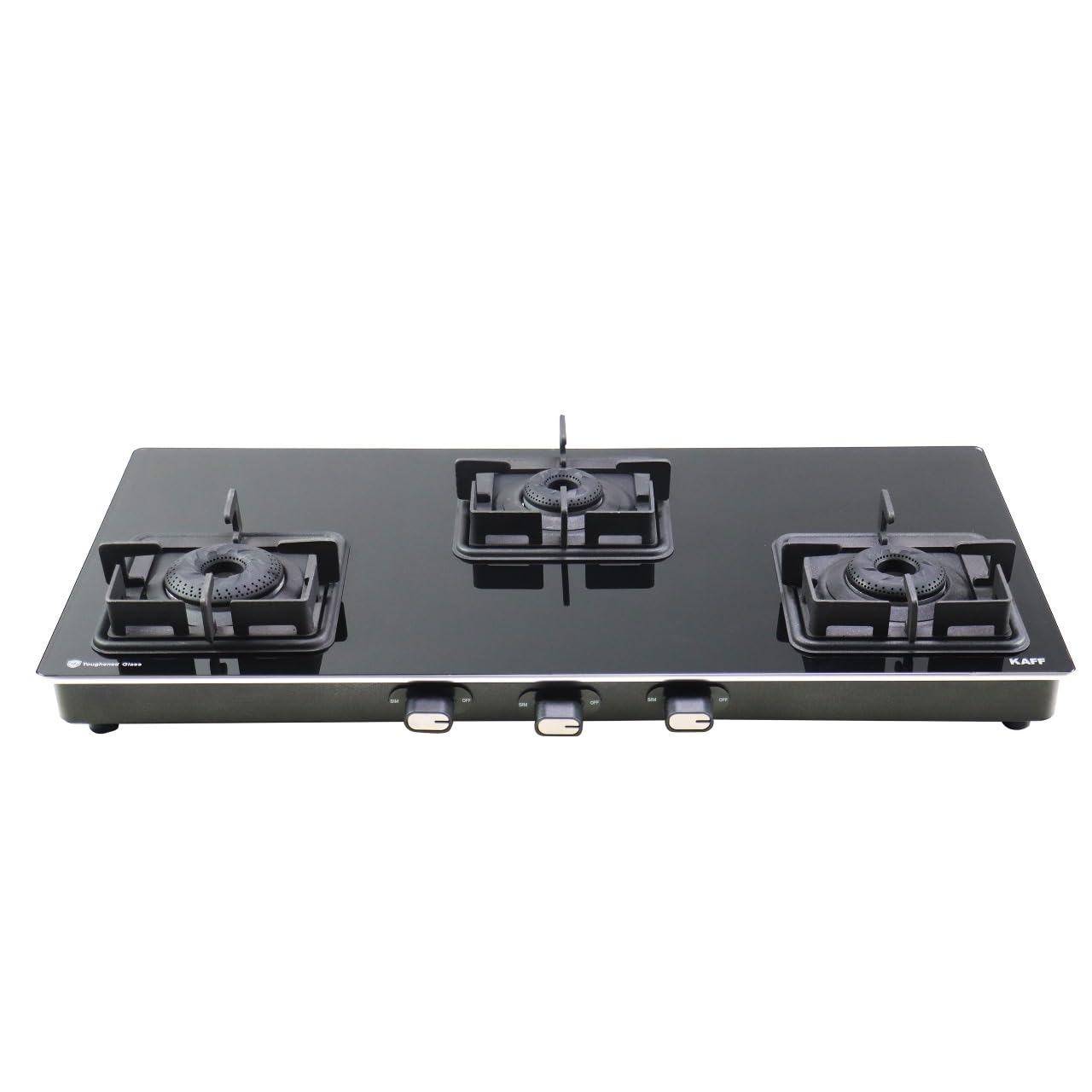

Figure 2.1: Front view of the KAFF CTQ773B Built-in Glass Cooktop.

Key Features:

• High Efficiency Brass Burners: Premium black-coated brass burners for powerful flame and uniform heat distribution.
• 3 Burner Configuration: Includes 1 Jumbo Burner, 1 Big Burner, and 1 Small Burner for versatile cooking.
• Premium Black Toughened Glass: Durable and heat-resistant surface with SS moulded edge protection.
• Designer Metal Knobs: Ergonomic knobs for smooth operation and precise flame control.
• Heavy Duty Pan Support: Matt enameled pan supports with integrated flame protectors for stability.

Figure 2.2: Detailed view of the KAFF CTQ773B burners and control knobs.

3. Setup and Installation

This cooktop is designed for built-in installation in a modular kitchen hob. Professional installation by a qualified technician is highly recommended to ensure safety and proper functioning.

3.1 Unpacking

• Carefully remove the cooktop from its packaging.
• Inspect the appliance for any signs of damage during transit. Report any damage to your dealer immediately.
• Ensure all components listed in the 'Included Components' section are present.

3.2 Gas Connection

• The appliance is designed for use with Natural Gas. Ensure your gas supply matches this requirement.
• Connect the cooktop to the gas supply using a certified flexible hose or rigid pipe, following local regulations and safety standards.
• Check all connections for gas leaks using a soapy water solution. Bubbles indicate a leak.

3.3 Electrical Connection (for Ignition)

• Ensure the electrical supply matches the voltage and frequency specified on the appliance rating plate.
• Connect the cooktop to a properly grounded electrical outlet.

4. Operating Instructions

Follow these steps for safe and efficient operation of your KAFF cooktop.

4.1 Lighting a Burner

1. Place your cookware centrally on the pan support over the desired burner.
2. Push down and turn the corresponding control knob counter-clockwise to the 'High' flame position. You will hear a clicking sound as the igniter sparks.
3. Hold the knob in the 'High' position for a few seconds until the flame is stable.
4. Release the knob. If the flame extinguishes, repeat the process.

4.2 Adjusting the Flame

• Once the burner is lit, you can adjust the flame intensity by turning the knob between the 'High' and 'Low' positions.
• For simmering, turn the knob to the 'Low' position.
• To turn off the burner, turn the knob clockwise to the 'Off' position.

4.3 Burner Usage Guidelines

• Use the Jumbo burner for large pots and high-heat cooking.
• The Big burner is suitable for general cooking tasks.
• The Small burner is ideal for simmering, heating small quantities, or preparing sauces.
• Always match the flame size to the base of your cookware to prevent energy waste and potential damage to handles.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your cooktop.

5.1 General Cleaning

• Always ensure the cooktop is cool before cleaning.
• Use a soft cloth or sponge with mild detergent and warm water.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals as they can damage the glass surface and other components.

5.2 Cleaning the Glass Surface

• For stubborn stains, use a specialized glass cooktop cleaner.
• Wipe spills immediately to prevent them from baking onto the surface.
• Dry the surface thoroughly with a clean, soft cloth to prevent water spots.

5.3 Cleaning Burners and Pan Supports

• Remove the pan supports and burner components (burner caps and crowns) when cool.
• Wash them with warm soapy water. For heavily soiled parts, soak them before cleaning.
• Ensure all parts are completely dry before reassembling them. Improperly dried parts can affect ignition and flame quality.
• Periodically check burner ports for blockages and clean with a fine wire or needle if necessary.

6. Troubleshooting

Refer to this section for common issues and their solutions. If the problem persists, contact customer service.

7. Specifications

Detailed technical specifications for the KAFF CTQ773B cooktop.

8. Warranty and Support

Your KAFF CTQ773B cooktop comes with a comprehensive warranty and dedicated customer support.

8.1 Warranty Details

• 1 Year Warranty: Pan Supports, Bypass, Generator.
• 2 Years Warranty: Glass.
• 5 Years Warranty: Burners.

Please retain your purchase receipt and warranty card for any warranty claims.

8.2 Customer Support

For any queries, service requests, or technical assistance, please contact KAFF customer care:

• Toll-Free Number: 18001802221
• Manufacturer: KAFF Appliances India Private Limited
