1. Introduction
Thank you for choosing the LEHMANN LHOPM-1505-D Planetary Mixer. This appliance is designed to simplify your baking and cooking tasks with its powerful motor and versatile accessories. Please read this instruction manual carefully before first use to ensure safe and optimal operation. Keep this manual for future reference.

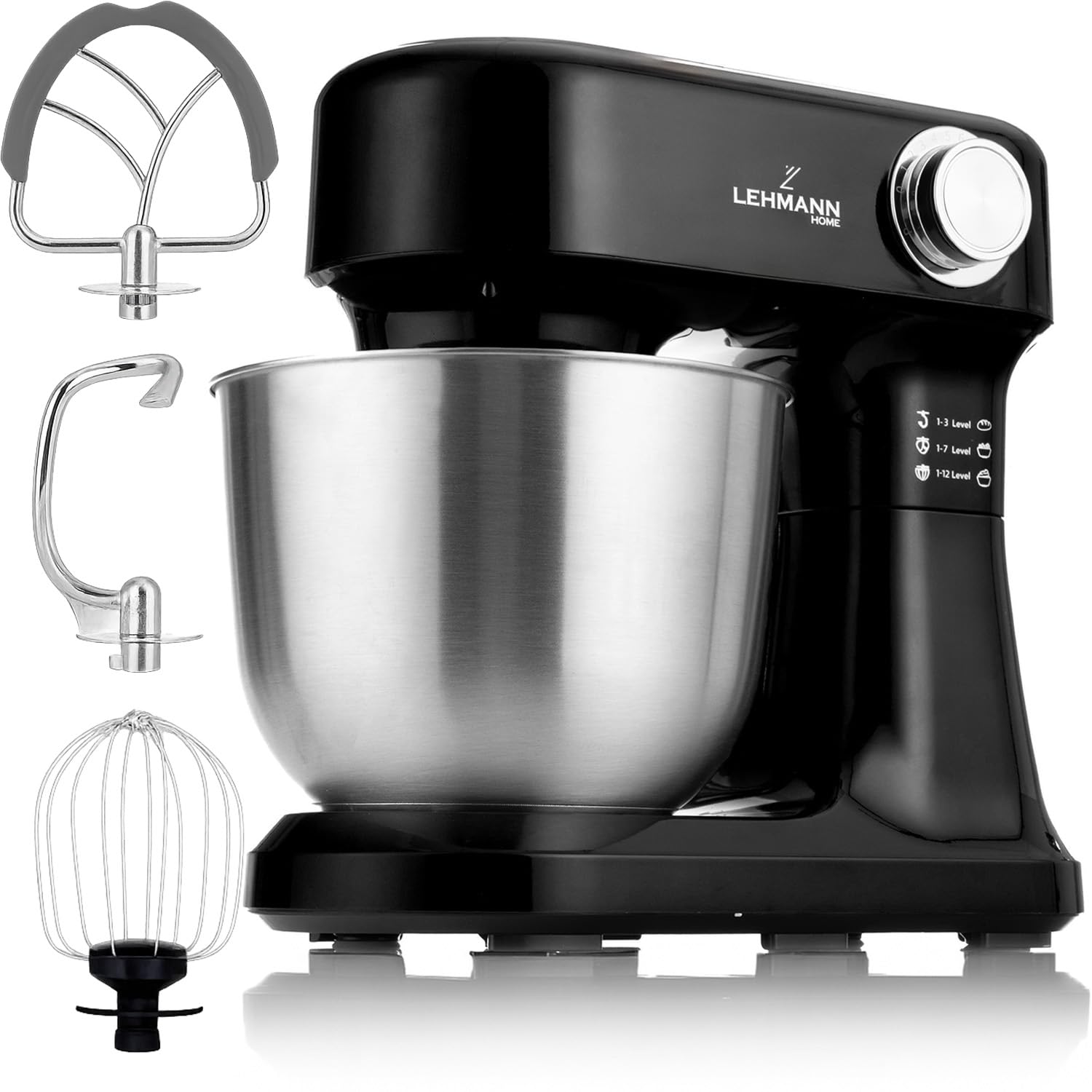

Image: The LEHMANN LHOPM-1505-D Planetary Mixer, showcasing its sleek black design and stainless steel bowl with a whisk attachment.
2. Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Read all instructions before operating the mixer.
- Do not immerse the motor unit, cord, or plug in water or other liquids.
- Unplug from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
- Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to prevent injury and/or damage to the mixer.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter or touch hot surfaces.
- Always ensure the tilt-head is locked down before operation.
- This appliance is equipped with overheat protection. If the motor overheats, the appliance will automatically shut off. Allow it to cool down before resuming use.
3. Product Overview and Components
Familiarize yourself with the parts of your LEHMANN Planetary Mixer.
Image: Labeled diagram showing the main components of the mixer and its accessories.
- Splash Guard: Prevents ingredients from splashing out during mixing.
- Whisk: Ideal for whipping egg whites, cream, and light batters.
- Beater: Suitable for medium-heavy mixtures like cake batter, cookie dough, and frostings.
- Dough Hook: Designed for kneading heavy doughs such as bread, pizza, and pasta.
- 5-Liter Stainless Steel Bowl: Large capacity for various preparations.
- Multifunction Knob: Controls power and 12 speed settings.
- 1500W Motor Unit: The main body housing the powerful motor.
Image: The mixer with key dimensions (height, depth, width), highlighting its 1500W power and BPA-free construction.
4. Setup
Before first use, ensure all packaging materials are removed and clean all parts that will come into contact with food.
- Placement: Place the mixer on a clean, dry, and stable surface. Ensure there is enough space around the appliance for proper ventilation.
- Stability: The mixer is equipped with non-slip feet for stability during operation. Ensure these feet are firmly gripping the surface.
- Attaching the Bowl: Place the stainless steel mixing bowl onto the base, aligning the grooves, and turn it clockwise until it locks securely into place.
- Attaching an Accessory:
- Ensure the mixer is unplugged and the speed control knob is set to '0' (OFF).
- Press the tilt-head release button and lift the motor head.
- Select the desired attachment (dough hook, whisk, or beater).
- Insert the attachment shaft into the accessory port and turn it slightly until it locks into place.
- Lower the motor head until it clicks and locks into position.
- Attaching the Splash Guard: If desired, place the splash guard over the mixing bowl after the attachment is installed. It has an opening for adding ingredients during operation.
Image: The mixer's non-slip feet providing stability on a countertop.
Image: Step-by-step visual guide for attaching different mixing accessories and adjusting the speed.
5. Operating Instructions
Follow these steps to operate your planetary mixer effectively.
- Add Ingredients: Place your ingredients into the mixing bowl. Ensure the total volume does not exceed the bowl's capacity to prevent overflow.
- Select Speed: Plug the mixer into a suitable power outlet. Turn the multifunction knob to select one of the 12 available speeds. Start with a lower speed and gradually increase as needed.
- Mixing Guide:
- Speeds 1-3 (Low): For gentle mixing, combining dry ingredients, or starting heavy doughs with the dough hook.
- Speeds 4-6 (Medium): For mixing batters, mashing potatoes, or creaming butter and sugar with the beater.
- Speeds 7-9 (High): For whipping cream, egg whites, or light batters with the whisk.
- Speeds 10-12 (Max): For rapid whipping or aeration.
- Stopping Operation: To stop the mixer, turn the multifunction knob to '0' (OFF). Unplug the appliance from the power outlet.
- Removing Bowl and Attachments: Press the tilt-head release button and lift the motor head. Remove the attachment by turning it slightly and pulling it down. Then, unlock and remove the mixing bowl.
Image: The splash guard in use, allowing ingredients to be added while mixing.
Image: The 12-speed control knob, indicating precise speed adjustment.
Image: Visual examples of liquid batter, dense dough, and whipped egg whites, illustrating the versatility of the mixer's attachments.
6. Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your mixer.
- Always unplug the mixer before cleaning.
- Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse it in water or spray it with liquids.
- Mixing Bowl and Attachments: The stainless steel mixing bowl, whisk, beater, and dough hook are dishwasher safe. Alternatively, wash them in warm, soapy water, rinse thoroughly, and dry immediately.
- Splash Guard: Wash the splash guard in warm, soapy water and rinse. It is not recommended for dishwasher use to prevent warping.
- Storage: Store the mixer and its accessories in a dry place.
7. Troubleshooting
If you encounter issues with your mixer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not start. | Not plugged in; power switch off; motor head not locked. | Ensure plug is securely in outlet; turn speed knob to a setting other than '0'; ensure motor head is fully lowered and locked. |
| Motor stops during operation. | Overheat protection activated; too much load. | Unplug the mixer and let it cool down for at least 30 minutes. Reduce the amount of ingredients if overloading. |
| Attachment does not reach ingredients at the bottom of the bowl. | Attachment not properly installed. | Ensure the attachment is fully inserted and locked into the accessory port. |
| Mixer is unstable or vibrates excessively. | Not on a flat surface; non-slip feet not gripping; excessive load. | Place on a flat, stable surface. Ensure non-slip feet are clean. Reduce load if necessary. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | LEHMANN |
| Model | LHOPM-1505-D |
| Color | Black |
| Product Dimensions | 23 x 34 x 35.5 cm |
| Capacity | 5 Liters |
| Number of Speeds | 12 |
| Special Features | Adjustable speed control, Overheat protection, Tilt-head design, Removable bowl |
| Item Weight | 4.9 Kilograms |
| Material | Stainless Steel, Plastic (BPA-free) |
| Voltage | 230 Volt |
| Power | 1500 Watts |
| Control Type | Knob |
9. Warranty and Support
LEHMANN products are manufactured with high-quality materials and undergo strict quality control. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship from the date of purchase.
For warranty claims, technical support, or spare parts, please contact your retailer or the LEHMANN customer service department. Please have your model number (LHOPM-1505-D) and proof of purchase ready when contacting support.
Contact information can typically be found on the LEHMANN official website or through your purchase platform.
