EMOJO Compact Foldable Electric Trike User Manual

1. Introduction

Welcome to the EMOJO Compact Foldable Electric Trike user manual. This document provides essential information for the safe and efficient operation, maintenance, and care of your new electric trike. Please read this manual thoroughly before your first ride to ensure proper understanding and to maximize your riding experience.

The EMOJO Electric Trike is designed for convenience and stability, featuring a powerful 500W motor, a long-range 48V 14Ah battery, and a unique built-in differential for enhanced handling. Its foldable design allows for easy storage and transport.

Figure 1.1: EMOJO Compact Foldable Electric Trike (Blue)

2. Key Features

• Convenient Foldable Design: Engineered for easy storage and transportation, allowing you to enjoy riding anywhere.
• Smooth and Stable Handling with Built-In Differential: Equipped with an innovative differential system for superior stability and safety during acceleration, cornering, and braking. This ensures smooth turns and enhanced control.


  Figure 2.1: Built-in Differential System

• Harley-Style Handlebars: Wide and comfortable handlebars designed for relaxed hand positioning during long rides.
• Extended Range Capability: A single 48V 14Ah battery provides up to 65 miles of range. Range can be extended up to 100 miles with an optional secondary battery (sold separately).


  Figure 2.2: Dual Battery Design for Extended Range

• Full Assembly: The trike arrives fully assembled and ready to ride out of the box, minimizing setup time.
• Safety Compliance: UL 2849 verified for electrical and fire safety of the entire trike, and UL2271 verified battery pack, ensuring high safety and performance standards.
• Integrated Headlight: Provides clear visibility for safe riding in various conditions.


  Figure 2.3: Integrated Headlight

• 3.5 Inch Large LCD Display: Provides essential riding information at a glance.

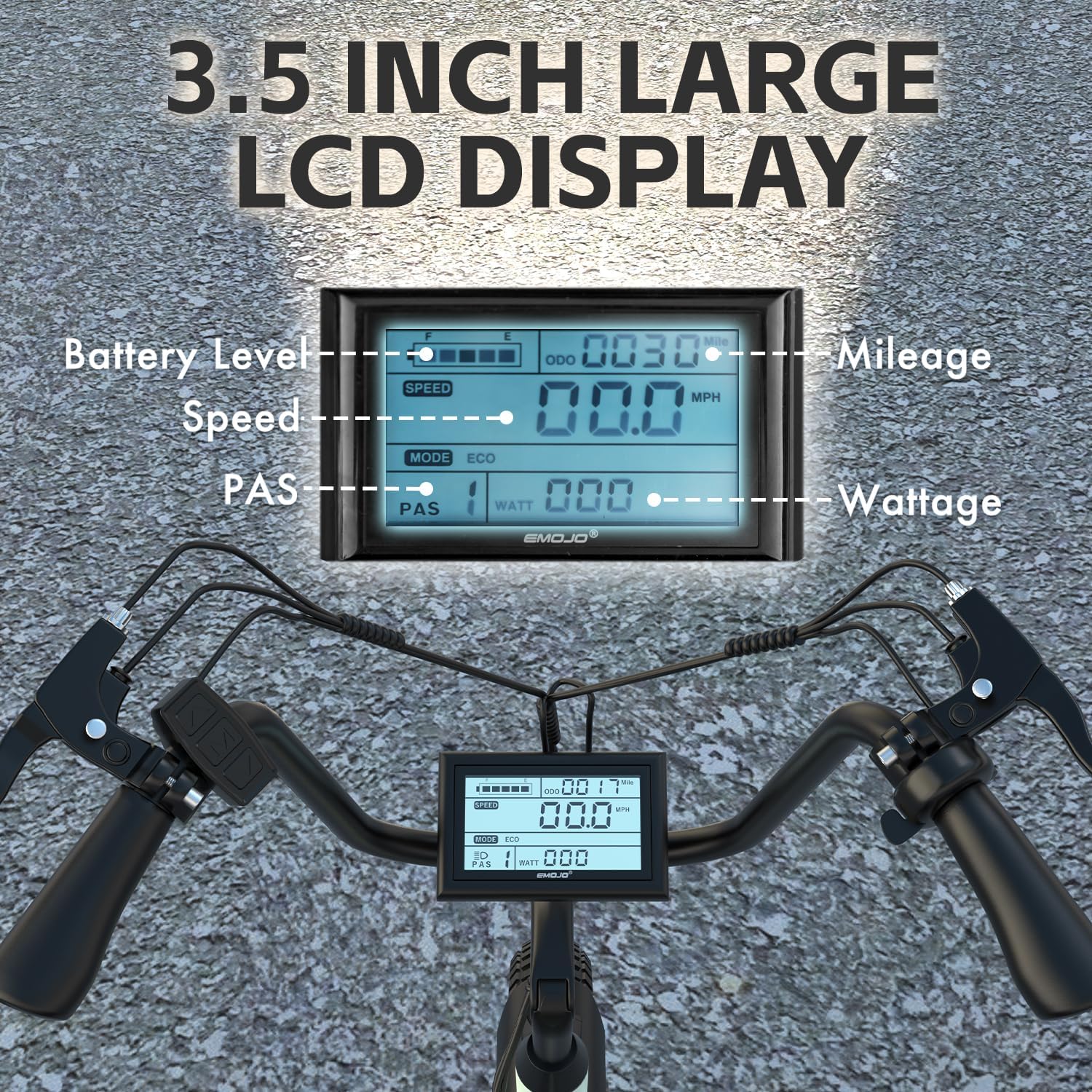

  Figure 2.4: LCD Display

• Adjustable Seat and Backrest: Designed for comfort and suitability for most adult riders.


  Figure 2.5: Adjustable Seat and Backrest

3. Setup

Your EMOJO Electric Trike comes fully assembled, significantly reducing setup time. Before your first ride, please perform the following checks:

1. Unpacking: Carefully remove the trike from its packaging. Retain packaging materials for future transport or storage if needed.
2. Initial Inspection: Visually inspect the trike for any signs of shipping damage. Check all cables, connections, and components for proper seating and integrity.
3. Battery Charge: Ensure the 48V 14Ah battery is fully charged before your first ride. Connect the charger to the trike's charging port and a standard power outlet. The charging indicator will show when charging is complete.


   Figure 3.1: Key Components (Battery, Motor, Assembly, Brakes)

4. Tire Pressure: Check the tire pressure using a pressure gauge. Inflate tires to the recommended PSI indicated on the tire sidewall.
5. Brake Functionality: Test both front and rear brakes to ensure they engage smoothly and effectively. Adjust if necessary (refer to a qualified technician if unsure).
6. Handlebar and Seat Adjustment: Adjust the Harley-style handlebars and the seat with backrest to a comfortable riding position. Ensure all quick-release levers are securely fastened after adjustment.

4. Operating Instructions

4.1 Powering On/Off

• To power on the trike, locate the power button on the battery or control panel and press it. The LCD display will illuminate.
• To power off, press and hold the power button until the display turns off.

4.2 Riding Modes

Your EMOJO trike offers different riding modes:

• Pedal Assist (PAS): This mode provides electric assistance as you pedal. The level of assistance can typically be adjusted via buttons on the handlebars (refer to LCD display section).
• Throttle Only: Engage the throttle (usually a thumb or twist throttle) to propel the trike without pedaling.
• Manual Pedaling: You can always ride the trike like a traditional bicycle without any electric assistance.

4.3 LCD Display Usage

The 3.5 inch LCD display provides crucial information during your ride:

• Battery Level: Indicates the remaining charge of your battery.
• Speed: Displays your current riding speed.
• PAS Level: Shows the current level of pedal assistance.
• Mileage/Odometer: Tracks your total distance traveled.
• Wattage: Displays the power output from the motor.

Use the control buttons near the display to cycle through information and adjust settings like PAS level.

4.4 Braking

Your trike is equipped with Dual Tektro Disc Brakes for reliable stopping power. Apply both brakes simultaneously for optimal and controlled stopping. Avoid sudden, hard braking, especially at high speeds.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your EMOJO Electric Trike.

5.1 Battery Care

• Charge the battery regularly, even if not in use, to maintain its health.
• Avoid completely draining the battery before recharging.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• Use only the original charger provided by EMOJO.

5.2 General Checks

• Tires: Check tire pressure before each ride. Inspect tires for wear, cuts, or punctures.
• Brakes: Regularly check brake pads for wear and ensure brake levers provide firm and responsive braking.
• Chain: Keep the chain clean and lubricated to ensure smooth operation and prevent rust.
• Fasteners: Periodically check all nuts, bolts, and quick-release levers to ensure they are tight and secure.
• Cleaning: Clean the trike with a damp cloth. Avoid using high-pressure washers directly on electrical components.

6. Troubleshooting

This section addresses common issues you might encounter. For more complex problems, please contact EMOJO customer support.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

The EMOJO Compact Foldable Electric Trike comes with a 1 Year Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear.

8.2 Customer Support

For technical assistance, warranty claims, or any questions regarding your EMOJO Electric Trike, please contact EMOJO customer service. Refer to the contact information provided with your purchase or visit the official EMOJO website.
