Veken 55 x 28 Inch Electric Standing Desk User Manual

1. Introduction

Thank you for choosing the Veken 55 x 28 Inch Electric Standing Desk. This desk is designed to provide a versatile and ergonomic workspace, allowing you to easily switch between sitting and standing positions. Please read this manual carefully before assembly and use to ensure proper operation and safety.

2. Important Safety Information

• Always follow the user manual for proper assembly and use.
• Do not exceed the weight limit of 154 lbs (70 kg) to ensure stability and prevent damage.
• Use the desk in a well-lit area and keep it away from heat sources.
• Be cautious when adjusting the height to avoid injury or pinching.
• Always maintain proper ergonomics when using the desk to prevent strain.
• Ensure all cables are properly managed to prevent tripping hazards or damage during height adjustments.

3. Package Contents

Please verify that all components are present before beginning assembly:

• Desktop (joined pieces)
• Desk Legs (cold-rolled steel frame)
• Control Panel with Memory Presets
• Motor and Transmission Rod
• Cable Clip
• Feet Pads (4x)
• Headphone Hook
• User Manual (this document)
• All necessary assembly tools (hex key, screws)

4. Assembly Instructions

Assembly is designed to be straightforward. All holes are pre-drilled, and accessories are pre-labeled for ease of installation. It is recommended to assemble the desk on a soft, clean surface to prevent scratches.

Step-by-Step Assembly Guide

1. Unpack Components: Carefully remove all parts from the packaging. Verify against the package contents list.
2. Assemble Desk Legs: Attach the desk legs to the main frame using the provided screws. Ensure all connections are secure.
3. Install Transmission Rod: Insert the transmission rod between the two legs. Ensure it is correctly aligned and secured.
4. Attach Desktop: Carefully place the desktop onto the assembled frame. Align the pre-drilled holes and secure the desktop with the provided screws. Be careful not to overtighten screws to avoid stripping the particle board.
5. Install Control Panel and Accessories: Attach the control panel to the underside of the desktop in the designated area. Install the headphone hook and cable clips as desired.
6. Connect Power: Connect the power cable to the control panel and then to a power outlet.

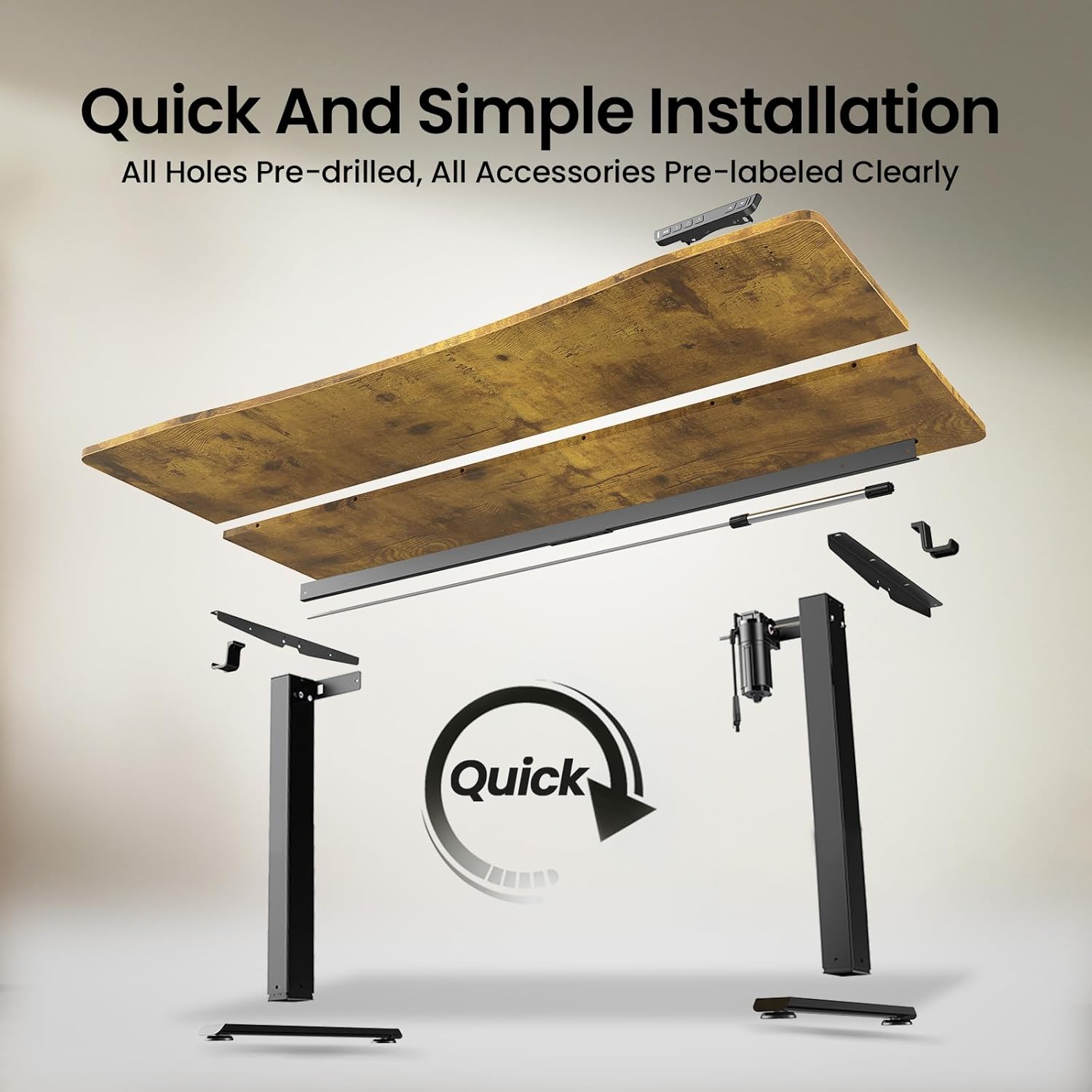

Figure 1: Quick and Simple Installation Overview

Assembly Video Guide

5. Operating Instructions

The Veken Electric Standing Desk features an intuitive control panel for easy height adjustment and personalized settings.

Height Adjustment

• The desk offers a wide height range from 27.9 inches to 45.6 inches.
• Use the Up (▲) and Down (▼) arrow buttons on the control panel to manually adjust the desk to your desired height.

Memory Presets

The control panel includes four memory preset buttons (1, 2, 3, 4) to save and quickly recall your preferred sitting and standing heights.

1. To Save a Preset: Adjust the desk to your desired height using the arrow buttons. Press and hold one of the numbered preset buttons (1-4) until the display flashes or beeps, indicating the height has been saved.
2. To Recall a Preset: Simply press the corresponding numbered preset button (1-4). The desk will automatically move to the saved height.

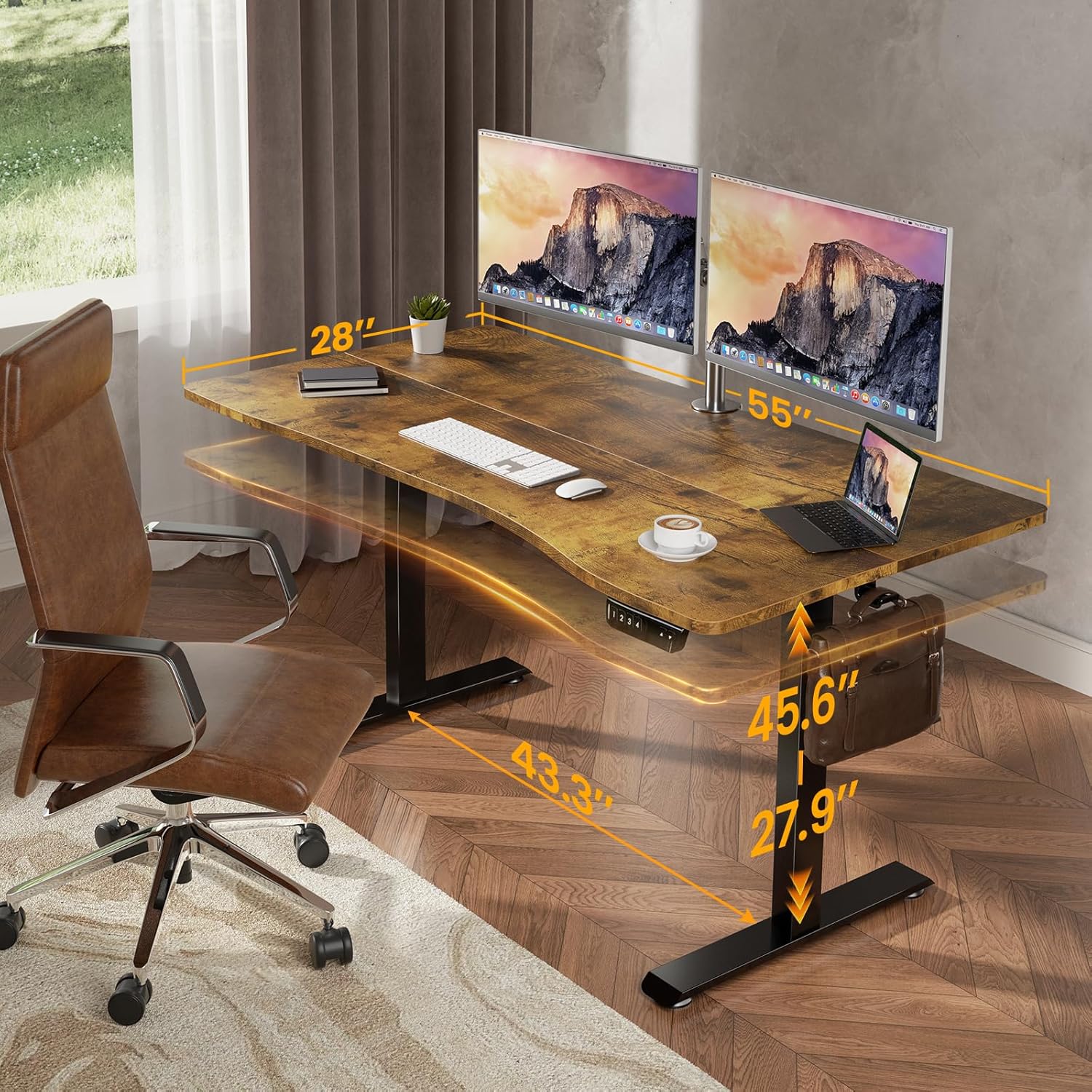

Figure 2: Desk Dimensions and Height Range

Ergonomic Design & Features

• Ergonomic Curved Edge: The desktop features a smooth, human-centric curved edge to reduce arm strain and allow easy access to items, enhancing comfort and productivity.
• Spacious Worksurface: The 55" x 28" desktop accommodates multiple monitors and office supplies, providing ample space for an organized workflow.
• Headphone Hook: A convenient hook is included for hanging headphones or bags, keeping your workspace tidy.

Figure 3: Ergonomic Desktop Design

6. Maintenance

To ensure the longevity and optimal performance of your Veken Electric Standing Desk, follow these maintenance guidelines:

• Cleaning: Wipe the desktop and frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Cable Management: Periodically check and adjust cable clips to keep wires tidy and prevent them from getting caught during height adjustments.
• Fastener Check: Occasionally inspect all screws and fasteners to ensure they are tight. Retighten if necessary, but avoid overtightening.
• Motor Care: The motor is designed for durability. If you notice any unusual sounds or resistance during adjustment, refer to the troubleshooting section.

7. Troubleshooting

If you encounter any issues with your Veken Electric Standing Desk, please refer to the following common problems and solutions:

• Desk Not Adjusting / Uneven Legs: If one leg is not moving synchronously with the other, or the desk is not adjusting, it may indicate an incorrect installation of the transmission rod. Ensure the transmission rod is fully inserted into the hexagonal nut on the left leg's hole position.
• Vibration During Adjustment: A slight vibration when lowering the desk might occur. This is often due to the legs catching slightly. Regular use typically smooths this out. If persistent, ensure all connections are secure.
• Stripped Screw Holes: The desktop is made of particle board. When assembling, avoid overtightening screws to prevent stripping the pre-drilled holes. If a hole is stripped, consider using wood glue and a larger screw, or a repair kit.

Troubleshooting Video Guide

8. Specifications

Figure 4: Desk Load-Bearing Capacity

9. Warranty and Support

Manufacturer Warranty: This product comes with a limited manufacturer warranty. For specific details regarding the warranty period and coverage, please refer to the documentation included in your product packaging or contact Veken customer support.

Customer Support: If you have any questions, suggestions, or require assistance with your Veken Electric Standing Desk, please do not hesitate to contact Veken customer support. Contact information can typically be found on the product packaging or the official Veken website.
