VCELINK RJ45 Toolless Cat7 Connector Instruction Manual

1. Introduction

Thank you for choosing the VCELINK RJ45 Toolless Cat7 Connector. This product is designed for easy and reliable termination of Cat6A and Cat7 Ethernet cables, supporting high-speed data transmission up to 10 Gbps. Its tool-free design simplifies installation, making it suitable for various networking applications. This manual provides essential information for proper installation, operation, and maintenance.

Figure 1: VCELINK RJ45 Toolless Cat7 Connectors

2. Product Features

• Tool-Free Installation: Designed for easy connection without specialized crimping tools, though basic cutting tools are still required.
• High-Speed Transmission: Supports up to 10 Gbps with Cat7 cables, compatible with Cat6A/Cat7 Ethernet cables (22-26AWG, Wire OD 1.04mm-1.35mm).
• Stable Connection: Features a metal shielding shell and gold-plated contacts for reliable signal transmission. Includes a unique snap-on design and tail nut with snap ring for secure connections.
• Reusable Design: The connector can be disassembled and reconnected, minimizing waste.
• User-Friendly Design: Offers an opening angle over 90 degrees and a color-coded load bar for T568A or T568B wiring standards. Includes a dust cover for extended service life.

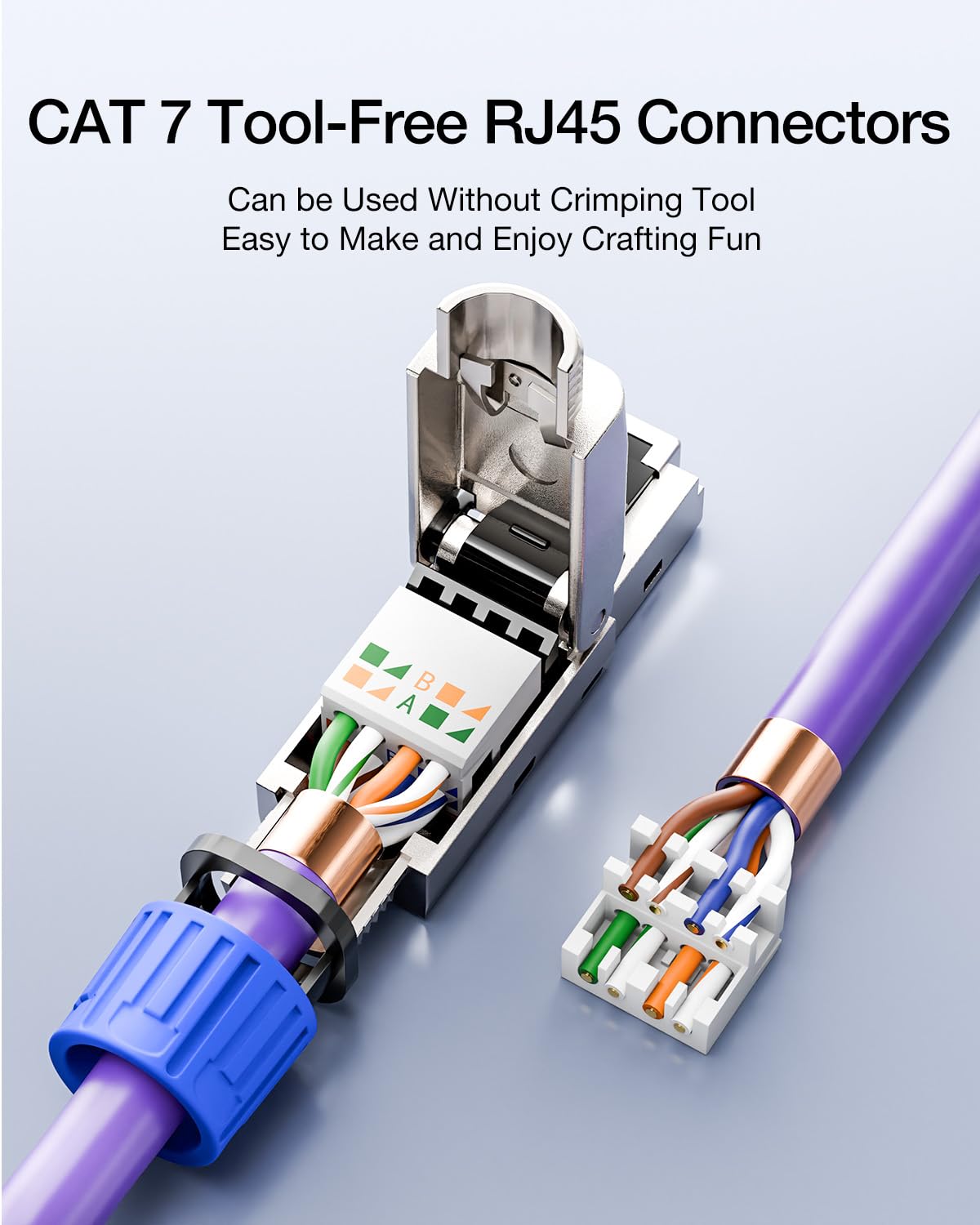

Figure 2: Tool-Free Design Overview

3. Package Contents

Each package contains the following items:

• 2 x VCELINK RJ45 Toolless Cat7 Connectors

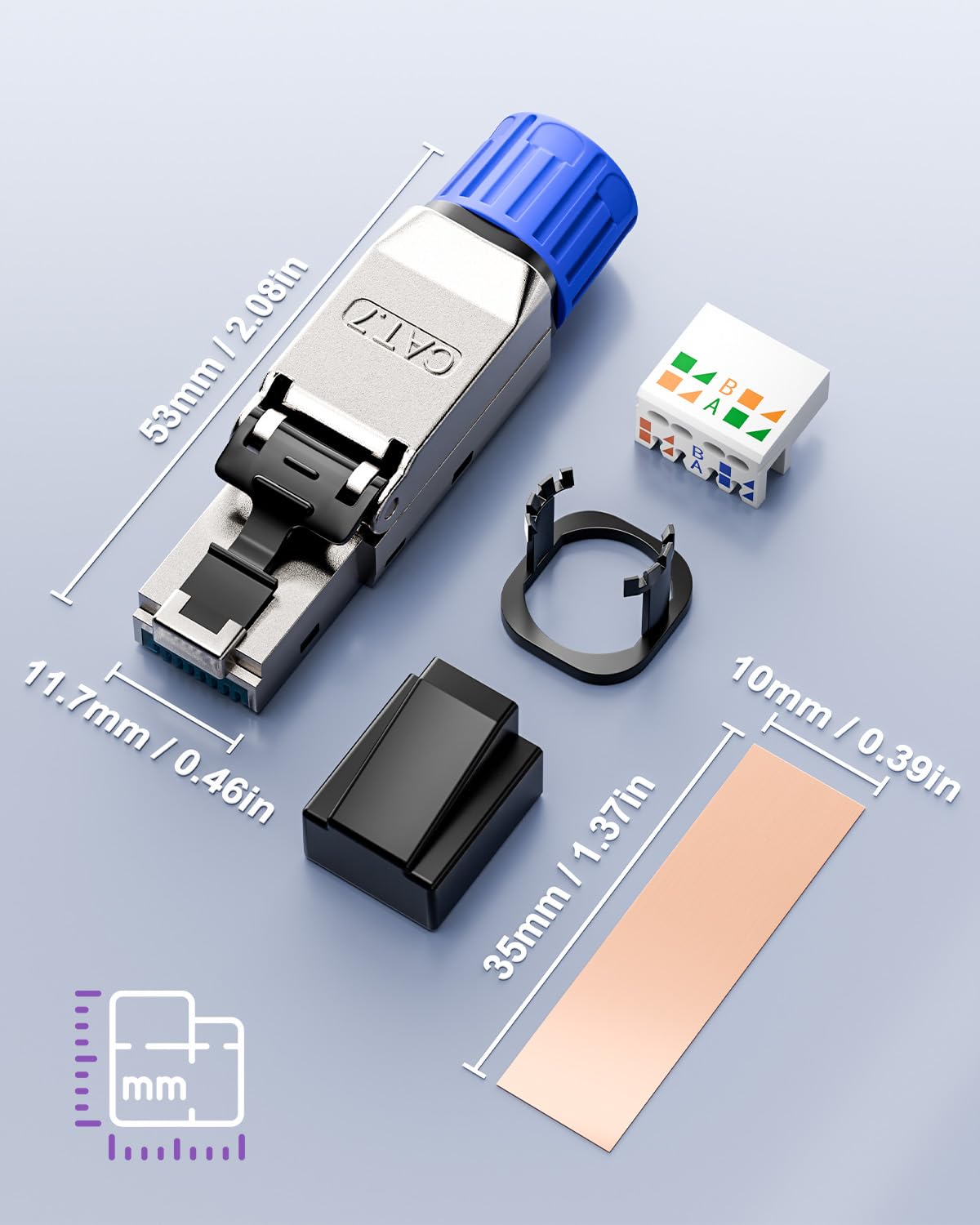

Figure 3: Connector Components and Dimensions

4. Installation Guide

Follow these steps to properly install the VCELINK RJ45 Toolless Cat7 Connector onto your Ethernet cable. While no crimping tool is needed, a cable stripper/cutter is recommended.

Figure 4: Detailed Installation Steps

1. Prepare the Cable: Slide the cable boot and retaining ring onto the Ethernet cable.
2. Strip the Cable: Carefully strip approximately 20-25mm (0.8-1 inch) of the outer jacket from the Ethernet cable. Be cautious not to damage the internal wires.
3. Expose Wires: Remove any shielding or foil to expose the twisted pairs. Untwist the wire pairs.
4. Arrange Wires: Straighten the individual wires and arrange them according to either the T568A or T568B wiring standard. Ensure consistency if connecting to an existing network.
5. Insert into Load Bar: Carefully insert the arranged wires into the color-coded load bar. Ensure each wire is fully seated in its correct slot.
6. Trim Wires: Use a sharp cutter to trim the excess wires flush with the edge of the load bar. This ensures proper contact when the connector is closed.
7. Place Load Bar: Open the connector's hinged metal casing (it opens over 90 degrees). Place the load bar with the trimmed wires into the designated slot within the connector.
8. Close Connector: Carefully close the hinged metal casing until it snaps shut. Ensure the wires remain in place and the connection is secure.
9. Secure Retaining Ring: Slide the retaining ring forward and twist it to lock the cable in place, providing strain relief.
10. Attach Dust Cover: If not immediately connecting, attach the dust cover to protect the contacts.

Important Wiring Standards:

• T568A: Green-White, Green, Orange-White, Blue, Blue-White, Orange, Brown-White, Brown
• T568B: Orange-White, Orange, Green-White, Blue, Blue-White, Green, Brown-White, Brown

Always use the same wiring standard (T568A or T568B) on both ends of a cable for a standard straight-through connection.

5. Operation

Once the connector is properly installed on the Ethernet cable, it functions like any standard RJ45 connector. Simply plug it into a compatible RJ45 port on devices such as routers, switches, PCs, laptops, printers, or servers. The secure snap-on design prevents accidental disconnections.

Figure 5: Wide Application of the Connector

6. Maintenance

The VCELINK RJ45 Toolless Cat7 Connector requires minimal maintenance. To ensure optimal performance:

• Keep connectors clean and free from dust and debris. Use the provided dust cover when the connector is not in use.
• Avoid excessive bending or pulling on the cable near the connector to prevent damage to the internal wiring or the connector itself.
• Periodically check connections for looseness, especially in high-vibration environments.

7. Troubleshooting

If you encounter issues with your VCELINK RJ45 Toolless Cat7 Connector, consider the following:

• No Network Connection:
  • Verify that the wires are correctly inserted into the load bar according to the T568A or T568B standard.
  • Ensure the wires are trimmed flush and making proper contact with the connector's pins.
  • Check that the connector's metal casing is fully closed and latched.
  • Confirm that the same wiring standard is used on both ends of the Ethernet cable.
  • Test the cable with a network cable tester if available.
• Intermittent Connection:
  • Ensure the retaining ring is securely tightened to prevent cable movement.
  • Re-open and re-seat the wires in the load bar, ensuring good contact.
  • Inspect the gold-plated contacts for any visible damage or debris.
• Difficulty Closing Connector:
  • Ensure all wires are properly trimmed and seated within the load bar and not protruding.
  • Verify that the load bar is correctly aligned within the connector housing.

If issues persist, carefully disassemble the connector and repeat the installation steps, paying close attention to wire arrangement and trimming.

8. Specifications

9. Warranty and Support

VCELINK products are manufactured to high-quality standards. For any questions, technical support, or warranty inquiries, please contact VCELINK customer service. You can find more information and contact details on the official VCELINK website or through your purchase platform.

Visit the official VCELINK Store: VCELINK Store on Amazon
