1. Introduction
This manual provides essential information for setting up, operating, and maintaining your XIAOMI Poco F7 Ai 5G smartphone. Please read this guide thoroughly to ensure proper use and to maximize the device's capabilities.
Image 1.1: Front and back view of the XIAOMI Poco F7 Ai 5G, showcasing its design and core features.
2. What's in the Box
Upon opening your XIAOMI Poco F7 Ai 5G package, verify that all the following items are included:
- XIAOMI Poco F7 Ai 5G Smartphone
- User Manuals
- Phone Case
- USB Cable
- SIM Ejector Tool (typically included with manuals)

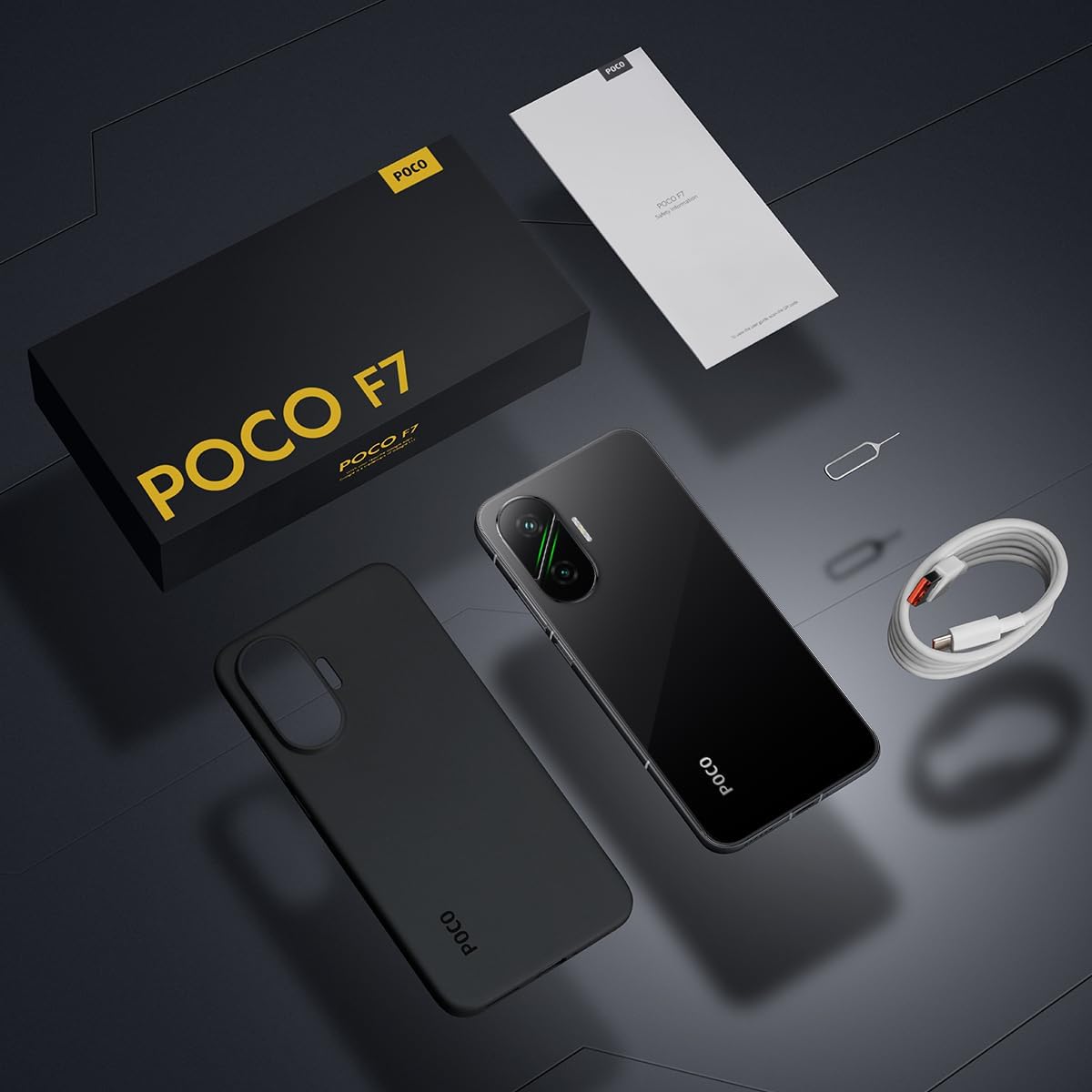

Image 2.1: Contents of the XIAOMI Poco F7 Ai 5G retail package.
3. Physical Overview
Familiarize yourself with the physical components of your device.
Image 3.1: Side profiles of the XIAOMI Poco F7 Ai 5G, illustrating button placement and port locations.
- Power Button: Located on the right side. Press and hold to power on/off or restart.
- Volume Rocker: Located above the power button. Used to adjust media and call volume.
- USB Type-C Port: Located at the bottom. Used for charging and data transfer.
- Speaker Grille: Located at the bottom and top for stereo audio output.
- SIM Card Tray: Located on the side. Requires the SIM ejector tool to open.
- Cameras: Rear camera module and front camera punch-hole.
4. Setup
4.1. Inserting the SIM Card
- Power off your device.
- Locate the SIM card tray on the side of the phone.
- Insert the SIM ejector tool into the small hole on the tray and press gently until the tray pops out.
- Place your Nano-SIM card(s) into the tray with the gold contacts facing down. This device supports dual SIM cards. Note: Micro SD cards are not supported.
- Carefully reinsert the tray into the phone.
4.2. Initial Power On and Configuration
- Press and hold the Power button until the XIAOMI logo appears.
- Follow the on-screen prompts to select your language, region, and connect to a Wi-Fi network.
- Sign in with your Google account or create a new one.
- Set up your preferred screen lock method (PIN, pattern, password, fingerprint, or AI Face Unlock).
- Complete the remaining setup steps as guided by the HyperOS interface.
5. Operating Your Device
5.1. Display Features
The Poco F7 features a 6.83-inch 1.5K 120Hz AMOLED display, offering vibrant visuals and smooth scrolling.
- Refresh Rate: Up to 120Hz for fluid motion.
- Brightness: Typical 700 nits, HBM 1700 nits, Peak 3200 nits.
- Color: DCI-P3 color gamut, 68 billion colors, Dolby Vision, HDR 10+.
- Eye Comfort: TÜV Rheinland Low Blue Light, Flicker Free, and Circadian Friendly certifications.
- Wet Touch Display 2.0: Enhanced touch responsiveness even with wet fingers.
Image 5.1: Key features of the Poco F7's display.
5.2. Camera System
The device is equipped with a versatile camera system for photography and video recording.
- Rear Camera: 50MP main (Sony IMX882, f/1.5, OIS) and 8MP ultra-wide camera.
- Front Camera: 20MP.
- Photography Features: Dynamic shot, Motion capture, Documents mode, Motion tracking focus, Portrait mode, Timed burst, Pro mode, 50MP mode, Panorama, Burst shot mode, Long exposure, HDR.
- Video Recording: 4K at 30fps/60fps, 1080p at 30fps/60fps. Slow motion up to 960fps.
5.3. Battery and Charging
The Poco F7 features a large battery and fast charging capabilities.
- Battery Capacity: 6500mAh (typical).
- Charging: Supports 90W HyperCharge for rapid charging.
- Reverse Charging: Supports up to 22.5W reverse charging.
Image 5.2: Details on the Poco F7's 6500mAh battery capacity and usage estimates.
5.4. Connectivity
The device supports various network and wireless technologies.
- 5G Connectivity: Sub6G bands n1/3/5/7/8/20/28/38/40/41/77/78.
- 4G LTE: FDD B1/2/3/4/5/7/8/20/28/66, TDD B38/40/41.
- 3G WCDMA: 1/2/4/5/8/19.
- 2G GSM: Quad Band.
- Wi-Fi: 802.11a/b/g/n/ac/ax.
- Bluetooth: 5.4.
- GPS: L1+L5, Beidou, Galileo, GLONASS, QZSS, NavIC.
- NFC: Supported for contactless payments and data transfer.
6. Maintenance
To ensure the longevity and optimal performance of your XIAOMI Poco F7 Ai 5G, follow these maintenance guidelines:
- Cleaning: Use a soft, lint-free cloth to clean the screen and body. Avoid abrasive materials or harsh chemicals.
- Water and Dust Resistance: The device features IP68 dust and water resistance. While it can withstand immersion up to 1.5 meters for 30 minutes, it is not recommended for use in water. Avoid exposing the device to saltwater, chlorinated water, or other liquids.
- Temperature: Operate the device within recommended temperature ranges. Extreme heat or cold can affect battery life and performance.
- Software Updates: Regularly update your device's operating system (HyperOS) to receive the latest security patches and feature enhancements.
- Storage: Periodically clear unnecessary files and applications to maintain optimal storage and performance.
7. Troubleshooting
This section addresses common issues you might encounter with your device.
- Device Not Powering On:
- Ensure the battery is charged. Connect the device to the 90W HyperCharge adapter and wait a few minutes before attempting to power on.
- Perform a force restart by holding the Power button for approximately 10-15 seconds.
- Poor Network Connectivity:
- Check if your SIM card is properly inserted.
- Verify that you are within network coverage.
- Restart the device.
- Go to Settings > SIM cards & mobile networks and ensure your SIM is enabled and preferred network type is set correctly.
- Battery Draining Quickly:
- Reduce screen brightness and set a shorter screen timeout.
- Close unused applications running in the background.
- Disable Wi-Fi, Bluetooth, and GPS when not in use.
- Check battery usage in Settings to identify power-hungry apps.
- Apps Crashing or Freezing:
- Clear the cache and data of the problematic app (Settings > Apps > Manage apps).
- Update the app to its latest version from the Google Play Store.
- If the issue persists, uninstall and reinstall the app.
- Fingerprint Sensor Not Working:
- Ensure your finger and the screen are clean and dry.
- Re-register your fingerprints in Settings > Password & security.
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | Poco F7 |
| Model Number | 25053PC47G |
| Dimensions | 8.98 x 5.83 x 2.56 inches (Package) |
| Weight | 1.21 pounds |
| Operating System | Android-based HyperOS |
| CPU | Flagship Snapdragon® 8s Gen 4 Mobile Platform (Octa-core, up to 3.21GHz) |
| GPU | Adreno 825 |
| RAM | 12 GB |
| Storage | 256 GB |
| Display Size | 6.83 Inches |
| Display Type | 1.5K 120Hz AMOLED |
| Resolution | 2772 x 1280 (447 PPI) |
| Peak Brightness | 3200 nits |
| Rear Camera | 50MP Sony IMX882 (OIS) + 8MP Ultra-wide |
| Front Camera | 20MP |
| Battery Capacity | 6500 mAh (typical) |
| Charging | 90W HyperCharge, 22.5W Reverse Charging |
| Connectivity | 5G, 4G LTE, 3G, 2G, Wi-Fi (802.11a/b/g/n/ac/ax), Bluetooth 5.4, NFC |
| GPS | L1+L5, Beidou, Galileo, GLONASS, QZSS, NavIC |
| Sensors | Proximity, Ambient light, Accelerometer, Electronic compass, IR blaster, Gyroscope, Flicker sensor, In-screen fingerprint |
| Water & Dust Resistance | IP68 |
9. Warranty and Support
Your XIAOMI Poco F7 Ai 5G is covered by a standard manufacturer's warranty. For detailed warranty terms and conditions, please refer to the warranty card included in your product packaging or visit the official XIAOMI support website. For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact XIAOMI customer support.
You can find more information and support resources on the official XIAOMI website: www.mi.com/global/support
