Mistral MTF1697DR 16-inch DC Table Fan Instruction Manual

1. Introduction

Thank you for choosing the Mistral MTF1697DR 16-inch DC Table Fan. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new fan. Please read these instructions thoroughly before use and retain them for future reference.

2. Product Overview

The Mistral MTF1697DR is a 16-inch DC table fan designed for optimal air circulation. It features a durable construction and advanced functionalities for enhanced user comfort.

Key Features:

• 9 Speed Settings with 3 Mode Selection
• Energy-efficient BLDC Motor
• Up to 9 Hours Timer Function
• Strong Air Delivery
• Front & Rear Durable Plastic Fan Guard
• Remote Control Operation

Components:

Familiarize yourself with the main components of your fan:

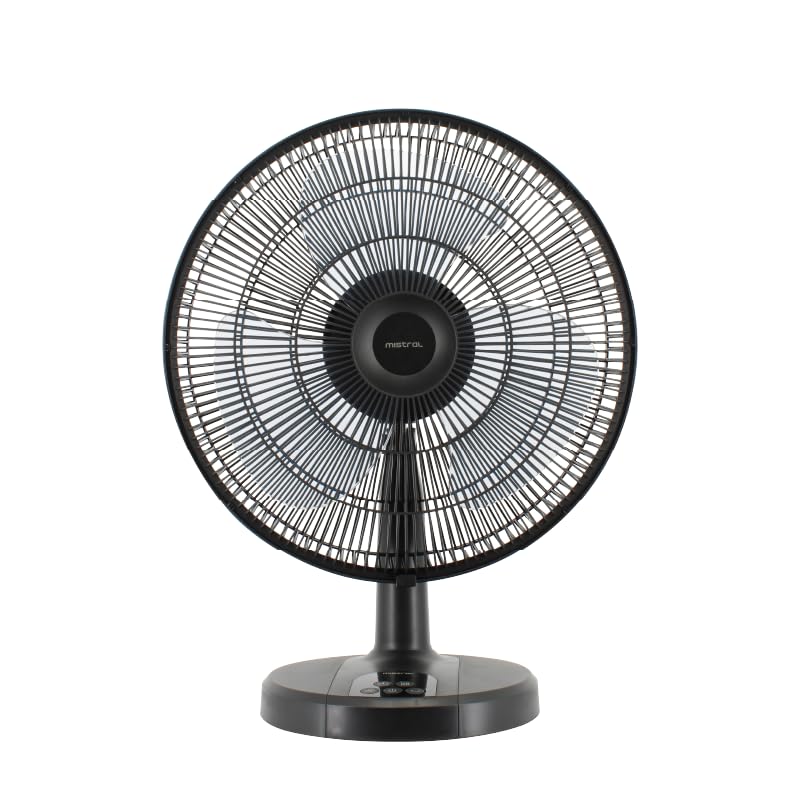

Figure 1: Front view of the Mistral MTF1697DR fan, showing the fan head, guard, stand, and base with control panel.

Figure 2: Side view of the Mistral MTF1697DR fan, illustrating the fan head's tilt mechanism and the fan's profile.

3. Setup

Follow these steps to set up your fan:

1. Unpacking: Carefully remove all packaging materials. Ensure all components are present and undamaged.
2. Assembly: The fan typically comes partially assembled. If the fan guard or base requires attachment, follow the diagrams provided in the separate assembly guide (if applicable) or ensure the fan head is securely fastened to the stand and the stand to the base. Ensure the front and rear fan guards are properly aligned and secured.
3. Placement: Place the fan on a stable, flat surface. Ensure there is adequate space around the fan for proper air circulation and to prevent obstruction of the air intake/outlet. Keep the fan away from curtains, drapes, or any objects that could be drawn into the fan blades.
4. Power Connection: Plug the power cord into a standard electrical outlet (220-240V ~ 50/60Hz).

4. Operating Instructions

Your Mistral MTF1697DR fan can be operated using the control panel on the base or the included remote control.

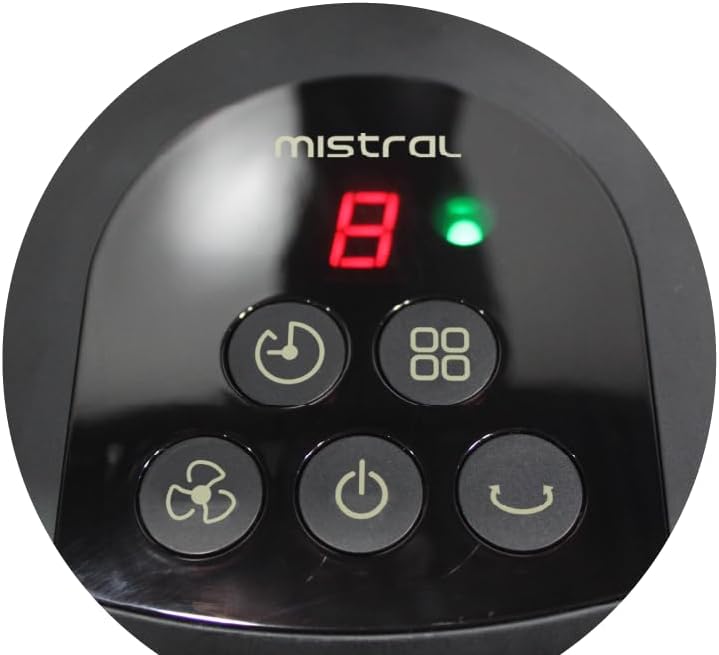

Figure 3: Close-up of the fan's control panel on the base, showing buttons for power, speed, mode, timer, and oscillation.

Control Panel Functions:

• Power Button (U): Press to turn the fan ON or OFF.
• Speed Button (Fan Icon): Press repeatedly to cycle through 9 speed settings. The current speed will be displayed on the LED screen.
• Mode Button (Squares Icon): Press to select from 3 operating modes (e.g., Normal, Natural, Sleep). Each press changes the mode.
• Timer Button (Clock Icon): Press to set the fan to turn off automatically after a set period, up to 9 hours. Each press increases the timer duration.
• Oscillation Button (Curved Arrow Icon): Press to start or stop the fan's oscillation function, which sweeps the airflow from side to side.

Remote Control:

The remote control duplicates all functions available on the fan's control panel, allowing for convenient operation from a distance. Ensure the remote control has working batteries and is pointed towards the fan's receiver.

5. Maintenance

Regular cleaning and proper care will ensure the longevity and optimal performance of your fan.

Cleaning:

1. Always unplug the fan from the power outlet before cleaning.
2. Exterior: Wipe the exterior surfaces of the fan with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish.
3. Fan Guards and Blades: To clean the fan blades, you may need to carefully remove the front fan guard. Refer to the assembly instructions for guard removal. Use a soft cloth or a vacuum cleaner with a brush attachment to remove dust from the blades and guards. Ensure all parts are completely dry before reassembling and operating the fan.
4. Do not immerse the fan in water or allow water to drip into the motor housing.

Storage:

When not in use for extended periods, store the fan in a cool, dry place, preferably in its original packaging, to protect it from dust and damage.

6. Troubleshooting

If you encounter issues with your fan, refer to the following common problems and solutions:

• Fan does not turn on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check if the power button has been pressed.
  • Verify that the household circuit breaker has not tripped.
• Weak or no airflow:
  • Check for obstructions around the fan guards.
  • Clean any dust or debris from the fan blades and guards (refer to Maintenance section).
  • Increase the fan speed setting.
• Remote control not working:
  • Ensure there are no obstructions between the remote and the fan's receiver.
  • Replace the batteries in the remote control.
  • Ensure you are within the effective range of the remote control.

If the problem persists after attempting these solutions, please contact customer support.

7. Specifications

8. Warranty and Support

Warranty Information:

This Mistral MTF1697DR fan comes with a 2-year warranty on the product, and an extended 8-year warranty specifically for the motor. Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, warranty claims, or any questions not covered in this manual, please contact your retailer or the Mistral customer service department. Contact details can typically be found on the product packaging or the official Mistral website.
