DATOUBOSS 12V 100Ah LiFePO4 Battery User Manual

Introduction

Thank you for choosing the DATOUBOSS 12V 100Ah LiFePO4 Deep Cycle Battery. This manual provides essential information for the safe and efficient use of your battery. Please read it thoroughly before installation and operation to ensure optimal performance and longevity.

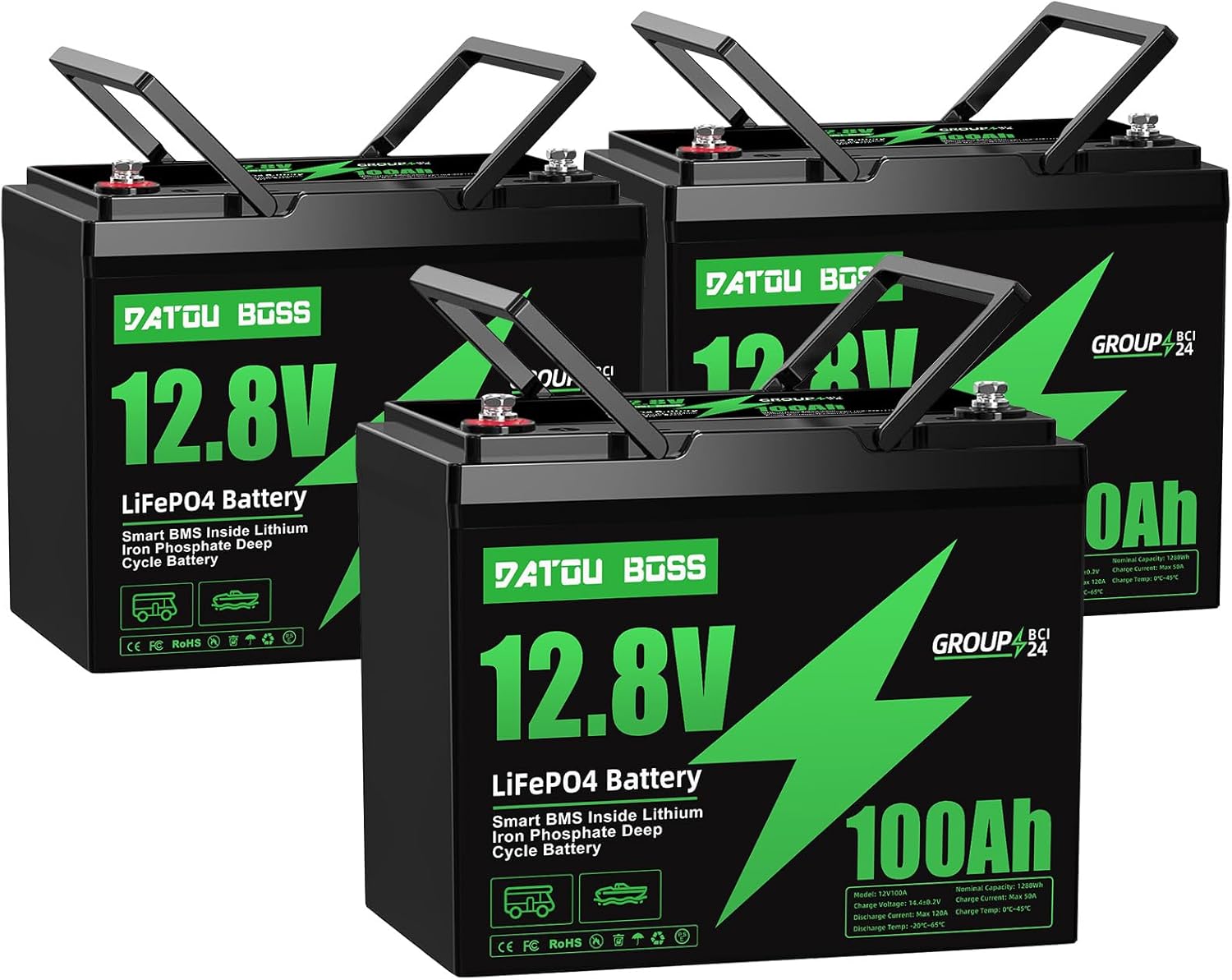

Figure 1: Three DATOUBOSS 12V 100Ah LiFePO4 Deep Cycle Batteries. This image displays three DATOUBOSS 12V 100Ah LiFePO4 deep cycle batteries, highlighting their compact design and terminal connections.

Product Features

• Excellent Performance & Safety Upgrade: High energy density design, half the weight of traditional lead-acid batteries with stronger performance. Built-in intelligent BMS (Battery Management System) provides comprehensive protection including short circuit, overvoltage, overheating, and overcharge protection.
• Long Lifespan & High Cycle Count: Service life of up to 10 years with a 5-year warranty. Offers 4000-15000 cycles, significantly more than lead-acid batteries.
• Flexible Expansion: Supports multiple batteries in series and parallel. Up to 16 batteries can be connected to form a 4-series 4-parallel (4S4P) system, achieving an output capacity of 12.8V to 51.2V and a power output of 1.28kW to 20.48kW.
• Wide Application Scenarios: Ideal for RVs, camping, solar systems, off-grid power, boats, electric carts, backup power supplies, and more.
• Temperature Adaptability: Excellent discharge performance ranging from -4°F to 140°F.

Figure 2: All-Around Safety with 100A BMS. Illustration emphasizing the all-around safety features of the DATOUBOSS LiFePO4 battery, including its built-in 100A BMS (Battery Management System) for protection, 4000+ cycles, and 10+ years lifespan.

Figure 3: Adaptability to Extreme Temperatures. This image demonstrates the battery's ability to adapt to extreme temperatures, with an excellent discharge performance range from -4°F to 140°F.

Specifications

Figure 4: Battery Dimensions and Weight. Detailed view of the DATOUBOSS 12V 100Ah LiFePO4 battery, showing its dimensions (10.2in x 6.6in x 8.5in) and weight (10.92kg / 24LB), along with its 1280Wh energy capacity.

What's in the Box

• 12V 100Ah LiFePO4 Battery (Quantity as per package, e.g., 3PC for this model)

Setup and Installation

1. Pre-Installation Checks

• Inspect the battery for any physical damage.
• Ensure all connections are clean and free of corrosion.
• Verify the voltage of the battery before connecting to your system.

2. Series and Parallel Connections

The DATOUBOSS LiFePO4 battery supports flexible expansion by connecting multiple units in series and/or parallel to achieve desired voltage and capacity. Always ensure all batteries are at a similar state of charge before connecting them in parallel.

• Parallel Connection: Connect positive terminals together and negative terminals together to increase capacity (Ah) while maintaining the same voltage (V).
• Series Connection: Connect the positive terminal of one battery to the negative terminal of the next battery to increase voltage (V) while maintaining the same capacity (Ah).
• Maximum Configuration: Up to 16 batteries can be connected in a 4-series 4-parallel (4S4P) configuration.

Figure 5: Flexible Capacity Expansion. Diagram illustrating how multiple DATOUBOSS LiFePO4 batteries can be connected in series and parallel (up to 4S4P) to expand system capacity and voltage, suitable for solar power systems and various loads.

3. Wiring Guidelines

• Use appropriate gauge wiring for your application to prevent overheating and voltage drop.
• Ensure all connections are tight and secure to prevent arcing and ensure efficient power transfer.
• Always connect the battery to a compatible charge controller or inverter.

Operating Instructions

1. Charging the Battery

The DATOUBOSS LiFePO4 battery can be charged using various methods:

• Solar Panel: Connect to a compatible solar charge controller (MPPT or PWM) designed for LiFePO4 batteries.
• Battery Charger: Use a dedicated LiFePO4 battery charger. Do not use lead-acid chargers unless they have a specific LiFePO4 mode.
• Generator: Connect through an appropriate AC-to-DC charger or inverter/charger system.

Figure 6: Charging Methods. Visual guide demonstrating three common methods for charging the DATOUBOSS LiFePO4 battery: using solar panels, a dedicated battery charger, or a generator.

2. Discharge and Usage

• The battery offers a stable discharge curve and up to 95% capacity utilization.
• The built-in BMS protects against over-discharge, ensuring the battery's longevity.
• Compatible with most inverters and solar systems on the market.

Figure 7: Powering Various Devices. This image shows the DATOUBOSS LiFePO4 battery providing power for various appliances like a fan, refrigerator, coffee maker, and microwave in an RV setting, demonstrating its long-lasting and durable energy supply.

Maintenance

• Regular Inspection: Periodically check battery terminals for cleanliness and tightness.
• Storage: If storing the battery for an extended period, ensure it is charged to approximately 50-70% capacity and stored in a cool, dry place. Avoid extreme temperatures.
• Cleaning: Use a dry cloth to clean the battery casing. Do not use solvents or abrasive cleaners.
• Avoid Deep Discharge: While the BMS protects against over-discharge, it is good practice to recharge the battery promptly after significant discharge.

Troubleshooting

If you encounter issues with your DATOUBOSS LiFePO4 battery, consider the following common troubleshooting steps:

• Battery Not Charging:
  • Check all cable connections for tightness and proper polarity.
  • Ensure your charger is compatible with LiFePO4 batteries and is functioning correctly.
  • Verify the input voltage to the charger is within specifications.
• No Power Output:
  • Check if the battery is sufficiently charged.
  • Inspect all wiring for loose connections or damage.
  • The BMS may have activated a protection mode (e.g., over-discharge, short circuit). Disconnect the load, wait a few minutes, and try reconnecting. If the issue persists, a small charge may be needed to reset the BMS.
• Unusual Odor or Swelling:
  • Immediately disconnect the battery from all loads and charging sources.
  • Contact customer support. Do not attempt to use or repair the battery.

For persistent issues, please refer to the Warranty & Support section for assistance.

Safety Warnings

Adhering to these safety guidelines is crucial for preventing damage to the battery, property, and personal injury:

• ✘ Do not reverse the positive and negative terminals of the battery!
• ✘ Do not hit or throw objects at the battery or step on it!
• ✘ Do not use metal to connect the positive and negative terminals of the battery directly!
• ✘ Do not weld the battery directly and do not pierce the battery with nails or other sharp objects!
• ✘ Do not immerse the battery in seawater or water!
• ✘ Do not use as a car starter battery, trip starter battery, or engine starter battery!
• ✘ Do not use the battery at high temperatures, otherwise it may overheat, catch fire or become defective, which will shorten its service life!

Figure 8: Important Safety Warnings. Important safety warnings for handling and using the DATOUBOSS LiFePO4 battery, including precautions against reverse polarity, physical impact, direct metal connection, welding, immersion in water, use as a car starter, and high-temperature exposure.

Application Scenarios

The DATOUBOSS 12V 100Ah LiFePO4 battery is versatile and suitable for a wide range of applications, including but not limited to:

• Recreational Vehicles (RVs) and Trailers
• Camping and Outdoor Activities
• Solar Energy Storage Systems
• Off-Grid Power Solutions
• Marine Applications (Boats, Trolling Motors)
• Electric Carts and Kayaks
• Backup Power Supplies
• Fire Protection Systems
• Cellular Remote Cameras
• Home Energy Storage

Figure 9: Diverse Application Scenarios. Collage of images depicting diverse applications for the DATOUBOSS LiFePO4 battery, including home storage, RV use, fishing, off-grid systems, and camping.

Figure 10: LiFePO4 vs. Lead-Acid Battery Comparison. A visual comparison highlighting the advantages of the 12V 100Ah LiFePO4 battery over a traditional 12V 100Ah lead-acid battery, including higher usable energy, lighter weight, 100% Depth of Discharge, lower self-discharge rate, more cycles, and longer service life.

Warranty & Support

DATOUBOSS is committed to providing high-quality products and excellent customer service.

• Warranty: Your DATOUBOSS 12V 100Ah LiFePO4 battery comes with a 5-year warranty service from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
• Technical Support: We offer 24-hour online technical support to assist you with any pre-sales consultations or after-sales issues. Please contact us through the seller's contact information on the platform where you purchased the product.

For detailed warranty terms and conditions, please refer to the product documentation or contact DATOUBOSS customer service.
