Introduction
Thank you for choosing the MXV 70-Inch Fireplace TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center. Please read all instructions carefully before beginning assembly or operation.

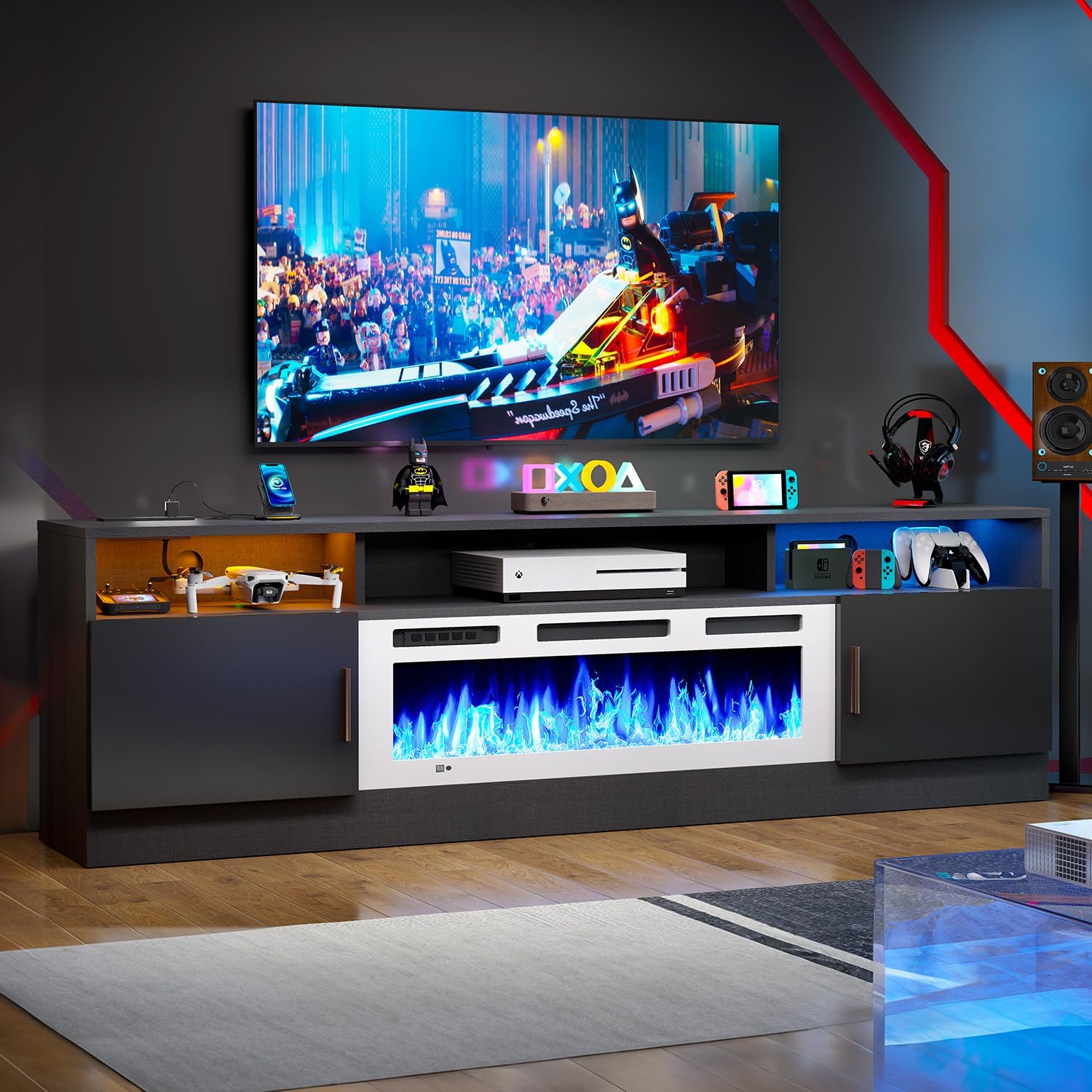

Image: The MXV 70-Inch Fireplace TV Stand, showcasing its design with a large television, gaming equipment, and the electric fireplace with blue flames.
Safety Information
Your safety is paramount. Please adhere to the following safety guidelines:
- Tip-Over Prevention: Avoid placing heavy objects on top of the unit to prevent tip-over.
- Fireplace Safety: Keep the fireplace area clear of flammable materials. Never leave the electric fireplace unattended while in use.
- General Operation: Always follow the manufacturer's instructions for safe operation and maintenance.
- Electrical Safety: Ensure all electrical connections are secure and comply with local electrical codes. Do not overload the power outlets.
Setup and Assembly
This product requires detailed assembly. Please ensure you have all components before starting.
Package Contents:
The MXV 70-Inch Fireplace TV Stand ships in two separate packages. These packages may arrive on different days. Please verify receipt of both packages before beginning assembly.
Image: Illustration depicting the product arriving in two separate boxes, which may be delivered on different days.
Assembly Instructions:
- Unpack: Carefully unpack all components and hardware. Lay them out on a clean, soft surface to prevent scratches.
- Identify Parts: Refer to the included assembly manual to identify each part.
- Follow Steps: Assemble the unit by following the step-by-step instructions provided in the separate assembly manual.
- Fasteners: When working with particleboard, avoid over-tightening screws to prevent damage.
- Fireplace Installation: Ensure the electric fireplace is securely mounted according to its specific instructions.
- Door Hinges: Take time to adjust door hinges slowly until the mechanism works correctly for proper alignment.
Dimensions and TV Compatibility:
The TV stand measures approximately 70" W × 13.8" D × 25.2" H. It is designed to accommodate TVs up to 80 inches.
Image: Detailed product dimensions for both the fireplace insert and the TV console, indicating overall size and internal compartment measurements.
Image: Visual representation of the TV stand's capacity to hold televisions up to 80 inches, with different TV sizes shown for reference.
Operating Instructions
Electric Fireplace:
The integrated 36-inch electric fireplace offers various settings for ambiance and heating.
- Control: Operate using the included remote control or the touch buttons located on the fireplace unit.
- Timer: Set the operational timer from 0 to 8 hours.
- Thermostat: Adjust the temperature between 62°F and 82°F.
- Heating Modes: Select between 750W or 1500W heating modes.
- Flame Colors: Choose from 12 distinct flame colors to match your preference.
- Brightness: Adjust the flame brightness with 5 available levels.
- Safety Feature: Built-in overheat protection ensures safe operation.

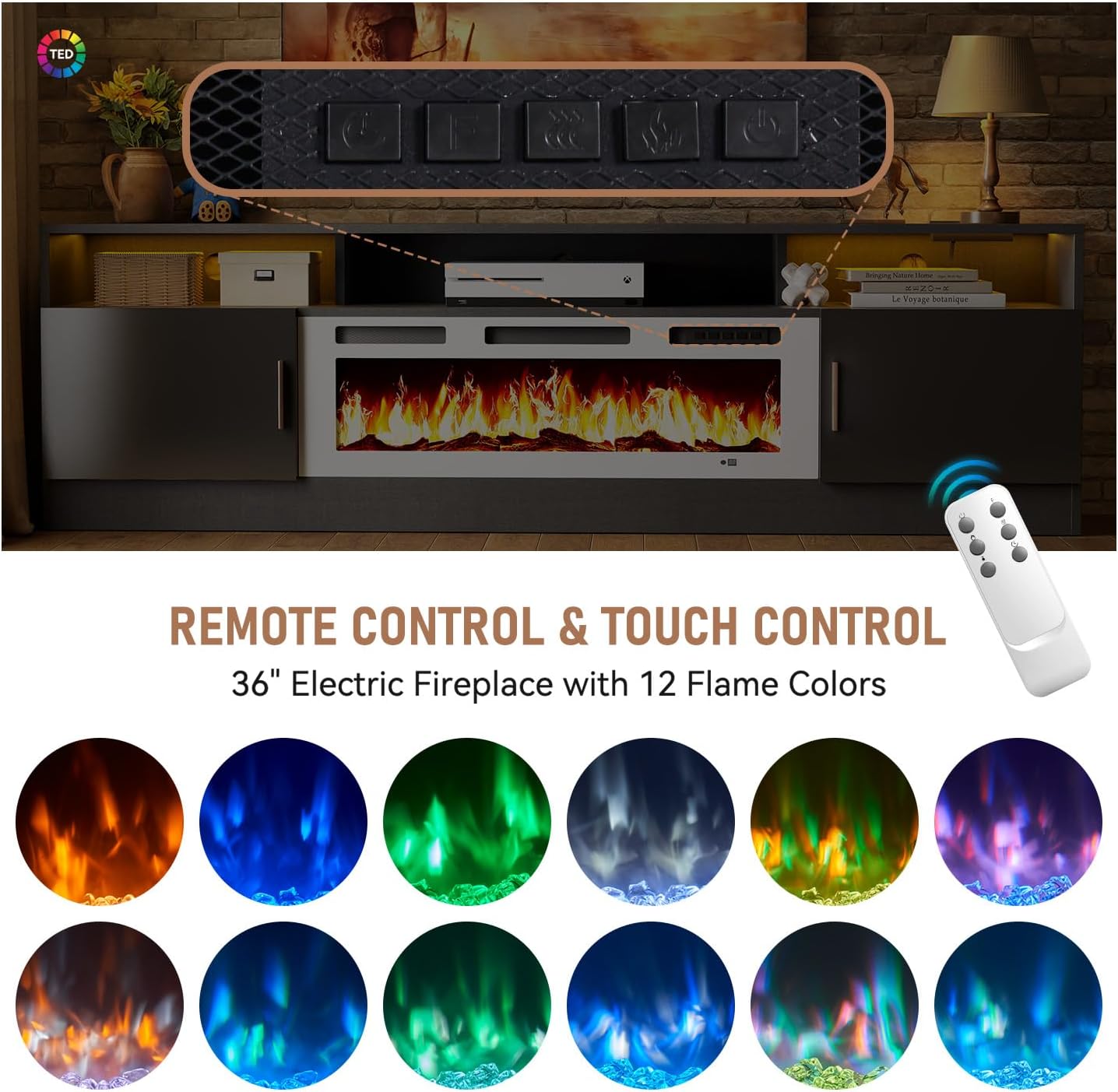

Image: The electric fireplace's remote and touch controls, alongside a visual guide to the 12 available flame colors.
LED Lights:
The open compartments on both sides of the TV stand feature integrated LED light strips.
- Colors: Select from 12 different LED light colors.
- Control: Adjust the LED lights remotely to create your desired room ambiance.
Image: A visual guide to the 12 LED colors available for the side compartments, highlighting remote and brightness control features.
Power Outlets and USB Ports:
The TV stand includes a built-in power strip for convenient device charging and power access.
- AC Outlets: Three 125V AC outlets are provided.
- USB Ports: Two USB ports (5V/2.1A) are available for charging mobile devices.
Image: The integrated tabletop power socket, featuring three AC outlets and two USB ports for convenient electronic device connectivity.
Storage and Organization
The MXV TV stand offers ample storage solutions for your media equipment and accessories.
- Open Shelves: Three open shelves provide space for media players, gaming consoles, or decorative items.
- Lockable Cabinets: Two cabinets with doors offer concealed storage.
Image: A visual representation of the internal storage compartments, indicating space for media devices and other items.
Image: An example of the storage cabinet's capacity, demonstrating how it can accommodate items like a PS5, stereo equipment, or books.
Maintenance and Care
To ensure the longevity and appearance of your MXV Fireplace TV Stand, follow these maintenance guidelines:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
- Dusting: Regularly dust all surfaces to prevent buildup.
- Stability: Periodically check all fasteners and tighten if necessary to maintain structural integrity.
- Fireplace Care: Refer to the electric fireplace's specific manual for cleaning and maintenance instructions. Ensure vents are clear of obstructions.
- Relocation: If relocating the unit, especially after extended use, consider removing the fireplace insert and reinforcing screw holes with wood glue or epoxy before reinstallation to maintain strength, as particleboard can wear over time.
Troubleshooting
If you encounter issues with your MXV Fireplace TV Stand, consider the following common solutions:
- Fireplace Not Operating:
- Check if the unit is properly plugged into a working electrical outlet.
- Ensure the power switch on the fireplace unit is in the "ON" position.
- Verify remote control batteries are functional and correctly inserted.
- Check for any tripped circuit breakers.
- If the unit overheated, it might have automatically shut off. Allow it to cool down before attempting to restart.
- LED Lights Not Working:
- Ensure the LED light strips are securely connected.
- Check the remote control for the LED lights and replace batteries if needed.
- Power Outlets/USB Ports Not Functioning:
- Confirm the TV stand's main power cord is plugged in.
- Avoid overloading the outlets; unplug some devices and test again.
- Structural Instability:
- Re-tighten all assembly screws.
- Ensure the unit is on a flat, level surface.
If problems persist, please contact MXV customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | MXV |
| Model Number (ASIN) | B0FDKNCBZW |
| Dimensions (L x W x H) | 70 x 13.78 x 25.18 inches |
| Material | Certified Particleboard and MDF (Wood) |
| Color | Black-white |
| TV Compatibility | Up to 80 inches |
| Weight Capacity | 132 lbs (for TV and electronics) |
| Electric Fireplace Size | 36 inches |
| Fireplace Heating Modes | 750W / 1500W |
| Fireplace Thermostat Range | 62°F – 82°F |
| Fireplace Timer | 0-8 hours |
| Flame Colors | 12 options |
| Flame Brightness Levels | 5 options |
| Power Outlets | 3 x 125V AC outlets |
| USB Ports | 2 x 5V/2.1A USB ports |
| LED Lights | 12 colors, remote adjustable |
| Shipping | 2 separate packages |
Warranty and Support
Specific warranty details for the MXV 70-Inch Fireplace TV Stand are not provided in this manual. Please refer to your purchase documentation or contact the retailer for warranty information.
For customer support, technical assistance, or to report missing/damaged parts, please contact MXV customer service through the platform where the product was purchased or refer to the contact information provided with your product packaging.
