Product Overview
The MXV 78-inch Fireplace TV Stand (Model 21012) is designed to accommodate TVs up to 90 inches, offering both an electric fireplace and ample storage. This entertainment center features integrated LED lighting, power outlets, and USB ports for enhanced functionality.

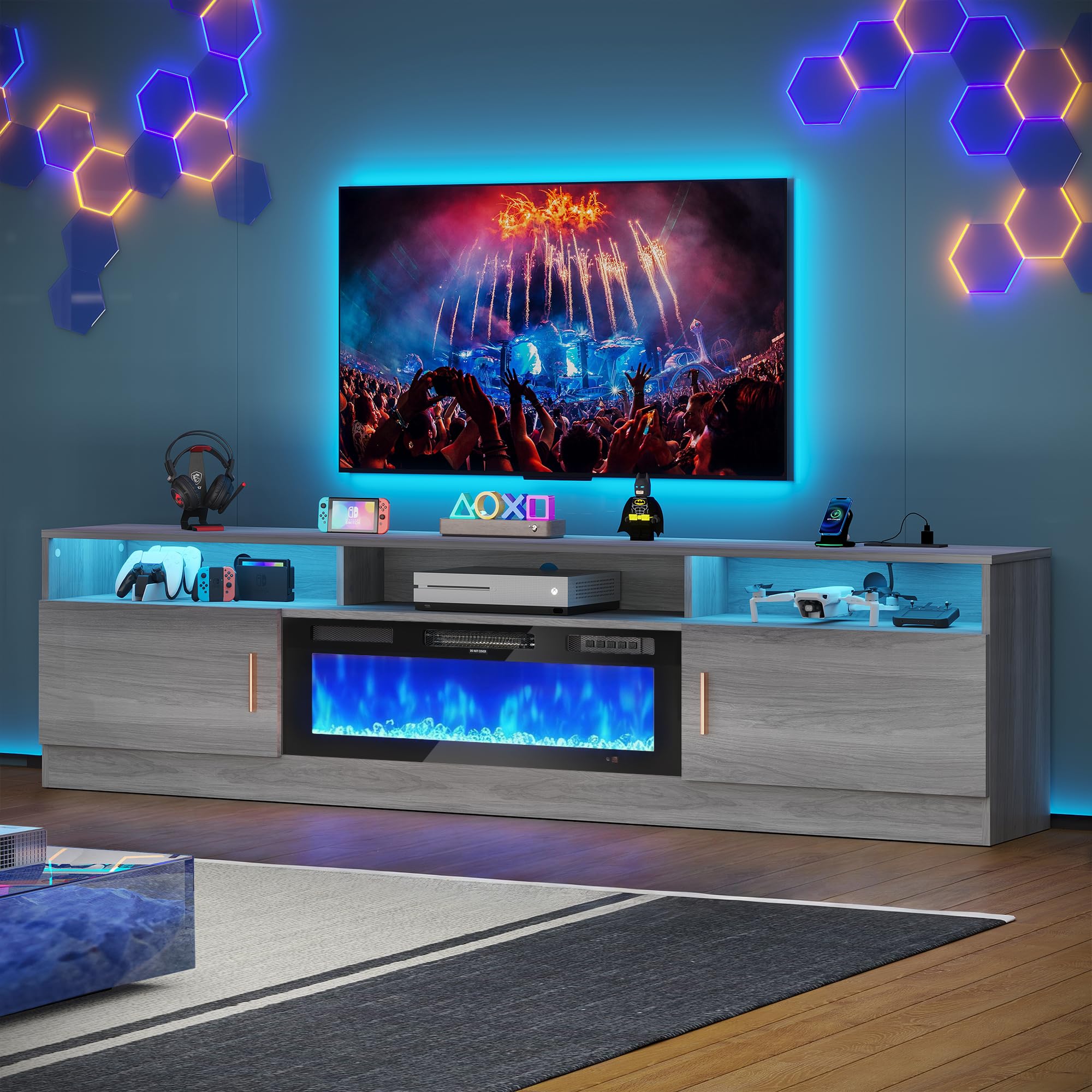

Image: MXV 78-inch Fireplace TV Stand in Grey-Black, showcasing its overall design.
Safety Information
- Read all instructions before assembly and use.
- Do not overload the TV stand. The maximum weight capacity is 132 lbs.
- Ensure the electric fireplace is connected to a grounded outlet.
- Keep flammable materials at least 3 feet (0.9 meters) away from the front of the fireplace.
- Do not block air vents of the fireplace.
- Unplug the unit from the power outlet before cleaning or performing any maintenance.
- This product is intended for indoor use only.
Package Contents
The MXV 78-inch Fireplace TV Stand ships in two separate packages. It is possible for these packages to arrive on different days. Please ensure both packages have arrived and all components are present before beginning assembly.
Image: Diagram showing the dimensions of the fireplace and TV console, and indicating that the product ships in two packages.
All necessary components for assembly are included. Refer to the separate assembly guide for a detailed list of parts and hardware.
Setup and Assembly
Assembly of the MXV Fireplace TV Stand requires following the included step-by-step instructions. It is recommended to have two people for assembly. Ensure you have adequate space and the necessary tools (e.g., screwdriver) before starting.
- Unpack all components and verify against the parts list in the assembly guide.
- Assemble the main frame of the TV stand according to the diagrams.
- Install the electric fireplace unit into the designated opening.
- Attach the shelves, cabinet doors, and LED light strips as instructed.
- Place the TV stand in its desired location, ensuring it is on a stable, level surface.
Image: The TV stand in a room setting, illustrating the highlight doors, upper shelf space, and cable management holes for organized media equipment.
Operating Instructions
Electric Fireplace Operation
The 36-inch electric fireplace can be controlled via the included remote control or the touch buttons on the unit. Ensure the fireplace is plugged into a standard 125V outlet.
- Power On/Off: Press the power button on the remote or unit.
- Flame Colors: Select from 12 flame colors using the remote.
- Brightness Levels: Adjust the flame brightness to 5 different levels.
- Heating Modes: Choose between 750W (low heat) and 1500W (high heat) settings.
- Thermostat: Set the desired temperature between 62°F and 82°F.
- Timer: Utilize the 0-8 hour programmable timer for automatic shut-off.
- Overheat Protection: The unit includes built-in overheat protection for safety.

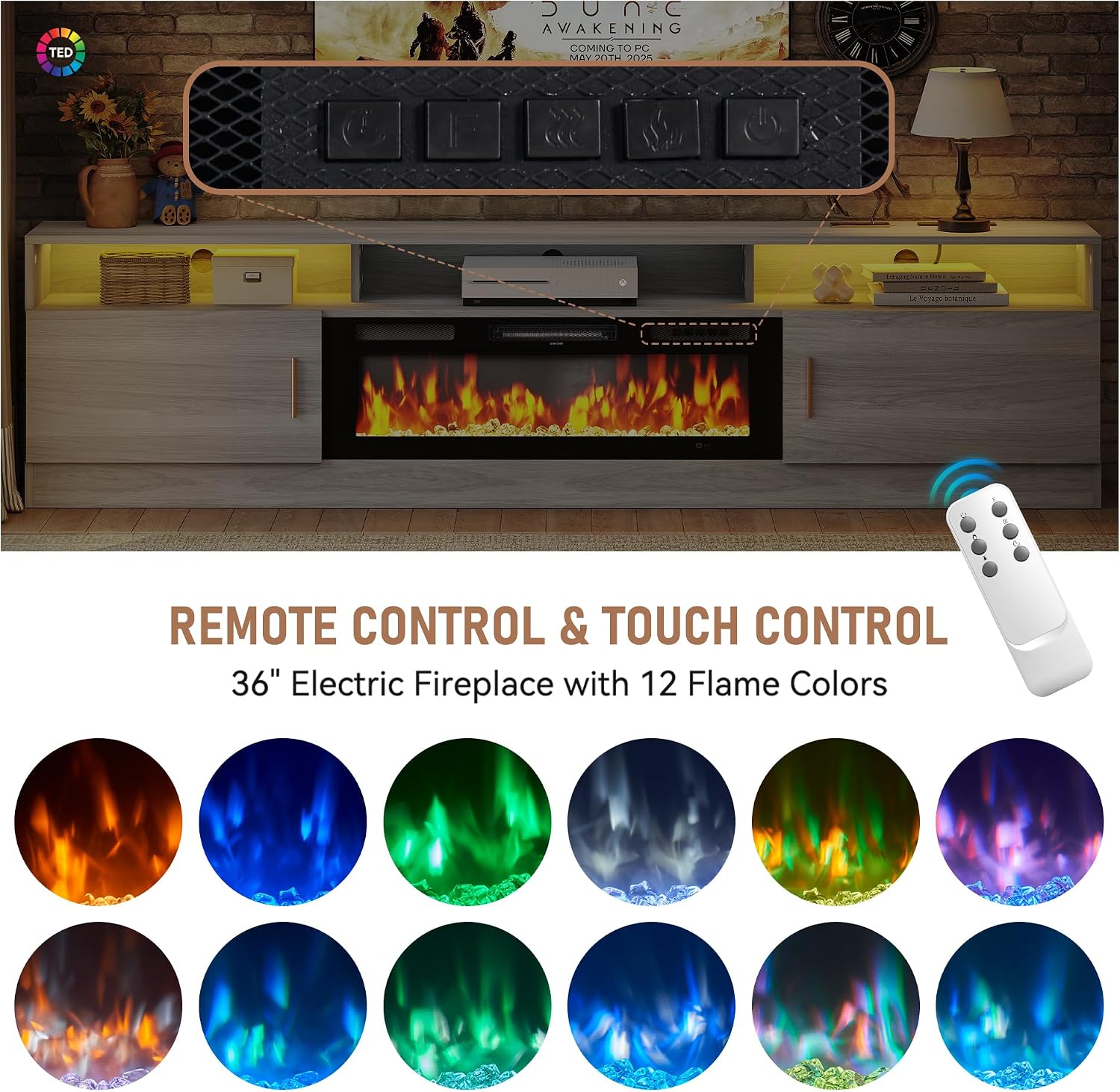

Image: Illustration of the remote control and touch controls for the 36-inch electric fireplace, displaying 12 available flame colors.
Image: A grid demonstrating the 12 different LED color options available for the TV stand's lighting, adjustable via remote control.
LED Light Strips
The open compartments feature 12-color LED light strips. These can be adjusted remotely to customize the ambiance of your room.
- Color Selection: Use the remote to cycle through 12 different LED colors.
- Brightness Control: Adjust the intensity of the LED lights.
Power Outlets and USB Ports
The TV stand is equipped with integrated power solutions for convenience.
- AC Outlets: Three 125V/12A AC outlets are provided for powering electronic devices.
- USB Ports: Two 5V/2.1A USB ports are available for charging mobile devices.
- The power cord is 4.92 ft long and UL certified.
Image: Close-up of the integrated electrical power outlet featuring three AC outlets and two USB ports, with a UL certified power cord.
Maintenance
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Fireplace: Periodically check the air intake and exhaust vents of the electric fireplace for dust accumulation and clean as needed to ensure proper airflow.
- Electrical Components: Ensure all power cords and connections are secure and undamaged.
Troubleshooting
- Fireplace Not Turning On: Check if the unit is properly plugged into a working outlet. Ensure the power button is pressed and the timer is not active.
- No Heat Output: Verify that the heating mode is selected and the thermostat is set above the current room temperature. Check for any obstructions in the air vents.
- LED Lights Not Working: Ensure the LED light strips are correctly connected and the remote control batteries are functional.
- Power Outlets/USB Not Working: Confirm the main power to the TV stand is on. Test with another device to rule out device issues.
- For persistent issues, refer to the detailed troubleshooting section in the full assembly manual or contact customer support.
Specifications
| Feature | Specification |
|---|---|
| Model Number | 21012 |
| Dimensions (Overall) | 78" W × 13.74" D × 25.2" H |
| Material | Engineered Wood (Particleboard and MDF) |
| Weight Capacity | 132 lbs |
| TV Size Compatibility | Up to 90 inches |
| Electric Fireplace Size | 36 inches |
| Fireplace Heating Modes | 750W / 1500W |
| Fireplace Thermostat Range | 62°F – 82°F |
| Fireplace Timer | 0-8 Hours |
| Flame Colors | 12 options |
| Flame Brightness | 5 levels |
| AC Outlets | 3 (125V/12A) |
| USB Ports | 2 (5V/2.1A) |
| Power Cord Length | 4.92 ft (UL certified) |
| Color | Grey-black |
Image: A visual guide indicating the TV stand's compatibility with various TV sizes, up to 80 inches, for proper fit and aesthetic.
Warranty Information
This MXV product is covered by a limited manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. Specific warranty duration and terms may vary. For detailed warranty information, please refer to the documentation included with your product or contact MXV customer support.
Customer Support
If you have any questions regarding the assembly, operation, or maintenance of your MXV 78-inch Fireplace TV Stand, please contact our customer support team. For the most up-to-date contact information, please refer to the packaging or the official MXV website.
When contacting support, please have your model number (21012) and purchase information readily available.
