IKT Self-Cleaning Bottom Loading Water Dispenser Cooler with Ice Maker

Important Safety Information

Please read this manual thoroughly before operating your new IKT Water Dispenser. Keep this manual for future reference.

• Ensure the dispenser is placed on a flat, stable surface.
• Do not plug in the unit until a water bottle is properly installed.
• Keep the dispenser away from direct sunlight and heat sources.
• Always use the child safety lock when dispensing hot water.
• This appliance is designed for indoor use only.

Product Overview

The IKT Water Dispenser offers convenient access to hot, cold, and room temperature water, along with a built-in ice maker. Its bottom-loading design simplifies bottle replacement.

Figure 1: Front view of the IKT Water Dispenser in Glossy Black.

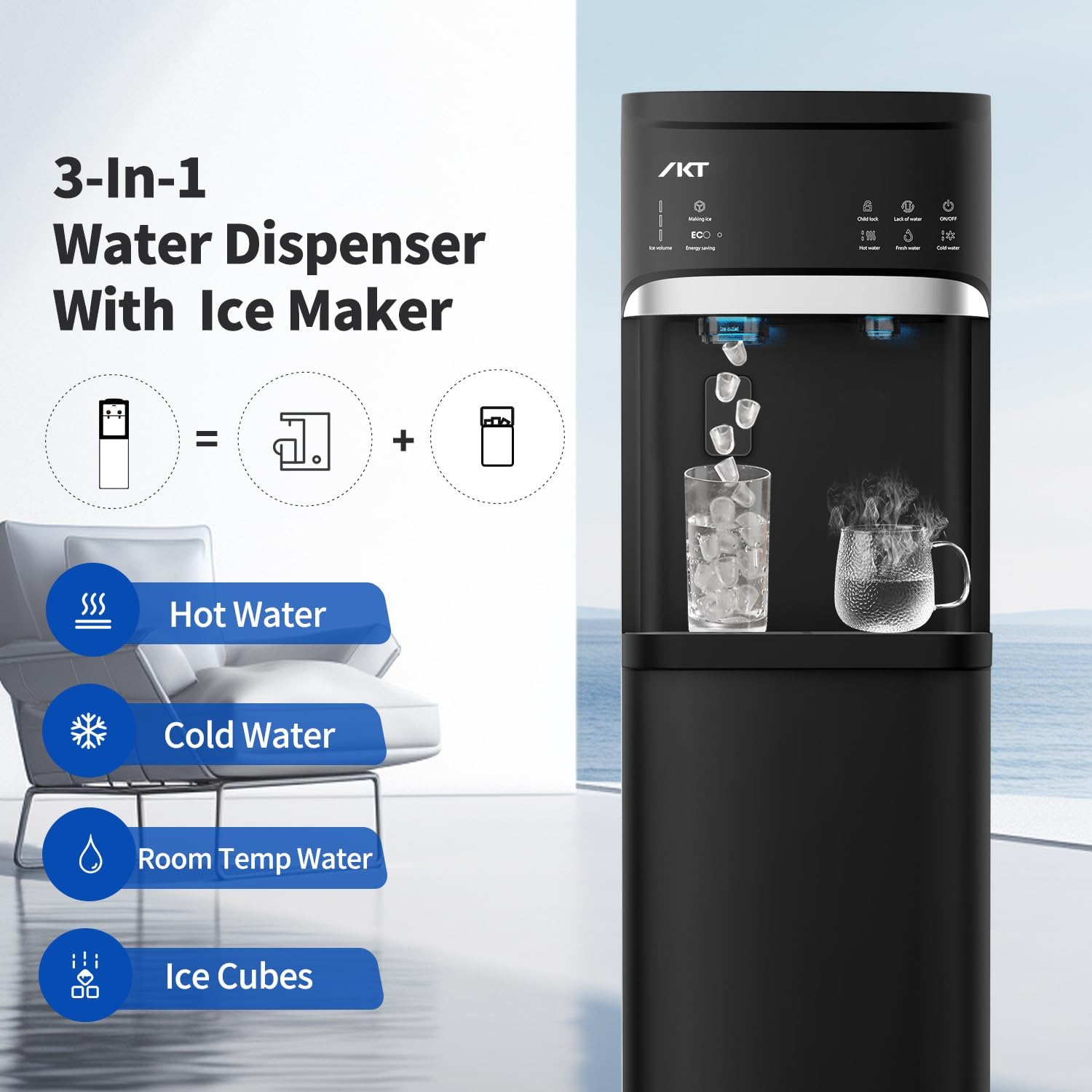

Figure 2: Illustrates the 3-in-1 functionality: Hot Water, Cold Water, Room Temp Water, and Ice Cubes.

Setup Instructions

1. Unpacking: Carefully remove the dispenser from its packaging. Inspect for any shipping damage.
2. Placement: Position the dispenser on a level, sturdy surface, ensuring adequate clearance (at least 4 inches) from walls for proper ventilation. Avoid direct sunlight or heat sources.
3. Water Bottle Installation (Bottom Loading):
   • Open the lower cabinet door.
   • Insert the probe into a standard 3 or 5-gallon water bottle.
   • Slide the water bottle into the cabinet.
   • Close the cabinet door securely.


   Figure 3: Demonstrates the easy bottom-loading process for water bottles.

   Video 1: A seller-provided video demonstrating the water bottle installation and initial setup of the dispenser.

4. Power Connection: Plug the power cord into a grounded electrical outlet. The unit will begin to fill its internal tanks.
5. Initial Flush: Before first use, dispense and discard at least 1 liter of water from each tap (hot, cold, room temperature) to flush the system.

Operating Instructions

The IKT Water Dispenser features an intuitive control panel for easy operation.

Control Panel Overview

Figure 4: Detailed view of the control panel with various indicators and buttons.

• ON/OFF Button: Powers the unit on or off.
• Hot Water Button: Dispenses hot water. Requires child lock release.
• Cold Water Button: Dispenses cold water.
• Fresh Water Button: Dispenses room temperature water.
• Making Ice Indicator: Illuminates when ice is being produced.
• Ice Volume Indicator: Shows the current ice level.
• ECO / Energy Saving Button: Activates or deactivates the energy-saving mode. In ECO mode, heating stops at night.
• Child Lock Button: Must be pressed before dispensing hot water to prevent accidental burns.
• Lack of Water Indicator: Alerts when the water bottle is empty and needs replacement.

Water Dispensing

• Place your cup under the desired water outlet.
• For hot water, press the Child Lock button first, then the Hot Water button.
• For cold water, press the Cold Water button.
• For room temperature water, press the Fresh Water button.

Ice Making Function

The built-in ice maker produces bullet-shaped ice cubes rapidly.

• The ice maker can produce up to 22 lbs of ice daily.
• Each cycle produces 9 pieces of ice in approximately 7 minutes.
• Important: This unit DOES NOT keep ice frozen. Ice will melt if not used promptly.

Figure 5: Details on ice production capacity and the shape of ice cubes.

Night Light Feature

The dispenser includes a night light for easy visibility in low-light conditions.

Figure 6: The dispenser's night light illuminates the dispensing area.

Maintenance

Self-Cleaning Function

The dispenser features a self-cleaning mode to maintain hygiene.

• To activate self-cleaning, press and hold the Ice Making button for 3 seconds.
• The self-cleaning cycle will run and automatically shut off after approximately 10 minutes.

Drip Tray Cleaning

The removable drip tray should be emptied and cleaned regularly to prevent overflow and maintain cleanliness.

• Simply pull out the drip tray from the front of the dispenser.
• Empty any accumulated water and wash the tray with mild soap and water.
• Rinse thoroughly and reinsert the tray.

Troubleshooting

If you encounter issues with your IKT Water Dispenser, please refer to the common problems and solutions below.

If the problem persists after attempting these solutions, please contact IKT Customer Support.

Specifications

Figure 7: Visual representation of the dispenser's dimensions and compatibility with 3-5 gallon bottles.

Figure 8: Illustrates the low noise operation of the dispenser, ensuring minimal disturbance.

Warranty and Support

IKT stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official IKT website.

For technical assistance, troubleshooting not covered in this manual, or to inquire about replacement parts, please contact IKT Customer Support:

• Website: Visit the IKT Store on Amazon
• Email: Refer to your product packaging or warranty card.
• Phone: Refer to your product packaging or warranty card.

Please have your model number (CAIKTLYCZ628B-BK) and purchase date ready when contacting support.
