Patiowell 26 cu.ft Resin Outdoor Storage Cabinet Instruction Manual

1. Safety Information

Please read and understand all instructions in this manual before assembly and use. Failure to follow these instructions may result in damage, improper installation, or other issues that prevent proper functionality.

Important Safety Notes:

• Ensure all components are present and undamaged before beginning assembly.
• Assemble on a flat, level surface to ensure stability.
• Do not overload the cabinet. Refer to specifications for weight limits.
• Keep children and pets away from the assembly area.
• Use appropriate safety gear during assembly, such as gloves.
• The lockable door system is designed for security; however, it is not a substitute for constant supervision of valuable or hazardous items.

2. Product Overview

The Patiowell 26 cu.ft Resin Outdoor Storage Cabinet is designed to provide a durable and weather-resistant solution for organizing outdoor items. Constructed from high-quality, weather-resistant plastic, this cabinet is suitable for year-round use.

Key Features:

• Spacious & Versatile Storage: Offers 26 cubic feet of capacity for gardening tools, outdoor cushions, sports gear, and seasonal decorations.
• Weatherproof & Durable Design: Made from premium high-density polyethylene (HDPE) resin, resistant to water, UV damage, and extreme temperatures. It will not warp, rust, or fade.
• Reinforced Construction: Features double-layer panels and advanced blow-molding technology for exceptional strength and durability.
• Secure, User-Friendly Access: Equipped with a dual-locking system, including a foot pedal and magnetic latch, for quick entry and secure closure.
• Customizable Shelving: Built-in system for optional shelves (sold separately) to enhance organization.

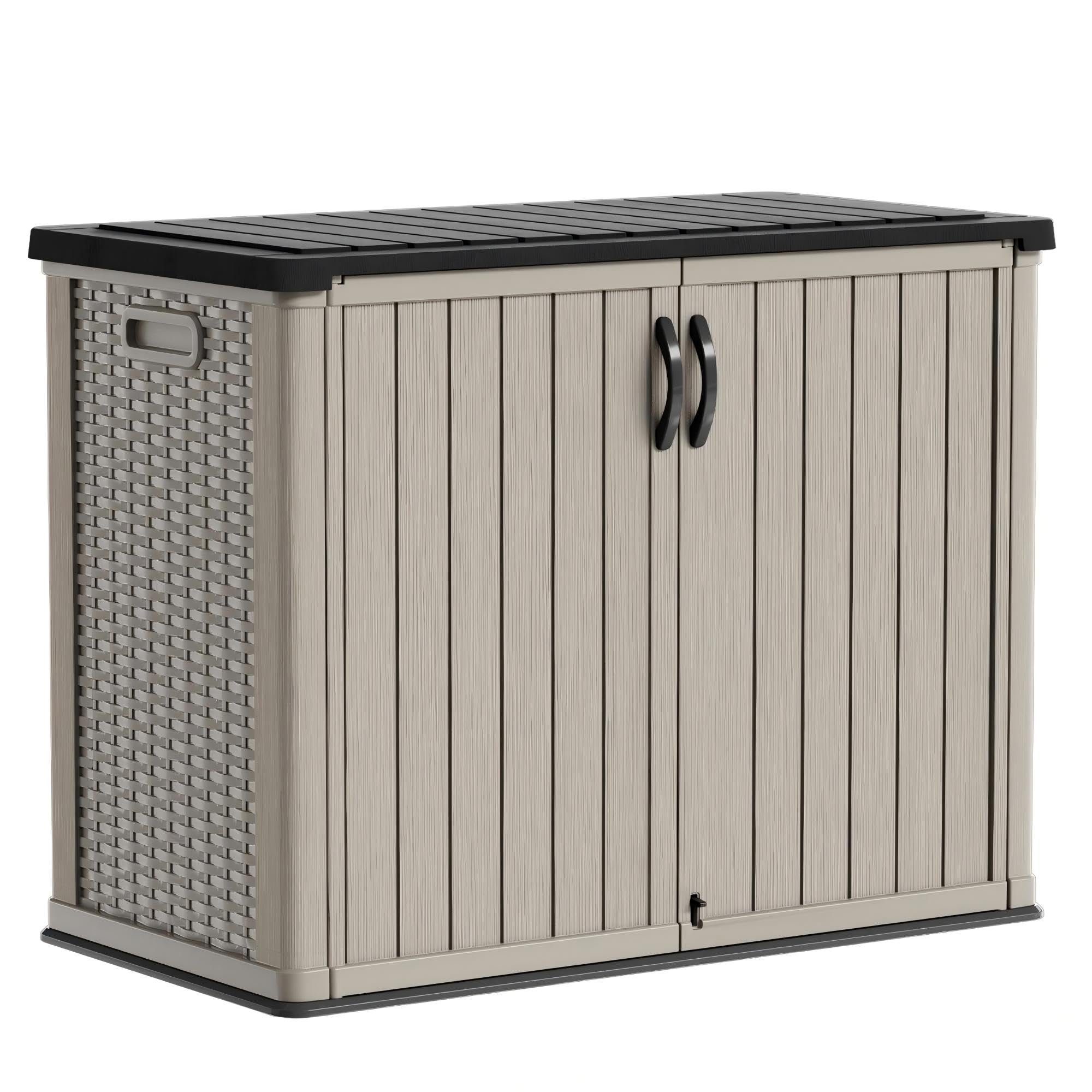

Image 2.1: The Patiowell 26 cu.ft Resin Outdoor Storage Cabinet installed in an outdoor environment.

Image 2.2: The cabinet demonstrating its all-weather capabilities, including UV protection and waterproof features.

Image 2.3: The cabinet with doors open, illustrating its internal storage capacity and durable construction.

Image 2.4: Two cabinets used poolside, demonstrating their versatility for storing various outdoor items.

3. Setup and Assembly

Assembly of the Patiowell storage cabinet is designed to be straightforward. It is recommended to have a second person for certain steps to ensure ease and safety. Please follow the included instructions carefully.

Before You Begin:

• Clear Area: Choose a flat, level, and clear area for assembly.
• Tools Required: Basic tools such as a screwdriver (power drill recommended for efficiency) and possibly a rubber mallet may be needed.
• Unpack: Carefully unpack all components and verify against the parts list in your physical manual.

Assembly Steps Overview:

1. Assemble the base panel.
2. Attach the side panels to the base.
3. Install the back panels. Ensure they slide correctly into the grooves.
4. Assemble the door frames and attach handles.
5. Mount the doors to the main structure.
6. Install the top panel (lid).
7. Secure all connections and test door operation.
8. (Optional) Install shelves if purchased separately.

Image 3.1: Visual representation of the simplified assembly process. Shelves are sold separately.

4. Operating Instructions

The Patiowell storage cabinet features a user-friendly dual-locking system for secure and convenient access.

Opening the Cabinet:

1. Foot Pedal Release: Gently press down on the foot pedal located at the bottom center of the cabinet doors. This disengages the base lock.
2. Magnetic Latch: While the foot pedal is pressed, pull the door handles to release the magnetic latches and open the doors.

Closing and Securing the Cabinet:

1. Close Doors: Push both doors firmly shut until the magnetic latches engage.
2. Engage Foot Lock: Ensure the foot pedal returns to its upright position, securing the base lock.
3. Optional Padlock: For added security, a padlock (not included) can be attached through the designated hole on the door handles.

Image 4.1: Detailed view of the cabinet's features, including the step-on lock mechanism.

5. Maintenance

Regular maintenance will help prolong the life and appearance of your Patiowell storage cabinet.

Cleaning:

• Clean the cabinet periodically with mild soap and water.
• Use a soft cloth or sponge to wipe down surfaces.
• Avoid abrasive cleaners, harsh chemicals, or stiff brushes, as these can damage the resin finish.
• Rinse thoroughly with clean water and allow to air dry.

Inspection:

• Periodically check all screws and fasteners to ensure they are tight. Tighten if necessary.
• Inspect doors and hinges for smooth operation. Lubricate if needed with a silicone-based spray.
• Ensure the cabinet remains on a level surface to prevent stress on the structure.

6. Troubleshooting

This section addresses common issues you might encounter with your storage cabinet.

7. Specifications

Image 7.1: Detailed dimensions of the Patiowell 26 cu.ft Resin Outdoor Storage Cabinet.

8. Warranty and Support

For warranty information, product support, or to purchase replacement parts and optional accessories (such as shelves), please contact Patiowell customer service directly.

Refer to your purchase documentation or the Patiowell official website for the most current contact information and warranty details.

When contacting support, please have your model number (AP-PSB24-0494B-DGYBG-1) and purchase date available.
