Introduction
This manual provides essential information for the safe operation, assembly, and maintenance of your VITILAN V3 2.0 Foldable Electric Bike. Please read it thoroughly before your first ride and keep it for future reference.
Key Features:
- Powerful 750W Brushless Motor (1200W Peak)
- Removable 48V 13Ah (624Wh) Battery for 40-60 miles range
- Top Speed up to 28 MPH
- Durable Waterproof Aluminum Alloy Frame
- 20" x 4.0" Fat Tires for all-terrain use
- Multi-function Color LCD Display
- Half-twist Throttle and 5 Pedal-Assist Levels
- Hydraulic Disc Brakes
- Integrated LED Headlights and Taillights
- USB Charging Port
- Foldable Design for easy storage and transport
1. Setup and Assembly
Your VITILAN V3 2.0 electric bike comes 95% pre-assembled. Follow these steps to complete the setup.
1.1 Unboxing
Carefully remove the bike from its packaging. Inspect for any damage during transit.

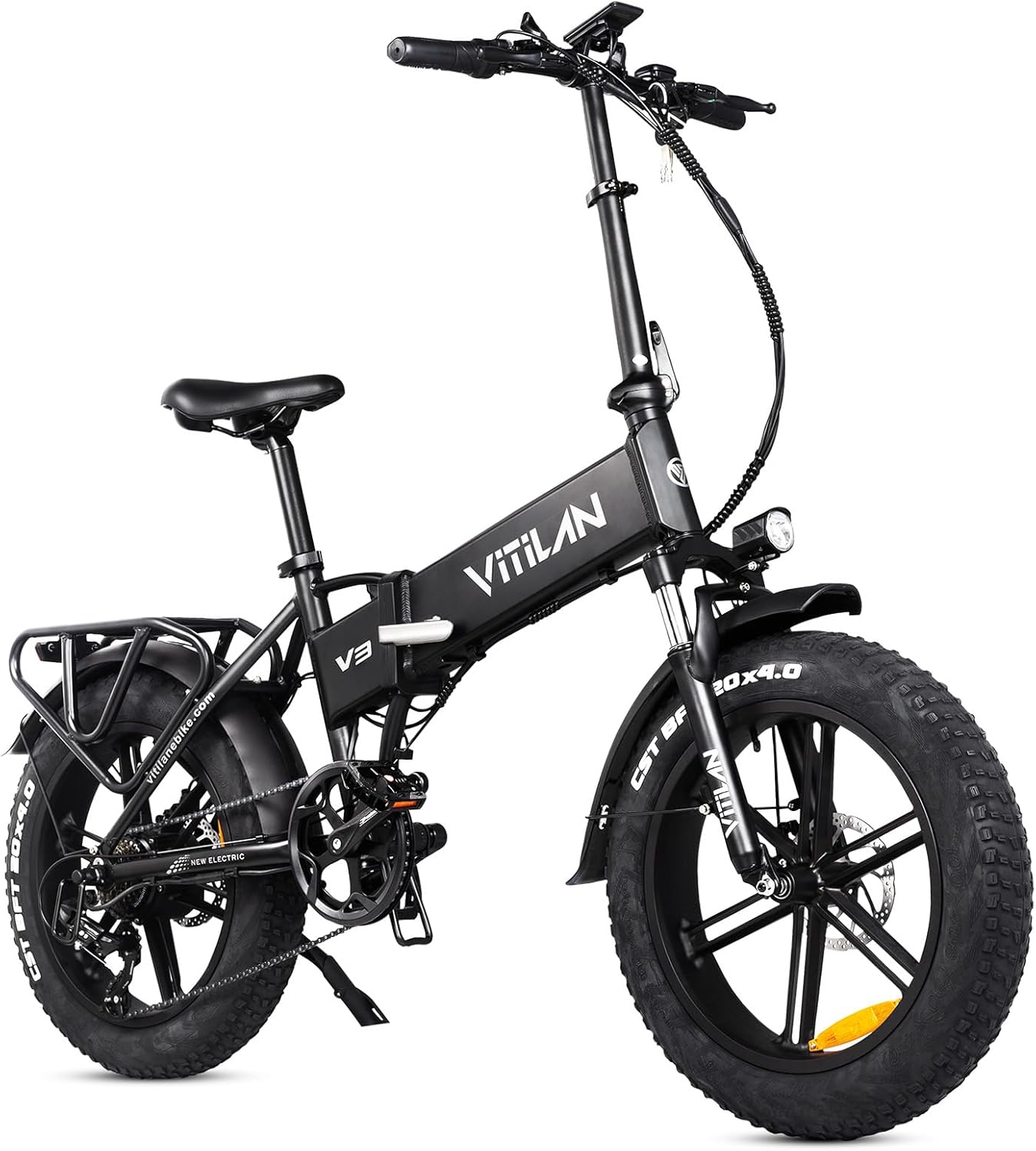

Image: The VITILAN V3 2.0 electric bike, fully assembled and unfolded.
1.2 Unfolding the Bike
Unfold the handlebar stem and secure the folding riser. Then, unfold the main frame and fasten the buckle.
Video: This video demonstrates the unboxing and assembly process for the VITILAN V3 electric bike, including unfolding the frame, installing the seat, and attaching the pedals.
1.3 Installing the Seat and Pedals
Insert the seat post into the frame and adjust to a comfortable height, then secure it. Attach the pedals, ensuring the left (L) and right (R) pedals are correctly installed and tightened.
Image: A detailed view of the bike's folding mechanism and seat post clamp.
1.4 Battery Installation and Initial Charge
The 48V 13Ah battery is integrated into the frame. Use the provided key to unlock and remove the battery for charging, or charge it directly on the bike. Connect the charger to the battery and a power outlet. The charger indicator light will turn green when fully charged (approximately 6-7 hours).
Image: The removable 48V 13Ah lithium battery, showing its integration into the bike frame.
2. Operating Instructions
2.1 Powering On/Off and Display Functions
To power on the bike, press and hold the power button on the LCD display. The display shows speed, battery life, pedal-assist level (PAS), trip distance, total mileage (ODO), maximum speed, and average speed. Use the '+' and '-' buttons to adjust PAS levels (1-5).
Image: The multi-function color LCD display, clearly visible in sunlight, showing various riding metrics.
2.2 Riding Modes
The V3 2.0 offers multiple riding modes:
- Pure Electric Mode: Use the half-twist throttle for propulsion without pedaling.
- Pedal-Assist Mode (PAS): Provides electric assistance while you pedal, with 5 adjustable levels.
- Pedal Mode: Ride as a traditional bicycle without electric assistance.
- Cruise Mode: Maintain a consistent speed without continuous throttle input.
- Walking Mode: Provides low-speed assistance for pushing the bike.
Image: An illustration of the different riding modes available on the electric bike.
2.3 Lighting and Safety Features
The bike is equipped with an integrated LED headlight and taillight for visibility. The taillight also functions as a brake light and includes turn signals. A horn is also integrated for safety.
Image: Various components of the bike, including the headlight and taillight.
Video: This video showcases the VITILAN V3 electric bike in various riding scenarios, demonstrating its performance and features. Note: This video is for general product overview and not a step-by-step instructional guide.
3. Maintenance
3.1 General Care
- Keep the bike clean. Wipe down the frame and components regularly with a damp cloth. Avoid high-pressure washing.
- Store the bike in a dry place, away from direct sunlight and extreme temperatures.
3.2 Battery Care
- Charge the battery regularly, even if not in use, to maintain its lifespan. Avoid fully discharging the battery.
- Do not expose the battery to extreme heat or cold.
3.3 Tires
- Regularly check tire pressure. Maintain the recommended pressure (usually indicated on the tire sidewall) for optimal performance and safety.
- Inspect tires for wear, cuts, or punctures before each ride.
3.4 Brakes
- Check brake lever tension and brake pad wear regularly. Adjust or replace as needed.
- Ensure hydraulic disc brakes are functioning correctly for effective stopping power.
3.5 Drivetrain
- Keep the chain clean and lubricated.
- Check the gears and derailleur for smooth operation. The bike features a Shimano 7-speed derailleur.
4. Troubleshooting
- Bike not powering on: Check if the battery is properly installed and charged. Ensure the power lock is engaged.
- Motor not assisting: Verify the pedal-assist level on the display. Check battery charge. Ensure all connections are secure.
- Brakes feel weak: Inspect brake pads for wear and adjust brake cables or hydraulic fluid if necessary.
- Unusual noises: Stop riding and inspect the bike for loose components, rubbing parts, or damaged bearings.
5. Specifications
| Feature | Detail |
|---|---|
| Bike Type | Electric Bike |
| Model Name | V3 2.0 |
| Brand | VITILAN |
| Motor | 750W Brushless (1200W Peak) |
| Battery | 48V 13Ah (624Wh) Removable Lithium |
| Top Speed | 28 MPH |
| Range | 40-60 miles |
| Frame Material | Waterproof Aluminum Alloy |
| Wheel Size | 20 Inches |
| Tire Type | 4.0" Fat Tire (Puncture and Skid Resistant) |
| Suspension | Front Suspension Fork |
| Brake Style | Hydraulic Disc Brakes |
| Number of Speeds | 7 (Shimano) |
| Max Weight Recommendation | 330 Pounds |
| Item Weight | 64 Pounds |
| Minimum User Height | 5.3 Feet |
| Special Features | Foldable, LCD Color Display, USB Charge Port, Integrated Lights, Rear Rack |
6. Warranty and Support
The VITILAN V3 2.0 electric bike comes with a 1-year warranty. For warranty claims, technical support, or any questions regarding your product, please contact VITILAN customer service.
For further assistance, please refer to the official VITILAN website or contact their support team.
Manufacturer: Guangzhou Gedesheng Electeic vehicle Co., Ltd.
UPC: 754197269114
