Hyper Tough Corded Electric Leaf Blower User Manual

Introduction

This manual provides essential information for the safe and efficient operation of your Hyper Tough Corded Electric Leaf Blower, Model 93366235. Please read these instructions carefully before using the product and retain them for future reference. This leaf blower is designed for residential outdoor cleanup tasks, including clearing leaves, dirt, and debris from lawns, sidewalks, driveways, patios, garages, and decks.

Image 1: Hyper Tough Corded Electric Leaf Blower, showing its compact design with a black body and red accents on the handle and power button.

Important Safety Information

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

• Read All Instructions: Familiarize yourself with the controls and proper use of the appliance.
• Wear Eye and Hearing Protection: Always wear safety glasses or goggles and ear protection when operating the blower.
• Wear Appropriate Clothing: Do not wear loose clothing or jewelry that could get caught in moving parts. Wear sturdy footwear.
• Keep Area Clear: Ensure children, bystanders, and pets are at a safe distance (at least 50 feet) from the operating area.
• Inspect Before Use: Check for damaged parts, loose screws, or any other condition that may affect safe operation.
• Avoid Wet Conditions: Do not operate the blower in rain or wet conditions.
• Use Proper Extension Cord: Use only outdoor-rated extension cords that are in good condition and of adequate gauge for the blower's power requirements.
• Secure Cord: Utilize the built-in cord retention system to prevent accidental disconnection.
• Unplug When Not In Use: Disconnect the blower from the power supply before cleaning, servicing, or when not in use.
• Do Not Point at People or Animals: Never direct the air stream towards people, animals, or fragile objects.

Package Contents

Verify that all items are present upon unpacking:

• (1) Hyper Tough 7-Amp Corded Blower
• (2) Blower Attachments (tubes)
• (1) User Manual (this document)

Assembly and Setup

The Hyper Tough Corded Electric Leaf Blower requires minimal assembly.

1. Attach Blower Tube: Align the desired blower tube with the outlet on the main blower unit. Push and twist the tube until it securely locks into place. The blower includes two tubes for varied airflow and reach.


   Image 2: Close-up of the blower nozzle, illustrating the attachment point for the blower tubes.

2. Connect Power Cord: Insert your outdoor-rated extension cord into the blower's power cord.
3. Utilize Cord Retention: Loop the extension cord through the built-in cord retention clip on the blower handle. This prevents accidental disconnection during operation.

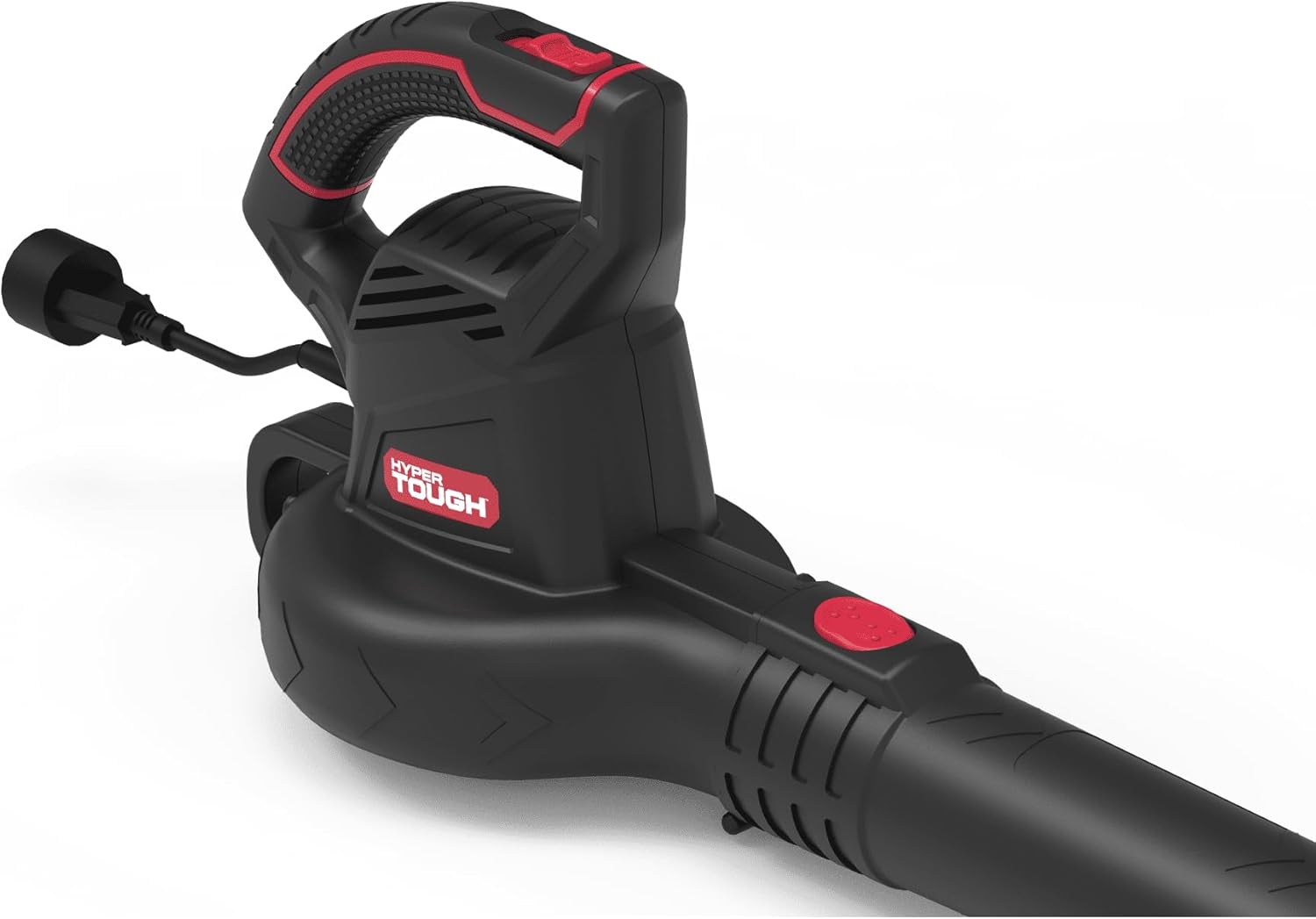

   Image 3: View of the blower's handle and motor housing, showing the integrated cord retention feature near the power cord connection.

Operation

Follow these steps for safe and effective operation of your leaf blower.

1. Prepare the Area: Clear the area of any objects that could be thrown by the air stream, such as rocks, glass, or metal debris.
2. Connect to Power: Plug the extension cord into a suitable outdoor electrical outlet.
3. Starting the Blower: Press the power button located on the handle to turn the blower ON. The blower operates at a single speed, providing maximum power instantly.


   Image 4: Close-up of the blower's handle, highlighting the red single-speed power button for easy operation.

4. Operating Technique:
   • Hold the blower firmly with one hand using the soft grip handle.
   • Sweep the blower from side to side, directing the air stream to move leaves and debris.
   • For hard surfaces like driveways and sidewalks, the 150 MPH air speed is effective for sweeping debris.


   Image 5: The blower in action, demonstrating its effectiveness at 150 MPH for sweeping debris from hard surfaces like a sidewalk.

   • For lawns and larger piles of leaves, the 330 CFM airflow efficiently moves larger volumes.


   Image 6: The blower being used to move a large pile of autumn leaves on a grassy area, showcasing its 330 CFM capability.

   • The soft grip handle is designed for user comfort during extended use.


   Image 7: Close-up of the ergonomic soft grip handle, designed to reduce user fatigue and enhance comfort.

5. Stopping the Blower: Release the power button to turn the blower OFF.
6. After Use: Disconnect the blower from the power supply immediately after use.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your leaf blower. Always unplug the blower before performing any maintenance.

• Cleaning: Wipe the exterior of the blower with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure air vents are clear of debris.
• Storage: Store the blower in a dry, well-ventilated area, out of reach of children. Avoid storing in direct sunlight or extreme temperatures.
• Cord Inspection: Periodically inspect the power cord and extension cord for any signs of damage, cuts, or fraying. Replace damaged cords immediately.

Troubleshooting

If you encounter issues with your leaf blower, refer to the following common problems and solutions:

Specifications

Key technical specifications for the Hyper Tough Corded Electric Leaf Blower:

• Model Name: Corded Electric Blower, 7-Amp, 330 CFM blowing force, 150 MPH air speed all-purpose Leaf Blower
• Model Number: 93366235
• Power Source: Corded Electric
• Motor: 7-Amp
• Air Volume: 330 CFM (Cubic Feet per Minute)
• Air Speed: 150 MPH (Miles Per Hour)
• Item Weight: 4.6 Pounds
• Product Dimensions: 6.2"L x 30"W x 9.3"H
• Material: Plastic
• Special Features: Lightweight design, Built-in cord retention, Soft grip handle, One-handed operation, Includes 2 blower attachments

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your proof of purchase for warranty claims.
