1. Introduction
This manual provides instructions for the safe and efficient operation, maintenance, and troubleshooting of your CREATE THERA MOVE Portable Espresso Machine. Please read this manual thoroughly before first use and retain it for future reference.
Safety Information
- Ensure the device is fully charged before use.
- Do not immerse the main unit in water.
- Keep out of reach of children.
- Use only clean drinking water.
- Do not operate if any part is damaged.
- Avoid touching hot surfaces during and immediately after operation.
2. Product Overview
The CREATE THERA MOVE is a portable espresso machine designed for convenience, allowing you to prepare espresso using either ground coffee or capsules, with options for hot or cold brewing.
Components
Image: All components of the CREATE THERA MOVE Portable Espresso Machine, including the main unit, water tank, coffee basket, capsule adapter, USB charging cable, and the carrying case.
- Main Unit: Contains the heating element, pump, and control panel.
- Water Tank: Detachable tank for water, maximum capacity 80ml.
- Coffee Basket: For ground coffee (12-15g capacity).
- Capsule Adapter: For use with compatible coffee capsules.
- USB Charging Cable: For recharging the internal battery.
- Carrying Case: (Included with this model) Provides protection and storage for the machine and accessories.
Control Panel

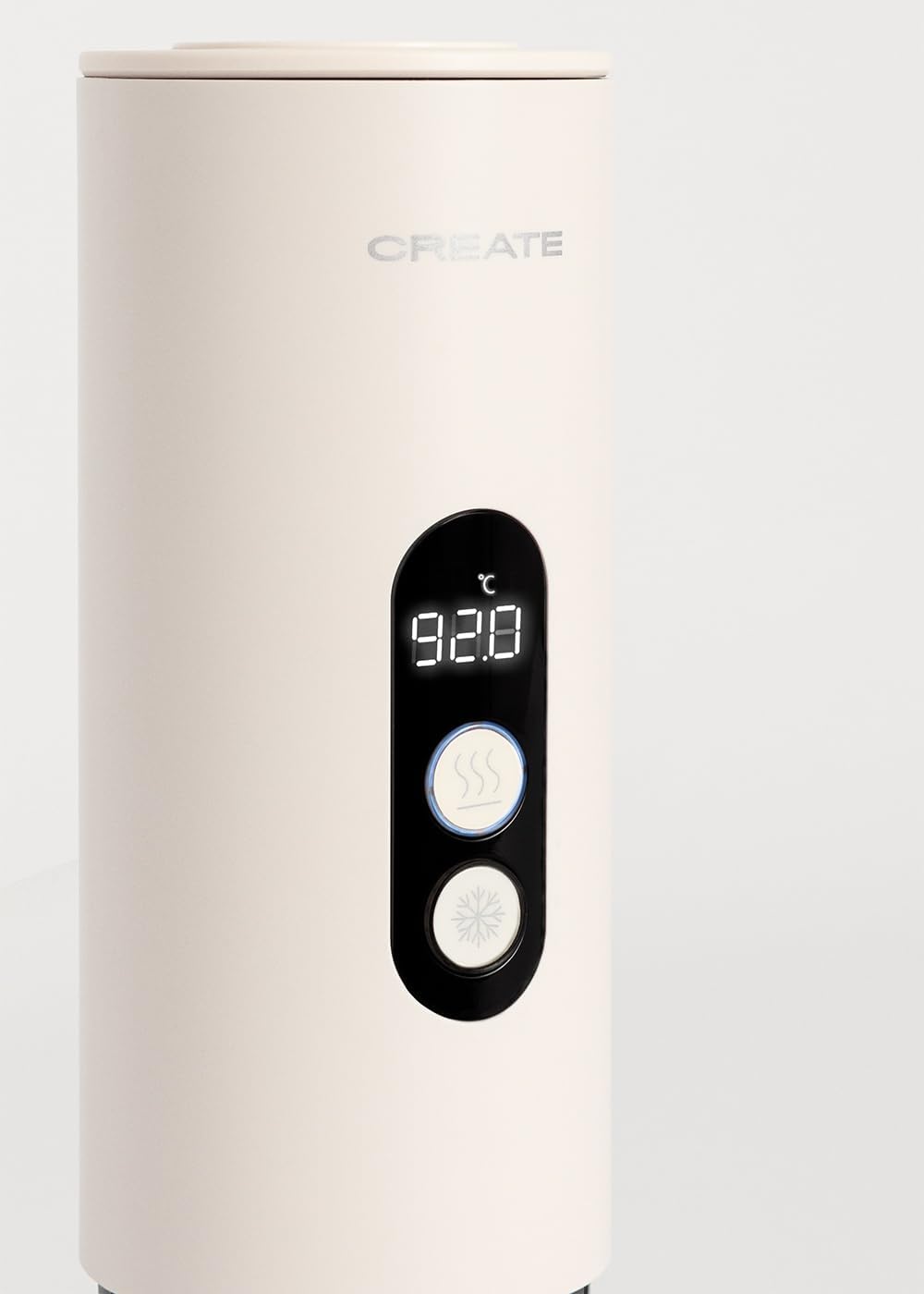

Image: Close-up of the control panel with temperature display and hot/cold brew buttons.
- Digital Display: Shows current temperature or status.
- Hot Brew Button: Initiates hot coffee preparation.
- Cold Brew Button: Initiates cold coffee preparation.
3. Setup
Initial Charge
Before first use, fully charge the device using the provided USB cable. The charging indicator will show status. A full charge ensures optimal performance.
First Use Cleaning
Before preparing coffee, perform a cleaning cycle. Fill the water tank with clean water, assemble the unit without coffee, and run a hot brew cycle. Discard the water.
4. Operating Instructions
Preparing Coffee with Ground Coffee
- Unscrew the coffee basket from the main unit.
- Fill the coffee basket with 12-15g of finely ground coffee. Do not overfill.
- Screw the coffee basket back onto the main unit securely.
- Unscrew the water tank and fill it with up to 80ml of clean water.
- Screw the water tank onto the main unit.
- Place a cup or mug beneath the dispenser.
- Press the appropriate button for hot or cold brew.
- The machine will automatically stop when the brewing cycle is complete.
Image: Adding ground coffee to the coffee basket.
Image: Filling the water tank with water.
Image: The machine dispensing espresso into a cup.
Preparing Coffee with Capsules
- Unscrew the coffee basket and attach the capsule adapter.
- Insert a compatible coffee capsule into the adapter.
- Screw the capsule adapter with the capsule back onto the main unit.
- Follow steps 4-8 from the "Preparing Coffee with Ground Coffee" section.

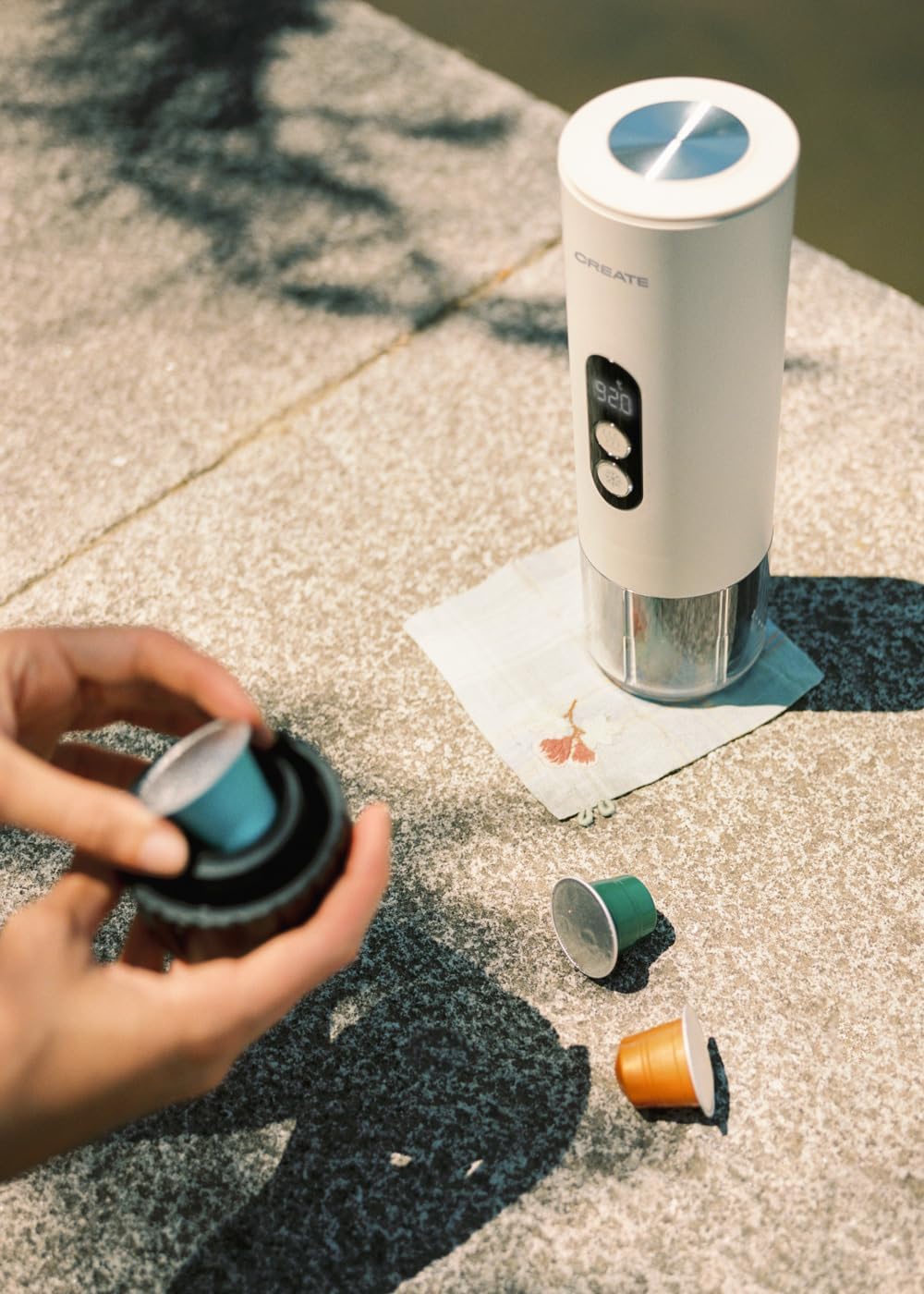

Image: Inserting a coffee capsule into the adapter.
Hot Brew Function
For hot espresso, ensure the water tank is filled with cold or room temperature water. Press the hot brew button. The machine will heat the water to the optimal temperature (approximately 92°C) and then extract the coffee. The digital display will show the temperature during heating.
Cold Brew Function
For cold espresso, fill the water tank with cold water. Press the cold brew button. The machine will extract the coffee without heating the water, producing a cold brew concentrate.
5. Maintenance and Cleaning
Daily Cleaning
- After each use, disassemble the coffee basket/capsule adapter and water tank.
- Rinse all removable parts under running water.
- Wipe the main unit with a damp cloth. Do not submerge.
- Ensure all parts are dry before reassembling or storing.
Deep Cleaning / Descaling
Periodically, depending on water hardness and frequency of use, descaling may be necessary. Refer to the manufacturer's website or contact support for specific descaling instructions and recommended descaling solutions.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | Low battery. | Charge the machine fully. |
| No coffee dispenses. | No water in tank; coffee basket/capsule adapter not properly sealed; clogged filter. | Fill water tank; ensure parts are securely screwed; clean filter. |
| Coffee is too weak/strong. | Incorrect coffee grind size; incorrect coffee quantity; capsule issue. | Adjust grind size or quantity; ensure capsule is compatible and correctly inserted. |
| Water leaks. | Parts not securely tightened; damaged seal. | Ensure all parts are tightly screwed; inspect seals for damage and replace if necessary. |
7. Specifications
- Model: THERA MOVE
- Brand: CREATE
- Pressure: 15 Bar
- Power: 150W
- Water Capacity: 80ml (max)
- Coffee Filter Capacity: 12-15g (ground coffee)
- Compatibility: Ground coffee, 44mm capsules
- Dimensions: Approximately 7.3 x 7.3 x 23 cm
- Weight: Approximately 0.95 kg (machine only)
- Functions: Hot and Cold Brew
8. Warranty and Support
The CREATE THERA MOVE Portable Espresso Machine comes with a standard manufacturer's warranty. For detailed warranty terms, registration, or technical support, please refer to the official CREATE website or contact their customer service department. Please retain your proof of purchase for warranty claims.
For further assistance, visit: www.create.es
