COLMI R02 Sports Tracking Smart Ring User Manual

1. Setup Guide

1.1 Choosing the Right Ring Size

For optimal performance and accurate data monitoring, selecting the correct ring size is crucial. The COLMI R02 Smart Ring should fit snugly but comfortably around your finger's base. We recommend wearing the ring on your index finger for best results. The middle and ring fingers can also work effectively. Avoid fingers where the base is narrower than the knuckle.

If you have purchased a COLMI Sizing Kit, use it to determine your ideal size. Alternatively, you can use the following methods:

Figure 1: Overview of the COLMI R02 Smart Ring setup process, starting with sizing and ending with app integration.

Figure 2: Detailed instructions for measuring ring size using both digital and manual methods, including a size chart for reference.

Method 1: Using a Phone App

Many smartphone applications offer a ring sizer feature. Place a standard ID or credit card vertically on your phone screen and adjust the slider until the blue box matches the card's width. If you don't have an existing ring, place your fingers flat on the screen and adjust the distance between them to find your ring size. If you have a ring you wear regularly, place it on the screen and adjust the circle to match the inside of your ring.

Method 2: String Measurement

Wrap a thin, non-elastic string or paper strip around your finger once. Ensure it is not too tight or too loose, as this can lead to inaccurate measurements. Mark the position where the string overlaps with a pen. Straighten the string and measure its length with a ruler. Compare this measurement to the provided size chart to find your corresponding ring size.

Important: The ring size refers to the inner diameter. Do not measure the outer diameter. If the ring is too loose, it will affect the accuracy of monitoring data.

After selecting a size, try wearing a sizing ring (if available) for at least 24 hours to confirm the best fit, as fingers can naturally expand and contract.

1.2 Charging the Smart Ring

The COLMI R02 Smart Ring comes with a portable charging box. Before initial use, ensure the ring is fully charged. Place the ring into the charging compartment. The indicator light will show charging status (red for charging, green for full charge).

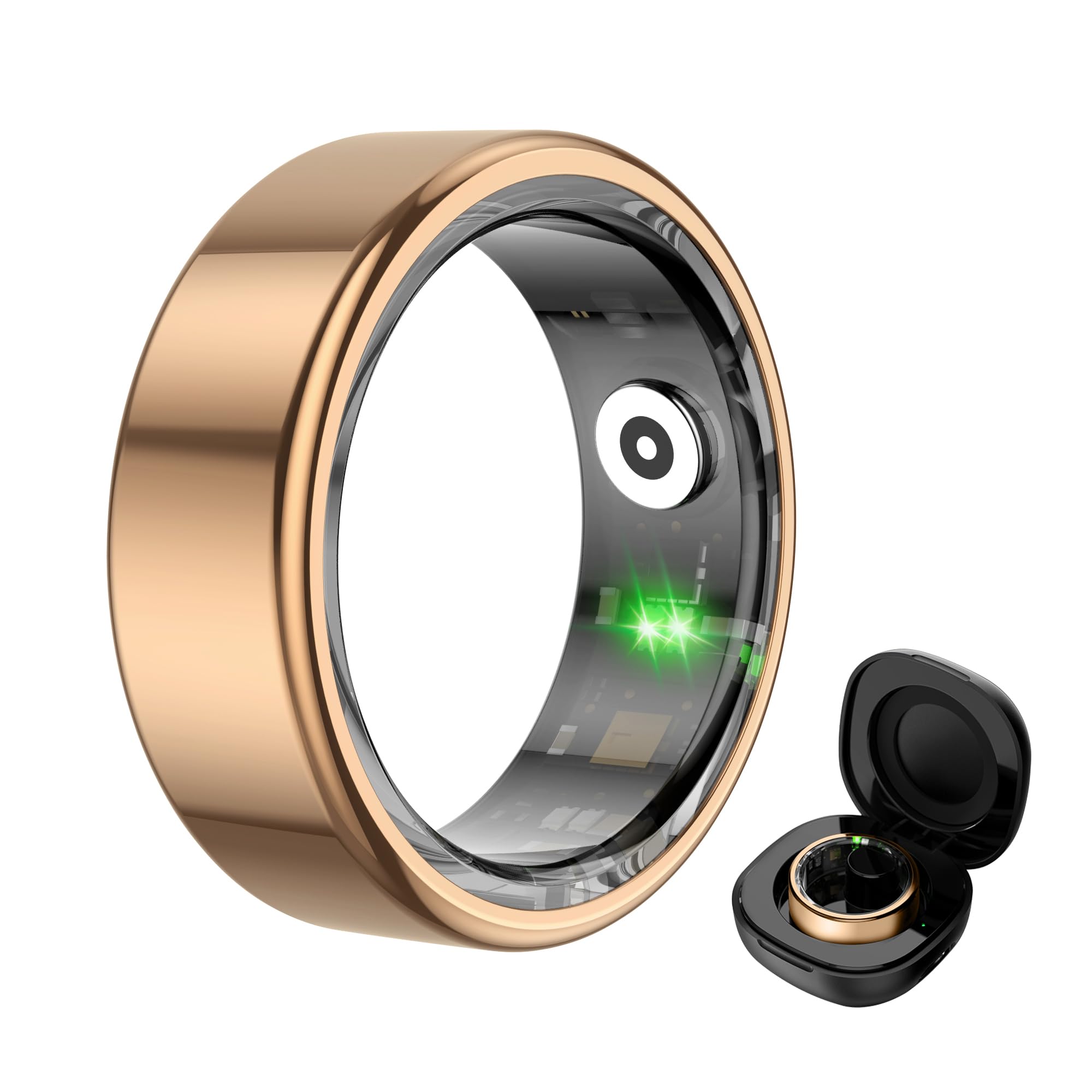

Figure 3: The COLMI R02 Smart Ring and its charging case. The image also illustrates the charging process and full charge indication.

1.3 App Connection

Download the "Q Ring" application on your smartphone (compatible with iOS and Android devices). Enable Bluetooth on your phone. Open the "Q Ring" app and follow the on-screen instructions to search for and bind your COLMI R02 Smart Ring. Once connected, you will be able to view your health and activity data.

2. Operation

2.1 Health Monitoring

The COLMI R02 Smart Ring continuously monitors various health metrics throughout the day and night. Access the "Health Monitoring" section in the "Q Ring" app to view your data.

• Heart Rate Monitoring: Supports 24-hour heart rate monitoring. You can adjust the monitoring frequency in the app settings.


Figure 4: The smart ring actively tracking heart rate, displayed on a graph within the companion app.

Video 6: Guide on how to adjust heart rate measurement settings within the app for optimal data collection and battery life.

• Blood Oxygen Monitoring: Records blood oxygen data, providing insights into your respiratory health.

Figure 5: The smart ring monitoring blood oxygen levels, with data visualized on a graph in the app.
• Sleep Monitoring: Analyzes your sleep patterns, including light sleep, deep sleep, and REM duration, to help you understand and improve your sleep quality.


Figure 6: Detailed sleep analysis provided by the smart ring, showing different sleep stages and overall sleep quality.

2.2 Sports Modes and Activity Tracking

The COLMI R02 Smart Ring supports multiple sports modes, such as running, to track your physical activity. It records exercise time, steps taken, calories burned, and distance covered, helping you monitor your fitness progress.

Figure 7: The smart ring tracking various sports activities and displaying real-time data in the app.

2.3 Remote Camera Control

After connecting the ring to your mobile phone via the "Q Ring" app, you can use the smart ring to remotely control your phone's camera. This allows you to take photos by simply waving your finger, making it convenient for group shots or selfies.

3. Maintenance

To ensure the longevity and optimal performance of your COLMI R02 Smart Ring, follow these maintenance guidelines:

• Cleaning: Regularly wipe the ring with a soft, dry cloth to remove any dirt or sweat. Avoid using harsh chemicals or abrasive materials that could damage the finish or sensors.
• Charging: Charge the ring using the provided charging compartment and cable. Avoid using third-party chargers that may not be compatible.
• Water Resistance: The ring is water-resistant, but it is not recommended for prolonged submersion or high-pressure water activities. Avoid wearing it while swimming or showering to prevent potential damage.
• Storage: When not in use, store the ring in its charging compartment or a safe, dry place away from extreme temperatures and direct sunlight.
• Software Updates: Keep the "Q Ring" app updated to the latest version to ensure compatibility and access to new features or performance improvements.

4. Troubleshooting

If you encounter any issues with your COLMI R02 Smart Ring, please refer to the following common troubleshooting steps:

• Ring Not Connecting to App:
  1. Ensure Bluetooth is enabled on your smartphone.
  2. Make sure the ring is charged.
  3. Restart both your phone and the ring (by placing it in the charger and removing it).
  4. Ensure the "Q Ring" app is updated to the latest version.
  5. Try unbinding and re-binding the device in the app settings.
• Inaccurate Data Readings:
  1. Verify that the ring is worn correctly and snugly on your finger, preferably the index finger.
  2. Ensure the sensor inside the ring is on the palm side of your finger.
  3. Clean the sensors on the inside of the ring.
  4. Ensure the ring is fully charged.
• Short Battery Life:
  1. Check the app settings for health monitoring frequency. More frequent monitoring (e.g., 5-minute heart rate intervals) will consume more battery. Adjust to a longer interval (e.g., 30 or 60 minutes) for extended battery life.
  2. Ensure the ring is fully charged before use.

If these steps do not resolve the issue, please contact customer support for further assistance.

5. Specifications

6. Warranty & Support

The COLMI R02 Smart Ring comes with a 1-year warranty. For any usage or quality problems, please contact customer support. The manufacturer, Shenzhen COLMl Technology Co., Ltd, is committed to providing professional after-sales service.

Contact Support: Refer to the contact information provided with your product packaging or visit the official COLMI website for support resources.
