RATION Carburetor Kit Instruction Manual

1. Introduction

This manual provides essential instructions for the installation, operation, and maintenance of your RATION Carburetor Kit. This kit is designed as a replacement part for 22-inch Murray MNA153003 lawn mowers equipped with 140cc Briggs & Stratton 09P6020143F1 engines. Proper installation and maintenance will ensure optimal engine performance and longevity.

2. Safety Information

Always prioritize safety when working with fuel and engine components.

• Ensure the engine is cool and the spark plug wire is disconnected before beginning any work to prevent accidental starting.
• Work in a well-ventilated area to avoid inhaling fuel fumes.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• Handle fuel with extreme care. Store fuel in approved containers away from heat sources and open flames.
• Dispose of old fuel and parts responsibly according to local regulations.

3. Product Overview

The RATION Carburetor Kit includes all necessary components for a comprehensive carburetor replacement and engine tune-up. Please verify all parts are present and undamaged before proceeding with installation.

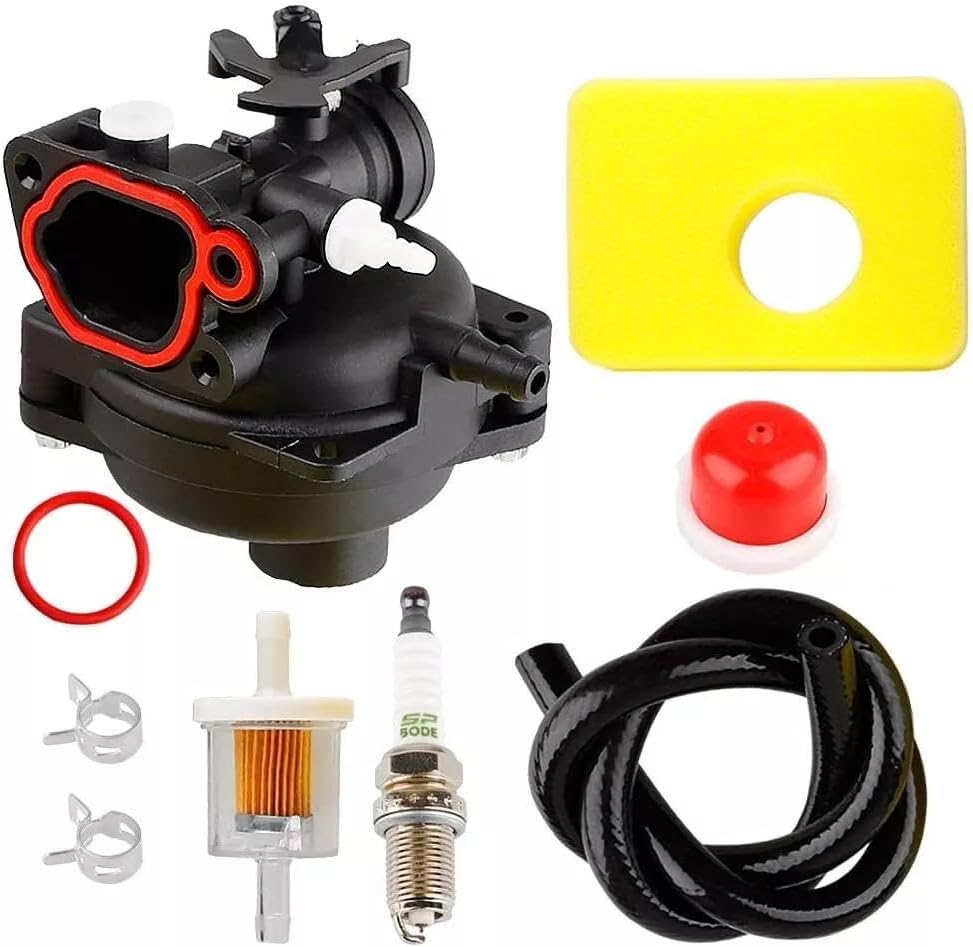

This image displays the complete RATION carburetor kit. It includes the main carburetor unit with a red gasket, a yellow rectangular air filter, a red primer bulb, a white fuel filter, a spark plug, black fuel line tubing, and two metal hose clamps. These components are essential for a full carburetor replacement and tune-up.

Kit Contents:

• Carburetor Assembly
• Air Filter
• Spark Plug
• Fuel Filter
• Fuel Line
• Hose Clamps (2)
• Primer Bulb
• Gasket/O-ring (pre-installed or separate)

4. Setup and Installation

This carburetor kit is specifically designed for compatibility with 22-inch Murray MNA153003 mowers and 140cc Briggs & Stratton 09P6020143F1 engines. Always confirm compatibility by checking product dimensions and comparing with your existing parts before installation.

General Installation Steps:

1. Preparation: Ensure the engine is off and cool. Disconnect the spark plug wire. Drain the fuel tank into an approved container.
2. Remove Old Components: Carefully disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor. Remove the mounting bolts and detach the old carburetor. Remove the old air filter, spark plug, fuel filter, and fuel lines.
3. Install New Carburetor: Install the new carburetor, ensuring any gaskets are properly seated. Reconnect the throttle and choke linkages. Secure the mounting bolts.
4. Connect Fuel System: Install the new fuel filter in the fuel line, ensuring the flow direction is correct (if indicated). Connect the new fuel line from the tank to the carburetor, securing with the provided clamps. Install the new primer bulb if applicable.
5. Replace Air Filter and Spark Plug: Install the new air filter into its housing. Replace the old spark plug with the new one, ensuring it is tightened to the manufacturer's specifications.
6. Final Checks: Double-check all connections for tightness and ensure no fuel leaks are present. Reconnect the spark plug wire.

If you are unsure about any step, it is recommended to consult a qualified technician or refer to your mower's specific service manual.

5. Operating Instructions (After Installation)

After successful installation of the carburetor kit, follow these general steps to start your engine:

1. Refill the fuel tank with fresh, appropriate fuel.
2. Prime the carburetor by pressing the primer bulb several times until fuel is visible in the bulb or fuel lines.
3. Set the choke to the appropriate starting position (usually 'Full Choke' or 'Start').
4. Engage the starter mechanism (pull cord or electric start).
5. Once the engine starts, gradually move the choke to the 'Run' position as the engine warms up.
6. Allow the engine to warm up for a few minutes before operating under load.

6. Maintenance

Regular maintenance of your carburetor and associated components is crucial for consistent engine performance.

• Air Filter: Inspect the air filter regularly (e.g., every 25 operating hours or annually). Clean or replace it if it appears dirty or clogged to ensure proper air-fuel mixture.
• Spark Plug: Check the spark plug annually or every 50 operating hours. Clean any carbon deposits and check the gap. Replace if electrodes are worn or fouled.
• Fuel Filter: Replace the fuel filter annually or if fuel flow appears restricted.
• Fuel Lines: Inspect fuel lines for cracks, leaks, or hardening. Replace if any damage is observed.
• Fuel Quality: Always use fresh, clean fuel. Stale fuel can cause carburetor issues. Consider using a fuel stabilizer if storing the mower for extended periods.

7. Troubleshooting

If you encounter issues after installing the carburetor kit, consider the following common troubleshooting steps:

• Engine Not Starting:
  • Check for fuel in the tank.
  • Ensure the primer bulb is properly primed.
  • Verify the spark plug wire is connected and the spark plug is clean and gapped correctly.
  • Confirm the choke is set correctly for starting.
  • Check for proper fuel flow through the fuel filter and lines.
• Engine Runs Rough or Stalls:
  • Inspect the air filter for clogs.
  • Check for proper choke adjustment.
  • Ensure fuel lines are not kinked or restricted.
  • Verify the carburetor is securely mounted and there are no air leaks around gaskets.
• Loss of Power:
  • Check the air filter for excessive dirt.
  • Inspect the spark plug.
  • Ensure the fuel filter is not clogged.

For persistent issues, professional assistance may be required.

8. Specifications

9. Warranty and Support

Specific warranty information for this RATION Carburetor Kit is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please contact the seller or retailer from whom the product was purchased.
