Introduction
This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your katoroe Q7-4000A Jump Starter with Air Compressor. This versatile device is designed to jump-start 12V vehicles, inflate tires, and serve as a portable power bank and emergency light source.
Safety Information
Please read all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Always wear eye protection and gloves when operating the jump starter.
- Do not expose the product to rain or wet conditions.
- Do not operate the jump starter if it has been damaged or modified.
- Keep out of reach of children.
- Ensure proper ventilation during use.
- Do not connect the positive and negative clamps together.
- Refer to your vehicle's owner's manual for specific jump-starting procedures.
Package Contents
Verify that all items are present in your package:
- 1x katoroe Q7-4000A Jump Starter with Air Compressor
- 1x Smart Jump Cable
- 1x USB-C Cable
- 1x Pump Tube
- 3x Air Nozzles
- 1x User Manual (this document)
Image: Contents of the katoroe Q7-4000A package, including the jump starter, smart jump cable, USB-C cable, pump tube, air nozzles, and user manual.
Product Overview
The katoroe Q7-4000A is a multi-functional device designed for automotive emergencies and portable power needs. It integrates a powerful jump starter, a 150PSI air compressor, a portable power bank, and an emergency LED light.
Image: Front view of the katoroe Q7-4000A device, showing the digital display, air hose, and jump starter clamps.
Key Features:
- 4000A Peak Current: Capable of jump-starting 12V vehicles with up to 10.0L gas or 8.0L diesel engines.
- 150PSI Air Compressor: Quickly inflates tires and other inflatables.
- Portable Power Bank: Dual USB outputs for charging mobile devices.
- 400 Lumen LED Light: Features Flashlight, SOS, and Strobe modes for emergencies.
- Smart Display: Real-time data for battery level, tire pressure, and operational status.
- Multi-Protection System: Includes over-charge, over-current, short-circuit, reverse polarity, low/high temp, over-voltage, over-load, and spark-proof protections.
Setup
Initial Charging:
- Before first use, fully charge the jump starter using the provided USB-C cable.
- Connect the USB-C cable to the input port on the jump starter and to a USB power adapter (not included).
- The LED display will indicate the charging status. Charge until the battery indicator shows full.
It is recommended to fully charge the device every 3-6 months to maintain battery health, even when not in use.
Operating Instructions
1. Jump Starting a Vehicle
Ensure the jump starter is at least 50% charged before attempting to jump start a vehicle.
- Turn off your vehicle's ignition and all accessories.
- Connect the smart jump cable to the jump starter's 12V output port. The indicator light on the smart cable should flash green and red.
- Attach the red positive (+) clamp to the vehicle's positive (+) battery terminal.
- Attach the black negative (-) clamp to the vehicle's negative (-) battery terminal or a solid metal part of the engine block (unpainted).
- Once connected correctly, the indicator light on the smart cable should turn solid green. If it flashes red, check connections or refer to troubleshooting.
- Start your vehicle.
- Once the vehicle starts, immediately remove the smart jump cable from the jump starter, then disconnect the clamps from the vehicle battery (negative first, then positive).

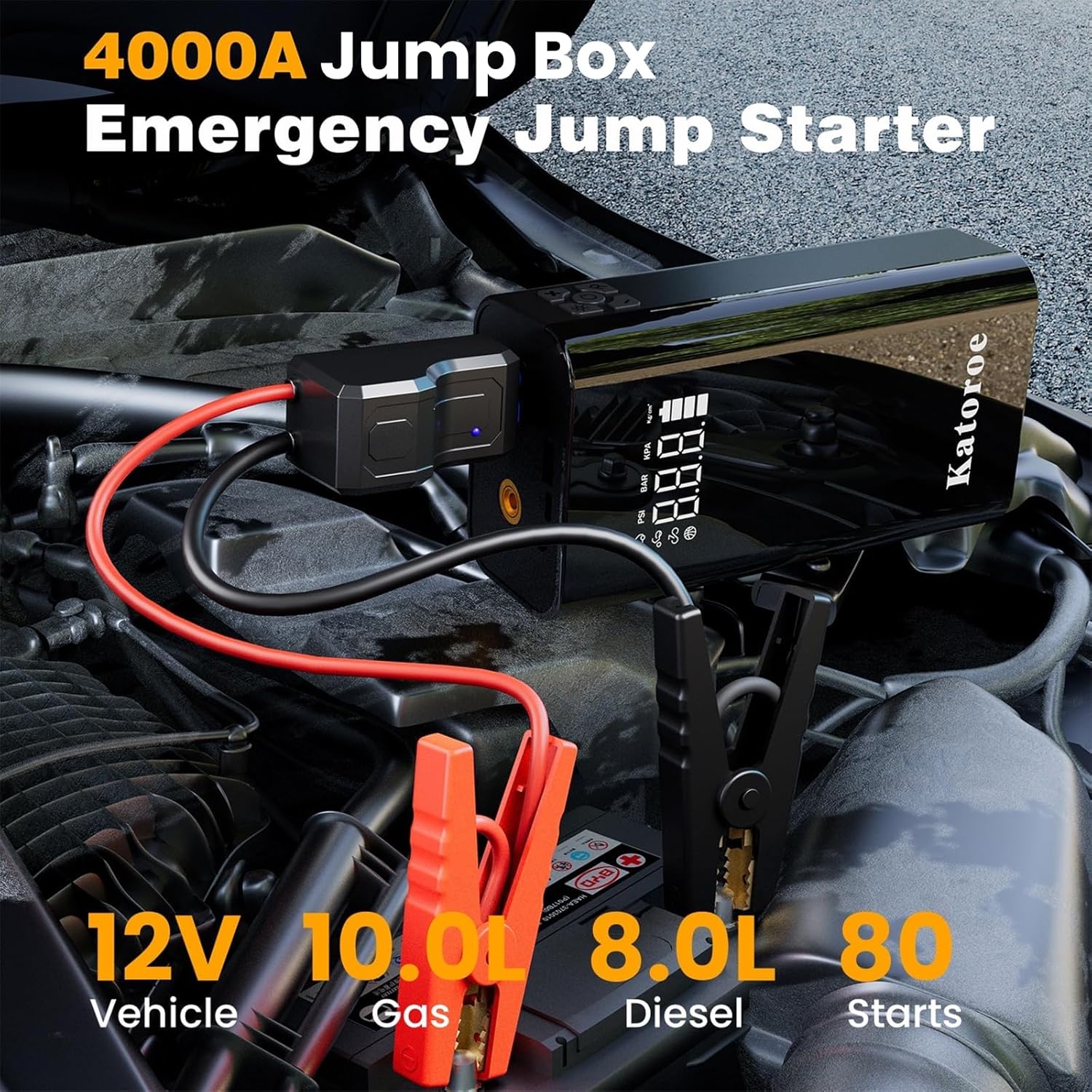

Image: The katoroe Q7-4000A jump starter connected to a car battery with its smart clamps, ready to start the vehicle.
2. Using the Air Compressor
The air compressor can inflate tires, bicycle tires, balls, and other inflatables using the appropriate nozzle.
- Connect the pump tube to the air output port on the jump starter.
- Attach the appropriate air nozzle to the pump tube and then to the item you wish to inflate.
- Power on the device. The display will show the current pressure.
- Use the '+' and '-' buttons to set the desired pressure. The display supports PSI, BAR, KPA, and KG/cm².
- Press the power button to start inflation. The compressor will automatically stop when the preset pressure is reached.
- Disconnect the pump tube and nozzle.
Image: The katoroe Q7-4000A device with its air hose connected to a car tire, demonstrating the inflation function.
3. Using as a Portable Power Bank
The device features dual USB outputs to charge your electronic devices.
- Connect your device's USB charging cable to one of the USB output ports on the jump starter.
- The jump starter will automatically begin charging your device.
- Monitor the battery level on the jump starter's display.
Image: The katoroe Q7-4000A device connected via USB cables to two smartphones, illustrating its function as a portable power bank.
4. Using the LED Light
The integrated 400 lumen LED light provides illumination and emergency signaling.
- Press and hold the light button to turn on the flashlight.
- Press the button again to cycle through modes: Flashlight > Strobe > SOS > Off.
Image: The katoroe Q7-4000A device with its LED light illuminated, demonstrating its flashlight function.
Maintenance
- Charging: Recharge the device after each use, especially after jump-starting, to ensure it's ready for the next emergency. Store with at least 50% charge.
- Cleaning: Wipe the device with a dry, soft cloth. Do not use harsh chemicals or abrasive materials.
- Storage: Store the jump starter in a cool, dry place, away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not start after jump-starting. | Low charge on jump starter; incorrect clamp connection; severely discharged vehicle battery; vehicle issue. | Ensure jump starter is fully charged. Check clamp connections for proper polarity and secure contact. Try again. If still unsuccessful, consult a mechanic. |
| Smart cable indicator flashes red. | Reverse polarity connection; short circuit; low voltage. | Disconnect clamps and re-connect, ensuring correct positive (+) and negative (-) terminals. Check for any short circuits. Ensure jump starter has sufficient charge. |
| Air compressor does not inflate. | Pump tube not securely connected; incorrect pressure setting; low battery. | Ensure pump tube is tightly screwed into the device and the nozzle is properly attached. Verify desired pressure is set. Charge the jump starter. |
| Device not charging. | Faulty USB-C cable or adapter; damaged charging port. | Try a different USB-C cable and power adapter. Contact customer support if the issue persists. |
Specifications
- Model: Q7-4000A
- Peak Current: 4000 Amps
- Engine Compatibility: Up to 10.0L Gas / 8.0L Diesel (12V vehicles)
- Air Compressor Pressure: 150 PSI
- LED Light: 400 Lumens (Flashlight, Strobe, SOS modes)
- Battery Type: Lithium Polymer
- Input: USB-C
- Output: 12V Jump Start, Dual USB (Power Bank)
- Product Dimensions: Approximately 3 x 6 x 3 inches
- Item Weight: Approximately 2.7 pounds
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
Image: Close-up of the katoroe Q7-4000A's large LED screen, displaying battery charge level and tire pressure units.
Warranty and Support
katoroe provides a 12-Month replacement warranty for this product. Additionally, lifetime technical support is available.
If you encounter any issues or have questions regarding your katoroe Q7-4000A Jump Starter with Air Compressor, please contact our customer support team for assistance. Refer to the contact information provided on the product packaging or the official katoroe website.
