1. Introduction and Safety Information
This manual provides essential information for the safe and efficient use of your Whirlpool WH SP70 T262 P built-in refrigerator. Please read all instructions carefully before installation and operation. Keep this manual for future reference.
1.1 General Safety Warnings
- Ensure the appliance is properly grounded to prevent electrical shock.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Keep ventilation openings clear of obstruction.
- This appliance is intended for household use only.
- Unplug the appliance before cleaning or performing maintenance.
2. Setup and Installation
Proper installation is crucial for the performance and longevity of your refrigerator. This built-in model requires specific integration into your kitchen cabinetry.
2.1 Unpacking and Positioning
- Remove all packaging materials. Dispose of them responsibly.
- Position the refrigerator in the designated built-in space, ensuring adequate ventilation around the unit as specified in the installation guide (not included in this manual).
- Ensure the appliance is level using the adjustable feet.
Figure 2.1: Front view of the Whirlpool WH SP70 T262 P built-in refrigerator with its doors closed, highlighting its integrated design and grey finish.
2.2 Electrical Connection
- Connect the appliance to a properly grounded electrical outlet. The refrigerator uses a Type F - 2 pin (German) plug.
- Do not use extension cords or adapters.
- Wait at least 4 hours after installation before plugging in the appliance to allow the refrigerant to settle.
2.3 Door Reversibility
The doors of this refrigerator are reversible. Refer to the separate installation instructions for detailed steps on how to reverse the door hinges if required.
3. Operating Instructions
Your Whirlpool WH SP70 T262 P refrigerator features advanced technology for optimal food preservation.
3.1 Control Panel
The refrigerator is equipped with a touch control display for easy temperature adjustment and function activation.
Figure 3.1: This image highlights the touch control panel located at the top of the refrigerator interior, displaying temperature settings and the Whirlpool 6th SENSE technology logo, along with upper shelves.
3.2 Temperature Settings
- Use the touch controls to set the desired temperature for the refrigerator and freezer compartments.
- The 6th SENSE sensors automatically adjust the temperature when new food is introduced, optimizing energy consumption.
3.3 Special Functions
- Super Cool Function: Activates rapid cooling for fresh food, ideal after grocery shopping.
- Holiday Function: Maintains a higher temperature in the refrigerator compartment to save energy during long absences, while the freezer operates normally.
3.4 Interior Features

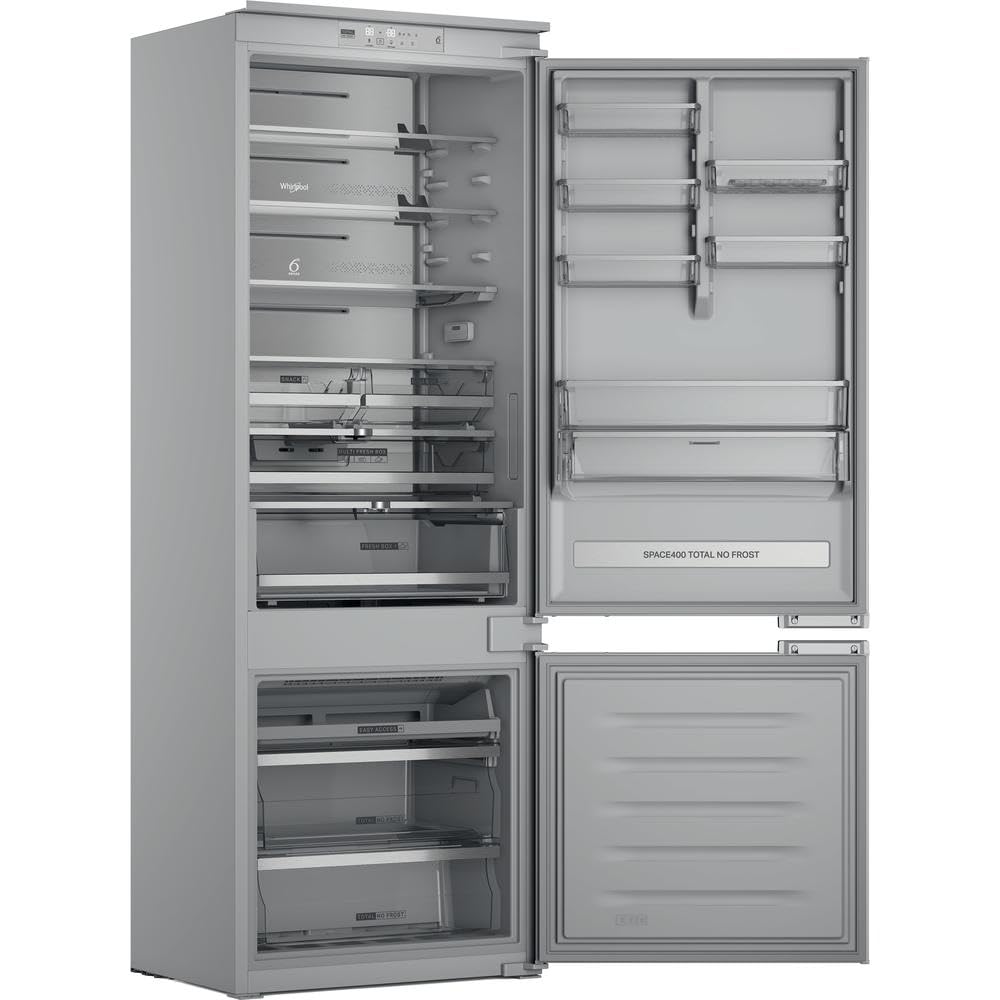

Figure 3.2: This image shows the Whirlpool WH SP70 T262 P built-in refrigerator with both the refrigerator and freezer doors open, displaying the internal layout, shelves, drawers, and door bins.
- Glass Shelves: Robust and elegant, these shelves can be adjusted to accommodate items of various sizes.
- Multi-Airflow System: Ensures regular and uniform airflow throughout the refrigerator compartment for consistent cooling.
- Vegetable Drawer: A dedicated drawer for optimal storage of fruits and vegetables.
- Bottle Holder: A convenient rack for securely storing bottles.
- No Frost System: Both the refrigerator and freezer compartments feature a No Frost system, preventing ice buildup and eliminating the need for manual defrosting.
Figure 3.3: A detailed view of the upper refrigerator compartment, showcasing the adjustable glass shelves, door bins, and various food storage options, including the 6th SENSE sensor area.
Figure 3.4: This image focuses on the freezer compartment, illustrating the pull-out drawers designed for organized storage of frozen goods, with 'TOTAL NO FROST' visible.
4. Maintenance
Regular maintenance ensures the optimal performance and extends the lifespan of your appliance.
4.1 Cleaning the Interior
- Always unplug the refrigerator before cleaning.
- Clean the interior with a solution of warm water and mild detergent. Avoid abrasive cleaners or solvents.
- Wipe dry thoroughly after cleaning.
- Removable shelves and drawers can be washed separately.
4.2 Cleaning the Exterior
- Clean the exterior surfaces with a soft cloth and a mild, non-abrasive cleaner.
- For the display, use a soft, dry cloth.
4.3 Power Outage
In case of a power outage, keep the refrigerator doors closed to maintain the internal temperature for as long as possible. The No Frost system helps in this regard by preventing ice buildup that could melt quickly.
5. Troubleshooting
Before contacting customer service, refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power supply issue; temperature setting too high; door not closed properly. | Check power connection; adjust temperature setting; ensure door is fully closed. |
| Excessive noise | Appliance not level; items inside vibrating; compressor operating. | Adjust leveling feet; rearrange items; compressor noise is normal during operation. |
| Water on floor/inside | Drain hole blocked; door not sealed properly. | Clear the drain hole; check door seal for obstructions. |
| Display not working | Power issue; display fault. | Check power supply; if issue persists, contact service. |
6. Specifications
Detailed technical specifications for the Whirlpool WH SP70 T262 P built-in refrigerator.
- Model: WHSP0T262P
- Appliance Positioning: Built-in
- Product Color: Grey
- Built-in Display: Yes
- Door Hinge: Right (Reversible)
- Control Type: Touch
- Shelf Material: Tempered glass / Metal
- Number of Compressors: 1
- Integrated Handles: Yes
- Number of Doors: 2
- Total Net Capacity: 394 L
- Refrigerator Net Capacity: 295 L
- Climate Class: SN-T (Subnormal to Tropical, suitable for ambient temperatures from 10°C to 43°C)
- Noise Emission Class: B
- Acoustic Emission: 32 dB
- Ice Production: No
- Water Dispenser: No
- No Frost (Refrigerator): Yes
- Multi-Airflow System (Refrigerator): Yes
- Number of Refrigerator Shelves: 6
- Number of Vegetable Drawers: 1
- Cooling System: Dynamic (fan-assisted)
- Weight: 87 kg
- Electrical Plug Type: Type F - 2 pin (German)
7. Warranty and Support
Your Whirlpool WH SP70 T262 P refrigerator comes with a manufacturer's warranty.
7.1 Warranty Information
- Private Use: 2 years
- Business Use: 1 year
Please retain your proof of purchase for warranty claims.
7.2 Customer Support
For technical assistance, spare parts, or to schedule a service appointment, please contact Whirlpool customer support. Refer to the official Whirlpool website or your purchase documentation for contact details specific to your region.
