1. Introduction
The TKSTAR TK915 4G GPS Tracker is a robust and versatile device designed for real-time tracking of vehicles, assets, and more. Featuring 4G LTE connectivity, a powerful 7800 mAh battery, and an IP58 waterproof rating, it offers reliable performance and extended standby time. This manual provides detailed instructions for setting up, operating, and maintaining your GPS tracker to ensure optimal functionality.
2. Product Overview
Key Features
- 4G LTE Connectivity: Ensures fast and reliable tracking data transmission.
- Long Battery Life: Equipped with a 7800 mAh lithium battery, offering up to 80 days of standby time.
- IP58 Waterproof: Resistant to dust and shocks, suitable for various environments.
- Magnetic Mounting: Features a powerful magnet for quick and secure attachment to metallic surfaces.
- Real-time Tracking: Provides live location updates via app, web platform, or SMS.
- Geo-fence Function: Allows setting virtual boundaries and receiving alerts upon entry or exit.
- Historical Route Playback: Review past travel routes and data.
- Multiple Positioning Modes: Utilizes GPS/A-GPS/LBS for accuracy up to 5 meters.
What's in the Box
- TKSTAR TK915 4G GPS Tracker
- Magnetic Mount (integrated)
- USB Charging Cable
- User Manual (this document)
Product Images
Image 1: The TKSTAR TK915 4G GPS Tracker, illustrating its compact design and key features such as 4G version, 7800mAh battery, 80-day standby, real-time tracking, history route playback, built-in powerful magnet, IP65 waterproof level, overspeed alarm, shock alarm, geo-fence, and sleep mode.

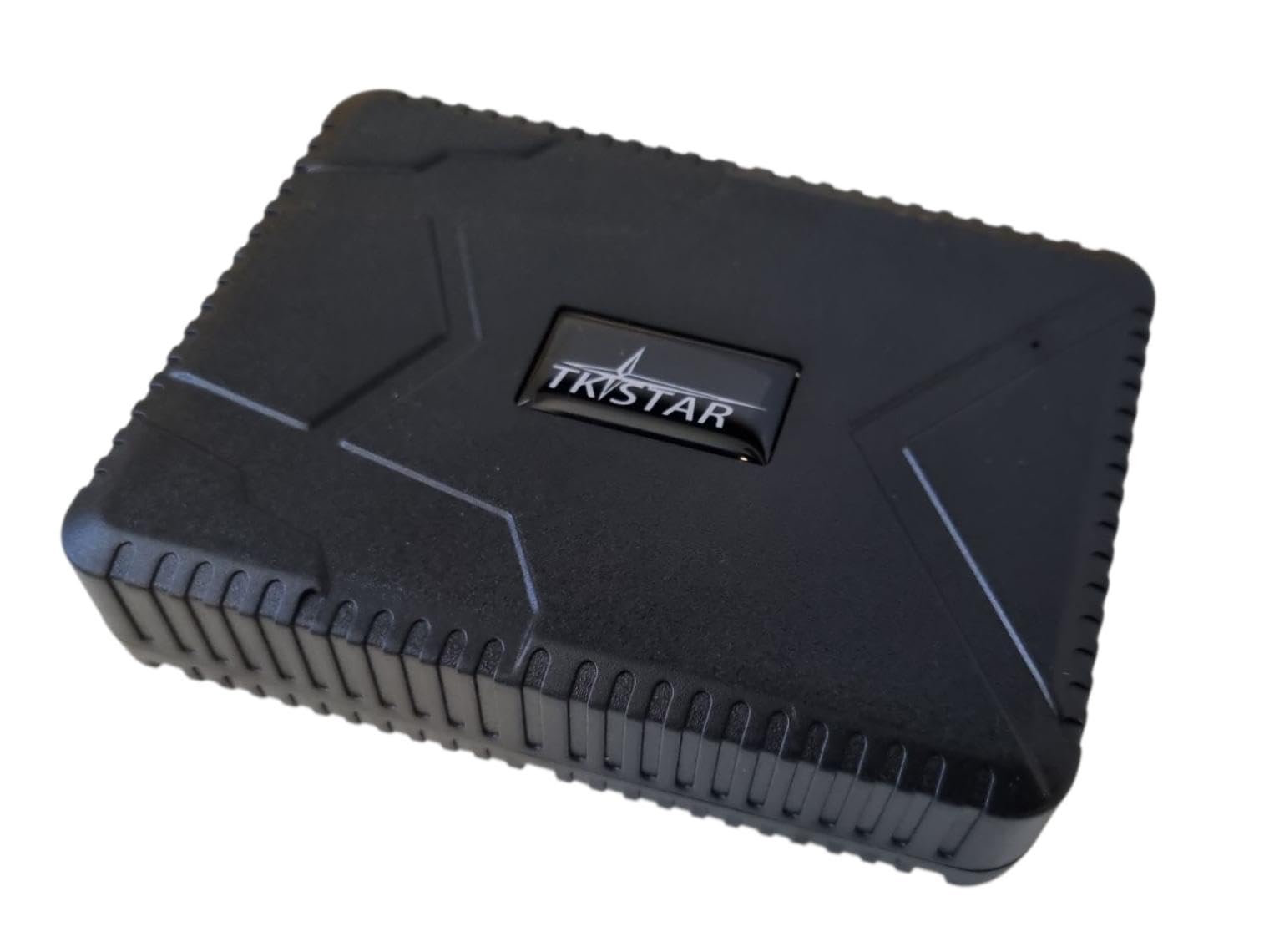

Image 2: A close-up view of the TKSTAR TK915 GPS Tracker, showcasing its textured black casing and the 'TKSTAR' logo.
Image 3: A rectangular black device with a textured surface and geometric patterns, featuring ribbed edges, indicating a robust industrial design.
3. Setup
SIM Card Requirements
The TK915 tracker requires a micro SIM card (not included). Ensure the SIM card meets the following criteria:
- PIN Deactivation: Before inserting, deactivate the PIN code request on the SIM card using a mobile phone.
- Data Plan: For permanent live tracking, the SIM card must have a data plan (e.g., 3GB per month is generally sufficient).
- Call & SMS Functions: The SIM card must support call and SMS functions for communication with the tracker.
SIM Card Installation
- Purchase a micro SIM card and deactivate its PIN code using a smartphone.
- Test the SIM card by making a short call to ensure it is active.
- Locate the SIM card slot on the TK915 tracker.
- Carefully insert the prepared micro SIM card into the slot.
- Ensure the device is placed outdoors to acquire a GPS signal.
- Wait 1 to 2 minutes for the device to initialize and become ready for use.
Video 1: This video demonstrates how to insert a SIM card into a GPS tracker and what components are included in the package. It provides a visual guide for the initial setup process.
4. Operating Instructions
Winnes GPS Application
The free Winnes GPS app is available for Android and iOS devices. Download it from the App Store or Google Play Store. The app allows for live tracking, historical route playback, and device management.
- Real-time Tracking: View the current location of your tracker on a map.
- Historical Route: Access and review past travel routes for up to six months.
- Geo-fence: Set up virtual boundaries and receive alerts when the tracker enters or exits these areas.
- Device Information: Check battery status and other device parameters.
- Alert Messages: Receive notifications for various events like overspeed, shock, or geo-fence breaches.
SMS Commands
You can also interact with the tracker using SMS commands from an authorized mobile phone to the tracker's SIM card number.
- Location Request: Send "G123456#" to the tracker's number. You will receive an SMS with a Google Maps link showing the exact location.
- Programming: The tracker can be programmed via various SMS codes for advanced settings. Refer to the detailed manual (often provided in German) for a complete list of commands.
Multi-Device Management
The Winnes GPS platform supports managing multiple devices from a single account, allowing you to track an entire fleet or several personal assets simultaneously.
Video 2: This video compares the Winnes GPS Tracker with other GPS devices, highlighting its precision positioning, proactive security, and alert mechanisms. It emphasizes the advantages of a dedicated GPS tracker over simpler Bluetooth devices.
Video 3: This video demonstrates the real-time tracking capabilities of a car GPS tracker, showing live location updates, speed, and direction on a map interface. It illustrates how the device provides continuous monitoring of vehicle movement.
5. Maintenance
Battery Management
The TK915 is equipped with a 7800 mAh lithium battery, providing up to 80 days of standby time. Actual battery life may vary based on usage frequency, tracking mode (e.g., real-time vs. sleep mode), and signal strength. Charge the device using the provided USB cable when the battery level is low.
Waterproof and Durability
With an IP58 rating, the tracker is protected against dust ingress and immersion in water up to 1 meter for 30 minutes. While it is water-resistant, avoid prolonged submersion or exposure to high-pressure water jets to ensure longevity.
6. Troubleshooting
- No GPS Signal: Ensure the device is outdoors with a clear view of the sky. GPS signals can be obstructed by buildings, tunnels, or dense foliage.
- SIM Card Not Working: Verify that the SIM card's PIN code is deactivated and that it has an active data plan, call, and SMS functions. Reinsert the SIM card firmly.
- Inaccurate Location: In areas with poor GPS signal, the device may rely on LBS (Location Based Service) which uses cellular towers and can be less accurate. Move to an open area for better GPS precision.
- Device Not Responding: Check the battery level. If the battery is charged, try restarting the device if possible, or contact support.
- App Connectivity Issues: Ensure your smartphone has an active internet connection and that the tracker's SIM card has sufficient data.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | TKSTAR |
| Model Number | TK915-4G |
| Connectivity Technology | 4G LTE |
| Special Features | Motion activated, Virtual guarding, Location history, Magnetic, Water resistant |
| Supported Application | Text message (and Winnes GPS App) |
| Specific Uses | Fleet management, Vehicle tracking |
| Material | Plastic |
| Included Components | Magnetic mount |
| Battery Life (Average) | 80 days (standby) |
| Battery Capacity | 7800 mAh |
| Item Dimensions (L x W x H) | 11.2 x 7.7 x 2.7 centimeters |
| Item Weight | 270 Grams |
| Compatible Devices | Personal computer, Smartphone, iPhone |
8. Warranty and Support
Warranty Information
The TKSTAR TK915 4G GPS Tracker comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.
Additional Resources
A detailed manual is also provided in German with every delivery. Additionally, various instructional videos are available for TKSTAR GPS trackers, offering further guidance on setup and operation.
