1. Overview
This manual provides detailed instructions for the assembly, operation, and maintenance of your Domi 10' x 14' Lean to Hardtop Gazebo. Designed for durability and all-weather performance, this wall-mounted gazebo offers a sturdy shaded area for your patio or deck. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

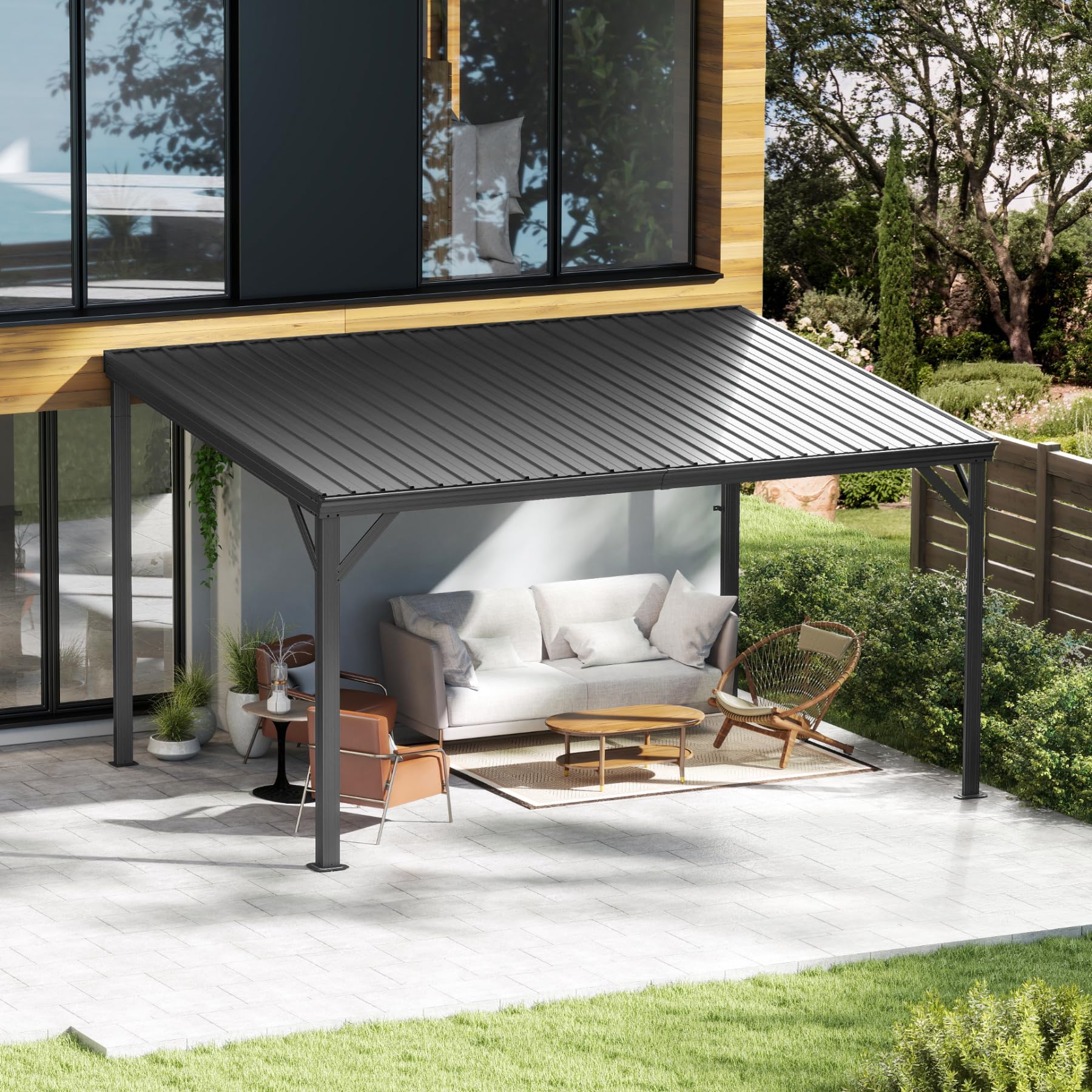

Image 1: The Domi 10' x 14' Lean to Hardtop Gazebo providing shade on a patio.
2. Safety Information
Important Safety Guidelines:
- Always ensure the gazebo is securely attached to a stable wall or structure.
- Follow the installation instructions carefully to avoid potential hazards during assembly.
- Do not use the gazebo in windy conditions exceeding 60 mph or under heavy snow loads exceeding 22 lbs/sq.ft.
- Keep children and pets away from the assembly area.
- Wear appropriate safety gear, such as gloves and eye protection, during assembly.
- Inspect all components for damage before assembly. Do not proceed with assembly if any parts are damaged.
3. Product Features
- Premium Durability: Constructed with dual-protected galvanized and powder-coated steel (3.94" columns + 5 reinforced 5.2" beams) to resist rust, UV damage, and withstand 60 mph winds/22 lbs/sq.ft snow. This construction is designed to be 2X stronger than standard pergolas.
- All-Weather Performance: Features a 2024-upgraded gutter system for leak-proof drainage, preventing ice and leaf clogs. The sloped galvanized roof sheds rain and snow instantly.
- Spacious & Stable: Provides a generous 162.7''x113.2'' coverage (94.7"H) creating a sturdy shaded zone. The wall-mounted design saves space compared to freestanding units.
- Hassle-Free Solution: Pre-engineered for easy installation, offering permanent protection for decks, patios, or hot tub areas.
- Seamless Gazebo Expansion: Can be connected with other same-width gazebos using specialized connector kits to create a larger shaded area.
Image 2: Detail of the 5 strong beams and 4 thick pillars, highlighting structural integrity.
Image 3: Illustration of the multi-layer protection for the steel pillars.
4. Specifications
| Attribute | Detail |
|---|---|
| Brand | domi outdoor living |
| Model Number | 1698 |
| Product Dimensions | 162.7"L x 113.2"W x 94.7"H |
| Material | Alloy Steel |
| Frame Material | Alloy Steel |
| Item Weight | 279.5 pounds |
| Water Resistance Level | Water Resistant |
| Ultraviolet Light Protection | Yes |
| Color | Gray |
Image 4: Technical drawing showing the precise dimensions of the gazebo.
5. Setup & Installation
The Domi Lean to Hardtop Gazebo is designed for straightforward assembly, but it requires at least two people due to the size and weight of components. Ensure you have adequate space and all tools listed in the packaging before starting.
Key Assembly Considerations:
- Pre-Engineered Components: The gazebo features pre-drilled wall studs and base holes for easier alignment and secure fastening.
- Secure Mounting: The wall-mounted design requires secure attachment to a stable wall or structure. Use appropriate anchors for your specific wall material (e.g., concrete anchors for concrete patios).
- Roof Panel Assembly: Carefully align roof panels. Some users have noted that roof panel holes may require slight adjustment during assembly. Avoid assembling roof panels in direct sunlight as they can become hot.
- Silicone Sealant: Ensure any provided silicone sealant is fresh and usable. If dried out, acquire suitable outdoor-grade sealant.
- Tools: A drill with an Allen key attachment is highly recommended due to the large number of screws.
Image 5: Visual guide to the sturdy construction and pre-drilled features aiding installation.
Connecting Multiple Gazebos:
This gazebo supports seamless expansion by connecting two or more same-width units using specialized connector kits. This allows you to customize and extend your shaded area as needed.
- Gazebos can only connect if they share the same width dimension (e.g., 8ft, 10ft, or 12ft).
- You will need to purchase a linking kit that matches your gazebo's width.
- The length of the gazebos does not affect connection compatibility (e.g., a 10x10ft can connect with a 10x14ft).
Image 6: A connector kit highlighted, demonstrating how two gazebos can be joined.
Image 7: An example of multiple gazebos connected to form an extended shaded area.
Image 8: Compatibility guide for connecting different gazebo sizes.
6. Operation
Your Domi Lean to Hardtop Gazebo is designed to provide a permanent, weather-resistant outdoor living space. Once properly installed, it requires no daily operational adjustments.
- Shade and Shelter: The gazebo offers continuous shade and protection from rain, allowing you to enjoy your outdoor space in various weather conditions.
- UV Protection: The roof material provides UV protection, reducing sun exposure.
- Drainage System: The integrated gutter system ensures efficient water runoff, preventing accumulation on the roof.
7. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your Domi gazebo.
- Cleaning: Clean the roof and frame periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating.
- Gutter System: Regularly check and clear the gutter system of leaves, debris, or ice to ensure proper drainage.
- Fasteners: Periodically inspect all bolts and screws to ensure they remain tight and secure. Tighten any loose fasteners.
- Structural Integrity: Check the frame and roof panels for any signs of damage or wear, especially after severe weather. Address any issues promptly.
- Rust Prevention: The galvanized and powder-coated steel is designed for rust resistance. However, if scratches or chips occur, touch up with appropriate outdoor paint to prevent rust.
Image 9: The gazebo's advanced gutter system for efficient water drainage.
8. Troubleshooting
Here are solutions to common issues you might encounter:
- Wobbly Structure: If the gazebo feels wobbly after installation, ensure all bolts and anchors are securely tightened to both the house wall and the patio surface. Verify that the foundation is level and stable.
- Roof Panel Alignment Issues: If roof panel holes do not align perfectly during assembly, gently adjust the panels or frame components. Avoid forcing parts, which can cause damage. A rubber mallet may be used carefully to tap components into place if needed.
- Leaking Roof: Check the gutter system for blockages and ensure all roof panel seams are properly sealed with silicone sealant. Reapply sealant if necessary.
- Damaged/Missing Parts: If you receive defective or missing parts, contact Domi customer service immediately for assistance.
9. Warranty & Support
Domi Outdoor Living is committed to providing high-quality products and customer satisfaction.
- Protection Plan: A 3-Year Protection Plan is available for this product. Please refer to your purchase documentation for details on how to activate or inquire about this plan.
- Lifetime Support: Domi Outdoor Living offers lifetime support for your gazebo. For any questions, concerns, or assistance, please contact Domi customer service.
- Contact Information: Refer to the contact details provided with your product packaging or visit the official Domi Outdoor Living website for support.
