YATOINTO 530LBS Rope Hoist Pulley System Instruction Manual

Introduction

This manual provides detailed instructions for the safe and effective use of your YATOINTO 530LBS Upgraded Rope Hoist Pulley System. Designed for various lifting and pulling tasks, this system features a 7:1 mechanical advantage, a durable polypropylene rope, and rust-resistant components. Please read this manual thoroughly before operation to ensure proper setup, usage, and maintenance.

The YATOINTO Rope Hoist Pulley System is suitable for a wide range of applications including camping, hunting, boating, tree cutting, garage use, DIY attic projects, and transporting pets. Its compact and lightweight design makes it ideal for both indoor and outdoor activities.

Image: The YATOINTO Rope Hoist Pulley System shown in various application settings, demonstrating its versatility for lifting and pulling tasks.

Safety Information

• Maximum Working Load: Do not exceed the maximum working load limit of 180 lbs (81.6 kg). The breaking strength is 530 lbs (240 kg), but always adhere to the working load limit for safe operation.
• Inspect Before Use: Before each use, inspect the rope, pulleys, hooks, and all connectors for any signs of wear, damage, or corrosion. Do not use if any component is compromised.
• Secure Attachment: Ensure all hooks and connectors are securely attached to stable anchor points and the item being lifted.
• Wear Protective Gear: Always wear appropriate protective gear, such as gloves, to protect your hands during operation.
• Clear Area: Keep the lifting area clear of personnel and obstructions. Ensure a clear path for the lifted object.
• Controlled Lifting: Lift and lower objects slowly and with control. Avoid sudden movements or jerking.
• Avoid Twisting: Prevent the rope from twisting or kinking during operation, as this can reduce its strength and cause tangles.

Product Components

The YATOINTO Rope Hoist Pulley System consists of the following key components:

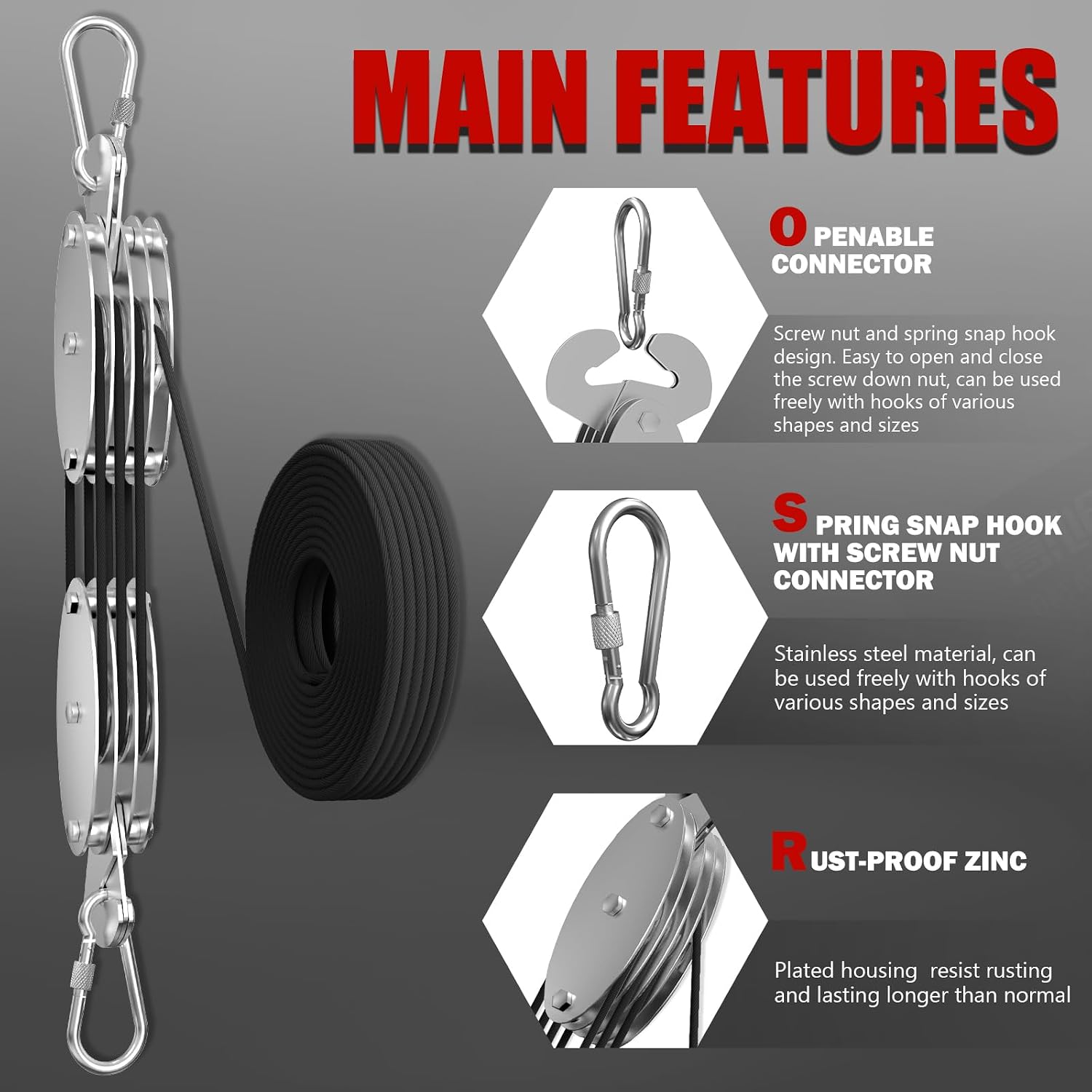

Image: Main features of the pulley system, highlighting the openable connector, spring snap hook, and rust-proof zinc plating.

• Pulley Blocks: Two sets of pulley blocks, each with multiple sheaves, designed to provide mechanical advantage. The housing is zinc-plated for rust resistance and durability.
• Rope: A 60-foot (18.3 m) diamond braid polypropylene fiber rope. This rope is soft, strong, lightweight, and designed for high capacity.
• Spring Snap Hooks with Screw Nut Connectors: Stainless steel hooks with a screw nut mechanism for secure attachment. These connectors are designed to be opened and closed easily, allowing connection to various equipment and anchor points.
• Nylon Bearings: Integrated within the pulley blocks to ensure smooth operation and reduce friction, making lifting more labor-saving.

Image: A comparison illustrating the upgraded features of the YATOINTO pulley system, including the spring snap hook, polypropylene rope, and zinc-plated housing, contrasted with ordinary components.

Setup Instructions

Follow these steps to set up your YATOINTO Rope Hoist Pulley System:

1. Unpack Components: Carefully remove all components from the packaging. Ensure the rope is untangled and free of knots.
2. Identify Anchor Points: Determine two secure anchor points for your lifting task. One point will be for the upper pulley block, and the other for the lower pulley block (or the item being lifted). These points must be capable of safely supporting the weight of the object being lifted plus the force applied.
3. Attach Upper Pulley: Use one of the spring snap hooks to securely attach the upper pulley block to your chosen overhead anchor point. Ensure the screw nut connector is fully tightened.
4. Attach Lower Pulley/Load: Attach the second spring snap hook of the lower pulley block to the item you intend to lift. Alternatively, if the item has a suitable attachment point, you can connect the lower pulley directly. Ensure the screw nut connector is fully tightened.
5. Rope Configuration: The rope should already be threaded through the pulley blocks in a 7:1 configuration. Verify that the rope runs smoothly through all sheaves without any twists or kinks. The free end of the rope is where you will apply force.

For a visual guide on setting up and using the pulley system, please refer to the video below:

Operating Instructions

The YATOINTO Rope Hoist Pulley System offers two primary modes of operation for lifting and lowering:

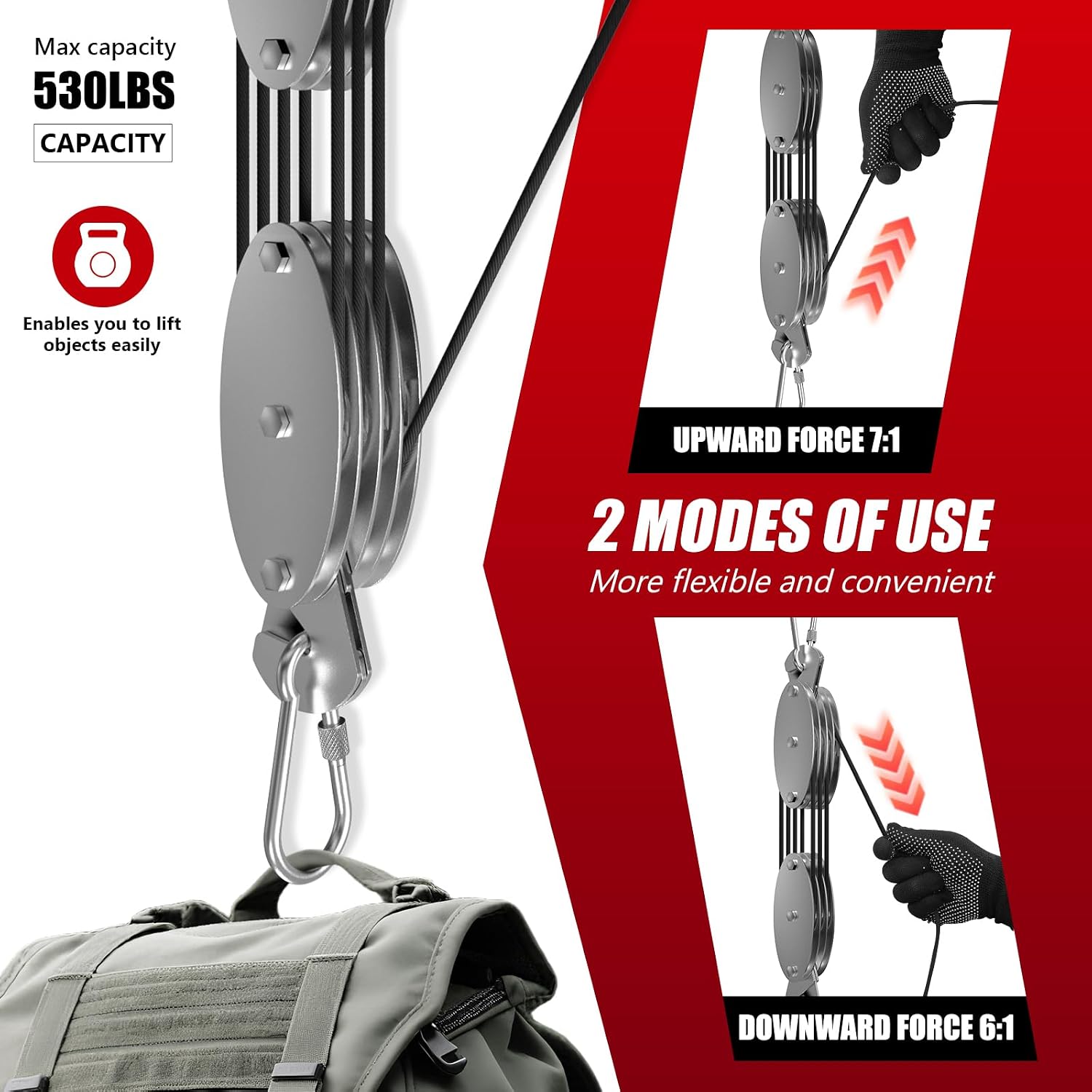

Image: Two modes of use for the pulley system, showing how to apply upward or downward force for lifting.

1. Upward Force (7:1 Ratio)

This mode provides a 7:1 mechanical advantage, meaning for every 1 unit of force you apply, the system lifts 7 units of weight (minus friction). This is the most common configuration for maximizing lifting power.

1. Positioning: Ensure the object to be lifted is directly below the upper pulley's anchor point.
2. Pulling: Grasp the free end of the rope firmly. Pull the rope upwards, away from the lower pulley. Maintain a steady, controlled pull.
3. Securing: To hold the load at a desired height, secure the free end of the rope to a cleat or other suitable anchor point. Never leave a suspended load unattended without securing the rope.

2. Downward Force (6:1 Ratio)

While the primary mechanical advantage is 7:1, applying force downwards can sometimes be more ergonomic depending on your setup. This configuration typically offers a 6:1 ratio due to the direction of force application relative to the pulleys.

1. Positioning: Similar to upward force, ensure the load is positioned correctly.
2. Pulling: Pull the free end of the rope downwards. This can be advantageous when you can use your body weight to assist in pulling.
3. Securing: As with upward force, always secure the rope to a cleat or anchor point to hold the load in position.

Lowering the Load: To lower the load, slowly release the tension on the secured rope, allowing the object to descend gradually. Maintain control of the rope at all times.

Maintenance

Proper maintenance will extend the life and ensure the safe operation of your pulley system:

• Regular Inspection: Periodically inspect the rope for fraying, cuts, or excessive wear. Check the pulley blocks for any deformation, cracks, or signs of rust. Ensure the snap hooks operate smoothly and the screw nuts tighten securely.
• Cleaning: Clean the pulley blocks and rope with a damp cloth. Avoid harsh chemicals that could degrade the rope material or metal finish.
• Lubrication: Lightly lubricate the pulley axles if they begin to squeak or show resistance during rotation. Use a silicone-based lubricant suitable for metal and nylon components.
• Storage: Store the pulley system in a clean, dry place away from direct sunlight and extreme temperatures. Coil the rope neatly to prevent tangles and kinks.
• Rope Replacement: If the rope shows significant wear or damage, replace it with a rope of similar diameter (4mm) and material (high-density polypropylene) that meets or exceeds the original strength specifications.

Troubleshooting

Here are some common issues and their solutions:

Specifications

Detailed specifications for the YATOINTO 530LBS Rope Hoist Pulley System:

Image: Detailed size and dimension information for the pulley system components.

Warranty and Support

YATOINTO is committed to providing high-quality products. If you encounter any questions or issues with your Rope Hoist Pulley System, please contact our customer satisfaction team. We are dedicated to assisting you and ensuring your product performs as expected.

For support, please refer to the contact information provided with your purchase or visit the official YATOINTO website.
