Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your U-MAX 16' x 10' Wall-Mounted Hard Top Gazebo. Please read this manual thoroughly before beginning installation and retain it for future reference. Proper installation and care will ensure the longevity and optimal performance of your gazebo.
The U-MAX 16' x 10' Wall-Mounted Hard Top Gazebo is designed to provide a durable and protective outdoor shelter. It features a hard top roof, a robust metal frame, and is intended for secure attachment to a wall, offering stability and protection against various weather conditions.
Safety Information
Adherence to safety guidelines is crucial during installation and use. Failure to follow these instructions may result in injury or damage to the product.
- Always follow the provided manual and video tutorials for safe installation.
- Securely fix the gazebo to the ground as instructed to ensure stability.
- Ensure all fasteners are tightened correctly before and after assembly.
- Do not attempt to assemble the gazebo in strong winds or adverse weather conditions.
- Use appropriate safety gear, such as gloves and eye protection, during assembly.
- Keep children and pets away from the assembly area.
- Contact our 24/7 support team for any installation or usage concerns.
Package Contents
Your U-MAX Gazebo will be shipped in multiple parcels, which may arrive at different times. Please verify all components against the packing list provided in your physical manual before beginning assembly.
Typical components include:
- Main support posts and beams
- Roof panels (hard top)
- Wall mounting brackets and hardware
- Ground anchoring hardware
- Assembly hardware (bolts, screws, washers, nuts)
- Tools for assembly (often basic wrenches/hex keys)
- Instruction manual
Image: The U-MAX 16' x 10' Wall-Mounted Hard Top Gazebo providing shelter over a patio seating area.
Setup and Installation
The U-MAX Gazebo is designed for straightforward installation. Refer to the detailed manuals and step-by-step video tutorials provided by the manufacturer for comprehensive guidance.
- Site Preparation: Choose a suitable location on your patio or deck adjacent to a sturdy wall. Ensure the ground is level and clear of obstructions.
- Unpacking and Inventory: Carefully unpack all components and verify them against the parts list. Separate and organize hardware for easier access.
- Frame Assembly: Assemble the main support posts and beams according to the provided diagrams. The triangular structure and multi-frame support system are designed for stability.
- Wall Attachment: Position the gazebo frame against the wall. Utilize the provided wall-mounting accessories and four pre-drilled holes on the stable frame legs for secure attachment. Ensure the structure is level before marking and drilling attachment points on the wall.
- Roof Panel Installation: Install the hard top roof panels. The inclined design facilitates water runoff.
- Ground Anchoring: Once securely fixed to the wall, anchor the gazebo's legs to the ground as instructed. This step is critical for stability, especially in windy conditions.
- Final Inspection: Double-check all bolts, screws, and connections to ensure they are tight and secure.
Image: Close-up showing the triangular structure for stability and the stable frame leg with pre-drilled holes for secure mounting.

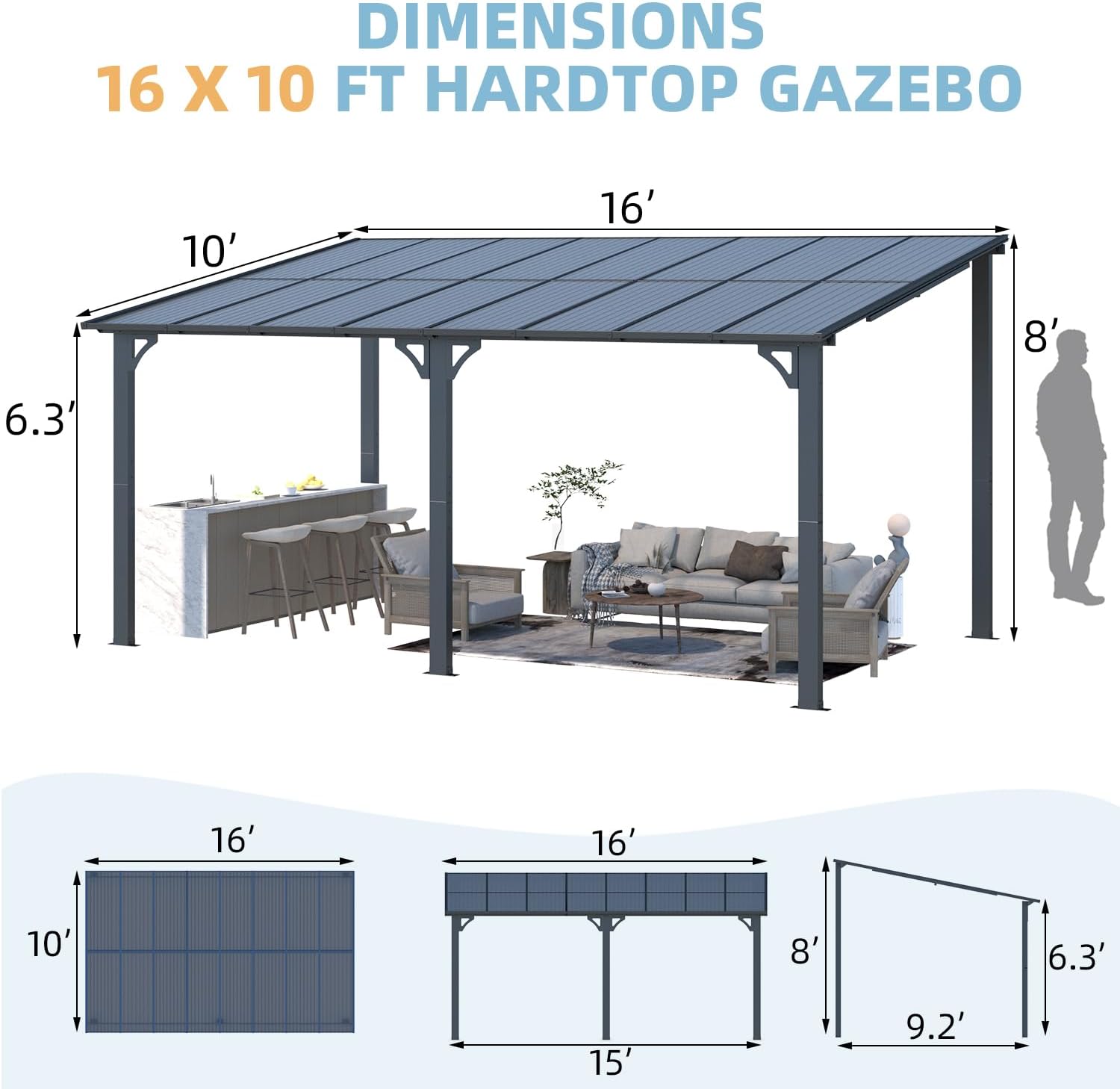

Image: Dimensional diagram of the 16' x 10' hardtop gazebo, showing height and width measurements.
Operating Instructions
Your U-MAX Gazebo is designed for year-round use, offering protection from sun, rain, and snow.
- Weather Resistance: The hard top roof provides comprehensive protection against harmful UV rays and rainwater. The inclined design ensures efficient water runoff.
- Snow Capacity: The robust design can withstand approximately 7 inches of heavy snow (equivalent to 6 lbs/sq.ft). While designed for snow, it is advisable to clear excessive snow accumulation to prevent structural stress.
- Wind Resistance: When securely fixed to the wall and anchored to the ground as instructed, the gazebo can confidently withstand winds of around 70 mph.
- Usage: Enjoy your outdoor space under the shelter of the gazebo. It is suitable for various activities, providing shade and protection.
Image: The U-MAX Gazebo with a layer of snow on its roof, illustrating its snow-bearing capability.
Image: A split image showing the gazebo in summer with its UV-blocking roof and in winter demonstrating its ability to hold snow.
Maintenance
Regular maintenance will extend the life and appearance of your gazebo.
- Cleaning: Clean the roof panels and frame periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly with clean water.
- Fastener Checks: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners to maintain structural integrity.
- Snow Removal: While the gazebo can handle snow, it is recommended to gently remove heavy snow accumulation from the roof to prevent excessive stress, especially during prolonged periods of heavy snowfall.
- Drainage: Ensure the inclined roof design allows for proper water runoff. Clear any debris that might obstruct drainage.
Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or wobbly. | Loose fasteners; improper ground anchoring; uneven installation surface. | Check and tighten all bolts and screws. Ensure the gazebo is securely anchored to the ground and wall. Verify the installation surface is level. |
| Water pooling on the roof. | Obstruction on the roof; incorrect roof panel installation. | Clear any debris (leaves, snow) from the roof. Review roof panel installation to ensure correct inclination for drainage. |
| Difficulty during assembly. | Missing parts; unclear instructions; incorrect orientation of parts. | Refer to the detailed manual and video tutorials. Verify all parts against the packing list. Contact customer support for assistance or missing parts. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 16411BK |
| Dimensions (L x W x H) | 4.87L x 3.04W x 2.43H Meters (16' x 10' x 8' approx.) |
| Item Weight | 79.83 kg (176 Pounds) |
| Material | Aluminum, Metal, Sun Panels |
| Roof Type | Hard Top, Inclined Design |
| Snow Capacity | Up to 7 inches (6 lbs/sq.ft) |
| Wind Resistance | Up to 70 mph (when properly secured) |
| UV Protection | UPF 50+, 99% UV block (heavily tinted roof) |
Warranty and Support
U-MAX stands behind its products. We provide comprehensive support for your gazebo.
- Warranty: Information regarding specific warranty periods and coverage details can be found in the documentation included with your product or by contacting customer service.
- Customer Support: A professional team is available 24/7 to address any concerns related to installation, usage, maintenance, and replacements.
- Contact Information: Please refer to the contact details provided in your product packaging or on the official U-MAX website for support.
