Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your DELLA Serena 12000 BTU 22 SEER2 Mini Split Heat Pump. This system is designed to provide energy-efficient heating and cooling for rooms up to 550 sq. ft., featuring smart home integration and advanced climate control technologies.
Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your DELLA Mini Split system. This system requires professional installation and is not intended for DIY setup. Please ensure all power sources are turned off before beginning any wiring or installation procedures.
Installation Kit Contents

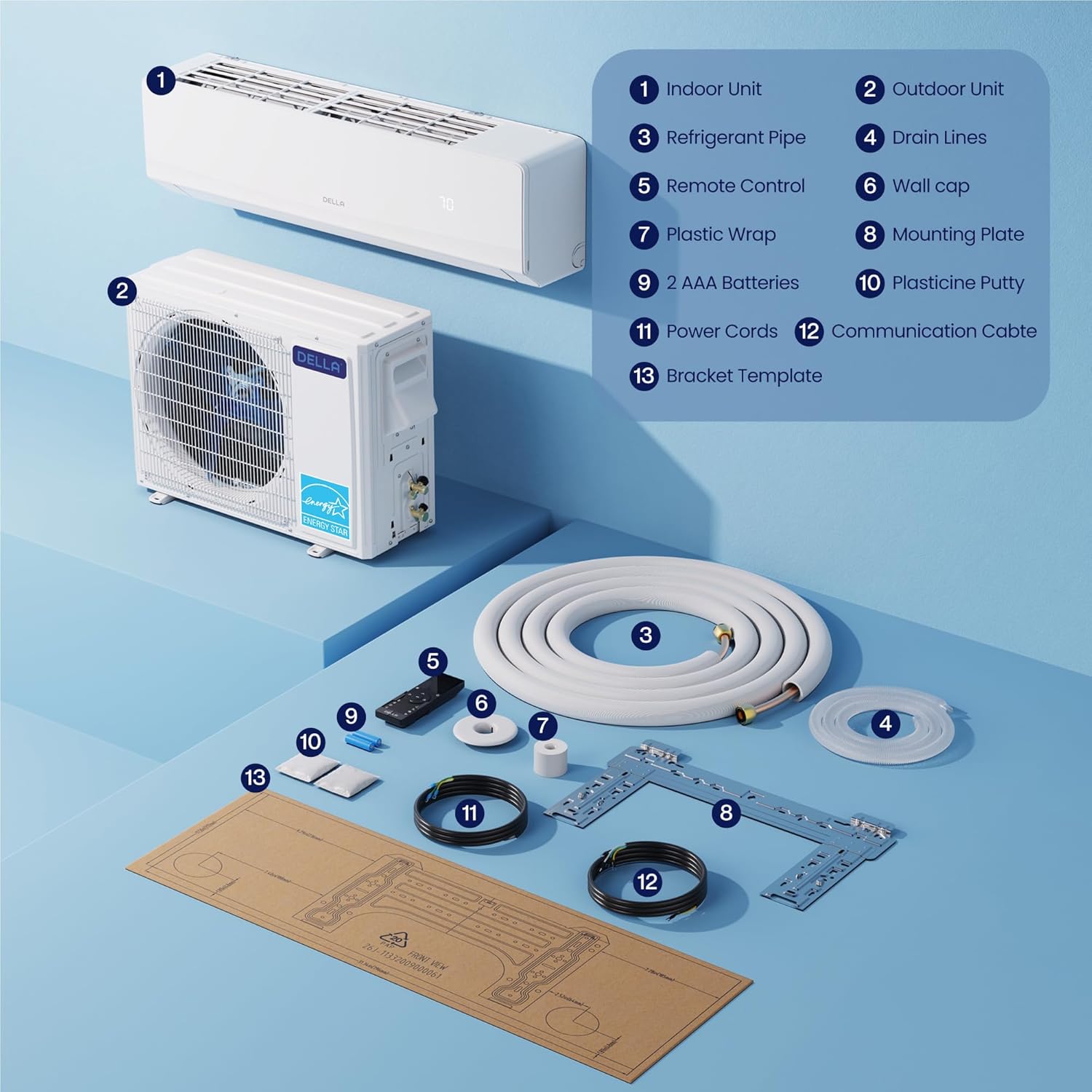

The 16.4ft installation kit includes standard size 1/4" & 3/8" outer dimension copper pipes and a 78.7" drain pipe. A maximum fuse size of 15A is required. Line-set vacuuming is mandatory during installation, and any alteration of line-set length necessitates adjusting refrigerant levels. The system is pre-loaded with R32 refrigerant for up to 25 ft.
Unit Dimensions
Installation Videos
Video: This video provides detailed instructions on how to correctly wire your DELLA mini split unit, ensuring proper electrical connections for safe operation.
Video: A comprehensive guide on installing your DELLA Mini Split Unit, covering mounting, line set connections, and other critical steps.
Video: This video highlights 5 urgent steps you need to know before installing your Della Mini Split, focusing on critical pre-installation checks and considerations.
Operating Instructions
Your DELLA Serena Mini Split offers various modes and smart features for personalized comfort and energy efficiency.
Smart Control Features
Control your unit from anywhere using the DELLA app via WIFI, or with Alexa/Google Home voice commands. The exclusive geo-location function automatically adjusts the temperature based on your proximity, saving energy when you're away and ensuring comfort upon your return. A remote control is also included for direct unit management.
Available Modes and Functions
- 4D Air Flow: Adjusts air direction (up-down, left-right) for even distribution.
- I Feel Mode: Senses the temperature around the remote control for precise comfort.
- 24 Hour Timer: Schedule on/off times for convenience.
- Sleep Mode: Automatically adjusts temperature for comfortable sleep and energy saving.
- Eco Energy Saving Mode: Optimizes operation for reduced power consumption.
- Multiple Fan Speeds: Choose from various fan speeds for desired air circulation.
- Turbo Function: Provides rapid cooling or heating.
- Heating, Cooling, Auto Modes: Standard operational modes for different climate needs.
- Dry Mode: Dehumidifies the air to reduce moisture.
App and Geo-Location Videos
Video: An overview of the Della Mini Split app 3.0, demonstrating its interface and various control features for your unit.
Video: Learn how to utilize the Geo Location Function of your DELLA Mini Split, allowing the unit to adjust settings based on your location for optimized comfort and energy savings.
Maintenance
Regular maintenance ensures the continued efficiency and performance of your DELLA Mini Split system.
- Filter Cleaning: Seasonal cleaning of the reusable filters is recommended to maintain air quality and unit efficiency.
- PureClean Technology: The unit features PureClean tech to prevent dust buildup and defrost the indoor unit, contributing to healthier air.
- Outdoor Unit Defrosting: Equipped with a bottom heating element, the outdoor unit prevents ice buildup during winter operation, ensuring efficient defrosting and reliable performance even at low temperatures (down to 5℉/-15℃).
Troubleshooting
For common operational issues, please refer to the detailed troubleshooting section in the full user manual provided with your unit. If you encounter persistent problems or require technical assistance, please contact DELLA customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand Name | Della |
| Model Info | 12K2VR-22S-M-I+O |
| Item Weight | 16.5 pounds |
| Product Dimensions | 7.87 x 30.24 x 11.77 inches |
| Efficiency | High (22 SEER2) |
| Capacity | 1 Tons (12000 BTU/h) |
| Noise Level | 22 Decibels (in mute mode) |
| Installation Type | Split System |
| Form Factor | Mini-Split |
| Special Features | Dehumidifier, Remote Controlled, WiFi Enabled, PureClean Tech, Geo-location |
| Color | White |
| Voltage | 230 Volts |
| Wattage | 1000 watts |
| Material Type | Plastic |
| Included Components | 1 x Mini-Split Air Conditioner, Manual |
| Refrigerant | R32 (pre-loaded for up to 25 ft) |
Warranty Information
The DELLA Serena Mini Split Heat Pump comes with a lifetime warranty, ensuring peace of mind regarding your investment. Please refer to the warranty card included with your product for full terms and conditions.
