Vozascly W12SE Cordless Wet Dry Vacuum and Floor Cleaner User Manual

1. Product Overview

The Vozascly W12SE is a versatile cordless wet dry vacuum and floor cleaner designed for efficient cleaning of various hard floor surfaces. It combines vacuuming and mopping functions, features an automatic self-cleaning system, and includes electrolytic disinfection for enhanced hygiene.

Image 1.1: The Vozascly W12SE unit with its main components and accessories, including the handle, main body, roller brush, clean and dirty water tanks, battery, and additional cleaning tools.

Key Features:

• 2-in-1 Vacuum and Mop: Simultaneously vacuums and washes hard floors such as parquet, tiles, marble, and laminate.
• Automatic Self-Cleaning: Initiates a self-cleaning cycle for the roller brush and drainage tube with a single button press, followed by spin-drying.
• Dual Tank System: Separate 600ml clean water tank and 550ml dirty water tank for continuous cleaning with fresh water.
• Hair Anti-Tangle Design: Patented design prevents hair from tangling around the roller brush.
• Electrolytic Disinfection: Produces disinfected water upon activation, achieving a 99.9% germ reduction rate during cleaning.
• Long Battery Life: Up to 45 minutes of runtime on a single charge.
• Low Noise Operation: Operates below 80 dB for a quiet cleaning experience.
• Lightweight and Cordless: Weighs only 3.7 kg for easy maneuverability.

2. Safety Instructions

Please read all safety instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• This appliance is for household use only. Do not use outdoors or on wet surfaces other than hard floors intended for wet cleaning.
• Do not allow children to operate the appliance. Close supervision is necessary when used near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not handle the charger or appliance with wet hands.
• Do not immerse the appliance in water or other liquids.
• Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Turn off the appliance before performing any maintenance or cleaning.
• Store the appliance indoors in a dry place.
• Only use the provided power adapter for charging.

3. Setup

3.1 Package Contents

Ensure all items are present in the package:

• Vozascly W12SE Main Unit
• Handle Assembly
• Clean Water Tank
• Dirty Water Tank
• Roller Brush (pre-installed or separate)
• HEPA Filter (pre-installed or separate)
• Charging Base
• Power Adapter
• Cleaning Brush
• User Manual

3.2 Assembly

1. Insert the handle assembly into the main unit until it clicks securely into place.
2. Ensure the clean water tank and dirty water tank are correctly seated in their respective positions.

3.3 Initial Charging

Before first use, fully charge the appliance.

1. Place the main unit onto the charging base.
2. Connect the power adapter to the charging base and plug it into a wall outlet.
3. The charging indicator lights on the display will illuminate, indicating charging is in progress.
4. Charge until the battery indicator shows full. This typically takes several hours.

4. Operating Instructions

4.1 Filling the Clean Water Tank

1. Remove the clean water tank from the main unit.
2. Open the tank cap and fill with clean tap water. Do not exceed the MAX fill line.
3. Securely close the cap and reinsert the tank into the main unit.

Image 4.1: Illustration of the dual tank system, highlighting the clean water tank (top) and dirty water tank (bottom) for effective separation of liquids.

4.2 Powering On and Cleaning Modes

The appliance features an intelligent LED display and voice assistant for operational guidance.

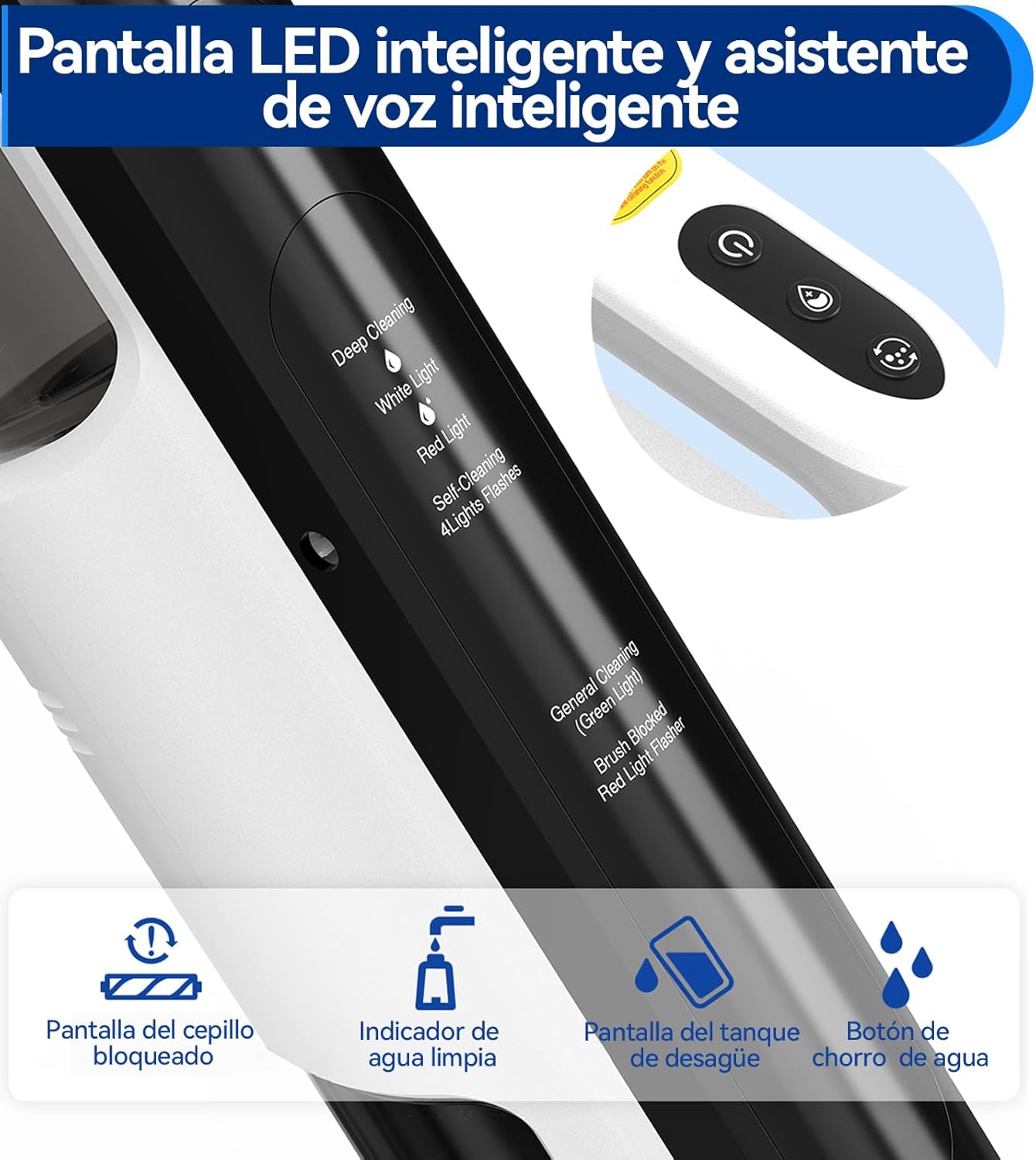

Image 4.2: Detailed view of the control panel, showing the power button, water spray button, and self-cleaning button, along with indicators for deep cleaning, general cleaning, and brush status.

1. Press the Power button (⏻) to turn on the appliance. It will typically start in a default cleaning mode.
2. The LED display will show the current cleaning mode (e.g., "Deep Cleaning" with white light, "General Cleaning" with green light).
3. To switch between cleaning modes or activate specific functions, refer to the control panel on the handle.
4. The appliance can vacuum and wash simultaneously, making it suitable for various hard floor types.

Image 4.3: The W12SE effectively cleans different hard floor types, including parquet, marble, and tiles, removing various stains and spills.

4.3 Electrolytic Disinfection

Upon activation, the appliance rapidly produces disinfected water, ensuring a 99.9% germ reduction rate during cleaning.

Image 4.4: Visual representation of the water electrolysis process within the cleaner, showing how disinfected water is generated for effective germ reduction.

4.4 Battery Autonomy

The W12SE offers up to 45 minutes of continuous operation, sufficient for cleaning large areas.

Image 4.5: A user demonstrating the W12SE's use in a living room, emphasizing its 45-minute battery duration and 2600mAh battery capacity.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Vozascly W12SE.

5.1 Automatic Self-Cleaning

After each use, it is recommended to run the self-cleaning cycle.

1. Place the appliance on its charging base.
2. Ensure there is sufficient clean water in the clean water tank.
3. Press the self-cleaning button (often indicated by a circular arrow icon) on the handle.
4. The appliance will automatically clean the roller brush and internal tubes, followed by a spin-drying process to remove excess water.
5. This process helps prevent mold formation and keeps your hands clean.

Image 5.1: The W12SE in its charging base, demonstrating the one-click automatic self-cleaning function for the roller brush.

5.2 Emptying and Cleaning the Dirty Water Tank

Empty the dirty water tank after each use or when the 'Dirty Tank Full' indicator illuminates.

1. Remove the dirty water tank from the main unit.
2. Carefully open the tank and dispose of the dirty water.
3. Rinse the tank thoroughly with clean water.
4. Ensure the filter inside the dirty water tank is also cleaned.
5. Allow the tank and filter to air dry completely before reassembling.

5.3 Cleaning the Roller Brush

While the self-cleaning function is effective, occasional manual cleaning of the roller brush may be necessary.

1. Turn off the appliance and remove the dirty water tank.
2. Open the roller brush cover and remove the roller brush.
3. Use the provided cleaning brush to remove any tangled hair or debris from the roller brush. The anti-tangle design minimizes this, but checks are still recommended.
4. Rinse the roller brush under running water.
5. Allow the roller brush to air dry completely before reinserting.

Image 5.2: The unique nozzle design of the W12SE, engineered to prevent hair from tangling around the roller brush during operation.

6. Troubleshooting

If you encounter issues with your Vozascly W12SE, refer to the following table for common problems and solutions.

7. Specifications

Technical specifications for the Vozascly W12SE.

8. Warranty and Support

Your Vozascly W12SE appliance is covered by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Vozascly customer service. Contact information can typically be found on the product packaging or the official Vozascly website.
