Homedics 3-in-1 HEPA-Type Replacement Filter AP-H400FL Instruction Manual

1. Introduction

This manual provides essential information and instructions for the Homedics 3-in-1 HEPA-Type Replacement Filter, model AP-H400FL. This filter is designed to maintain the performance of your Homedics AP-H400 Air Purifier by capturing airborne particles and reducing odors. Please read these instructions carefully to ensure proper installation and maintenance.

Homedics 3-in-1 HEPA-Type Replacement Filter AP-H400FL in its packaging.

The Homedics 3-in-1 HEPA-Type Replacement Filter, model AP-H400FL, shown in its retail packaging, indicating compatibility with the AP-H400 air purifier.

2. Product Features

The Homedics 3-in-1 HEPA-Type Replacement Filter incorporates a multi-stage filtration system to enhance air quality:

Prefilter: Captures larger particles such as dust, lint, and pet hair, extending the life of the subsequent filters.
H13 HEPA Media: Traps 99.97% of airborne particles as small as 0.3 microns, including allergens, pollen, dust mites, and smoke particles.
Activated Carbon Filter: Reduces common household odors from pets, cooking, and smoke, and helps to diminish volatile organic compounds (VOCs).

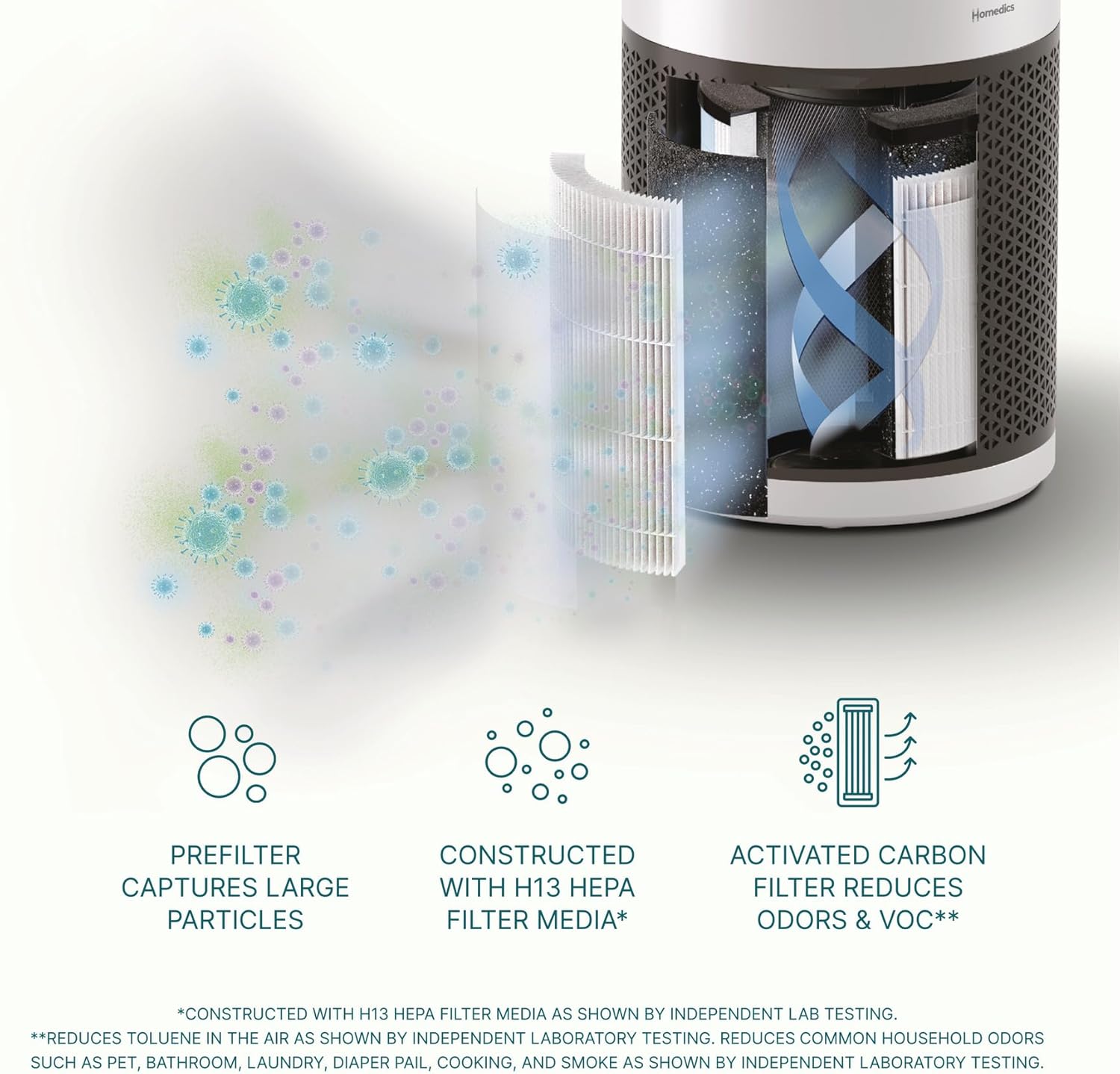

Diagram illustrating the 3-stage filtration process of the Homedics filter: prefilter, H13 HEPA media, and activated carbon filter.

This diagram visually explains the three stages of filtration: the prefilter captures large particles, the H13 HEPA filter media traps fine airborne particles, and the activated carbon filter reduces odors and VOCs.

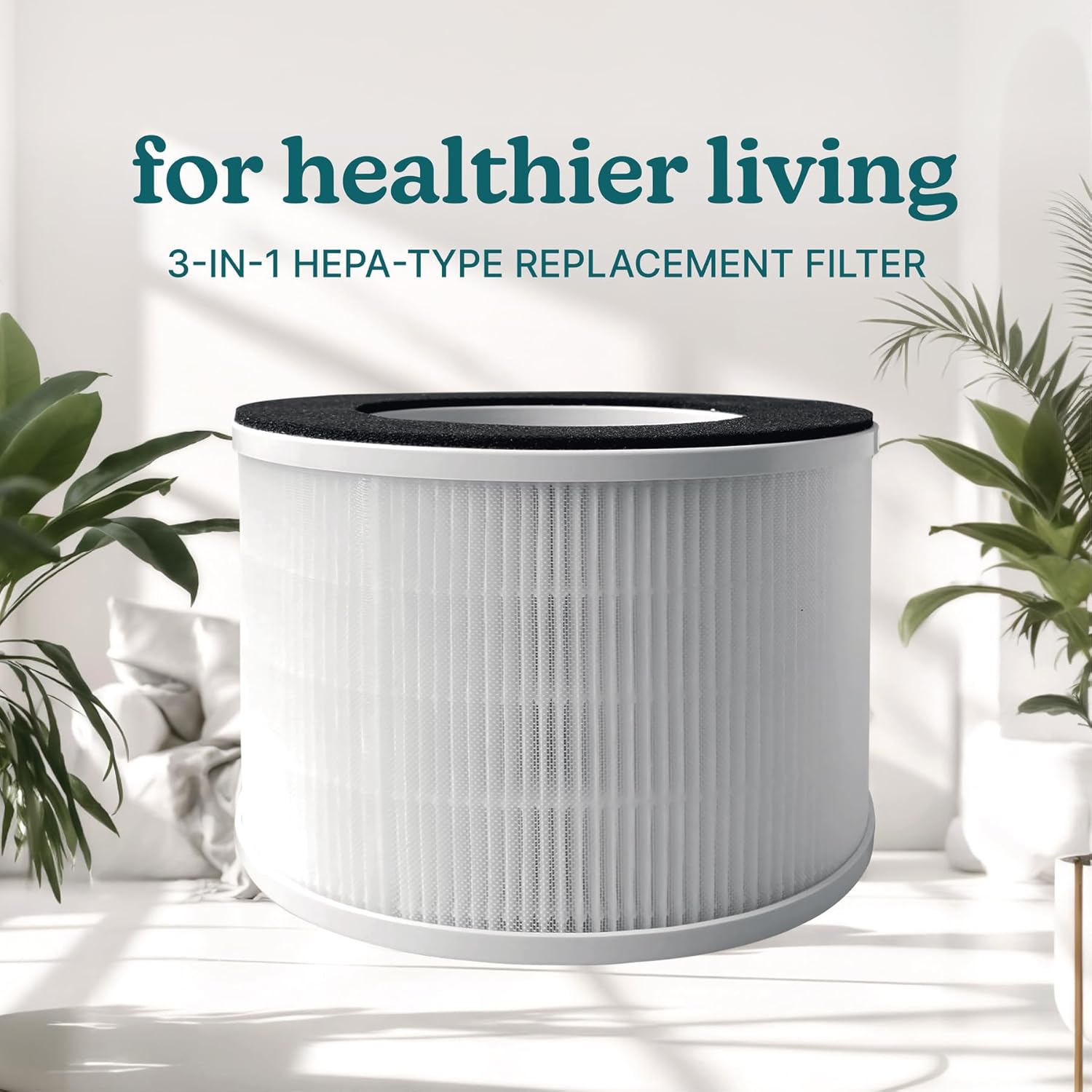

Homedics 3-in-1 HEPA-Type Replacement Filter standing in a modern room environment.

The Homedics 3-in-1 HEPA-Type Replacement Filter, designed for healthier living, is shown in a home setting, emphasizing its role in improving indoor air quality.

3. Compatibility

This replacement filter (model AP-H400FL) is specifically designed for use with the Homedics AP-H400 Air Purifier and Humidifier. Ensure your air purifier model matches this specification for proper fit and optimal performance.

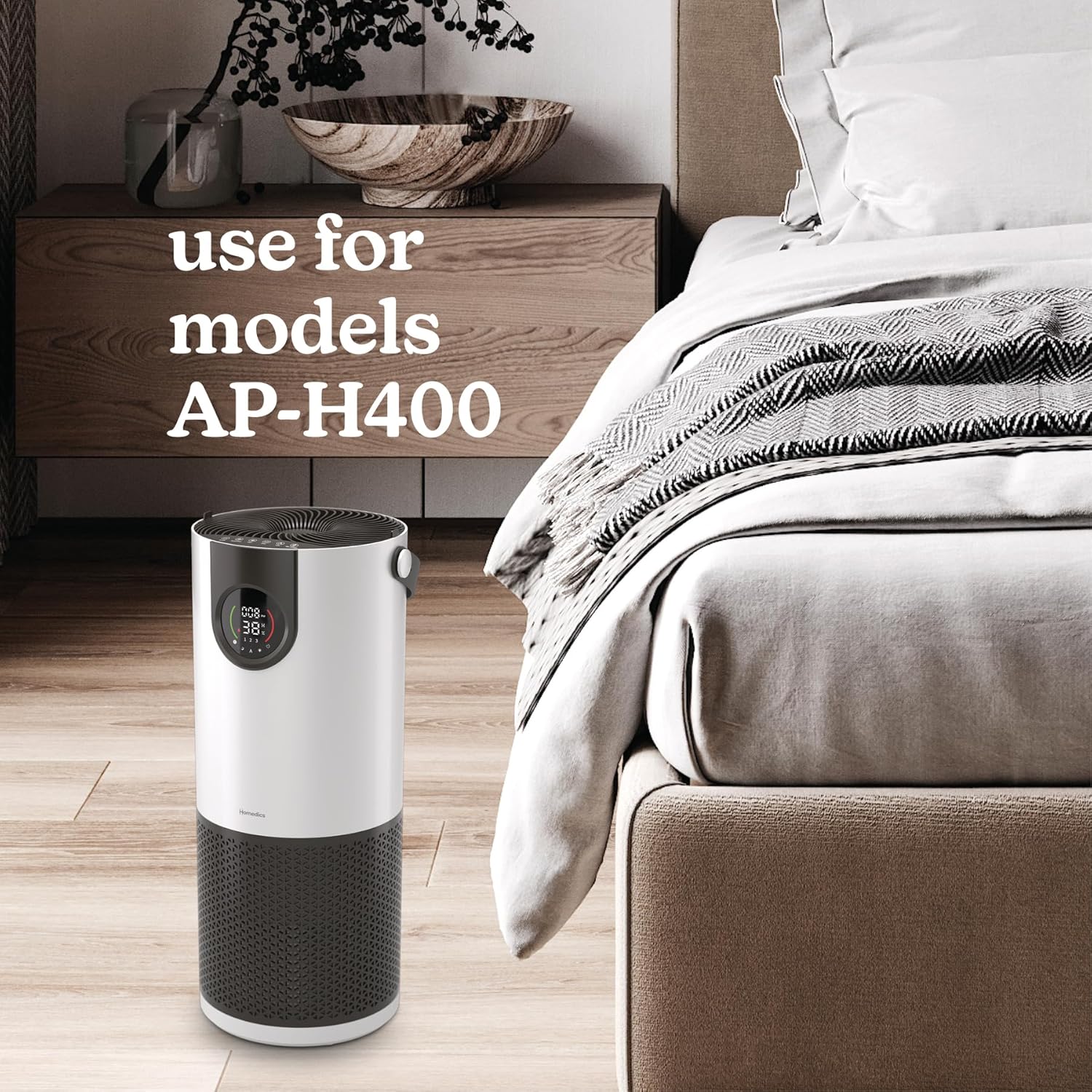

Homedics AP-H400 Air Purifier in a bedroom setting, indicating the filter's compatibility with this model.

The Homedics AP-H400 Air Purifier is displayed in a bedroom, confirming that this replacement filter is specifically designed for use with the AP-H400 model.

4. Filter Replacement Instructions

Follow these steps to replace the filter in your Homedics AP-H400 Air Purifier:

Step 1: Prepare the Unit. Turn off the air purifier and unplug it from the power outlet.
Step 2: Remove Back Grille. Press in on the top portion of the back grille and gently remove it.
Step 3: Remove Used Filter. Pull the tabs on the old filter to remove it from the unit. Dispose of the used filter responsibly.
Step 4: Insert New Filter. Insert the new Homedics 3-in-1 HEPA-Type Replacement Filter into the unit with the tabs facing outward.
Step 5: Reattach Grille. Align the bottom tabs of the grille with the base of the unit and snap it into place.
Step 6: Reset Filter Indicator. Plug in the power cord and turn on the air purifier. Press and hold the filter reset button until the indicator light turns off.

Step-by-step diagram illustrating how to replace the Homedics air purifier filter.

A detailed diagram showing the six steps for replacing the filter: 1. Turn off and unplug, remove back grille. 2. Pull tabs to remove used filter. 3. Insert new filter with tabs outward. 4. Align and snap grille. 5. Plug in and turn on. 6. Press and hold filter reset button.

5. Maintenance

For optimal performance, it is recommended to replace the Homedics 3-in-1 HEPA-Type Replacement Filter every 12 months under normal operating conditions. The filter indicator light on your AP-H400 Air Purifier will signal when a replacement is due.

Regular replacement ensures continued effectiveness in capturing particles and reducing odors.

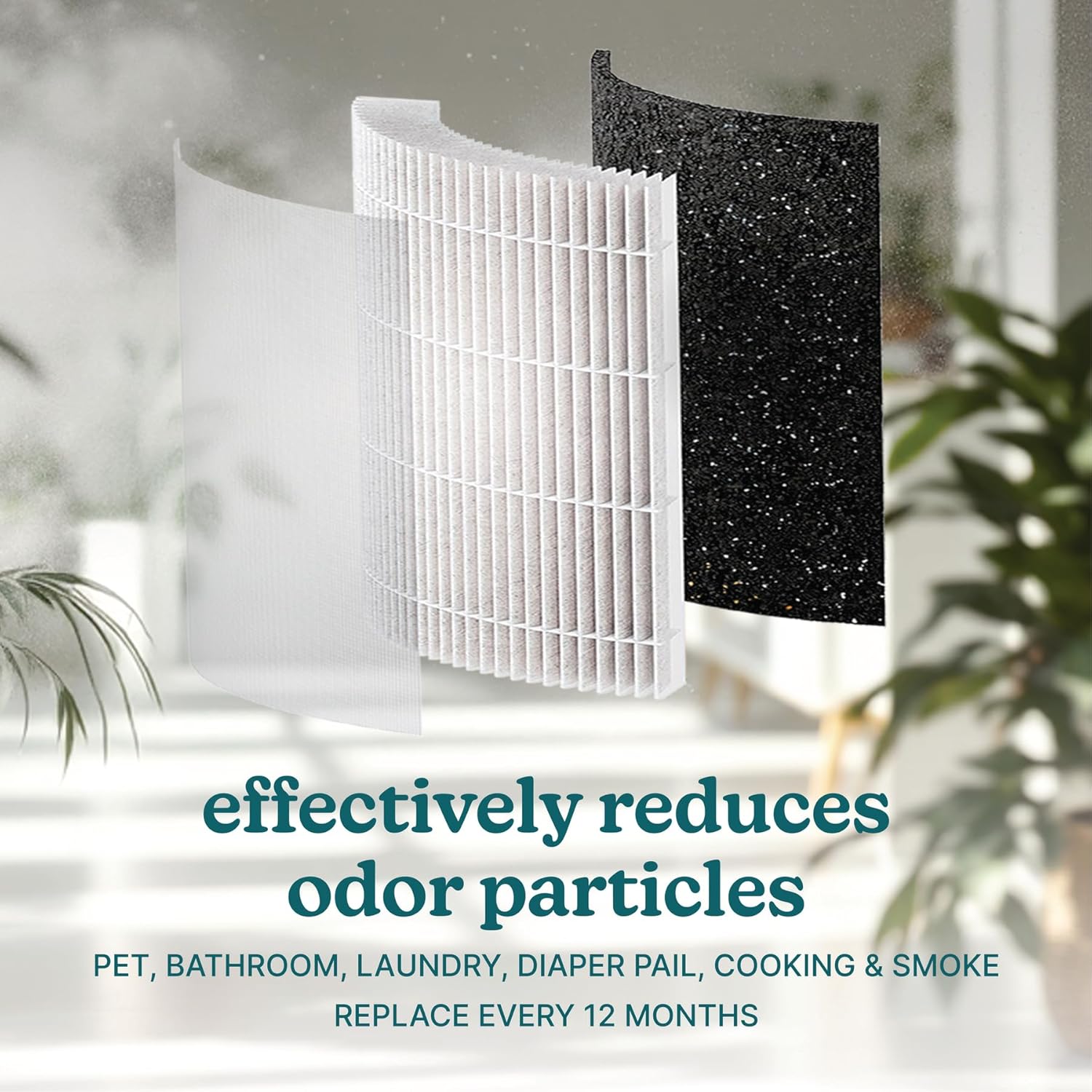

Image showing the filter's effectiveness in reducing odor particles from pets, bathroom, laundry, diaper pails, cooking, and smoke, with a recommendation to replace every 12 months.

The filter effectively reduces various odor particles, including those from pets, bathrooms, laundry, diaper pails, cooking, and smoke. It is recommended to replace the filter every 12 months for optimal performance.

Comparison image showing a clean filter next to a dirty filter, illustrating the accumulation of dust and particles over time.

This visual comparison highlights the difference between a new, clean filter and a used, dirty filter, demonstrating how the filter captures dust and airborne particles during operation.

6. Specifications

Model Number	AP-H400FL
Compatibility	Homedics AP-H400 Air Purifier
Filtration Type	3-in-1 (Prefilter, H13 HEPA, Activated Carbon)
Filter Life	Up to 12 months (under normal conditions)
Product Dimensions	7.28"D x 4.92"W x 7.28"H (18.5 x 12.5 x 18.5 cm)
Item Weight	15.5 ounces (0.44 kg)
UPC	031262116642

7. Troubleshooting

If your air purifier is not functioning correctly after filter replacement, consider the following:

Unit Not Turning On: Ensure the power cord is securely plugged into both the unit and a working electrical outlet.
Filter Indicator Light Still On: Confirm you have pressed and held the filter reset button until the light turned off, as described in Step 6 of the replacement instructions.
Reduced Airflow: Verify the new filter is correctly seated and the back grille is properly reattached.

For persistent issues, refer to the original Homedics AP-H400 Air Purifier instruction manual or contact Homedics customer support.

8. Warranty and Support

This replacement filter is covered by the standard Homedics warranty. For detailed warranty information, product support, or to purchase additional replacement filters, please visit the official Homedics website or refer to the warranty section of your Homedics AP-H400 Air Purifier manual.

Homedics Customer Support: Please refer to the contact information provided with your original air purifier unit or on the Homedics official website.
