Safety Information
WARNING: CHOKING HAZARD - Small parts. Not suitable for children under 37 months. The product contains small parts; keep children away when assembling.
- Always wear appropriate safety gear, including a helmet, elbow pads, and knee pads, when operating the drift kart.
- Adult supervision is required at all times.
- Operate the drift kart only on flat, dry, and clear surfaces, away from traffic, steep inclines, or water.
- Do not exceed the maximum weight capacity of 120 lbs.
- Ensure all screws and fasteners are securely tightened before each use.
- Keep hands and feet away from moving parts.
Product Overview
The ELEMARA Drift Kart BDM-0970 is an electric drifting go-kart designed for children aged 3-14 years, offering an exciting and controlled riding experience. It features a robust iron frame and plastic components for durability.
Key Features:
- Stepless Speed: Control speed smoothly with a twist throttle, enhancing handling and reducing jerky movements.
- Adjustable Seat: Three fixed positions, adjustable in 4-centimeter steps, to accommodate various rider heights.
- Durable Construction: Built with a robust iron frame for exceptional durability and high weight capacity.
- Fully Equipped Features: Includes a soft-start function, built-in music, Bluetooth connectivity, radio options, and a headlight.
- Easy Drift: Universal wheel design allows for 360-degree drifting on flat surfaces by simply twisting the throttle and steering.
Setup and Assembly
Follow these steps for the initial setup and assembly of your ELEMARA Drift Kart. A screwdriver (not included) will be required for some steps.
- Install the Rear Beam Decorative Cover: Align the rear beam decorative cover with the rear frame and secure it using the provided 5PCS 3x10 large flat head screws.
- Assemble the Seat and Frame: Align the iron part of the rear frame with the groove under the seat.
- Install Seat Holder and Adjuster: Install the seat adjuster to the frame and use 4PCS 5x12 large flat head screws to tighten it. Install the seat holder to the frame and use 4PCS 5x12 large flat head screws to tighten it.
- Assemble the Frame: Remove the screw and nut on the rear frame simultaneously using an Allen key. Connect the front frame with the rear frame. Tighten and fix them with the screw and nut.
- Connect the Car Frame and Front of the Car: Simultaneously unscrew the hex head screw and hex nut from the front of the car using 2 spanners. Align the car frame with the groove of the front of the car. Put the screw through the hole of the front and frame, then screw with the nut and tighten with a spanner.
- Install the Flag: Insert the flag into its designated position on the rear of the kart.
Operating Instructions
Power On/Off
To power on the drift kart, locate the red power button on the control panel and press it. Press again to turn off.
Speed Control
The drift kart features a stepless speed control system. To accelerate, twist the throttle on the right handlebar. The more you twist, the faster the kart will go, up to a maximum of 5 MPH. Release the throttle to slow down or stop.
Drifting Function
To initiate a drift, twist the throttle and steer the handlebars sharply to the left or right. The universal wheel design at the rear allows for smooth 360-degree spins and drifts on flat, open surfaces.
Multimedia Features
The control panel includes buttons for various multimedia functions:
- Music: Press the music button to play pre-loaded tunes.
- Bluetooth: Connect your device via Bluetooth to play your own music.
- Radio: Tune into radio stations for additional entertainment.
Headlight Operation
The kart is equipped with a headlight for enhanced visibility. Its operation is integrated with the main power system.
Charging the Battery
To charge the drift kart, connect the provided charger to the charging port located on the kart. Then, plug the charger into a standard electrical outlet. The indicator light on the charger will illuminate red during the charging process.
This product is equipped with charging protection: all functions of the kart will be disabled when it is connected to the charger.
A full charge typically takes 8-12 hours. Ensure the kart is fully charged before its first use and after each extended play session to maintain optimal battery life.

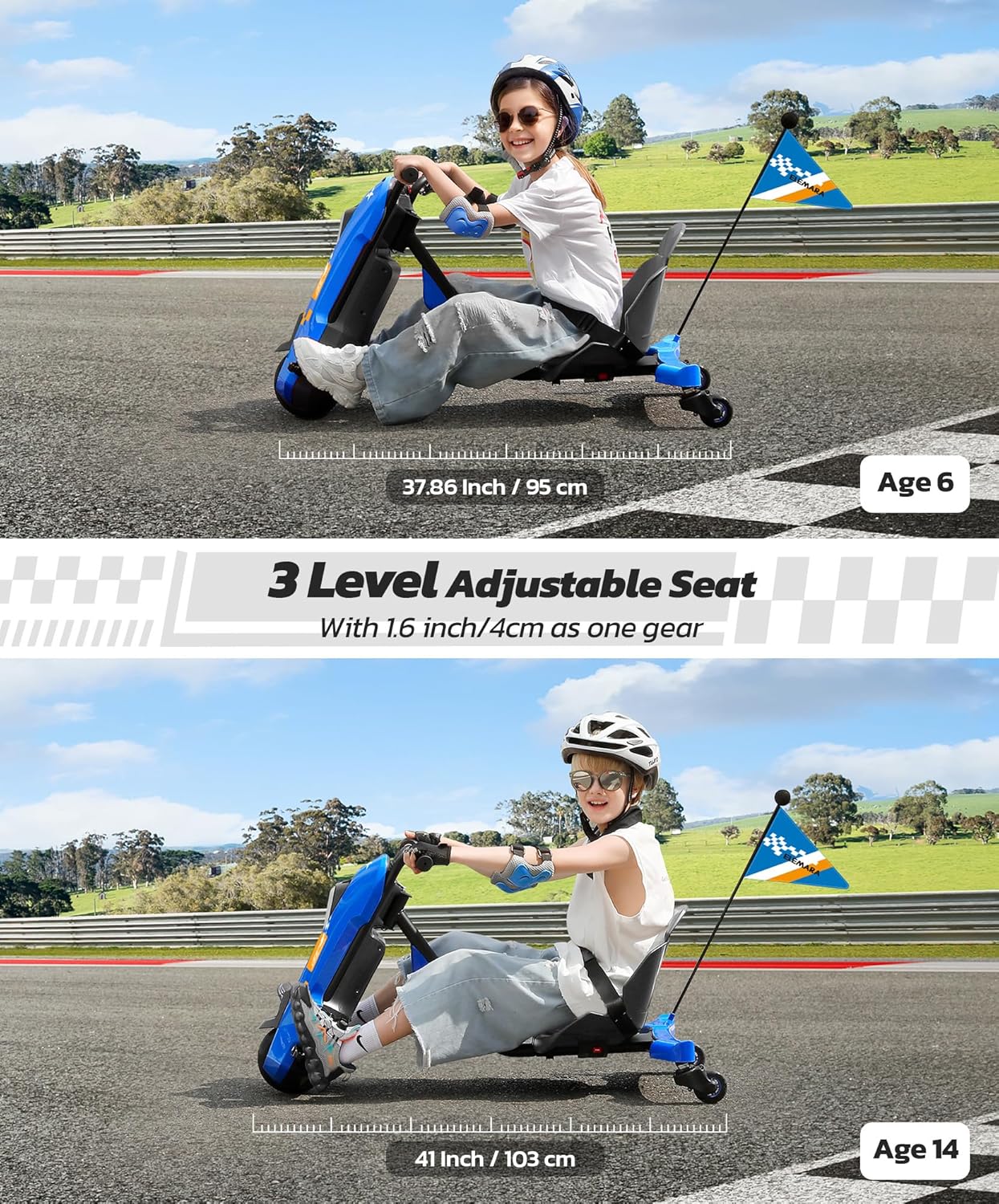

Adjusting the Seat
The ELEMARA Drift Kart features a three-level adjustable seat to accommodate children of different heights. The seat can be adjusted in 4-centimeter increments.
To adjust the seat, locate the adjustment mechanism beneath the seat. Release the locking mechanism, slide the seat to the desired position, and ensure it clicks securely into place before use.
Maintenance
Regular maintenance ensures the longevity and safe operation of your drift kart.
- Cleaning: Wipe the kart with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the plastic or paint.
- Fasteners: Periodically check all screws, nuts, and bolts to ensure they are tight. Tighten any loose fasteners to prevent accidents.
- Wheels: Inspect the wheels for wear and tear. Ensure they spin freely and are free from debris.
- Battery Care: Always fully charge the battery after each use. If storing the kart for an extended period, charge the battery every 30 days to prevent deep discharge and prolong its lifespan.
- Storage: Store the drift kart in a dry, cool environment, away from direct sunlight and moisture.
Troubleshooting
If you encounter any issues with your ELEMARA Drift Kart, refer to the following common problems and solutions:
| Problem | Solution |
|---|---|
| Kart does not power on | Ensure the battery is fully charged. Check that the power button is pressed firmly. |
| Kart moves slowly or lacks power | Recharge the battery completely. Ensure the rider's weight does not exceed the maximum capacity. Check for any obstructions on the wheels. |
| Drifting is difficult or inconsistent | Ensure the kart is being operated on a flat, smooth surface. Practice steering and throttle control for optimal drifting. |
| No sound from multimedia features | Check the volume settings on the control panel. If using Bluetooth, ensure your device is correctly paired with the kart. |
Specifications
- Product Dimensions: 41 x 22.2 x 22.2 inches
- Item Weight: 25.5 pounds
- Model Number: BDM-0970
- Manufacturer Recommended Age: 3 - 14 years (Note: Drifting features are best suited for children aged 6 and up)
- Battery: 1 x 12V battery (included)
- Max Speed: 5 MPH
- Use Time: Approximately 65 minutes (depending on usage and terrain)
- Charging Time: 8-12 hours
- Material: Iron frame + Plastic
Warranty and Support
For detailed warranty information, product registration, or technical support, please refer to the documentation included with your purchase or visit the official ELEMARA website. You can also find contact information for customer service there.
What's in the Box:
- Ride On Car x 1
- User Manual x 1
