WANAI Mini Fridge with Freezer User Manual

1. Introduction

Thank you for choosing the WANAI Mini Fridge with Freezer. This compact 3.5 cubic feet refrigerator is designed for convenience and efficiency, featuring a separate freezer compartment, adjustable temperature control, and a sleek design suitable for various spaces like dorms, kitchens, apartments, and offices. This manual provides essential information for safe installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance.

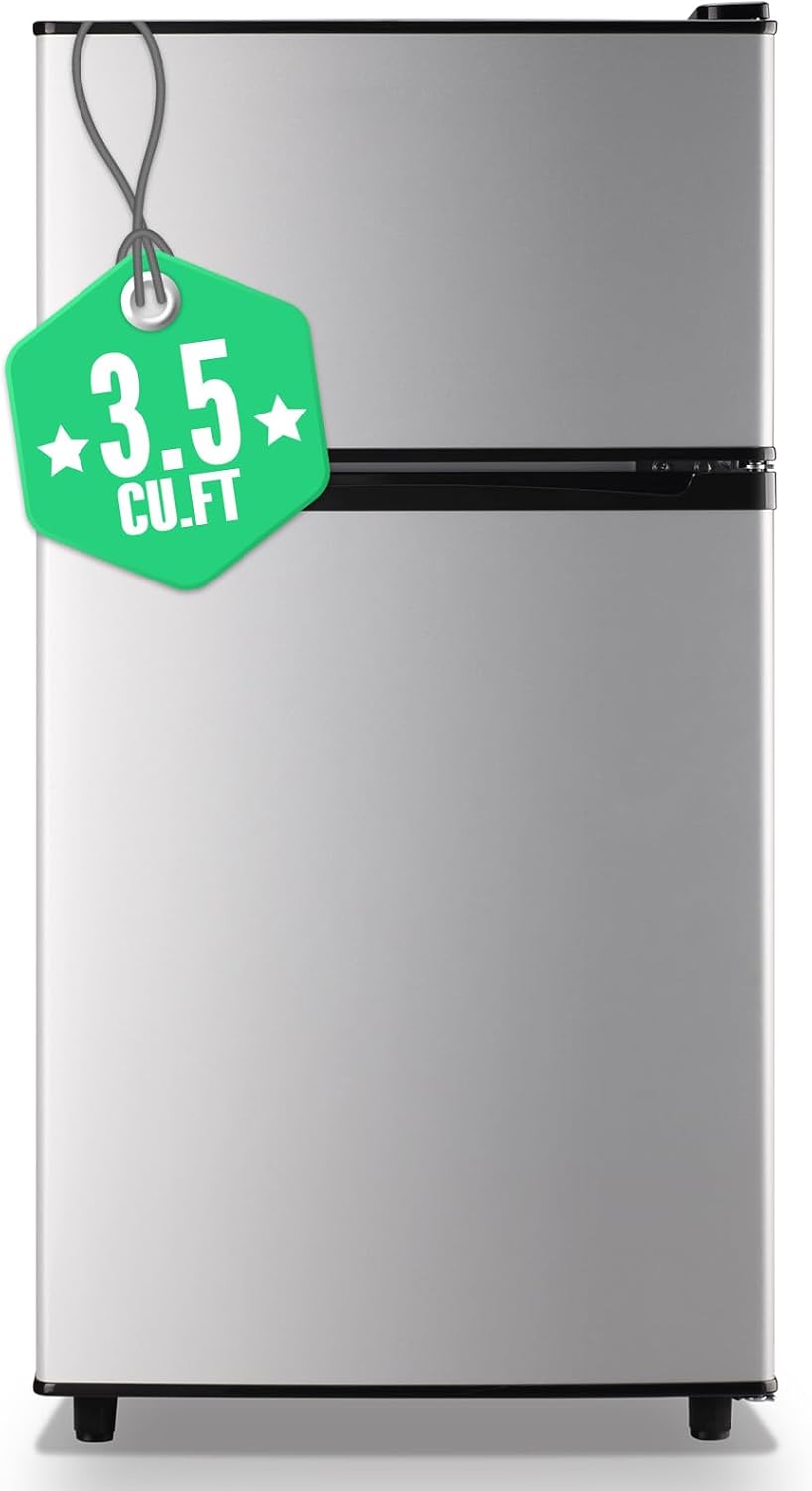

Image 1.1: Front view of the WANAI Mini Fridge with Freezer in silver.

2. Safety Instructions

Please read all safety instructions carefully before using the appliance to prevent injury or damage. Keep this manual for future reference.

• Electrical Safety: Ensure the power outlet matches the appliance's voltage. Do not use extension cords or adapters. Always unplug the refrigerator before cleaning or performing maintenance.
• Placement: Place the refrigerator on a firm, level surface away from direct sunlight, heat sources, and moisture. Ensure adequate ventilation around the unit.
• Refrigerant: This appliance uses R-600A refrigerant. Handle with care and ensure proper ventilation if a leak is suspected. Do not damage the refrigerant circuit.
• Children Safety: Keep children away from the appliance. Do not allow them to play with or inside the refrigerator.
• Stability: The refrigerator should be stable. If it feels wobbly, adjust the leveling feet.

3. Product Overview

3.1 Key Features

• Large Capacity: 3.5 CU.FT total storage, with a 1.0 CU.FT separate freezer area and 2.5 CU.FT refrigerated area.
• Dual Doors Design: Separate doors for freezer and refrigerator compartments for efficient cooling.
• Seven Mechanical Control: Adjustable temperature control from -0.4℉ to 50℉.
• Chic Design: Includes a side bottle rack, two removable glass shelves, and a crisper drawer.
• Quiet Operation: Operates at approximately 40 dB, ensuring minimal noise disturbance.

3.2 Components

The WANAI Mini Fridge is designed with user convenience in mind. Below are the main components:

Image 3.1: Interior view highlighting the 1.0 cu.ft freezer and 2.5 cu.ft refrigerator areas.

Image 3.2: Detail of removable glass shelves and the side bottle rack.

4. Installation & Setup

4.1 Unpacking

Carefully remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any shipping damage. Keep packaging materials for future transport if needed.

4.2 Placement

Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., stove, radiator). Ensure there is sufficient space around the refrigerator for proper air circulation (at least 4 inches on sides and back). The appliance is designed for freestanding installation.

Image 4.1: Product dimensions: 17.5"D x 17.9"W x 34.7"H.

Image 4.2: The compact design makes it suitable for various room settings.

4.3 Initial Power-On

Important: After transportation, allow the compact fridge to stand upright for at least 12 hours before plugging it in. This allows the refrigerant to settle and prevents potential flow problems, ensuring optimal performance.

5. Operation

5.1 Temperature Control

Your WANAI Mini Fridge features a 7-gear mechanical control knob located inside the refrigerator compartment. This allows you to adjust the temperature to suit your needs.

• The temperature range for the entire unit is approximately -0.4℉ to 50℉.
• The freezing zone temperature ranges from -0.4℉ to 32℉.
• The refrigerated area temperature ranges from 32℉ to 50℉.
• Turn the knob to a higher number for colder temperatures and a lower number for warmer temperatures.

Image 5.1: The 7-position temperature control knob.

5.2 Food Storage

Utilize the internal layout for efficient storage:

• Freezer Compartment: Ideal for frozen foods, ice, and items requiring sub-zero temperatures.
• Refrigerator Compartment: Use the removable glass shelves to organize fresh foods, beverages, and dairy. The crisper drawer is suitable for fruits and vegetables.
• Side Bottle Rack: Conveniently store bottled drinks without taking up shelf space.

6. Care & Maintenance

6.1 Cleaning

Regular cleaning helps maintain hygiene and efficiency. Always unplug the refrigerator before cleaning.

• Clean the interior with a soft cloth dampened with a solution of mild detergent and warm water.
• The glass shelves and crisper drawer are removable for easy cleaning.
• Wipe down the exterior with a soft, damp cloth. Avoid abrasive cleaners or solvents.
• Clean the condenser coils at the back of the unit periodically to ensure efficient cooling.

6.2 Defrosting

This refrigerator features manual defrost. Frost buildup in the freezer compartment can reduce efficiency.

• When frost accumulation reaches about 0.2 inches (5mm) thick, it's time to defrost.
• Unplug the refrigerator and remove all food items. Store frozen items in a cooler.
• Leave the freezer door open to allow frost to melt naturally. You can place towels at the bottom to absorb water.
• Do not use sharp objects or heating devices to speed up defrosting, as this can damage the unit.
• Once defrosted, clean and dry the interior thoroughly before plugging the unit back in and returning food.

7. Troubleshooting

If you experience issues with your refrigerator, consult the following common troubleshooting tips before contacting customer support.

8. Specifications

Detailed technical specifications for the WANAI Mini Fridge with Freezer, Model NB-2025NEWFRIDGE.

9. Warranty & Customer Support

For warranty information or if you require further assistance, please contact WANAI customer support. Keep your purchase receipt as proof of purchase.

You can find more information and contact details by visiting the official WANAI store:
