mcokoe S186GPS Drone User Manual

Introduction

Welcome to the user manual for your mcokoe S186GPS Drone. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your drone. Please read it thoroughly before first use to ensure optimal performance and safety.

The S186GPS drone is equipped with advanced features including GPS and optical flow positioning for stable flight, dual HD cameras for high-quality aerial photography, and a convenient foldable design for portability. It also features a built-in 4.5-inch display screen on the remote control for real-time flight monitoring without needing a separate smartphone.

What's Included in the Box

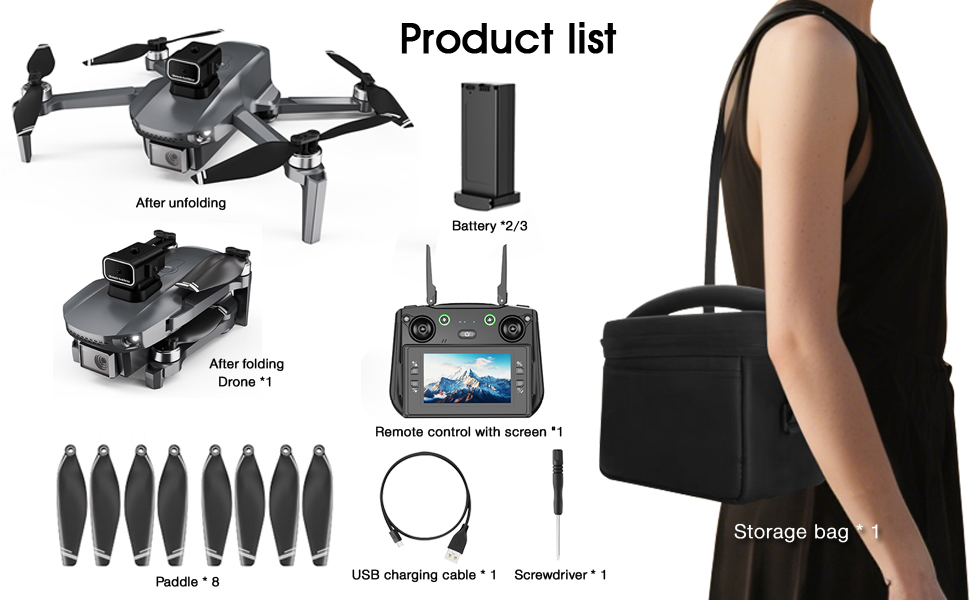

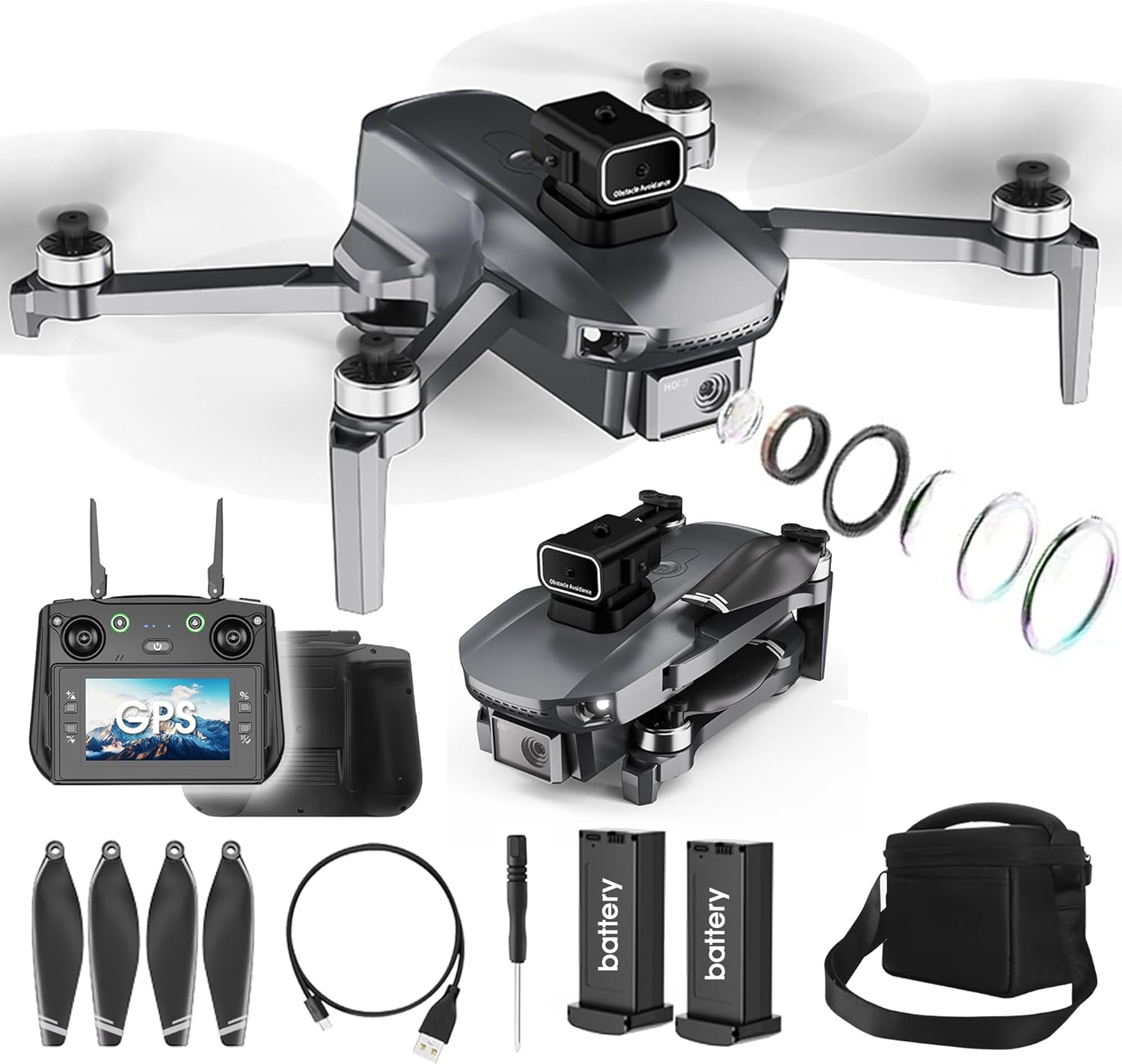

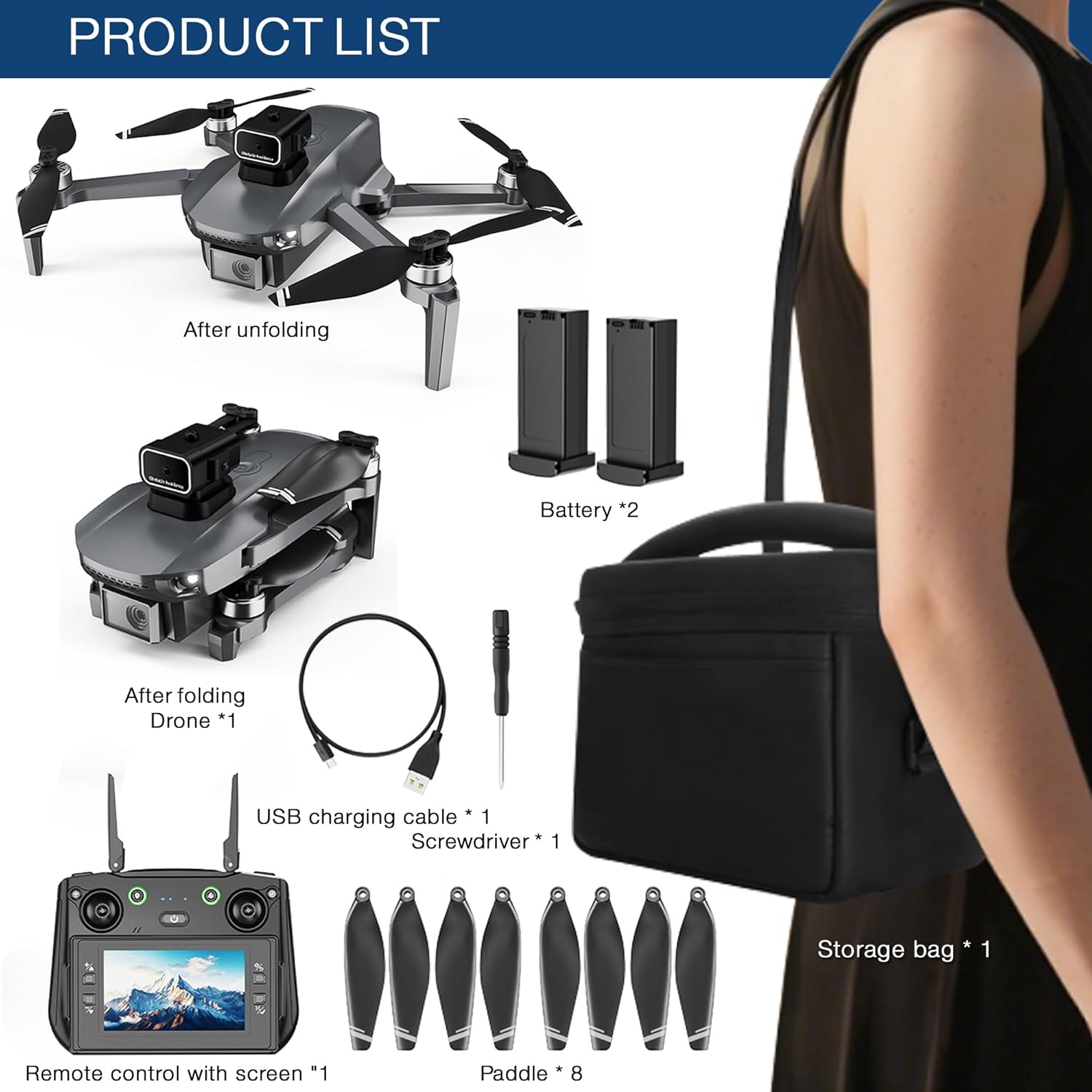

This image displays the complete contents of the mcokoe S186GPS drone package. It includes the drone itself (shown both unfolded and folded), the remote control with an integrated screen, two drone batteries, a USB charging cable, a small screwdriver, eight spare propeller blades, and a storage bag for convenient transport.

• mcokoe S186GPS Drone (1)
• Remote Control with 4.5-inch Display Screen (1)
• Drone Batteries (2)
• USB Charging Cable (1)
• Screwdriver (1)
• Spare Propeller Blades (8)
• Storage Bag (1)

Product Overview

Drone Components

This image shows the mcokoe S186GPS drone in its unfolded state, ready for flight. Key components visible include the four propellers, the main body housing the dual cameras (front and bottom), and the obstacle avoidance sensor on top. The remote control, batteries, and other accessories are also displayed, providing a complete visual of the product.

• Foldable Arms: For compact storage and portability.
• Dual HD Cameras: Front and bottom cameras for photo and video capture.
• Obstacle Avoidance Sensor: Located on top for enhanced flight safety.
• Propellers: Four main propellers for lift and thrust.
• LED Indicators: Full-range LED indicators for flight status and warnings.
• Shock-absorbing Rubber Pads: Located on the bottom of the cantilever for durability.

Remote Control Layout

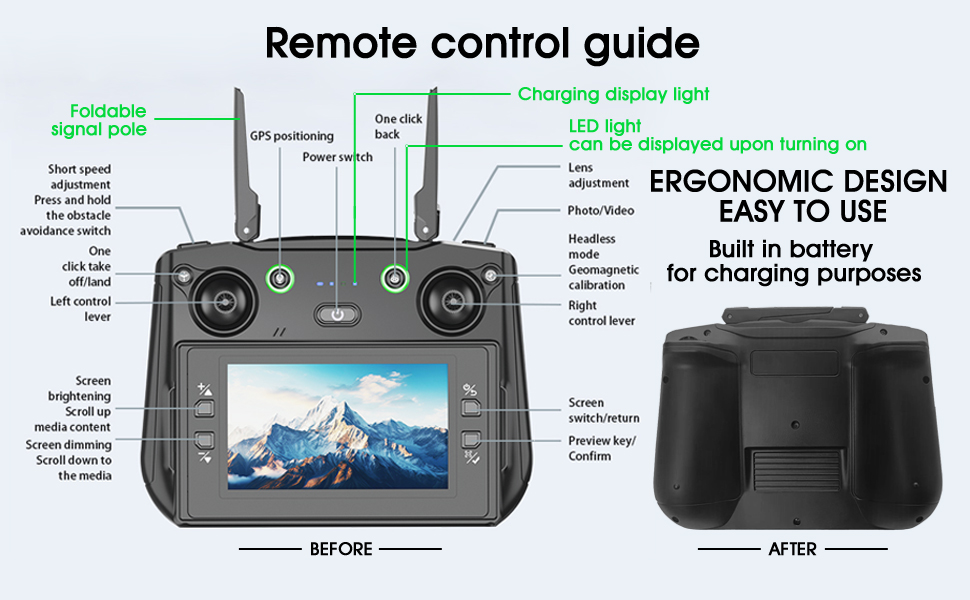

This diagram illustrates the various buttons and functions of the mcokoe S186GPS drone remote control. Key features include the 4.5-inch display screen, foldable signal poles, GPS positioning button, power switch, one-click back button, LED light indicator, lens adjustment, photo/video button, headless mode, geomagnetic calibration, one-click takeoff/landing, altitude hold, and dual-speed control. The left and right control levers are also clearly marked.

• 4.5-inch Display Screen: Provides real-time flight data and camera feed.
• Left Control Lever: Controls altitude (up/down) and yaw (rotate left/right).
• Right Control Lever: Controls forward/backward and left/right movement.
• One-Key Takeoff/Landing Button: Initiates automatic takeoff or landing.
• GPS Positioning Button: Activates or deactivates GPS mode.
• One-Click Back Button: Initiates Return-to-Home function.
• Photo/Video Button: Captures photos or starts/stops video recording.
• Headless Mode Button: Activates headless flight mode.
• Speed Adjustment Button: Toggles between slow (5m/s) and fast (8m/s) flight modes.
• Screen Brightening/Scrolling Buttons: Adjust display brightness and navigate media content.

Setup Guide

1. Charging the Batteries

Ensure both the drone battery and the remote control's built-in battery are fully charged before flight.

• Connect the USB charging cable to the drone battery and a suitable USB power adapter (not included).
• Connect the USB charging cable to the remote control's charging port.
• Charging indicator lights will show charging status. Disconnect once fully charged.

2. Unfolding the Drone

This image illustrates the compact folded size of the mcokoe S186GPS drone (3.15in x 5.4in x 2.95in) and its expanded unfolded size (10.5in x 10.1in x 2.95in), including propeller blades. It highlights the portability of the drone when folded and its operational dimensions when ready for flight.

1. Gently unfold the front arms of the drone until they lock into place.
2. Then, unfold the rear arms. Ensure all arms are fully extended and secure.

3. Propeller Installation (if needed)

The drone comes with propellers pre-installed. If replacement is needed, use the provided screwdriver and spare blades.

• Match the propeller type (A or B) to the corresponding motor arm.
• Secure the propellers with the small screws using the screwdriver.

Operating Instructions

1. Power On and Pairing

1. Place the drone on a flat, level surface.
2. Press and hold the power button on the drone until the indicator lights turn on.
3. Turn on the remote control. The remote and drone will automatically pair. Wait for the indicator lights to become solid, indicating successful pairing.

2. GPS Positioning and Calibration

This image highlights the GPS positioning capabilities of the mcokoe S186GPS drone, emphasizing its ability to return home with a single click. It visually represents the drone's stable flight and precise return functions, crucial for safe operation.

• For outdoor flight, ensure GPS signal is acquired. The GPS icon on the remote screen will indicate signal strength.
• Perform geomagnetic calibration as instructed on the remote control screen or in the quick start guide to ensure accurate flight.

3. Takeoff and Landing

• One-Key Takeoff: Press the one-key takeoff/landing button. The drone will automatically ascend to a safe altitude and hover.
• Manual Takeoff: Push both control levers down and outwards to start the motors. Then, slowly push the left lever up to ascend.
• One-Key Landing: Press the one-key takeoff/landing button again. The drone will automatically descend and land.
• Manual Landing: Slowly pull the left lever down to descend. Once landed, push both control levers down and inwards to stop the motors.

4. Flight Controls

• Altitude Hold: The drone maintains its current altitude automatically.
• Headless Mode: In headless mode, the drone's orientation is relative to the pilot, making it easier to control regardless of its front direction.
• Dual-Speed Control: Use the speed adjustment button to switch between slow (5m/s) and fast (8m/s) flight modes.
• Optical Flow Positioning: For stable indoor flight where GPS is unavailable.
• Trajectory Flight: Draw a path on the mobile app screen, and the drone will follow it.
• 360° Circling: The drone can perform a 360-degree circle around a point.
• Infrared Obstacle Avoidance: The drone uses infrared sensors to detect and avoid obstacles.

5. Camera Operation

This image showcases the camera's performance in different lighting conditions, illustrating its ability to capture clear and detailed images during both day and night. The drone's dual HD cameras support 7680*4320P photo and 1920*1080 video resolutions.

• Photo Capture: Press the Photo/Video button once to take a photo.
• Video Recording: Press and hold the Photo/Video button to start recording. Press again to stop.
• Gesture Photo/Video: Perform specific hand gestures in front of the camera to trigger photo or video capture (refer to the quick start guide for specific gestures).
• MV Recording: Utilize the mobile app for MV (Music Video) recording features.
• Lens Adjustment: Use the lens adjustment button on the remote to change the camera angle.

6. Mobile App Control (Optional)

This image demonstrates the two primary control methods for the mcokoe S186GPS drone: direct control via the remote control with its integrated screen, and control via a mobile application. The mobile app offers additional features and a different interface for flight and camera operations.

Download the official mcokoe drone app from your smartphone's app store. Connect your phone to the drone's Wi-Fi network to enable app control and real-time FPV (First Person View) on your phone screen.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the drone and remote control. Do not use harsh chemicals or solvents.
• Propeller Inspection: Regularly check propellers for damage (cracks, bends). Replace any damaged propellers immediately using the provided spare blades.
• Battery Care:
  • Store batteries in a cool, dry place away from direct sunlight.
  • Do not overcharge or over-discharge batteries.
  • If storing for extended periods, charge batteries to approximately 50% capacity.
• Storage: Fold the drone arms and store all components in the provided storage bag to protect them from dust and damage.

Troubleshooting

Specifications

This infographic summarizes the key features of the mcokoe S186GPS drone, including its HD camera, headless mode, long endurance, brushless power, GPS positioning, 5G image transmission, intelligent following, gesture snap, APP control, trajectory flight, optical flow positioning hover, 90° electric adjustment lens, 360° circling, infrared obstacle avoidance, video shooting, 50-fold focusing, folding fuselage, adjust speed, one click back, and one key lift.

Warranty and Support

For any issues or questions regarding your mcokoe S186GPS drone, please contact the manufacturer or seller directly.

• Manufacturer: SHENZHEN TOYSKY INDUSTRIAL CO., LTD
• Seller: mcokoe (via Amazon)
• Return Policy: This product is subject to Amazon's standard 30-day return policy for refunds or replacements.
• Protection Plans: Extended protection plans may be available for purchase separately. Please refer to your purchase details for more information.

Always refer to the latest information provided by the seller or manufacturer for the most accurate and up-to-date warranty and support details.
