Banral K2316 and K2302 Flashlight Bundle User Manual

Introduction

This manual provides detailed instructions for the safe and effective use of your Banral K2316 and K2302 Flashlight Bundle. Please read this manual thoroughly before operating the flashlights and retain it for future reference.

Image: The Banral K2316 and K2302 flashlights, along with their respective carrying cases and accessories.

K2316 Flashlight Overview

The Banral K2316 is a high-lumen tactical flashlight designed for powerful illumination and versatile use. It features multiple lighting modes, a zoomable beam, and a built-in power bank function.

Key Features of K2316:

• Super Bright LED: Equipped with an upgraded long beam LED chip for powerful and focused light.
• 6 Lighting Modes: High, Medium, Low, Strobe, SOS, and TURBO mode.
• Memory Function: Recalls the last used mode after 5 seconds of being off.
• Zoomable Design: Adjustable focus by pushing/pulling the light head.
• Type-C Fast Charging: Built-in port for quick recharging.
• Power Display: 4-level indicator (100%-75%-50%-25%) for battery status.
• Emergency Power Bank: Can charge other devices via its USB output.
• Durability: Drop resistant up to 10 feet and IPX5 waterproof rating.

Image: Illustration of the K2316 flashlight's six lighting modes: High, Medium, Low, Strobe, SOS, and Turbo, demonstrating their respective light outputs and the memory function.

Image: Visual representation of the K2316 flashlight's zoomable design, showing how to push or pull the head to adjust between a focused spotlight and a wide floodlight beam.

K2302 Flashlight Overview

The Banral K2302 is a compact and powerful handheld flashlight, ideal for camping and general use. It features multiple light modes, a zoomable beam, and an intelligent LCD power display.

Key Features of K2302:

• 5 Lighting Modes: High, Medium, Low, Strobe, and SOS.
• Zoomable Design: Adjustable focus for spotlight or floodlight.
• LCD Power Display: Shows remaining battery percentage.

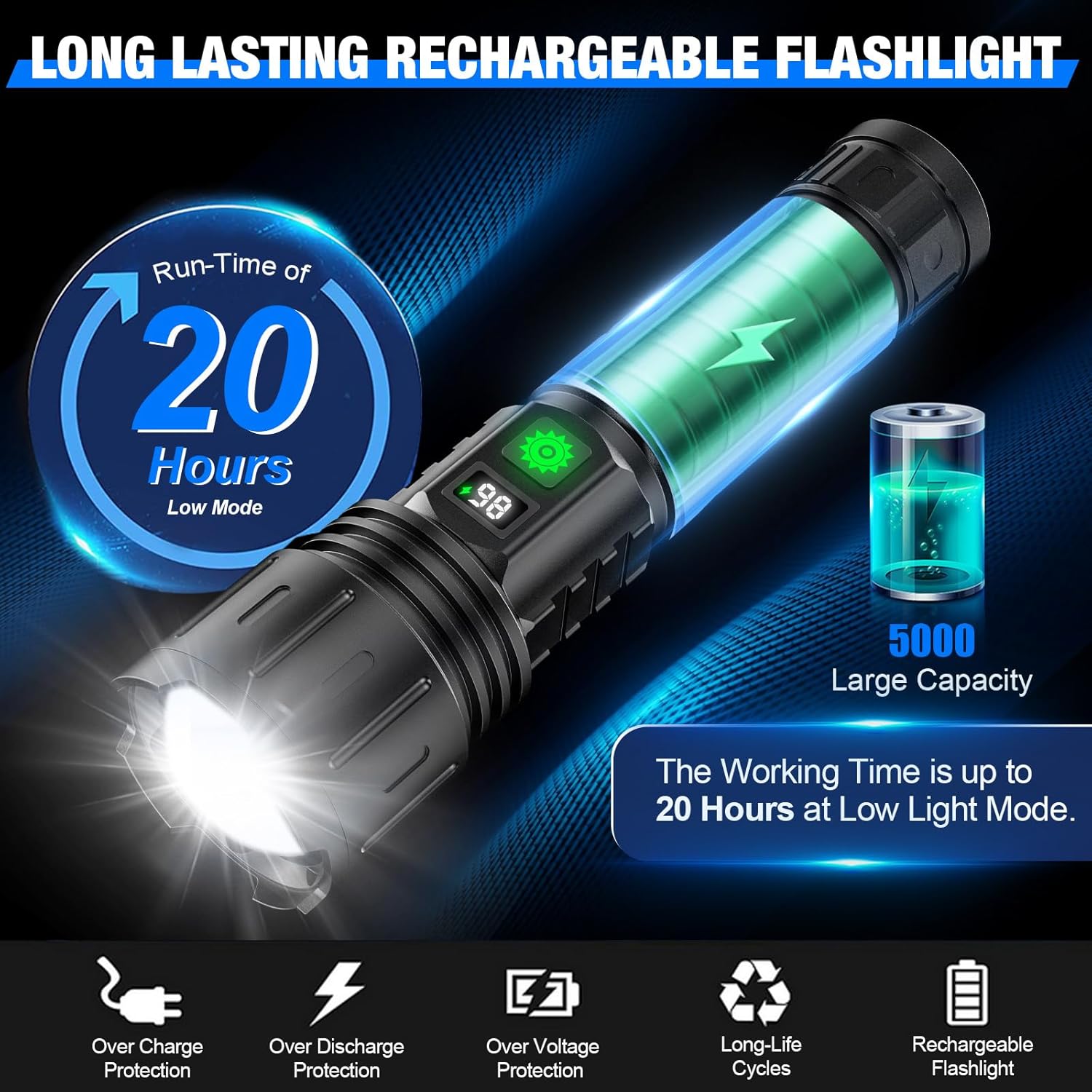

• Long Lasting Use: Up to 20 hours runtime in low mode with a 5000mAh rechargeable battery.
• Type-C Fast Charging: Built-in port for convenient recharging.
• Emergency Power Bank: Can be used to charge small electronic devices.

Image: The Banral K2302 flashlight, showcasing its intelligent LCD power display and included accessories within its carrying case.

Image: Close-up view of the K2302 flashlight's intelligent LCD power display showing battery percentage, alongside an illustration of its spiral heat dissipation design.

Setup

Both K2316 and K2302 flashlights come with built-in rechargeable batteries. Before first use, it is recommended to fully charge the flashlights.

Initial Charging:

1. Locate the Type-C charging port on the flashlight.
2. Connect the provided Type-C USB cable to the flashlight's charging port.
3. Connect the other end of the USB cable to a compatible USB power source (e.g., wall adapter, power bank, computer USB port).
4. The power indicator (K2316) or LCD display (K2302) will show charging progress.
5. Charge until the indicator shows full capacity (K2316: all 4 blue lights on; K2302: LCD shows 100%).

Image: The K2316 flashlight illustrating its Type-C fast charging capability, power display indicators, and various compatible USB charging methods.

Image: The K2302 flashlight demonstrating its Type-C charging input and USB charging output, highlighting its function as an emergency power bank for mobile devices.

Operating Instructions

K2316 Flashlight Operation:

• Power On/Off: Press the power button once to turn on.
• Cycle Modes: With the flashlight on, press the power button repeatedly to cycle through High → Medium → Low → Strobe → SOS.
• TURBO Mode: Double-click the power button at any time to activate the brightest TURBO mode.
• Direct Off: Long press the power button for 3 seconds to turn off the flashlight from any mode. Alternatively, if the flashlight stays in one mode for more than 5 seconds, a single press will turn it off.
• Memory Function: If the flashlight is turned off after staying in a mode for 5 seconds, it will remember that mode and turn on in the same mode next time.
• Zoom Function: Push the head of the flashlight forward to zoom in for a focused beam, and pull it back to zoom out for a wide floodlight.

K2302 Flashlight Operation:

• Power On/Off: Press the power button once to turn on.
• Cycle Modes: With the flashlight on, press the power button repeatedly to cycle through High → Medium → Low → Strobe → SOS.
• Direct Off: Long press the power button for 3 seconds to turn off the flashlight from any mode.
• Zoom Function: Push the head of the flashlight forward to zoom in for a focused beam, and pull it back to zoom out for a wide floodlight.

Image: The K2302 flashlight demonstrating its five lighting modes: High, Medium, Low, Strobe, and SOS, along with the instruction for a one-key turn-off by long-pressing the switch.

Charging and Power Bank Function

Both flashlights feature Type-C charging and can act as emergency power banks.

Charging the Flashlight:

• Use the provided Type-C cable to connect the flashlight to a USB power source.
• K2316: The 4 blue indicator lights on the tail will show charging status (25%, 50%, 75%, 100%).
• K2302: The LCD screen will display the battery percentage during charging.
• A full charge for K2316 takes approximately 2.5 hours.

Using as an Emergency Power Bank:

• Connect your electronic device (e.g., smartphone, GPS, earbuds) to the flashlight's USB output port using an appropriate cable.
• The flashlight will begin charging your device. This function is intended for emergency use.

Image: The K2316 flashlight being used as an emergency power bank to charge a mobile phone, alongside visual representations of its 10-foot drop resistance and IPX5 waterproof rating.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your flashlights.

• Cleaning: Wipe the flashlight body with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the flashlights in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the battery is partially charged (around 50%) and recharge every 3-6 months to prevent deep discharge.
• Water Resistance: The K2316 has an IPX5 waterproof rating, meaning it is protected against low-pressure water jets from any direction. The K2302 also offers water resistance. Avoid submerging either flashlight in water.
• Drop Resistance: The K2316 is designed to be drop resistant up to 10 feet. While durable, avoid unnecessary drops to prevent damage.

Troubleshooting

If you encounter issues with your flashlight, refer to the following common solutions:

• Flashlight not turning on:
  • Ensure the battery is charged. Connect to a power source and check the indicator/display.
  • Press the power button firmly.
• Light is dim or flickering:
  • The battery may be low. Recharge the flashlight.
  • Ensure the flashlight head is fully tightened (if applicable to model).
• Flashlight not charging:
  • Check the Type-C cable for damage and ensure it is securely connected to both the flashlight and the power source.
  • Try a different USB power adapter or port.
• Power bank function not working:
  • Ensure the flashlight has sufficient charge.
  • Try a different charging cable for your device.
  • Some devices may not be compatible or may require more power than the flashlight can provide.

If problems persist, please contact Banral customer support.

Specifications

Warranty and Support

For warranty information, technical support, or any inquiries regarding your Banral K2316 and K2302 Flashlight Bundle, please refer to the product packaging or contact Banral customer service directly. Contact details can typically be found on the manufacturer's official website or through your point of purchase.
