Product Overview
The Anweller P7BF is a versatile smart padlock offering multiple unlocking methods for enhanced security and convenience. It features fingerprint recognition, passcode entry, and mobile app control.
Key Features

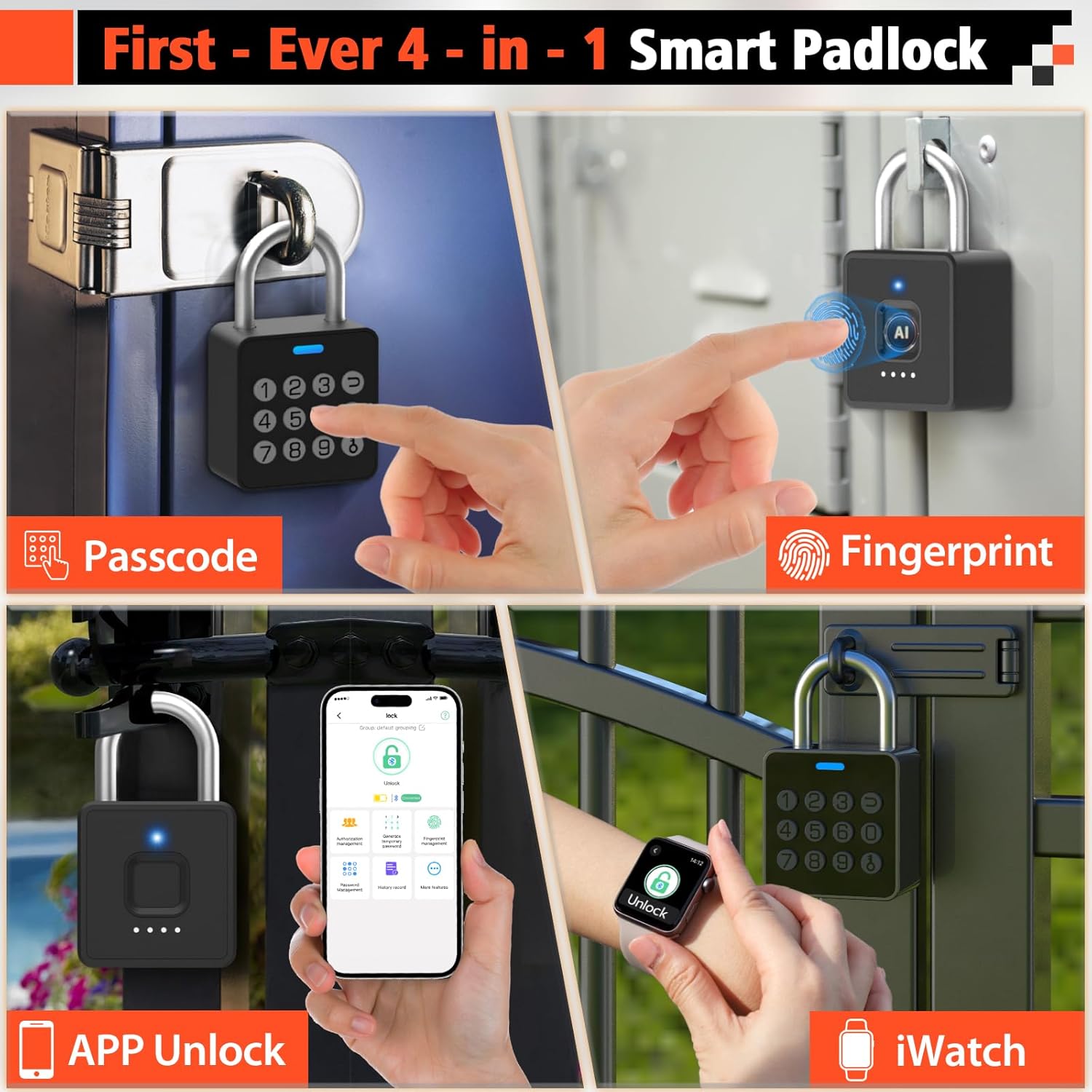

- 4-in-1 Unlocking: Fingerprint, Passcode, Mobile App, and iWatch.

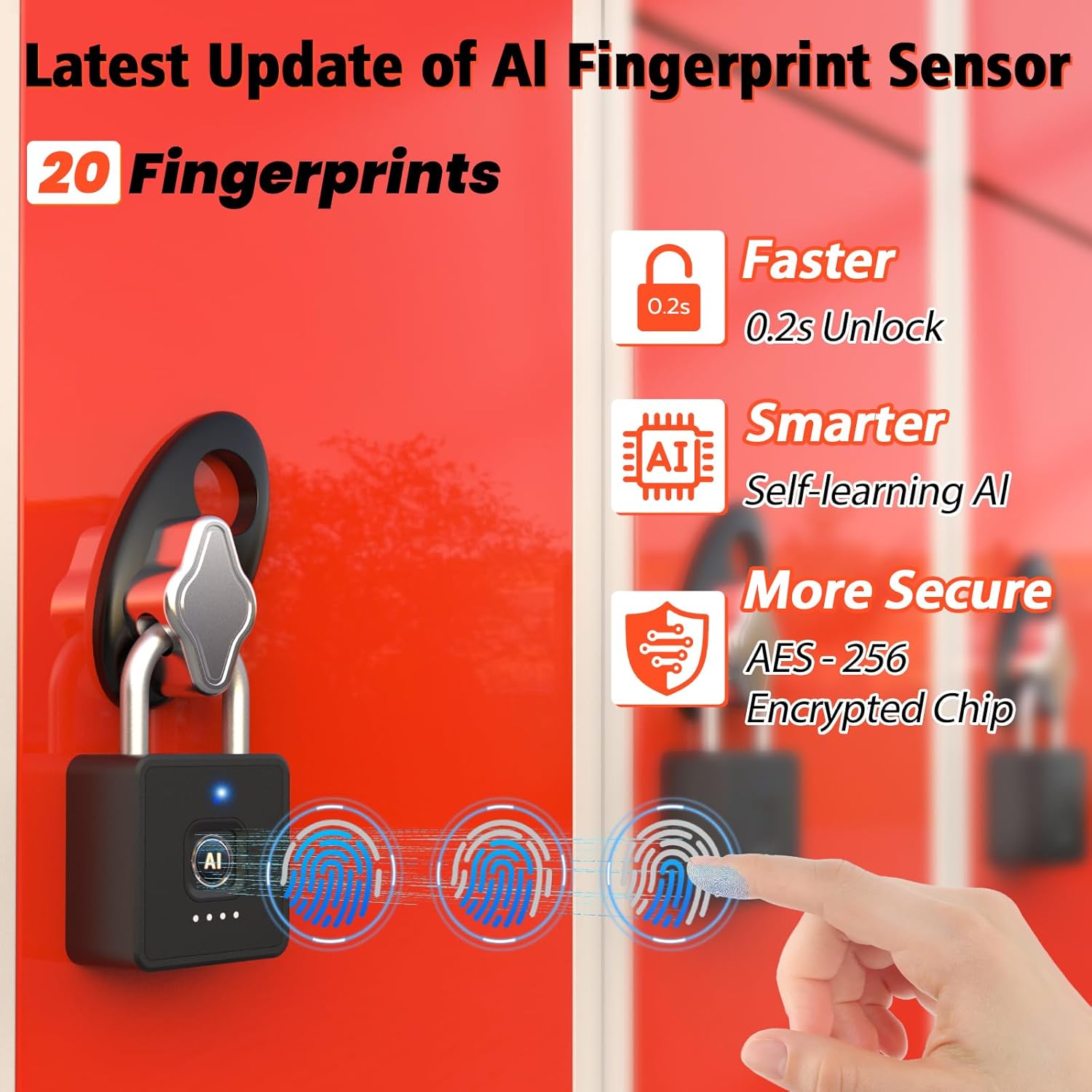

- Fast Fingerprint Recognition: Unlocks in 0.2 seconds. Supports up to 20 fingerprints.
- Multi-function Passwords: Permanent, Guest (scheduled), and One-time codes.

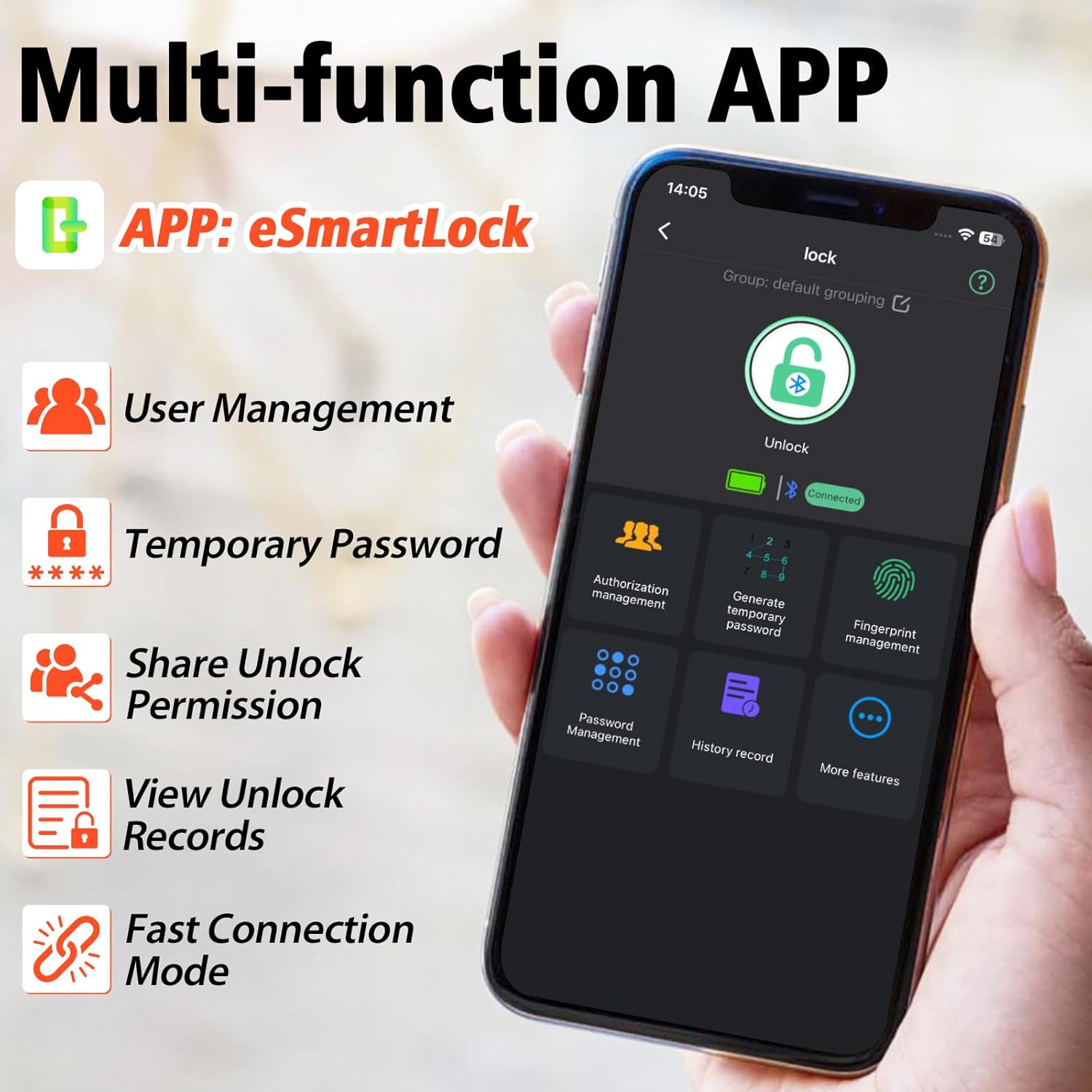

- Smart App Control: Bluetooth connectivity for user management, password generation, and unlock records.
- Durable Design: IP65 waterproof and dustproof, withstands temperatures from -4°F to 113°F.
- Long Battery Life: Up to 180 days standby time, Type-C charging.
What's Included
- Anweller Smart Padlock
- Type-C Charging Cable
- User Manual
Setup Guide
Initial Charging
Before first use, fully charge the padlock using the provided Type-C cable. The charging port is typically located at the bottom or side of the lock. A full charge ensures optimal performance.
App Installation and Connection
- Download the "eSmartLock" app from your device's app store (Android or iOS).
- Open the app and create an account.
- Ensure your phone's Bluetooth is enabled.
- In the app, select "Add Device" and follow the on-screen instructions to pair with your Anweller P7BF padlock. The lock's indicator light will typically flash during pairing.
Registering Fingerprints
- Once connected via the app, navigate to "Fingerprint Management".
- Select "Add Fingerprint" and follow the app's prompts to register your fingerprint. You will typically need to place your finger on the sensor multiple times from different angles.
- Register all desired fingerprints (up to 20).
Setting Passcodes
- In the app, go to "Password Management".
- You can set permanent passcodes (up to 20), generate guest passwords with scheduled entry times, or create one-time passwords.
- Follow the app's instructions to create and manage your desired passcodes.
Operating Instructions
Unlocking with Fingerprint
Place your registered finger firmly on the fingerprint sensor. The lock will unlock in approximately 0.2 seconds if the fingerprint is recognized.
Unlocking with Passcode
Enter your registered passcode on the keypad and press the unlock button (often represented by a key or checkmark symbol).
Unlocking via Mobile App
Open the "eSmartLock" app on your smartphone. Ensure Bluetooth is active and you are within range of the padlock. Tap the "Unlock" button within the app interface.
Unlocking via iWatch
If configured, use the dedicated iWatch app to unlock the padlock.
Maintenance
Battery Management
The padlock is powered by a rechargeable Lithium-ion battery. When the battery is low, the indicator light may flash differently, or the app will notify you. Charge the lock using the provided Type-C cable. Avoid prolonged exposure to extreme temperatures to preserve battery life.
Cleaning
Wipe the lock body and fingerprint sensor with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Environmental Conditions
The lock is IP65 rated for water and dust resistance, making it suitable for outdoor use. However, avoid submerging it in water or exposing it to harsh chemicals.
Troubleshooting
Fingerprint Not Recognized
- Ensure your finger is clean and dry.
- Try placing your finger on the sensor from different angles.
- Re-register your fingerprint if the issue persists.
- Ensure the sensor is clean and free of debris.
Passcode Not Working
- Double-check that you are entering the correct passcode.
- Verify if the passcode is still active (for guest or one-time codes).
- Ensure the lock's battery is not critically low.
App Connectivity Issues
- Ensure Bluetooth is enabled on your smartphone.
- Make sure you are within Bluetooth range of the padlock.
- Restart the app or your smartphone.
- Check if the app requires an update.
Lock Not Responding
- The battery might be completely drained. Connect the lock to a Type-C charger.
- If the lock is completely unresponsive after charging, contact customer support.
Specifications
| Property | Value |
|---|---|
| Brand | Anweller |
| Model Number | P7BF |
| Product Dimensions (L x W x H) | 4.42 x 2.46 x 7.49 cm |
| Weight | 240 grams |
| Material | Stainless Steel |
| Color | Black |
| Lock Type | Biometric |
| Special Features | Anti-drill, Cut-resistant |
| Battery Type | 1 Lithium-ion (included) |
| Controller Type | Android, iOS |
| Waterproof Rating | IP65 |
| Operating Temperature | -4°F to 113°F |
| Unlock Cycle Lifespan | 10,000 cycles |
| Weight Capacity | 220lb |
Warranty and Support
For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official Anweller website. Keep your proof of purchase for warranty claims.
