1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your United HVAC Motors F8MVL0901716A1 Blower Motor. This motor is designed as a direct replacement for blower motors in residential and light commercial indoor furnaces, air handlers, and package systems. Please read this manual thoroughly before installation and operation to ensure safety and optimal performance.
2. Important Safety Information
Always observe the following safety precautions to reduce the risk of electric shock, injury, or fire:
- Disconnect all power to the HVAC unit before installing or servicing the motor.
- Installation should be performed by a qualified HVAC technician.
- Ensure all wiring connections are secure and comply with local electrical codes.
- Do not operate the motor if it is damaged or has exposed wiring.
- Wear appropriate personal protective equipment (PPE) during installation and maintenance.
3. Product Overview and Key Features
The F8MVL0901716A1 is a high-efficiency ECM (Electronically Commutated Motor) blower motor, engineered for reliable performance in various HVAC applications. It is pre-programmed for plug-and-play installation.
Figure 1: Front view of the F8MVL0901716A1 Blower Motor, showing the motor body, shaft, and mounting brackets.
Key Features:
- Compatible with 5SME39HXL3020 and 5SME39HXL3047 models.
- Model Number: F8MVL0901716A1.
- Speed: 1300 RPM.
- Horsepower: 1/2 HP.
- Rotation: CCW (Counter-Clockwise), Reversible.
- Voltage Compatibility: 110V-120V, 208V, 220V-240V.
- Pre-Programmed for plug-and-play installation.
4. Identifying Your Motor Model
To ensure compatibility, it is crucial to match the model number of your existing motor with the replacement. The model number is typically located on a label affixed to the motor body.
Figure 2: Illustration showing the typical location of the model number label on a blower motor. Ensure the model number, horsepower, and RPM match your existing unit.
5. Specifications
Detailed technical specifications for the F8MVL0901716A1 Blower Motor:
| Specification | Value |
|---|---|
| Brand | United HVAC Motors |
| Model Number | F8MVL0901716A1 |
| Speed | 1300 RPM |
| Voltage | 110V-120V, 208V, 220V-240V |
| Horsepower | 0.5 HP (1/2 HP) |
| Rotation | CCW, Reversible |
| Product Dimensions | 5.5"W x 6.1"H |
Figure 3: Dimensional drawing of the blower motor, indicating key measurements for shaft length, motor diameter, and overall height.
6. Installation Instructions
Proper installation is critical for the safe and efficient operation of your blower motor. It is highly recommended that installation be performed by a certified HVAC professional.
6.1 Pre-Installation Checks
- Verify that the new motor's model number, horsepower, and RPM match your existing motor or are compatible.
- Ensure the power supply to the HVAC unit is completely disconnected at the circuit breaker.
- Inspect the new motor for any shipping damage.
6.2 Installation Steps
- Remove Old Motor: Carefully disconnect wiring and unmount the old blower motor from the HVAC unit. Note the orientation and wiring connections for reference.
- Mount New Motor: Position the F8MVL0901716A1 motor in the blower housing. Secure it using the existing mounting points. The motor features robust mounting brackets for stable installation.
- Connect Wiring: This ECM motor is pre-programmed and designed for plug-and-play functionality. Connect the wiring harness from the HVAC unit to the motor's terminal block. Ensure connections are firm and correct according to the unit's wiring diagram.
- Install Blower Wheel: Attach the blower wheel to the motor shaft. Ensure it is properly balanced and secured.
- Secure Access Panels: Close and secure all access panels on the HVAC unit.
- Restore Power: Restore power to the HVAC unit at the circuit breaker.
- Test Operation: Initiate a test cycle for the HVAC system to confirm the blower motor operates correctly and quietly.

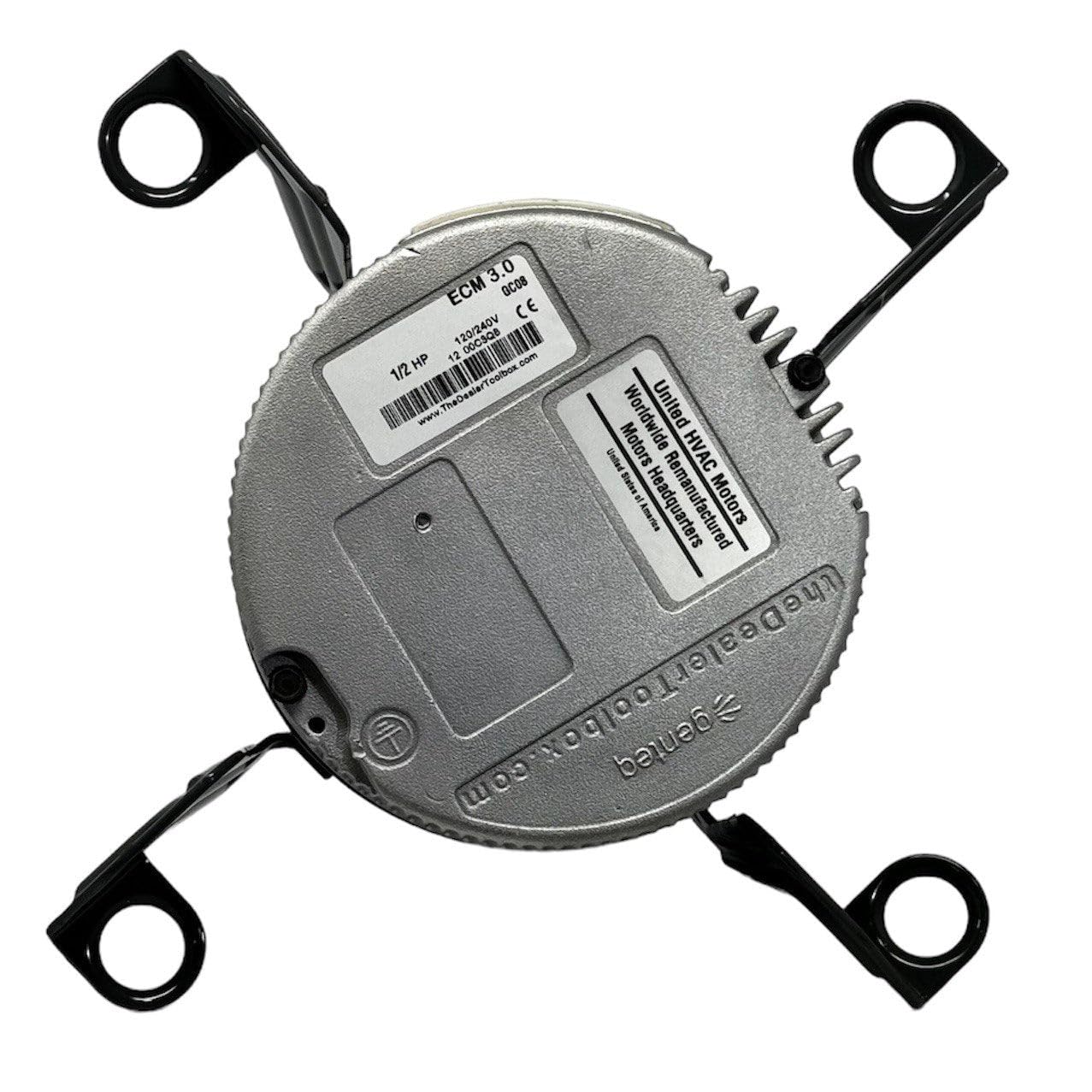

Figure 4: Bottom view of the motor, highlighting the mounting points for secure installation within the HVAC unit.
Figure 5: Top view of the motor, showing the shaft where the blower wheel is attached.
7. Operation
Once correctly installed, the F8MVL0901716A1 Blower Motor operates automatically in conjunction with your HVAC system's thermostat and control board. The motor's ECM technology allows it to adjust speed and torque to maintain optimal airflow and efficiency across its compatible voltage range (110V-120V, 208V, 220V-240V).
8. Maintenance
The F8MVL0901716A1 Blower Motor is designed for minimal maintenance. However, periodic checks can help ensure its longevity and efficient operation:
- Annual Inspection: Have a qualified technician inspect the motor and blower assembly annually for signs of wear, dust accumulation, or unusual noise.
- Cleanliness: Ensure the area around the motor and blower wheel remains free of dust, debris, and obstructions to prevent overheating and maintain airflow.
- Air Filter: Regularly replace or clean your HVAC system's air filter to reduce strain on the blower motor.
9. Troubleshooting
If you experience issues with your blower motor, consider the following common troubleshooting steps:
- Motor Not Running: Check if power is supplied to the HVAC unit. Verify that the thermostat is set to a mode that calls for blower operation (e.g., Fan ON, Heat, Cool). Inspect wiring connections for looseness or damage.
- Unusual Noise: Disconnect power and inspect the blower wheel for obstructions or damage. Ensure the motor is securely mounted. If noise persists, contact customer support.
- Reduced Airflow: Check and replace dirty air filters. Ensure no vents are blocked.
For complex issues or if troubleshooting steps do not resolve the problem, contact United HVAC Motors customer support or a qualified HVAC technician.
10. Warranty Information
The United HVAC Motors F8MVL0901716A1 Blower Motor comes with a TWO YEAR Replacement Warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.
Figure 6: Image indicating the 2-year replacement warranty provided with the product.
11. Customer Support
For technical assistance, warranty claims, or any questions regarding your United HVAC Motors product, please contact our customer support team. Our team is based in Florida, USA, and is available to assist you.
Figure 7: United HVAC Motors customer support team members, Elvis and Matthew, available Monday - Saturday, 7:00 AM - 5:30 PM EST.
Contact Information:
- Phone: 813-440-8108
- Hours: Monday - Saturday, 7:00 AM - 5:30 PM EST
12. Compatibility
This motor is compatible with a wide range of HVAC systems and is a direct replacement for models such as 5SME39HXL3020 and 5SME39HXL3047. It is designed to work with various brands of residential and light commercial furnaces, air handlers, and package systems.
Figure 8: Visual representation of various HVAC brands compatible with United HVAC Motors products, including Lennox, Trane, Carrier, York, Goodman, Ruud, Bryant, Amana, ICP, Rheem, and American Standard.
**United HVAC Motors is not associated with or sponsored by the trademarks shown.
