1. Introduction
Welcome to the Irezeder J-11 Off-Road Electric Scooter user manual. This guide provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
2. Safety Information
Your safety is paramount. Always wear a helmet and appropriate protective gear (knee pads, elbow pads) when riding. Familiarize yourself with local laws and regulations regarding electric scooter usage. This scooter is designed for adults.
- Always wear a certified helmet and protective gear.
- Do not ride under the influence of alcohol or drugs.
- Observe all local traffic laws and regulations.
- Maintain a safe distance from other vehicles and pedestrians.
- Avoid riding in heavy rain, snow, or icy conditions.
- The maximum weight limit for this scooter is 330 pounds (150 kg).
- Regularly inspect your scooter for any damage or loose parts before each ride.
Image: A rider demonstrating safe operation of the Irezeder J-11 electric scooter on an off-road path, wearing a helmet.
3. Package Contents
Upon opening the package, please verify that all components are present and in good condition:
- Irezeder J-11 Electric Scooter (main body)
- Adjustable Seat
- Charging Adapter
- User Manual
- Assembly Tools (if required)
4. Product Overview
The Irezeder J-11 is an off-road electric scooter designed for versatile riding. Key features include a powerful motor, robust suspension, and all-terrain tires.
Key Components:
- 1200W Max Powerful Motor: Provides strong acceleration and hill-climbing capability.
- 48V 18AH Battery: Offers a maximum range of 28 miles.
- 11-inch All-Terrain Tires: Designed for superior grip and shock absorption on various surfaces.
- Dual Suspension System: Front-mounted dual hydraulic shock absorbers and rear-mounted twin hydraulic shock absorbers for a smooth ride.
- Dual Disc Brakes: Front and rear braking system for reliable stopping power.
- Adjustable Handlebars & Seat: Allows for customized riding comfort.
- Foldable Design: For easy storage and transport.
- Smart Display: Shows real-time data including speed, battery level, range, and riding mode, with an embedded key lock for security.
- Integrated Lighting System: Headlight, tail light, ambient light, and turn signals for enhanced visibility.
- IPX5 Water Resistance: Provides protection against splashes and dust.
Image: The Irezeder J-11 electric scooter, highlighting its overall structure and design.
Image: An infographic detailing the main features and specifications of the Irezeder J-11 scooter.
Image: The scooter's lighting system, including headlights, tail lights, ambient lights, and turn signals, illuminated for night visibility.

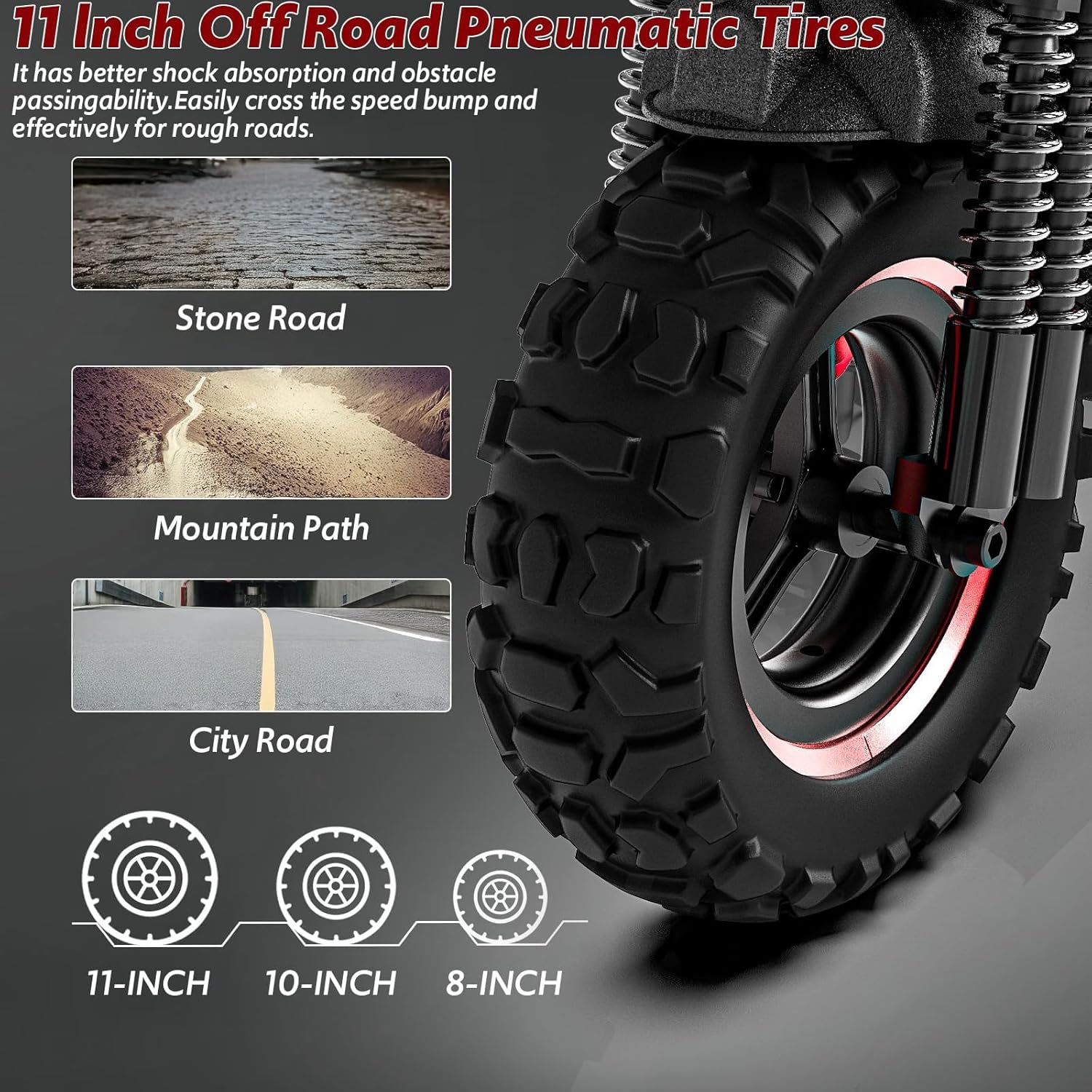

Image: Detailed view of the 11-inch off-road pneumatic tire, illustrating its design for diverse terrains.
Image: Close-up of the scooter's dual shock absorption system, highlighting both front and rear components.
Image: The scooter's smart display, providing real-time riding data and featuring a key lock for security.
5. Setup and Assembly
The Irezeder J-11 scooter comes largely pre-assembled. Follow these steps to prepare your scooter for its first ride:
- Unfolding the Scooter: Carefully lift the stem until it locks into place. Ensure all locking mechanisms are securely engaged.
- Attaching/Adjusting Handlebars: Insert the handlebars into the stem and secure them. Adjust the handlebar height to a comfortable position using the quick-release clamp.
- Installing/Adjusting the Seat: Attach the seat post to the designated slot on the deck. Adjust the seat height for comfortable riding, ensuring it is securely fastened.
- Initial Charge: Before your first ride, fully charge the scooter's battery. Refer to the 'Maintenance' section for charging instructions.

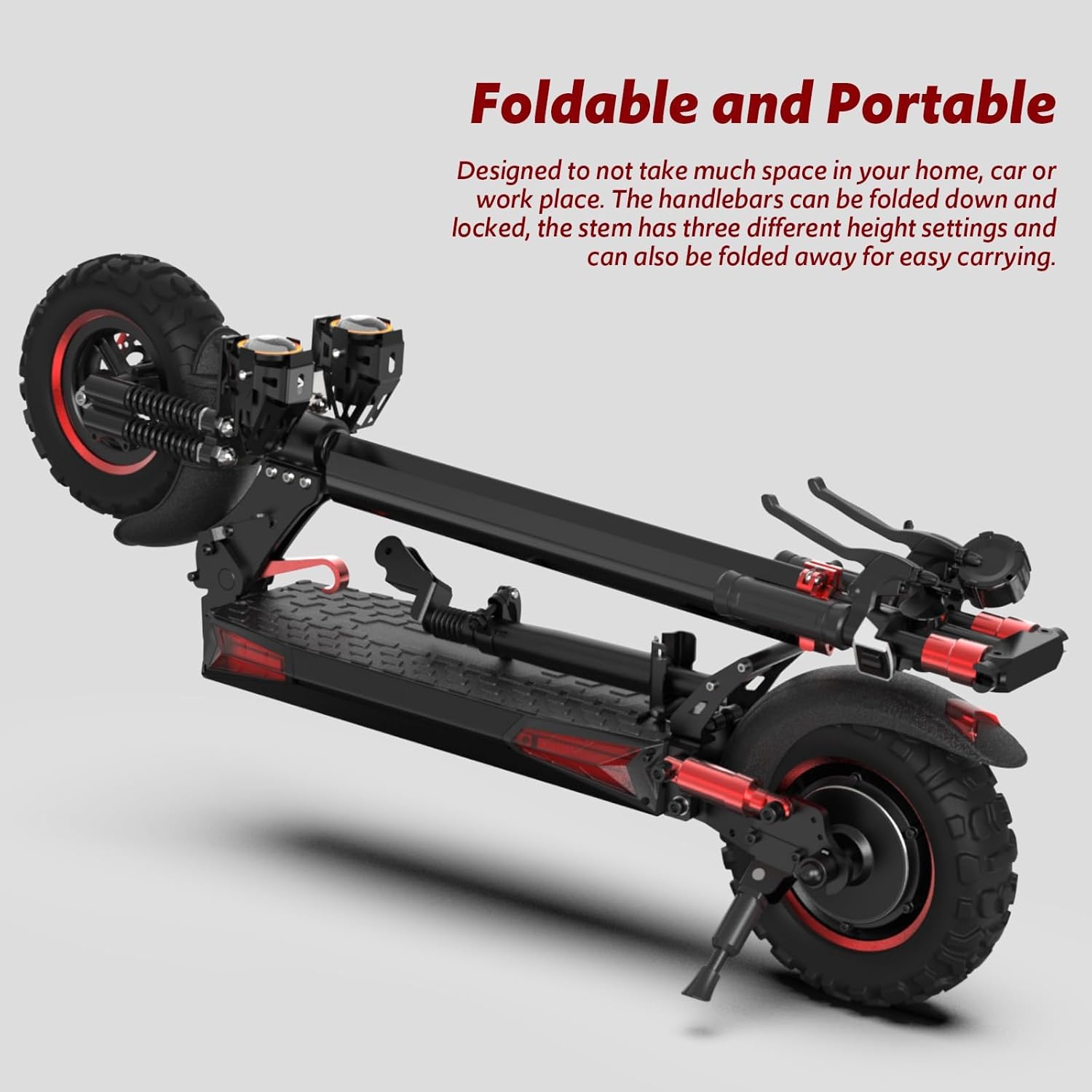

Image: The Irezeder J-11 scooter in its folded configuration, illustrating its compact design for storage and transport.
Image: Illustration of the adjustable handlebars and seat, demonstrating how to customize the scooter for rider comfort.
6. Operating Instructions
6.1 Power On/Off
- To Power On: Insert the key into the ignition and turn it to the ON position. Press and hold the power button on the display for a few seconds.
- To Power Off: Press and hold the power button on the display until it turns off. Turn the key to the OFF position and remove it.
6.2 Riding Modes
The Irezeder J-11 offers multiple riding modes to suit different preferences and terrains:
- Eco Mode: Optimized for maximum range (up to 31 miles) at lower speeds (approx. 12 mph).
- Normal Mode: Balanced performance for everyday commuting (range up to 25 miles, speed up to 18 mph).
- Sport Mode: Delivers maximum speed (up to 34 mph) and power for dynamic riding (range up to 20 miles).
Switch between modes using the designated button on the handlebar control panel.
Image: An illustration demonstrating the different riding modes (Eco, Normal, Sport) and their impact on speed and range.
6.3 Braking
The scooter is equipped with dual disc brakes for effective stopping. Use both brake levers simultaneously for controlled and efficient braking. Practice braking in a safe, open area before riding in traffic.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your Irezeder J-11 scooter.
7.1 Battery Charging
- Connect the charging adapter to the scooter's charging port, then plug it into a power outlet.
- The charging indicator light will show the charging status (usually red for charging, green for fully charged).
- A full charge takes approximately 6-9 hours. Do not overcharge the battery.
- Store the scooter in a cool, dry place when not in use, and charge it at least once every three months to maintain battery health.
Image: The Irezeder J-11 electric scooter connected to its charger, illustrating the charging process.
7.2 Tire Care
- Regularly check tire pressure and inflate to the recommended PSI (refer to tire sidewall for details).
- Inspect tires for wear, cuts, or punctures. The 11-inch self-sealing tires offer puncture resistance, but severe damage may still occur.
7.3 Cleaning and Storage
- Clean the scooter with a damp cloth. Do not use high-pressure water jets or corrosive cleaners.
- Store the scooter in a dry, sheltered location to protect it from extreme temperatures and moisture.
8. Troubleshooting
This section addresses common issues you might encounter with your Irezeder J-11 scooter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; Power button not pressed correctly; Key not in ON position | Charge the battery; Press and hold power button firmly; Ensure key is turned to ON. |
| Reduced range or speed | Low battery; Riding in Sport mode excessively; Overweight load; Tire pressure low | Fully charge battery; Use Eco/Normal mode; Ensure rider weight is within limits; Inflate tires to correct PSI. |
| Brakes feel weak | Brake pads worn; Brake cable loose | Inspect and replace brake pads if necessary; Adjust brake cable tension. Consult customer support if unsure. |
| Unusual noises during ride | Loose components; Debris in wheels/brakes | Check all bolts and fasteners; Inspect wheels and brakes for obstructions. |
If you encounter issues not listed here or require further assistance, please contact customer support.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | Irezeder |
| Model Name | J-11 |
| Motor Power | 1200W |
| Battery | 48V 18AH |
| Max Speed | 34 MPH |
| Max Distance Range | 28 Miles (up to 31 miles in Eco mode) |
| Tire Size | 11 Inches |
| Tire Type | All-Terrain, Inflatable, Self-Sealing |
| Suspension Type | Dual Suspension (Front Hydraulic, Rear Twin Hydraulic) |
| Brake Style | Front and Rear Disc Braking |
| Weight Limit | 330 Pounds |
| Item Weight | 53 Pounds |
| Product Dimensions (LxWxH) | 49.6" x 24" x 48.8" |
| Charging Time | 6-9 Hours |
| Material | Alloy Steel, Aluminum |
| Water Resistance | IPX5 |
| Special Features | Adjustable Handlebar Height, Dual Braking System, Foldable, Seat, Smart Display |
| UPC | 762849227122 |
Image: Certifications and testing standards met by the Irezeder J-11 electric scooter.
10. Warranty
The Irezeder J-11 Electric Scooter comes with a 1-Year Warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
