Godox V480-C TTL Li-ion Camera Flash Instruction Manual

Introduction

This manual provides detailed instructions for the safe and effective use of your Godox V480-C TTL Li-ion Camera Flash. Please read this manual thoroughly before use to ensure optimal performance and to prevent damage to the product or injury to yourself.

Front view of the Godox V480-C TTL Li-ion Camera Flash.

1. Setup

1.1 Unpacking and Included Components

Carefully unpack all items from the box. Ensure all components are present:

• 1 x Light Body (Godox V480-C Flash)
• 1 x Lithium Battery (VB22)
• 1 x Adapter & 1 x USB-C Charging Cable
• 1 x Mini Stand & 1 x Diffuser
• 1 x Storage Bag

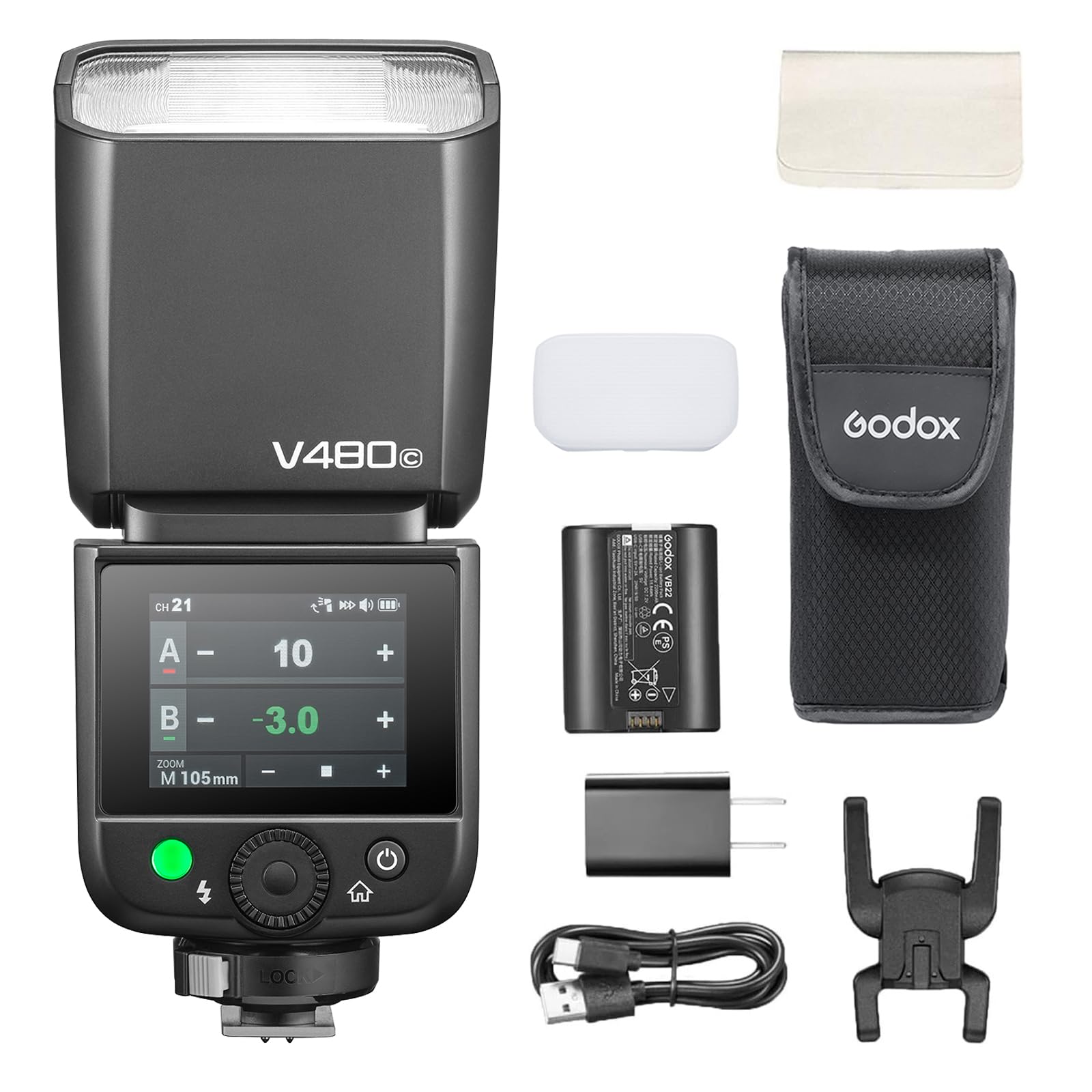

All components included in the Godox V480-C package.

1.2 Battery Installation and Charging

The Godox V480-C uses a high-capacity 7.2V/2200mAh Li-ion battery (VB22). Before first use, fully charge the battery.

1. To install the battery, slide it into the battery compartment on the flash unit until it clicks into place.
2. To charge, connect the USB-C charging cable to the battery's USB-C port and then to the provided adapter or a compatible USB power source. The battery can also be charged directly via the USB-C port on the flash unit.
3. A full charge provides approximately 650 full-power flashes with a recycle time of 1.7 seconds.

The VB22 Lithium Battery for the V480-C, showing USB-C charging capability.

1.3 Mounting on Camera

Attach the V480-C flash to your camera's hot shoe mount.

1. Slide the flash's mounting foot into the camera's hot shoe.
2. Secure the flash by rotating the locking mechanism on the flash foot.

The Godox V480-C flash securely mounted on a Canon camera.

1.4 Initial Power On and Basic Settings

Press the power button to turn on the flash. The 2.0-inch color touchscreen and physical buttons allow for intuitive control.

The responsive 2.0-inch color touchscreen of the V480-C.

1.5 Wireless System Pairing

The V480-C features a built-in 2.4GHz X wireless system, functioning as both a transmitter and receiver. It supports 32 channels and up to 100 meters range.

• To pair, ensure both the flash and the trigger (e.g., Godox X3 trigger) are set to the same channel and ID.
• The system supports 5 groups (A, B, C, D, E) for flexible control.

Overview of the Godox 2.4GHz X wireless system, showing compatibility and range.

2. Operating

2.1 Flash Modes

The V480-C supports various flash modes for diverse shooting scenarios:

• TTL Auto Flash: Automatically adjusts flash output for correct exposure.
• Manual Flash (M): Allows manual control over flash power from 1/1 to 1/256.
• Multi Flash: Fires a series of rapid flashes for creative motion effects (up to 100 times, 100Hz).
• High-Speed Sync (HSS): Synchronizes flash with shutter speeds up to 1/8000s, useful for freezing fast motion or overpowering ambient light.
• Front and Rear Curtain Sync: Controls when the flash fires relative to the shutter curtains.

Visual representation of Multi Mode, Manual Mode, and TTL Flash Mode capabilities.

High Speed Sync (HSS) in action, allowing flash use with fast shutter speeds.

2.2 Adjusting Flash Output and Exposure Compensation

Flash output can be adjusted via the touchscreen or physical controls. Exposure compensation (FEC) can be set in ±3 steps with 1/3 increment.

2.3 Zoom Function

The flash head supports auto zoom to match the lens focal length and image size, or manual zoom from 24-105mm.

2.4 Modeling Lamp

The built-in 2W LED modeling lamp has 10 adjustable levels. It can be used to preview light effects or as a continuous fill light for video.

The 10-level LED modeling lamp provides flexible lighting options.

2.5 Smart Distance Readout

The V480-C's display shows the effective flash range in real-time, helping you determine if your subject is within optimal range.

The smart distance readout feature on the V480-C display.

2.6 Creative Light Shapers

The flash head includes a built-in reflector and a wide-angle diffusion panel. The adjustable bounce head can tilt from -7° to 120° and swivel 330° for precise light shaping.

The V480-C's built-in catchlight panel and wide-angle diffuser for creative light shaping.

3. Maintenance

3.1 Cleaning

Regularly clean the flash unit with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and then dry thoroughly. Avoid using harsh chemicals or abrasive materials.

3.2 Battery Care

To prolong battery life:

• Charge the battery fully before long periods of storage.
• If storing for an extended time, charge the battery every 3-6 months to maintain its health.
• Avoid exposing the battery to extreme temperatures.

3.3 Storage

Store the flash unit in a cool, dry place away from direct sunlight and moisture. Use the provided storage bag for protection.

4. Troubleshooting

4.1 Common Issues and Solutions

• Flash not firing:
  • Check battery level and ensure it's properly installed.
  • Verify the flash is securely mounted on the camera's hot shoe.
  • Ensure the flash is powered on and in the correct mode (TTL, M).
  • If using wireless, confirm trigger and flash are on the same channel and ID.
• Incorrect exposure:
  • Adjust flash output or exposure compensation (FEC).
  • Check camera settings (ISO, aperture, shutter speed).
  • Ensure the flash head zoom matches the lens focal length.
• Slow recycle time:
  • Battery may be low; recharge or replace.
  • Using full power settings will naturally result in longer recycle times.

For further assistance, please refer to the official Godox support resources.

5. Specifications

Detailed specifications of the Godox V480-C flash unit.

6. Warranty

The Godox V480-C TTL Li-ion Camera Flash comes with a 1 Year Manufacturer Warranty. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use conditions. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.

7. Support

For technical support, service, or additional product information, please visit the official GODOX website or contact their customer service department. You can also visit the GODOX Store on Amazon for more products and resources.
