1. Setup Guide
Follow these steps to correctly assemble your ZACHVO MP-802M Cold Press Juicer Machine before first use.
1.1 Unpacking and Component Identification
Carefully unpack all components from the box. Ensure all parts are present and undamaged. The package includes:
- Main Motor Base
- Juicing Bowl
- Auger (Squeezing Screw)
- Fine-Mesh Filter
- Feeding Chute / Lid with Pusher
- Juice Cup (40oz)
- Pulp Cup (20oz)
- Cleaning Brush
Image: All parts and accessories included with the ZACHVO MP-802M Cold Press Juicer.
1.2 Assembly Steps
- Place the Juicing Bowl onto the Main Motor Base, ensuring it clicks securely into place.
- Insert the Auger into the center of the Juicing Bowl, twisting slightly until it sits firmly.
- Attach the Fine-Mesh Filter around the Auger.
- Place the Feeding Chute/Lid onto the Juicing Bowl, aligning the arrows and rotating clockwise until it locks. The safety lock mechanism will engage.
- Position the Juice Cup under the juice outlet and the Pulp Cup under the pulp outlet.
- Ensure the lid is fully closed and locked for the juicer to operate.

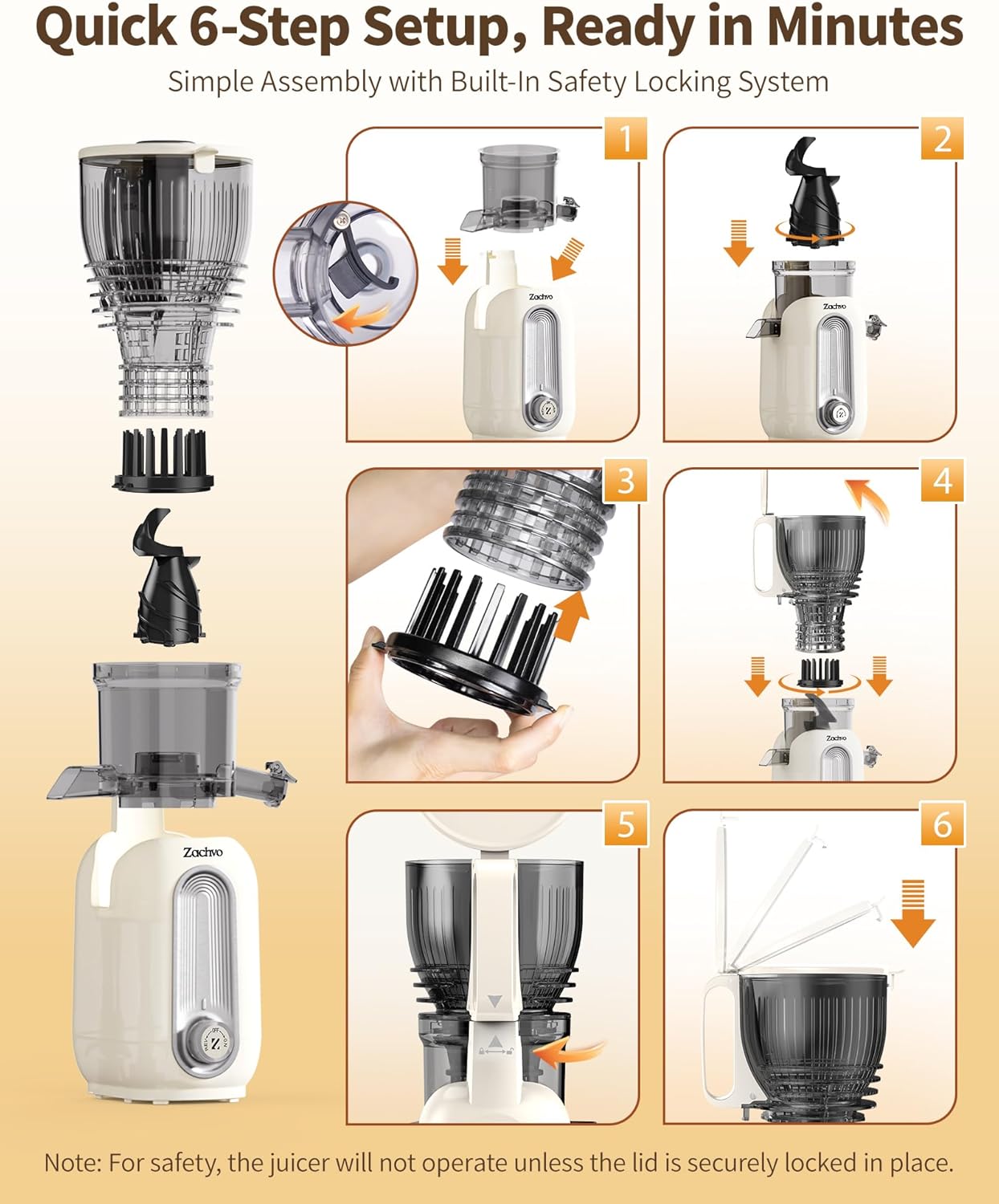

Image: Visual guide for the 6-step assembly process of the ZACHVO MP-802M Cold Press Juicer.
Video: Demonstrates the assembly process and highlights the 5.8" large feed chute.
2. Operating Instructions
Learn how to effectively use your ZACHVO MP-802M Cold Press Juicer to extract maximum juice and nutrients.
2.1 Preparing Ingredients
- Wash all fruits and vegetables thoroughly.
- The 5.8-inch wide feed chute allows for whole fruits and vegetables without extensive chopping.
- For harder ingredients like carrots or beets, it is recommended to cut them into smaller pieces to prevent strain on the motor and optimize juicing.
- Remove large seeds or hard pits from fruits before juicing.
Image: The 5.8-inch wide feed chute accommodates whole fruits and vegetables, reducing prep time.
2.2 Juicing Process
- Ensure the juicer is properly assembled and the lid is securely locked.
- Turn the one-touch knob to the "ON" position to start the motor.
- Slowly feed ingredients into the chute. Use the pusher only if necessary to guide ingredients down.
- The patented auger design crushes and squeezes ingredients, separating juice into the juice cup and pulp into the pulp cup.
- The fine-mesh filter ensures a high juice yield with minimal pulp.
Image: Detailed view of the patented auger design, engineered for efficient crushing and juice extraction.
Image: The intuitive one-touch knob simplifies operation with ON, OFF, and REV settings.
Video: Demonstrates the slow masticating process for extracting juice from whole fruits and vegetables.
3. Maintenance and Cleaning
Regular cleaning ensures optimal performance and longevity of your juicer.
3.1 Disassembly and Cleaning
- Turn the juicer off and unplug it from the power outlet.
- Unlock the Feeding Chute/Lid by rotating it counter-clockwise and lift it off.
- Remove the Auger and Fine-Mesh Filter from the Juicing Bowl.
- Detach the Juicing Bowl from the Main Motor Base.
- Rinse all removable parts under running water. Use the provided cleaning brush to remove any pulp residue from the filter and other components.
- All removable parts are recommended for hand washing. Do not wash the main motor base.
- Ensure all parts are completely dry before reassembling or storing.
Image: The patented anti-clog filter is designed for quick and easy rinsing, preventing residue buildup.
Image: Visual guide for quick disassembly, simplifying the cleaning process.
Video: Demonstrates the easy cleaning process of the ZACHVO Cold Press Juicer.
4. Troubleshooting
Common issues and their solutions for your ZACHVO MP-802M Juicer.
4.1 Juicer Not Starting
- Safety Lock: The juicer will not operate unless the lid is securely locked in place. Ensure the feeding chute/lid is correctly aligned and locked.
- Power Connection: Check if the power cord is securely plugged into a working outlet.
Image: The safety lock mechanism ensures the juicer only operates when fully assembled and locked.
4.2 Ingredients Clogging
- Reverse Function: If ingredients become clogged, turn the knob to "OFF" for 3 seconds, then switch to "REV" (Reverse) mode. This will rotate the auger backward to dislodge the clog.
- Ingredient Size: For very hard or fibrous ingredients, cut them into smaller pieces before feeding them into the juicer.
5. Specifications
| Brand | ZACHVO |
| Model Name | MP-802M (Slow Press Juicer) |
| Special Feature | 5.8" Large Feed Chute, Cold Press Juicer, Easy to Clean, Slow Masticating, for Whole Vegetable and Fruit |
| Product Dimensions | 8.66"D x 7.09"W x 16.93"H |
| Capacity | 1.2 Liters (Juice Cup: 40oz, Pulp Cup: 20oz) |
| Item Weight | 9.46 pounds |
| Material | Plastic |
| Power | 300W |
6. Warranty and Support
ZACHVO is committed to providing excellent customer service and product support.
- Local Support: Benefit from quick issue resolution with our local support team.
- Spare Parts: Fast accessory delivery within the country is available.
- For any inquiries or assistance, please refer to the contact information provided in your product packaging or visit the official ZACHVO website.
Image: ZACHVO offers 24-hour local support and efficient spare parts delivery.
