1. Introduction
The FNIRSI GC-03 is a versatile 3-in-1 detection device designed for comprehensive environmental monitoring. It integrates capabilities for detecting nuclear radiation, electric fields, and magnetic fields, providing users with a broad range of safety assessments. This manual provides detailed instructions for the proper use, maintenance, and troubleshooting of your GC-03 detector.
Image: The FNIRSI GC-03 detector, highlighting its 3-in-1 capabilities for nuclear radiation, magnetic field (MF), and electric field (EF) radiation detection.
2. What's in the Box
Please check the contents of your package upon receipt to ensure all items are present and undamaged.
- FNIRSI GC-03 Detector Unit
- USB Type-C Data Cable
- User Manual
Image: A visual representation of the FNIRSI GC-03 package contents, including the device, a Type-C cable, and the user manual.
3. Product Features Overview
3.1. 3-in-1 Detection Capabilities
The GC-03 is equipped to detect three types of environmental factors:
- Nuclear Radiation: Detects Gamma, Beta, and X-rays.
- Electric Fields: Measures electric field strength.
- Magnetic Fields: Measures magnetic field strength.

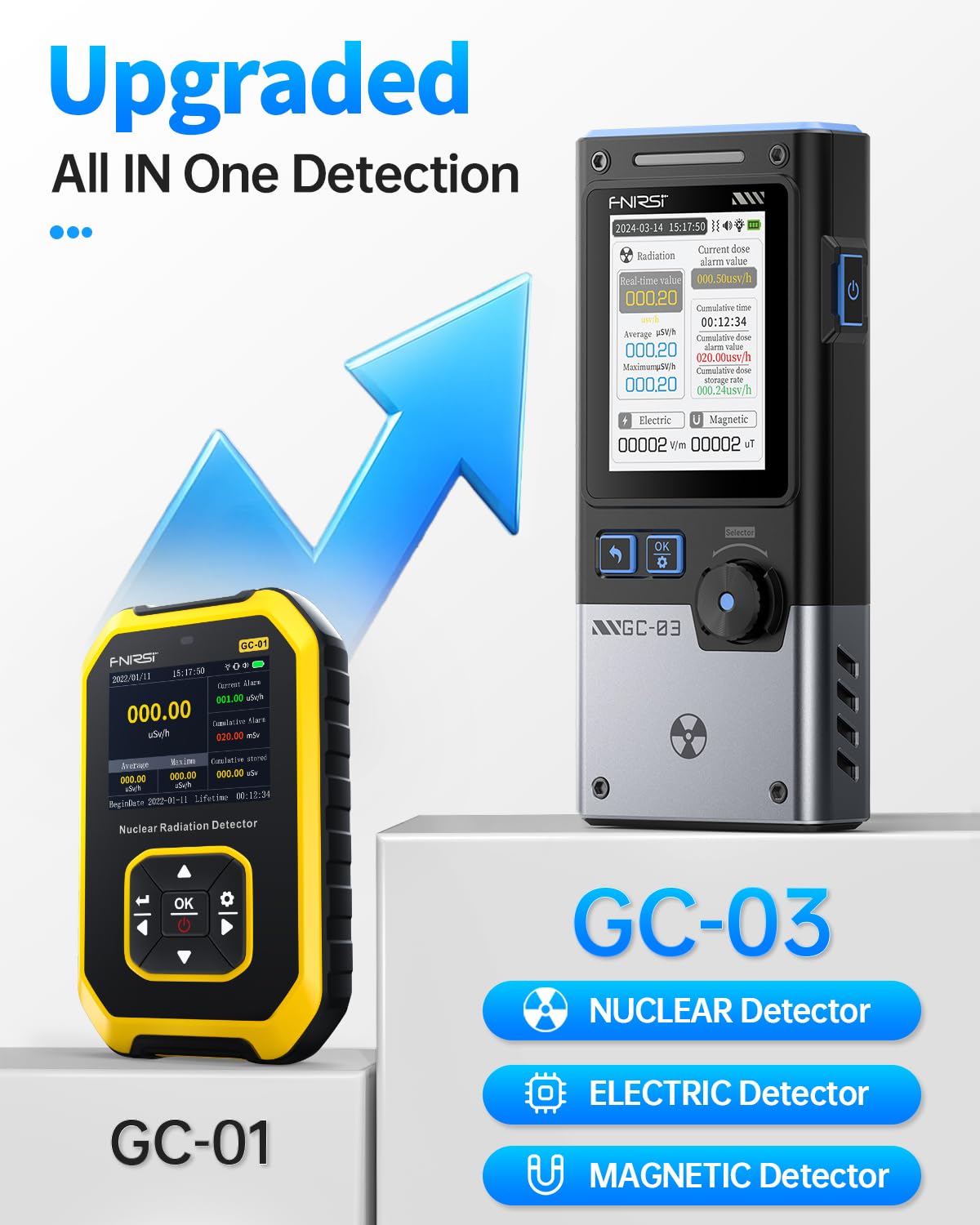

Image: The GC-03 device displayed next to an older model (GC-01), illustrating its upgraded capability for all-in-one detection of nuclear, electric, and magnetic fields.
3.2. Applicable Scenarios
The detector can be used in various environments:
- Nuclear Radiation: Nuclear power plants, radioiodine therapy areas, marble, uranium glass, and other potentially radioactive materials.
- Electric Fields: Near microwaves, laptops, TVs, game consoles, and other electronic devices.
- Magnetic Fields: Near refrigerators, air conditioners, washing machines, and other appliances with motors.
Image: Visual examples of environments where nuclear, magnetic, and electric field detection are relevant, such as nuclear facilities, homes with appliances, and offices with electronics.
3.3. Display Modes
The GC-03 offers three distinct display modes for flexible monitoring:
- Curve Mode: Visualizes changes in radiation levels over time with a dynamic graph.
- Professional Mode: Provides detailed numerical data and statistics.
- Quick View Mode: Offers instant, simplified readings for rapid assessment.
Image: The GC-03 screen displaying the three smart modes: Curve, Professional, and Quick View, illustrating how users can switch between them for different monitoring needs.
3.4. Real-time Monitoring & Alerts
The device provides real-time monitoring and alerts for nuclear radiation. When thresholds are exceeded, it triggers visual, audible, and vibration alerts. It can also track up to 50 alarm history sets.
Image: The GC-03 device demonstrating its three alarm modes: visual alert (screen change), red LED flash, and audible alert (sound icon with 'Di Di Di').
3.5. Other Key Features
- Day & Night Themes: Adjustable display themes for optimal readability in various lighting conditions.
- Visible Geiger Tube: A unique hollow design allows visibility of the internal Geiger tube.
- 1500mAh Battery: Integrated rechargeable battery for extended use.
- Firmware Upgrade: Supports firmware updates for improved functionality.
Image: A collage showcasing various features of the GC-03, including its day and night display themes, ergonomic design, 1500mAh battery, visible Geiger tube, and the option for firmware upgrades.
4. Getting Started
4.1. Charging the Device
Before first use, fully charge the GC-03 using the provided USB Type-C cable and a standard 5V/1A USB power adapter (not included). The charging indicator on the screen will show the battery status.
4.2. Powering On/Off
- To Power On: Press and hold the power button (usually located on the side or top) for a few seconds until the screen illuminates.
- To Power Off: Press and hold the power button again until the device shuts down.
5. Operating Instructions
5.1. Navigating the Interface
The GC-03 features an intuitive rotary knob for easy navigation through menus and settings. Rotate the knob to scroll and press it to select options.
Image: A detailed view of the GC-03's rotary knob, illustrating its function for easily switching between different modes and settings.
5.2. Understanding Display Modes
Switch between Curve, Professional, and Quick View modes using the navigation controls to suit your monitoring needs. Each mode provides a different level of detail and visualization.
Image: A composite image showing the GC-03 in its three distinct display modes (Curve, Professional, Quick View), demonstrating the flexibility in monitoring data presentation.
5.3. Nuclear Radiation Detection
The GC-03 utilizes an energy compensation GM tube for precise detection of ionizing radiation (Gamma rays, X-rays, and Hard Beta rays).
- Hold the device in the area you wish to monitor.
- Observe the real-time radiation values on the screen.
- The device will alert you if radiation levels exceed preset thresholds.
Image: A diagram highlighting the superior precision detection, high sensitivity, and low power consumption of the GC-03's Geiger Counter Tube compared to conventional tubes.
5.4. Electromagnetic Field (EMF) Detection
The device measures both electric and magnetic fields. Note that magnetic field values are displayed only when the magnetic field is changing or being cut; static magnetic fields (e.g., from permanent magnets) may not show a reading.
- Select the appropriate EMF detection mode.
- Move the device around the area or object to be measured.
- Readings for electric field (V/m) and magnetic field (µT or mG) will be displayed.
Image: Scenarios for electric field detection, including a microwave oven, electrical wiring, and a laptop, demonstrating common sources of electric fields.
Image: Scenarios for magnetic field detection, including a refrigerator, an air conditioner, and a washing machine, illustrating common sources of magnetic fields.
5.5. Alarm Settings
You can customize alarm thresholds for nuclear radiation. When these thresholds are exceeded, the device will provide visual, audible, and vibration alerts. For electric and magnetic field alarms, the over-limit status will be displayed on the interface, but there will be no vibration, sound, or light prompts.
5.6. Day & Night Themes
Adjust the display theme in the settings menu to switch between light and dark modes for optimal visibility in different lighting conditions.
6. Maintenance
6.1. Cleaning
Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the casing or screen.
6.2. Battery Care
The GC-03 uses a 1500mAh Lithium Polymer battery. To prolong battery life, avoid extreme temperatures and store the device with a partial charge if not used for extended periods.
6.3. Firmware Upgrade
Periodically check the official FNIRSI website for available firmware updates. Follow the instructions provided with the update package to ensure proper installation.
7. Troubleshooting
- Device does not power on: Ensure the battery is charged. Connect the device to a power source using the Type-C cable and try again.
- Inaccurate readings: Ensure the device is used in an environment free from strong electromagnetic interference. Calibrate if necessary (refer to advanced settings in the device menu).
- No magnetic field reading: Magnetic field values are typically displayed only when the magnetic field is changing or being cut. Static magnetic fields will not register a reading. This is normal operation.
- Screen is dim or unreadable: Adjust the screen brightness in the settings menu or switch between Day/Night themes.
8. Specifications
| Parameter | Specification |
|---|---|
| Screen Material | 2.4-inch color screen |
| Backlight | Brightness Adjustable |
| Power Supply | Type-C (5V/1A) |
| Battery | 1500mAh Lithium Polymer (included) |
| Languages | Chinese, English |
| Product Size | 138 × 65 × 52 mm |
| Net Weight | ≈141g |
| Detection Radiation Type | Ionizing radiation (Gamma rays, X-rays, Hard Beta rays) |
| Detector | Energy compensation GM tube (Geiger counter tube) |
| Dose Current Rate | 0.00-10000μSv/h (10mSv/h) |
| Cumulative Dose Equivalent | 0.00μSv-500.0mSv |
| Energy Range | 48KeV-1.5MeV ≤ ±30% (for 137Cs-) |
| Sensitivity | 80CPM/μSv |
| Dose Unit | μSv/h, μGy/h, mR/h, cps, cpm |
| Alarm Mode | Light, vibration, sound (for nuclear radiation) |
| Electric Field Range | 1V/m - 1999V/m |
| Electric Field Accuracy | 1V/m |
| Magnetic Field Range | 0.01μT - 99.99μT / 0.1mG - 999.9mG |
| Magnetic Field Accuracy | 0.01μT |
9. Safety Information
- Do not attempt to disassemble or modify the device.
- Keep the device away from water and high humidity.
- Avoid exposing the device to extreme temperatures or direct sunlight for prolonged periods.
- This device is for informational and personal safety use. It should not be used as a substitute for professional radiation safety equipment or services.
- Dispose of the device and its battery according to local regulations.
10. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the contact details provided on the FNIRSI official website or contact your retailer. Please have your product model (GC-03) and purchase date available when contacting support.
