U-MAX 10'x10' Wall-Mounted Adjustable Height Hardtop Gazebo Instruction Manual

1. Important Safety Information

Before assembly and use, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the product.

• Ensure proper anchoring to a stable foundation to withstand heavy snow and strong winds.
• Avoid obstructing pathways or views with the shelter.
• Follow all installation instructions carefully and do not deviate from the recommended steps.
• Regularly inspect all connections and fasteners to ensure they remain secure.
• Do not hang heavy objects from the gazebo frame.

2. Product Overview

The U-MAX 10'x10' Wall-Mounted Adjustable Height Hardtop Gazebo is designed to provide a durable and versatile outdoor shelter solution. Its wall-mounted design and adjustable height feature offer flexibility for various patio and outdoor spaces.

Image 2.1: The U-MAX 10'x10' Wall-Mounted Gazebo providing shade and shelter on a patio deck.

Key Features:

• 20" Adjustable Height Range: Accommodates various installation needs, from 8.1 ft to 9.8 ft on the rear side.
• Post-free Rear Wall: Improves structural stability and provides clear sightlines by anchoring directly to the wall.
• Effortless Installation: Designed for straightforward assembly with clear instructions.
• 7" Snow Load Capacity: Rigorously tested to handle 6 lbs/sq.ft, equivalent to approximately 7 inches of heavy snow.
• Superior Stability: Securely attaches to walls and, when properly anchored to the ground, withstands winds up to 70 mph.
• Waterproof Performance: Sloped design and precision-engineered roofing ensure complete waterproofing.

3. Setup and Installation

The U-MAX gazebo is designed for straightforward assembly. It is recommended to have at least two people for installation.

3.1 Site Preparation

• Choose a flat, stable surface for the gazebo's footprint.
• Ensure the wall where the gazebo will be mounted is structurally sound and capable of supporting the weight and forces exerted by the gazebo.
• Clear the area of any obstructions.

3.2 Adjustable Mounting Height

The gazebo features an adjustable height range from 96 to 118 inches (8.1 to 9.8 feet) at the rear wall attachment point. This allows for flexibility to match existing eaves or adjust for door frame heights. Note that height adjustments will affect the front-to-back dimensions and the distance between the front posts and the wall.

Image 3.1: Visual representation of the adjustable mounting height feature, showing the range from 96 to 118 inches.

3.3 Structural Components

The gazebo's robust design incorporates several features for enhanced stability and durability.

Image 3.2: Detailed view of the gazebo's structural elements, including the triangular roof support, stable base plates for legs, crisscrossing aluminum tubes for roof support, and the wall-mounting plate.

• Triangular Structure: Provides enhanced stability for the hardtop.
• Stable Frame Leg: Features 4 pre-drilled holes for secure attachment to various floor types.
• Multi-Frame Support: Crisscrossing aluminum tubes offer strong, rust-resistant support for the top panel.
• Metope Fixed: Four screws connect the structure to the wall, improving stability in harsh environments.

Refer to the detailed manual and step-by-step video tutorials provided by U-MAX for complete assembly instructions.

4. Operating and Usage

Once properly installed, the U-MAX gazebo provides a reliable outdoor living space.

4.1 Weather Resistance

The hardtop roof is designed for year-round use, offering protection against various weather conditions.

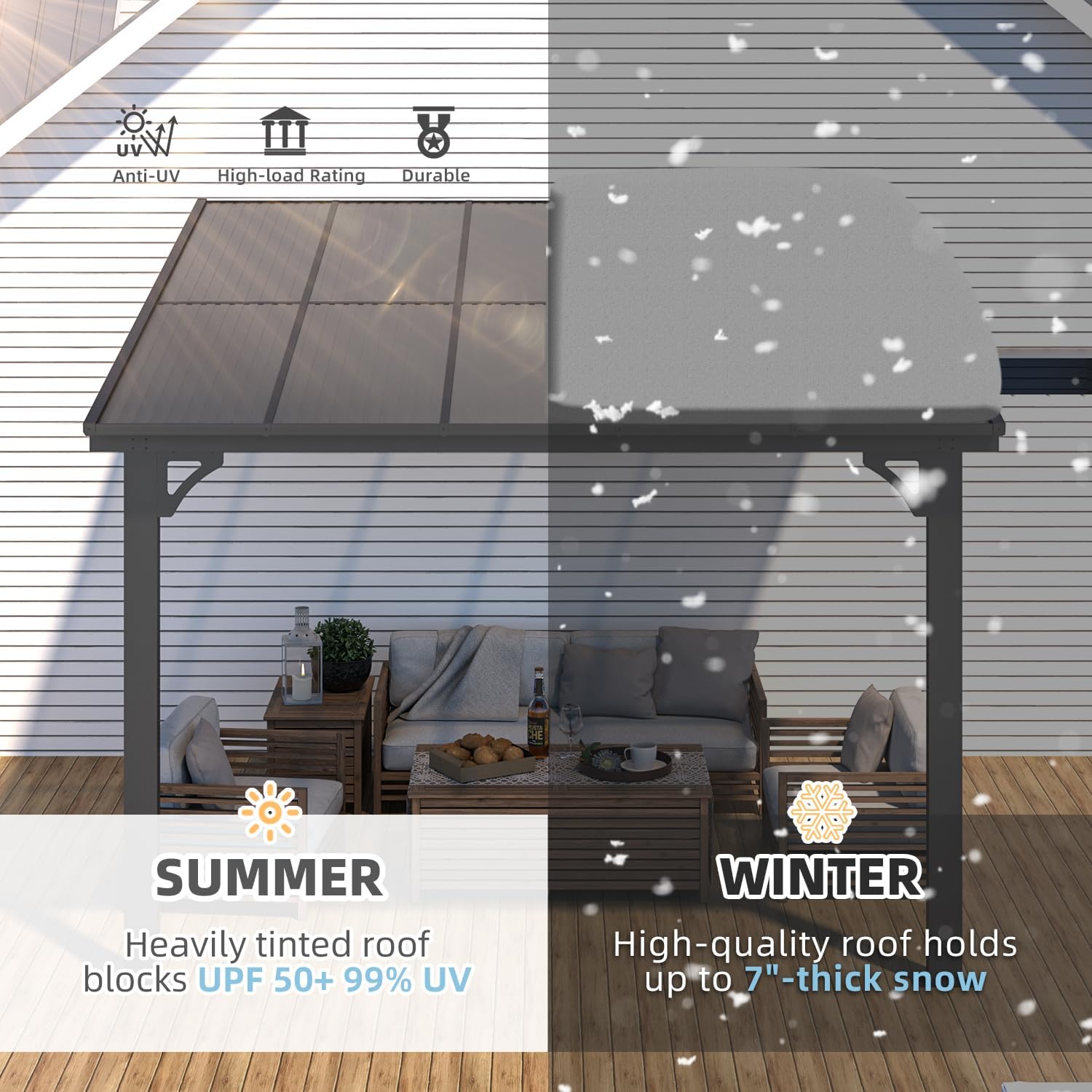

Image 4.1: The gazebo's hardtop roof provides UPF 50+ and 99% UV protection in summer and can withstand up to 7 inches of thick snow in winter.

• Summer Protection: The heavily tinted roof blocks UPF 50+ and 99% of UV rays.
• Winter Durability: The high-quality roof is capable of holding up to 7 inches of thick snow.
• Waterproofing: The sloped design and precision-engineered roofing ensure effective water runoff and complete waterproofing.

4.2 Multi-Purpose Use

The gazebo's design makes it suitable for various applications, enhancing outdoor spaces.

Image 4.2: Examples of the gazebo's versatile applications in residential and commercial environments.

5. Maintenance

Regular maintenance will extend the life and appearance of your U-MAX gazebo.

• Cleaning: Clean the hardtop roof and metal frame periodically with mild soap and water. Rinse thoroughly to prevent residue buildup. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Annually inspect all bolts, screws, and connections to ensure they are tight and secure. Tighten any loose fasteners.
• Snow Removal: While the gazebo is designed to handle snow loads, it is advisable to remove excessive snow accumulation to prevent potential damage, especially during heavy snowfall.
• Drainage: Ensure the sloped roof allows for proper water drainage. Clear any debris that might obstruct water flow.

6. Troubleshooting

This section addresses common issues you might encounter.

• Issue: Gazebo feels unstable.
  Solution: Verify that all wall anchors and ground anchors are securely fastened. Check all frame connections for tightness. Ensure the installation surface is level.
• Issue: Water pooling on the roof.
  Solution: Confirm that the roof panels are correctly installed and aligned to maintain the intended slope. Clear any debris (leaves, branches) that might be obstructing water runoff channels.
• Issue: Difficulty with height adjustment.
  Solution: Ensure all adjustment mechanisms are clean and free of debris. Lubricate moving parts if necessary. Refer to the installation manual for specific height adjustment procedures.
• Issue: Missing parts during assembly.
  Solution: Carefully check all packaging materials. If parts are genuinely missing, contact U-MAX customer support immediately.

For issues not covered here, please contact U-MAX customer support.

7. Specifications

Detailed product specifications for the U-MAX 10'x10' Wall-Mounted Gazebo.

Image 7.1: Detailed dimensions of the U-MAX 10'x10' Wall-Mounted Gazebo, including width, depth, and adjustable height range.

8. Warranty and Support

U-MAX stands firmly behind its product, offering comprehensive support to ensure a positive ownership experience.

• Worry-Free Ownership: U-MAX provides maintenance and replacement services for product-related issues.
• Professional Support: A dedicated technical support team is available 24/7 to provide remote assistance for any installation or usage concerns.

For assistance, please refer to the contact information provided with your purchase or visit the official U-MAX website.
