Introduction
Thank you for choosing the U-MAX 12'x17' Wood Gazebo Hardtop Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read these instructions carefully before beginning assembly and retain them for future reference.
This versatile outdoor structure is designed to enhance your patio, lawn, or garden, offering shade and a comfortable space for various activities. Its robust wood construction and hardtop design provide durability and protection.
Safety Information
Important Safety Precautions:
- Always follow the assembly instructions carefully. Deviating from the instructions can compromise the structural integrity and safety of the gazebo.
- Use appropriate safety gear when assembling, including gloves and eye protection.
- Do not attempt to assemble in wet, windy, or otherwise adverse weather conditions. Strong winds can make assembly dangerous and damage components.
- Inspect all parts for damage before assembly. If any damage is found, do not proceed with assembly. Contact customer service immediately for replacement parts.
- Ensure the assembly area is clear of obstructions and provides sufficient space for safe construction.
- This product requires 2-3 people for safe and efficient assembly. Do not attempt to assemble alone.
- Ensure the gazebo is anchored securely to the ground to prevent tipping, especially in windy conditions.
Package Contents
Your U-MAX Wood Gazebo is shipped in multiple packages. Before beginning assembly, please ensure all packages have been delivered and all components are present and undamaged.
- The complete set is divided into seven (7) packages. These packages may arrive on different days.
- Refer to the included parts list (not provided in this manual, but typically found in the physical product packaging) to verify all components.
Image: Product dimensions and package delivery information. Note: The image states 6 packages, while the product description states 7. Please verify the exact number of packages with the physical product's packaging.
Assembly Instructions
Assembly of the U-MAX Wood Gazebo requires careful attention to detail and the assistance of 2-3 individuals. Choose a sunny day for installation and follow the steps provided in the separate assembly guide included with your product. The following provides an overview of key structural features.
Structural Features
Image: Solid Wood Construction. Each roof beam features metal brackets for secure attachment, and each support column incorporates a triangular structure for enhanced stability.
Image: Post Anchoring. Post anchoring plates are fixed on two sides of the post foot to ensure stability and secure attachment to the ground.
For detailed, step-by-step assembly instructions, please refer to the dedicated assembly manual provided in your product packaging. Ensure all connections are tightened securely before use.
Operating and Usage
The U-MAX Wood Gazebo is designed for versatile outdoor use, providing a shaded area for various activities.
Intended Use:
- Patio Shade: Ideal for creating a comfortable, shaded area on your patio for relaxation or dining.
- Garden Feature: Enhances garden aesthetics while providing a functional outdoor space.
- BBQ Area: Offers shelter for outdoor cooking and dining.
- Family Gatherings: Provides a central gathering point for outdoor events.
- Carport: Can be used as a temporary or permanent shelter for vehicles.
Image: Wide Application. The gazebo is suitable for various uses including family reunions, barbecues, garden enhancement, and as a carport.
All-Weather Hardtop Solution:
The hardtop design provides protection against various weather conditions.
Image: All-Weather Hardtop Solution. The gazebo is designed to withstand rainy, snowy, and windy conditions, offering reliable outdoor shelter.
Maintenance
Regular maintenance will extend the life and appearance of your U-MAX Wood Gazebo.
- Cleaning: Clean the wood frame and hardtop regularly with a mild soap and water solution. Rinse thoroughly and allow to air dry. Avoid harsh chemicals or abrasive cleaners.
- Wood Care: The wood pattern may change over time due to natural weathering. To maintain the wood's appearance and protect it from elements, consider applying a wood sealant or stain periodically as recommended for outdoor wood structures.
- Hardware Check: Periodically check all bolts, screws, and connections to ensure they remain tight. Re-tighten if necessary to maintain structural integrity.
- Winter Care: While designed for all-weather, heavy snow accumulation should be cleared from the hardtop to prevent excessive stress on the structure.
- Inspection: Regularly inspect the entire structure for any signs of wear, damage, or instability. Address any issues promptly.
Troubleshooting
This section addresses common issues you might encounter with your gazebo.
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or wobbly. | Loose connections; improper anchoring; uneven ground. | Check and tighten all bolts and screws. Ensure anchoring plates are securely fastened to a level surface. If on uneven ground, consider shimming or leveling the base. |
| Water pooling on the hardtop. | Improper roof panel installation; debris blockage. | Verify that roof panels are installed correctly according to the assembly manual, ensuring proper drainage. Clear any leaves or debris that may be obstructing water flow. |
| Wood appears discolored or weathered. | Natural exposure to elements; lack of protective treatment. | This is a natural process for outdoor wood. To restore or protect, clean the wood and apply a suitable outdoor wood stain or sealant. |
| Missing parts during assembly. | Packages not fully delivered; parts overlooked. | Verify all 7 packages have arrived. Carefully check all packaging materials. If parts are genuinely missing, contact U-MAX customer support with your purchase details. |
Specifications
Key specifications for the U-MAX 12'x17' Wood Gazebo Hardtop Pergola:
| Feature | Detail |
|---|---|
| Brand | U-MAX |
| Model | 12'x17' Wood Gazebo Hardtop Pergola |
| Material | Wood, Metal |
| Product Dimensions (L x W x H) | 202"L x 145.2"W x 84"H (approximately 16.83'L x 12.1'W x 7'H) |
| Item Weight | 365 Pounds |
| Frame Material | Wood |
| Water Resistance Level | Water Resistant |
| Shape | Rectangular |
| Ultraviolet Light Protection | UPF50+ |
| Assembly Required | Yes (2-3 people recommended) |
| Color | Dark Brown |

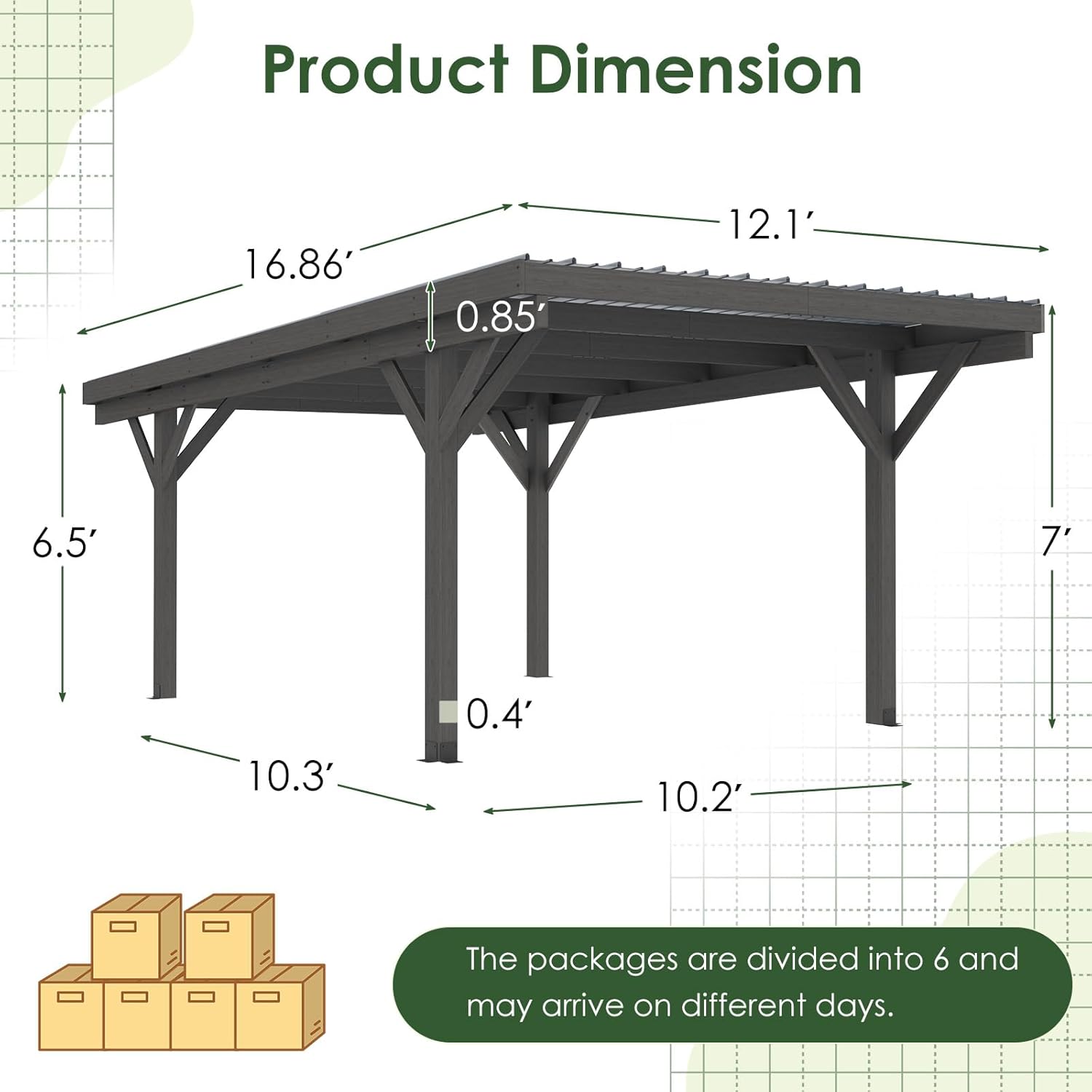

Image: Product Dimension Diagram. This diagram illustrates the overall dimensions of the gazebo, including its length (16.86'), width (12.1'), and height (7').
Support and Warranty
U-MAX is committed to providing a satisfactory solution for our customers.
- Customer Support: If you have any questions, require assistance with assembly, or need replacement parts, please contact U-MAX customer service. Have your purchase details and model information ready for faster service.
- Warranty Information: Specific warranty details are typically provided with your purchase documentation. Please refer to those documents for information regarding coverage and terms.
- Returns: This product typically includes a 30-day easy return policy. Refer to your purchase platform for specific return instructions and conditions.
