SUPERLEX 3200W Cordless Steam Iron SSI002 User Manual

Introduction

Thank you for choosing the SUPERLEX 3200W Cordless Steam Iron. This manual provides essential information for the safe and efficient operation of your new appliance. Please read these instructions carefully before first use and keep them for future reference.

This iron is designed for powerful and efficient wrinkle removal on various fabrics, offering both cordless convenience and advanced steam features.

Important Safety Instructions

• Always ensure the voltage indicated on the rating label matches your mains supply voltage.
• Do not immerse the iron, charging base, or power cord in water or any other liquid.
• Keep the iron out of reach of children and pets.
• Unplug the iron from the power outlet when filling with water, emptying, or when not in use.
• Do not operate the iron with a damaged cord or plug, or if the iron has been dropped or damaged.
• Use the iron only for its intended household purpose.
• The soleplate and steam can become extremely hot and cause burns. Handle with care.
• Never direct steam towards people or animals.
• Place the iron on a stable, heat-resistant surface when resting.

Product Overview

Familiarize yourself with the components and features of your SUPERLEX steam iron.

Image: The SUPERLEX 3200W Cordless Steam Iron, showcasing its sleek design and gold accents.

Image: Diagram illustrating the iron's dimensions (31cm x 11.6cm) and key features including 400ml water tank, 3200W motor, 8-in-1 functions, ceramic soleplate, anti-drip, and anti-calc protection.

• Soleplate: Ceramic, anti-scratch for smooth gliding.
• Water Tank: 400ml capacity with a clear viewing window.
• Temperature Dial: For selecting appropriate fabric settings.
• Steam Button: For steam shot.
• Spray Button: For misting fabric.
• Cordless Base: 360° charging station for maximum mobility.
• Power Cord: Attached to the charging base.
• Anti-Calc System: Integrated to prevent mineral buildup.
• Anti-Drip System: Prevents water leakage at low temperatures.
• Skirt-Spray Function: Patented feature for precise wrinkle removal on delicate items.
• 8-in-1 Functions: Dry ironing, Steam ironing, Spray function, Steam shot, Vertical ironing, Self-cleaning, Anti-Drip, and Anti-Calc protection.

Setup

1. Unpacking

Carefully remove the iron and all accessories from the packaging. Retain the packaging for storage or future transport. Check for any damage. If damaged, do not use and contact customer support.

2. Initial Cleaning

Before first use, wipe the soleplate with a soft, damp cloth to remove any manufacturing residues. It is normal for a slight odor or smoke to occur during the first few minutes of operation as protective coatings burn off. Ensure good ventilation.

3. Filling the Water Tank

1. Ensure the iron is unplugged from the power outlet and cooled down.
2. Open the water inlet cover.
3. Using a measuring cup, carefully pour tap water into the water tank up to the "MAX" fill line. Do not overfill.
4. Close the water inlet cover securely.

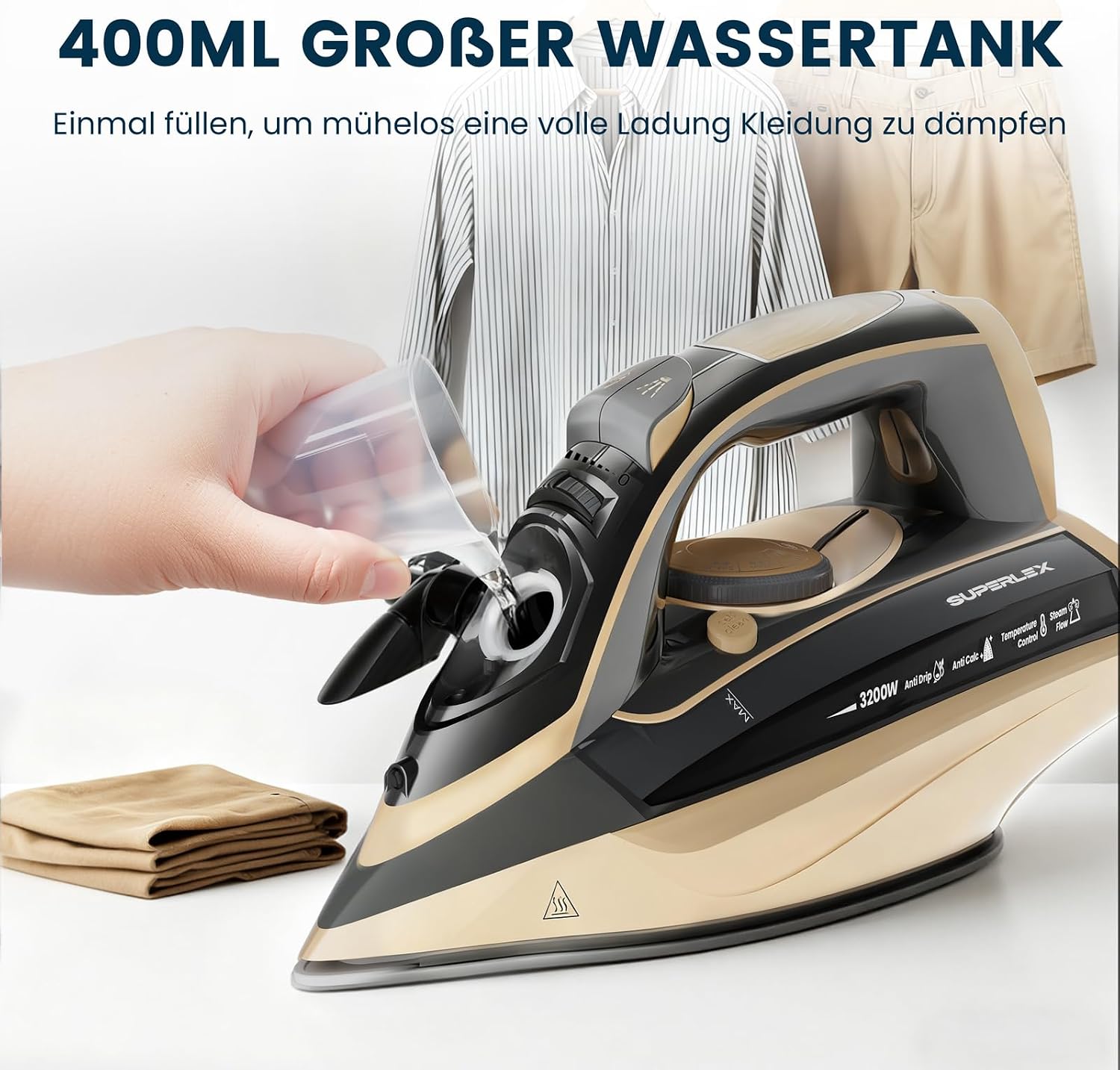

Image: A hand pouring water into the iron's water tank, demonstrating the correct filling procedure.

Image: Close-up view of the iron's water tank, highlighting its clear window for easy monitoring of water levels.

Operating Instructions

1. Powering On and Heating

1. Place the charging base on a stable, heat-resistant surface.
2. Plug the power cord of the charging base into a suitable wall outlet.
3. Place the iron onto the charging base. The indicator light will illuminate, signaling that the iron is heating.
4. The iron heats rapidly, typically in less than 30 seconds. The indicator light will turn off or change color when the desired temperature is reached.

2. Temperature and Fabric Settings

Turn the temperature dial to select the appropriate setting for your fabric type. Always check the garment's care label. Start with lower temperatures for delicate fabrics and increase for heavier materials.

Image: Visual guide showing various fabric types (cotton, linen, silk, wool, nylon, polyester) and their suitability for ironing with the steam iron.

• Low Temperature: Synthetics (Nylon, Polyester), Silk.
• Medium Temperature: Wool.
• High Temperature: Cotton, Linen.

3. Cordless Operation

Once heated, lift the iron from its 360° charging base for cordless ironing. The iron retains heat for a short period, allowing freedom of movement. Return the iron to the base periodically (approximately every 30 seconds) to reheat and maintain optimal temperature.

Image: A user ironing a garment on an ironing board, demonstrating the cordless functionality of the iron.

Image: The SUPERLEX iron resting securely on its charging base, ready for reheating or storage.

4. Steam Functions

Ensure the water tank is filled and the iron is at a high enough temperature for steam generation (usually indicated by the temperature dial). The iron provides a continuous steam output of 40 g/min.

• Continuous Steam: For general ironing, select the steam setting on the dial.
• Steam Shot: Press the steam button for an extra burst of steam to tackle stubborn wrinkles.
• Vertical Steam: Hold the iron vertically and press the steam button to steam hanging garments, curtains, or drapes.

Image: Two panels demonstrating steam functions: top panel shows a steam shot being applied to a garment, bottom panel shows continuous steam during ironing.

Image: Two panels showing ironing techniques: left panel shows traditional ironing on a board, right panel shows vertical steaming of a jacket on a hanger.

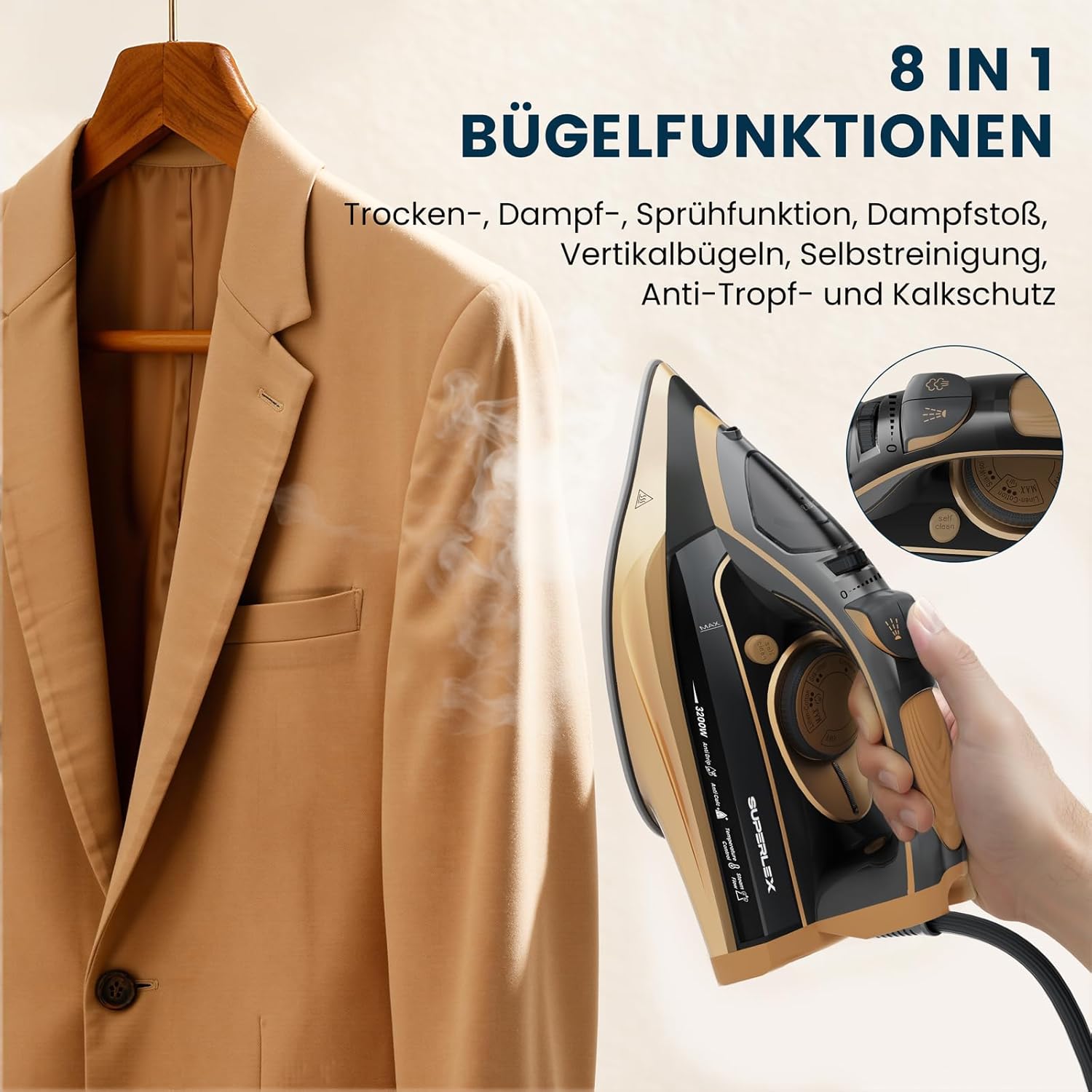

Image: A user performing vertical steaming on a jacket, highlighting the iron's versatility and 8-in-1 functions including dry, steam, spray, steam shot, vertical ironing, self-cleaning, anti-drip, and anti-calc.

5. Spray Function

For particularly stubborn creases, press the spray button to mist the fabric with water before ironing. The patented Skirt-Spray function allows for precise application on delicate areas.

Maintenance

1. Cleaning the Soleplate

After each use, ensure the iron is unplugged and completely cooled. Wipe the soleplate with a soft, damp cloth. Do not use abrasive cleaners or metallic scouring pads, as these can damage the ceramic coating.

2. Anti-Calc System

Your iron is equipped with an integrated anti-calc system to reduce mineral buildup. For optimal performance and longevity, periodically perform a self-cleaning cycle as described in the specific instructions for your model (refer to the iron's markings or a detailed diagram if available, as this JSON does not provide specific self-cleaning steps).

3. Emptying and Storage

After use, unplug the iron and allow it to cool completely. Empty any remaining water from the tank. Store the iron upright on its charging base in a dry, safe place, away from direct sunlight and moisture.

Troubleshooting

Specifications

• Brand: SUPERLEX
• Model Number: SSI002
• Power: 3200 Watts
• Water Tank Capacity: 400 ml
• Continuous Steam Output: 40 g/min
• Soleplate Material: Ceramic
• Dimensions (L x W): 31 cm x 16.5 cm (approx.)
• Features: Cordless operation, 360° charging base, Anti-Calc, Anti-Drip, Skirt-Spray function.

Warranty and Support

SUPERLEX products are manufactured to high-quality standards. For warranty information, please refer to the documentation provided with your purchase or contact your retailer. If you encounter any issues or require technical assistance, please contact SUPERLEX customer support through their official website or the contact information provided in your product packaging.

For more information about SUPERLEX and their range of products, please visit the official SUPERLEX brand page.
