1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your ELEGANT 60x72 Double Sliding Shower Door. Please read all instructions carefully before beginning installation and retain this manual for future reference.
2. Safety Information
- Always wear safety glasses during installation.
- Handle glass panels with extreme care. Tempered glass, while strong, can shatter if struck at the edges.
- Ensure the installation area is clear and dry.
- Two people are recommended for installation due to the weight and size of the glass panels.
- Verify that wall studs are present for secure mounting of the shower door frame.
3. Components Checklist
Before installation, ensure all components are present and undamaged. Refer to the packing list provided with your product for a complete inventory. Key components include:
- Tempered Glass Panels (x2)
- Top and Bottom Rail Tracks
- Wall Profiles
- Dual Handles (x2)
- Rollers and Guides
- Seal Strips
- Mounting Hardware (screws, anchors, etc.)
4. Installation Guide
Tools Required: Measuring tape, level, drill, screwdriver, caulk gun, silicone sealant, pencil, utility knife.
4.1 Preparation
- Measure your shower opening to confirm it is within the 56-60 inch width adjustment range.
- Ensure the shower base or tub is level and properly installed.
- Clean the wall surfaces where the shower door will be mounted.
4.2 Frame Assembly
- Attach the wall profiles to the side walls, ensuring they are plumb and securely fastened. Use appropriate wall anchors for your wall type.
- Install the top and bottom rail tracks. The width adjustment feature allows for cutting the tracks to fit your specific bathroom dimensions (maximum 4-inch adjustment).
Image: Width adjustment mechanism for the shower door.
- Secure the top and bottom tracks to the wall profiles.
4.3 Glass Panel Installation
- Carefully lift and insert the tempered glass panels into the top and bottom tracks.
- Attach the rollers to the top of the glass panels and the guides to the bottom, ensuring smooth movement.
- Install the buffer anti-crash angles on the frame to prevent scratches to the wall.
Image: Close-up of the anti-crash angle.
4.4 Handle and Seal Installation
- Install the dual handles onto the glass panels. These handles facilitate sliding and provide space for hanging items.
Image: Dual handles for the shower door.
- Apply the full-length shower door seal strips to the edges of the glass panels to prevent water leaks.
- Apply a bead of silicone sealant along the exterior base of the shower door frame and where the wall profiles meet the wall for a watertight seal. Allow to cure for 24 hours before use.
4.5 Installation Orientation
The ELEGANT Double Sliding Shower Door can be installed with the opening on either the left or the right side, offering flexibility for your bathroom layout.
Images: ELEGANT 60x72 Double Sliding Shower Door installed.
5. Operation
The ELEGANT Double Sliding Shower Door features a smooth and quiet sliding mechanism. To open or close the door, gently grasp one of the dual handles and slide the glass panel along the top and bottom tracks. The design allows for easy entry and exit from either side.

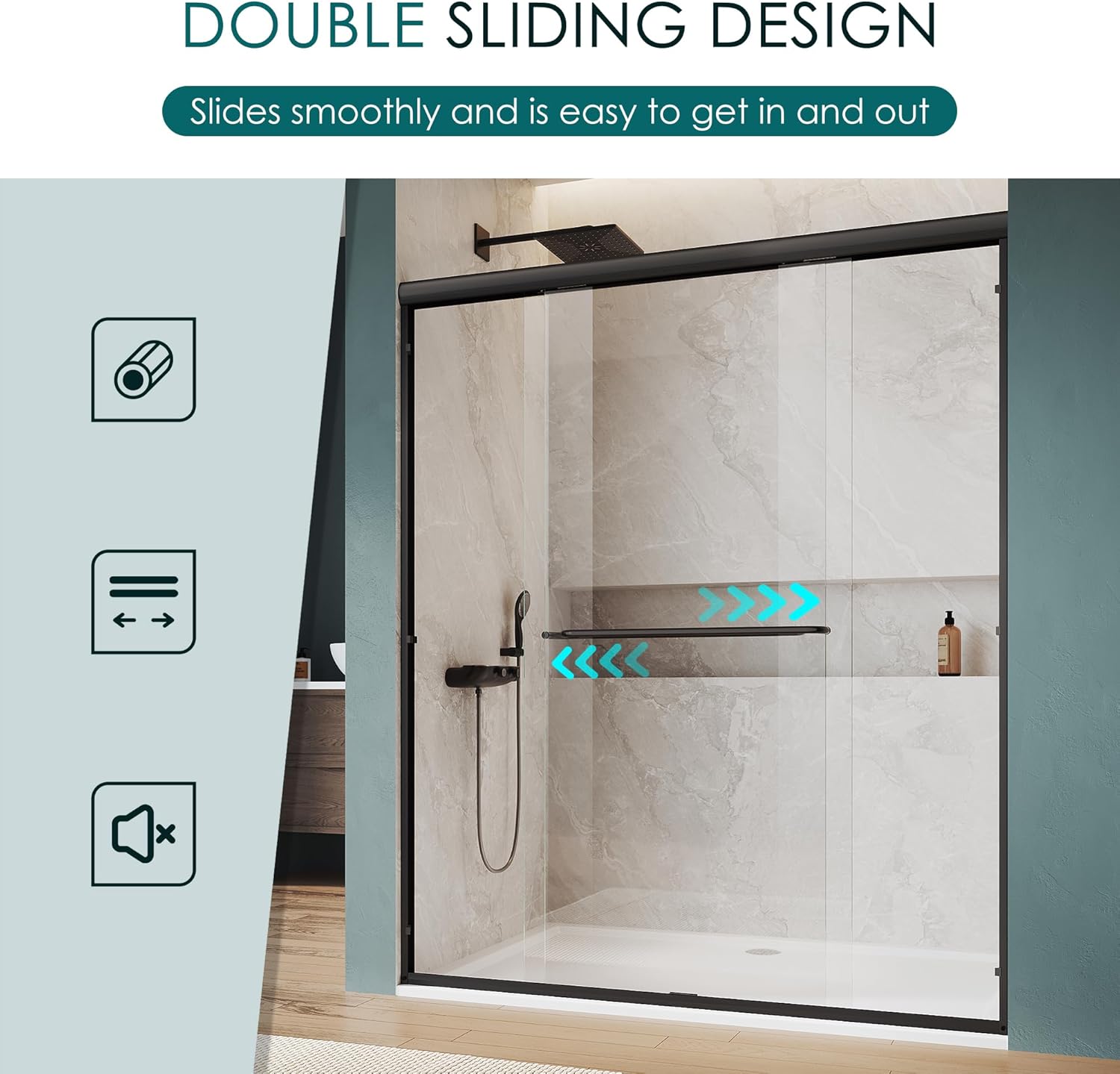

Image: Double sliding door design for smooth operation.
Video: Official video demonstrating the features and functionality of the ELEGANT Double Sliding Shower Door.
6. Maintenance
Regular maintenance will ensure the longevity and appearance of your shower door.
- Glass Cleaning: Clean tempered glass panels regularly with a soft cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that can scratch the glass or damage protective coatings.
- Frame Cleaning: Wipe down the aluminum frame with a soft, damp cloth and mild soap. Dry thoroughly to prevent water spots.
- Seal Maintenance: Periodically inspect the seal strips for wear or damage. Replace if necessary to maintain a watertight enclosure.
- Roller and Track Maintenance: Keep the top and bottom tracks free of debris and soap scum to ensure smooth sliding. Lubricate rollers with a silicone-based lubricant if they become stiff.
7. Troubleshooting
If you encounter issues with your shower door, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not slide smoothly | Debris in tracks, worn rollers, misaligned panels | Clean tracks, inspect/replace rollers, adjust panel alignment. |
| Water leaks from the enclosure | Damaged seal strips, insufficient sealant, improper installation | Inspect/replace seal strips, reapply silicone sealant, ensure frame is level and plumb. |
| Door rattles or feels loose | Loose hardware, worn guides | Tighten all screws, inspect/replace guides. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | ELEGANT |
| Model | 60x72 |
| Dimensions | 60" W x 72" H (0.25 x 60 x 72 inches) |
| Width Adjustment | 56-60 inches (by cutting rail tracks) |
| Glass Thickness | 1/4" (6 mm) ANSI-certified tempered glass |
| Frame Material | Aluminum |
| Finish | Matte Black |
| Item Weight | 105 Pounds |
| Assembly Required | Yes |
9. Warranty and Support
ELEGANT products are manufactured to high-quality standards and are backed by a manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the warranty card included with your product or contact ELEGANT customer support.
For technical assistance, missing parts, or any other inquiries, please contact ELEGANT Customer Support. Contact information can typically be found on the product packaging or the official ELEGANT website.
