1. Product Overview
This manual provides instructions for the WELLFOR 10-inch Ceiling Mount Square Shower Faucet Set, Model WF-S3805. This system features a thermostatic mixing valve, a 3-function diverter, and a rainfall shower head, designed for a consistent and comfortable showering experience.
Figure 1: Complete WELLFOR Ceiling Mount Shower System components in Matte Black finish.
2. Components Included
Verify that all components are present before beginning installation.
- 10-inch Square Rainfall Shower Head
- Ceiling Mount Shower Arm
- Hand Shower
- Adjustable Sliding Bar
- Thermostatic Mixing Valve with 3-function Diverter
- Shower Hose
- Mounting Hardware and Connectors

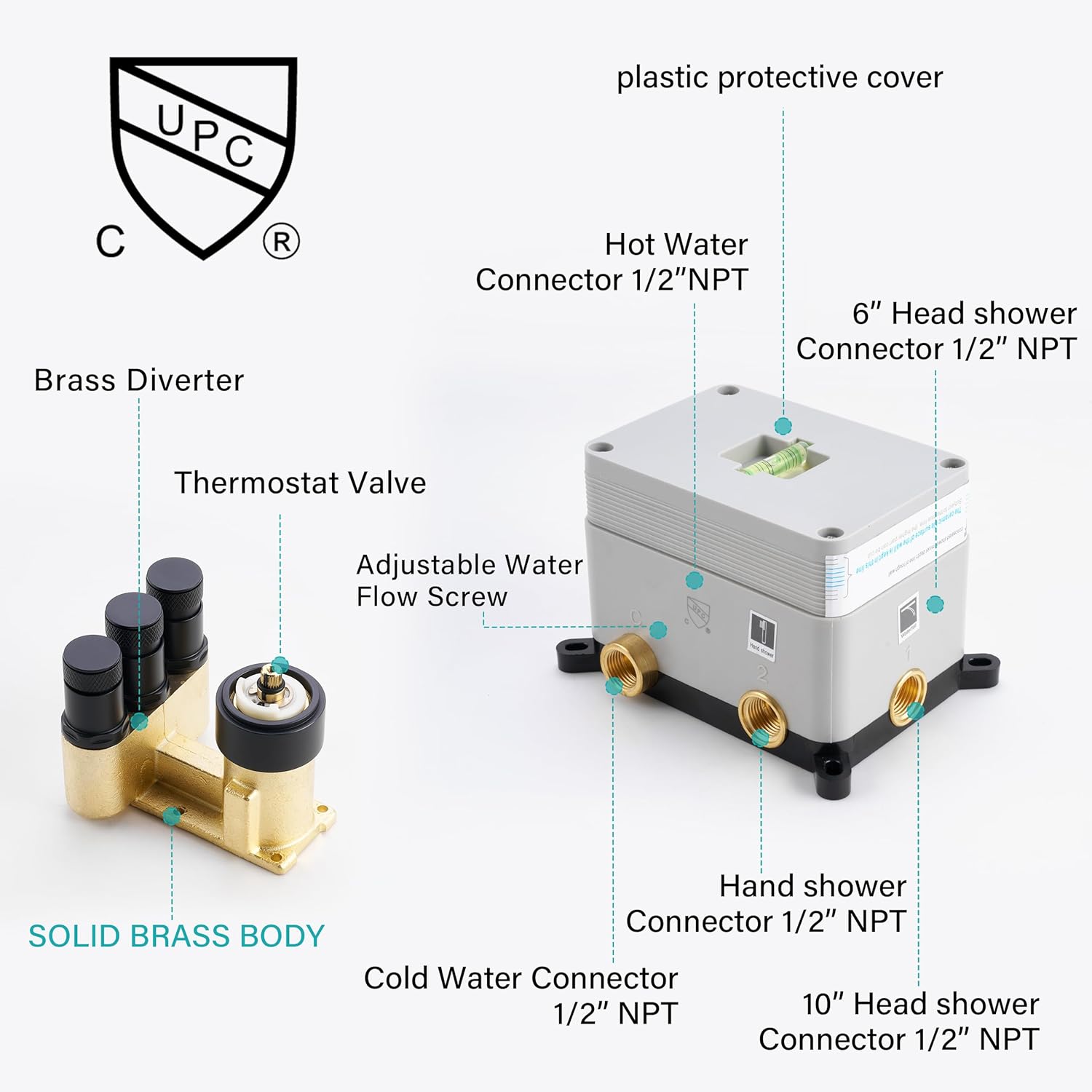

Figure 2: All components included in the WELLFOR shower system package, alongside a detailed diagram of the thermostatic valve and connection points (1/2" NPT).
3. Setup and Installation
Professional installation is recommended. Ensure water supply is turned off before installation.
- Prepare the Installation Area: Ensure the ceiling and wall are properly reinforced to support the shower system.
- Install the Thermostatic Mixing Valve: Mount the valve body securely within the wall, ensuring proper alignment for the trim plate. Connect hot and cold water lines to the designated 1/2" NPT inlets.
- Connect Shower Outputs: Connect the 1/2" NPT outlets from the valve to the ceiling mount shower arm, and hand shower hose connection.
- Install Ceiling Mount Shower Arm and Head: Secure the ceiling mount shower arm to the ceiling structure and attach the 10-inch square rainfall shower head. Ensure a watertight seal.
- Install Adjustable Sliding Bar and Hand Shower: Mount the sliding bar to the wall at a suitable height. Connect the hand shower hose to the valve outlet and the hand shower. Place the hand shower in its adjustable holder on the sliding bar.
- Install Trim Plate and Handles: Once all plumbing connections are secure and tested for leaks, install the decorative trim plate and control handles onto the thermostatic valve.
Figure 3: The 10-inch rainfall shower head can be installed as a ceiling mount (left) or wall mount (right) depending on your system configuration.
Figure 4: The adjustable slide bar allows for customization of the hand shower height and angle for various users.
4. Operating Instructions
The WELLFOR shower system features a thermostatic mixing valve and a 3-function diverter for precise control.
4.1. Temperature Control (Thermostatic Valve)
- The main knob controls the water temperature. Rotate it to adjust.
- The valve is preset to 38°C (100°F) for safety. To increase the temperature beyond 38°C, press and hold the safety override button on the knob while rotating it to the desired hotter setting.
- The thermostatic valve maintains a stable water temperature, preventing sudden changes due to pressure fluctuations.

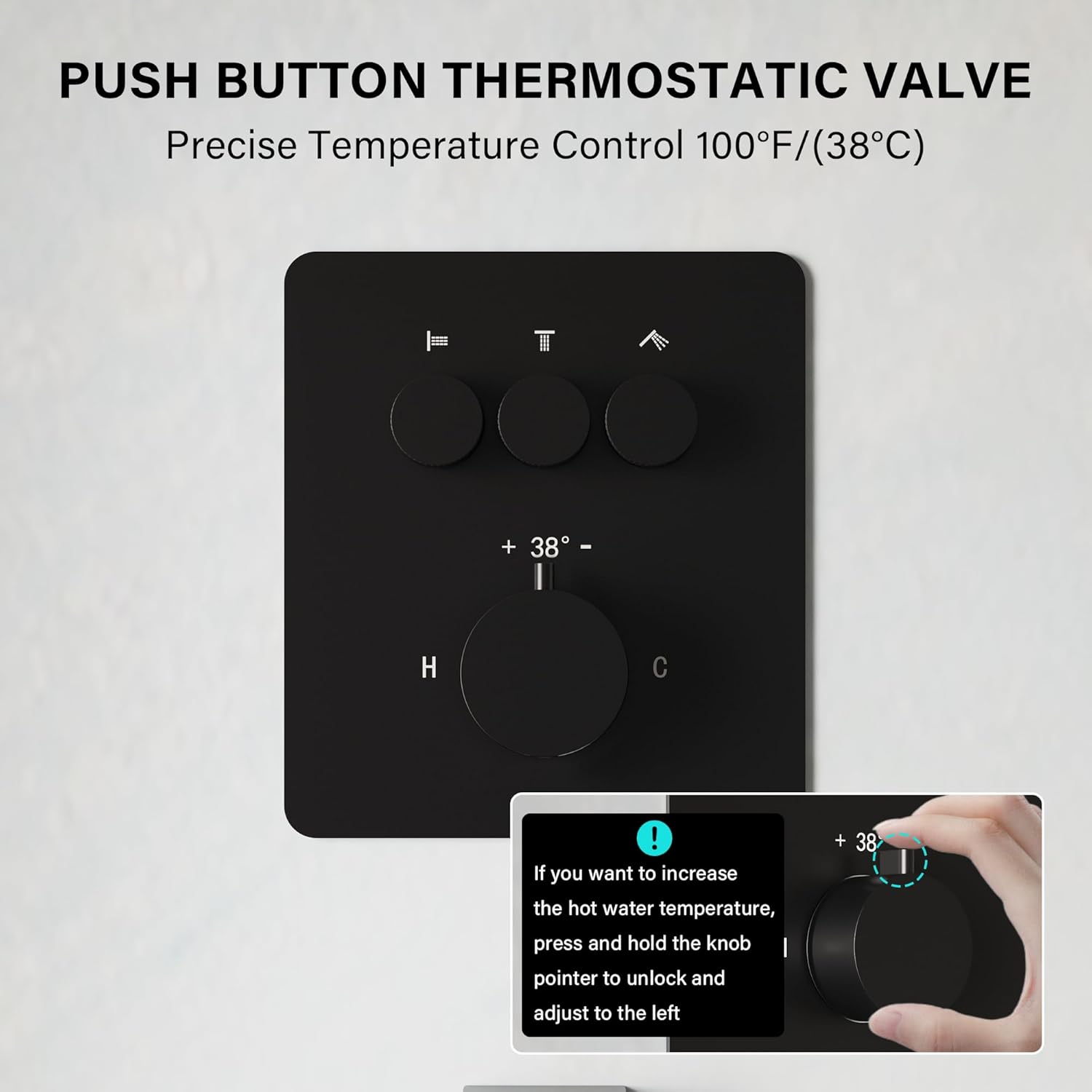

Figure 5: The thermostatic valve with a safety override button for temperature adjustment above 38°C (100°F).
4.2. Water Flow and Diverter Functions
- The three smaller knobs above the temperature control are the 3-function diverters.
- Each knob controls a specific shower outlet: Rainfall Shower, and Hand Shower.
- Rotate each knob to turn on/off or adjust the flow to the corresponding shower function. Multiple functions can be active simultaneously.
- The flow rate for each function is adjustable.
Figure 6: The 3-in-1 shower system controls allow for adjustable water flow and simultaneous operation of multiple shower functions.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your shower system.
- Cleaning: Clean the shower head, hand shower, and control panel regularly with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
- Silicone Nozzles: The rainfall shower head and hand shower feature easy-clean silicone nozzles. Periodically rub these nozzles to dislodge any mineral buildup and maintain consistent water flow.
- Thermostatic Valve: If temperature consistency issues arise, consult a professional plumber to inspect the thermostatic cartridge for mineral buildup or wear.
Figure 7: The shower head features easy-clean silicone nozzles for simple maintenance and prevention of mineral buildup.
6. Troubleshooting
Refer to the following common issues and solutions. For problems not listed, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged nozzles, low water pressure, or debris in the valve. | Clean silicone nozzles. Check household water pressure. Inspect valve for debris (professional assistance recommended). |
| Inconsistent Water Temperature | Thermostatic valve issue, hot/cold water supply imbalance. | Ensure hot and cold water supplies are stable. If issue persists, the thermostatic cartridge may need inspection or replacement (professional assistance recommended). |
| Leaks from Connections | Loose connections, damaged seals, or improper installation. | Turn off water supply. Inspect and tighten all connections. Replace any damaged seals or O-rings. Re-apply plumber's tape or sealant if necessary. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | WF-S3805 |
| Brand | WELLFOR |
| Color | Matte Black |
| Material | Brass, Stainless Steel |
| Finish Type | Matte Black |
| Number of Handles | 1 |
| Mounting Type | Ceiling Mount |
| Shower Head Size | 10 inches (Square) |
| Valve Type | Thermostatic Mixing Valve with Pressure Balance |
| Diverter Functions | 3-function |
| Connection Size | 1/2" NPT |
| Item Weight | 18.4 Pounds |
| Product Dimensions | 14.56 x 7.48 x 29.52 inches (Valve body, etc.) |
Figure 8: Dimensional drawing of the shower system components, including the valve, sliding bar, and shower heads.
8. Warranty and Support
WELLFOR products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical assistance, replacement parts, or warranty claims, please contact WELLFOR customer service. Contact information can typically be found on the WELLFOR website or on the packaging materials.
Manufacturer: WELLFOR
